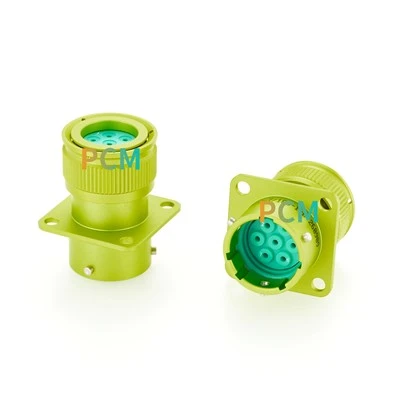

Premier Cable ZH23 7 Pin Circular Bayonet Connector is a newly developed high-reliability circular connector designed for industrial electrical connection applications.

The product includes three compatible part numbers:

• Premier Cable P/N: ZH23-7-18P-6-B
• Russian P/N: СНЦ23-7-18P-6-B
• English P/N: STNS23-7-18P-6-B

This ZH23 series connector features a shell size 18 metal housing, 7 female socket contacts, straight tail attachment and solder termination design.

The bayonet coupling mechanism provides quick mating and secure locking, helping maintain stable electrical performance under vibration, mechanical stress and repeated maintenance conditions.

In industrial environments, equipment is often exposed to mechanical vibration, frequent mating cycles, dust, and long-term operation, which may cause connection instability when using standard connectors.

The ZH23 Series connector adopts a rugged metal shell structure, reliable bayonet quick-locking mechanism, and fixed tail attachment design to improve mechanical stability and connection reliability while simplifying installation, maintenance, and replacement.

Therefore, ZH23-7-18P-6-B is especially suitable for industrial equipment connections, replacement applications for legacy Russian СНЦ23 series connectors, and OEM equipment integration solutions.

ZH23-7-18P-6-B is a circular bayonet industrial connector.

Its main structure includes:

• Circular metal shell;
• 7 female contacts;
• Bayonet quick-lock coupling;
• Straight tail attachment;
• Solder termination.

This design is suitable for industrial environments requiring secure mechanical locking and stable electrical connection.
