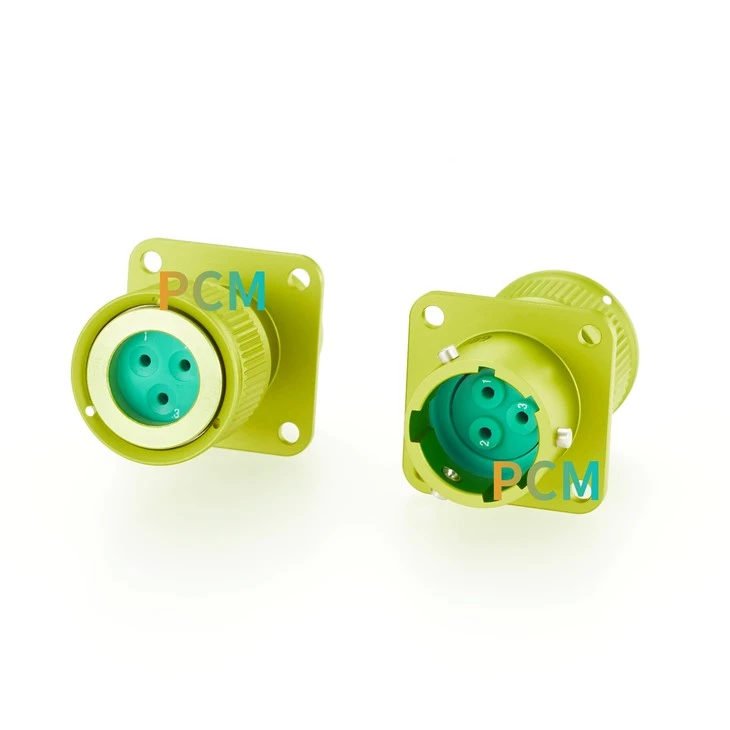

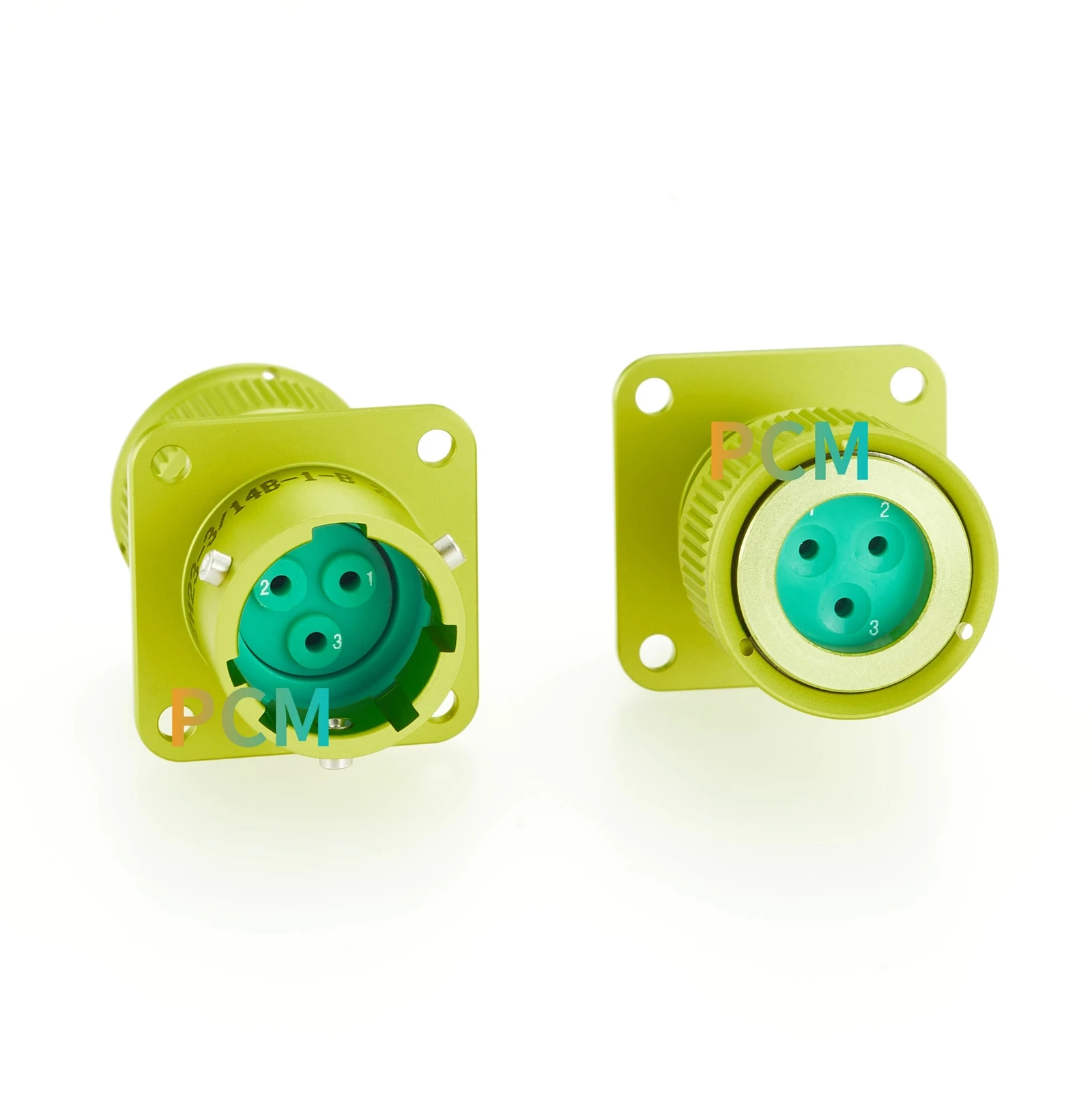

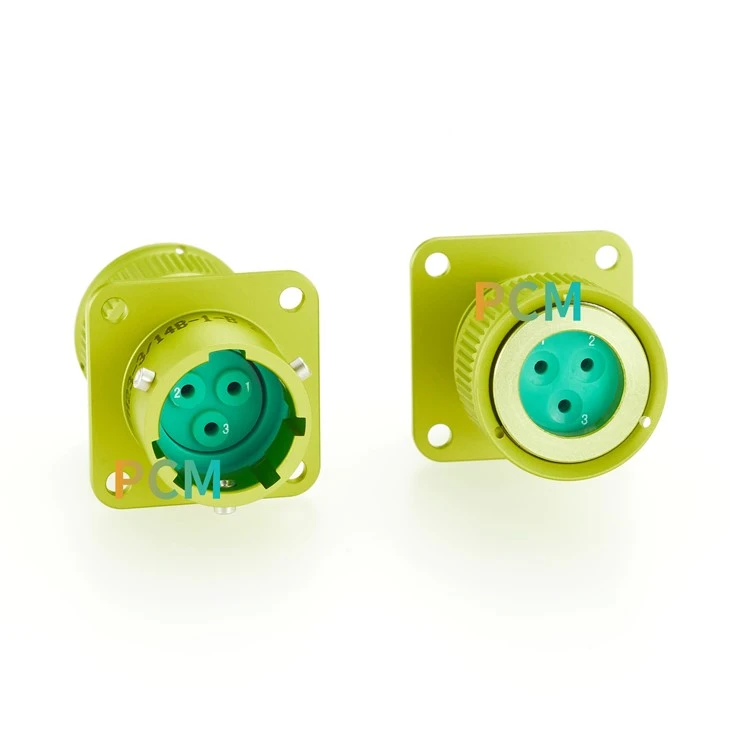

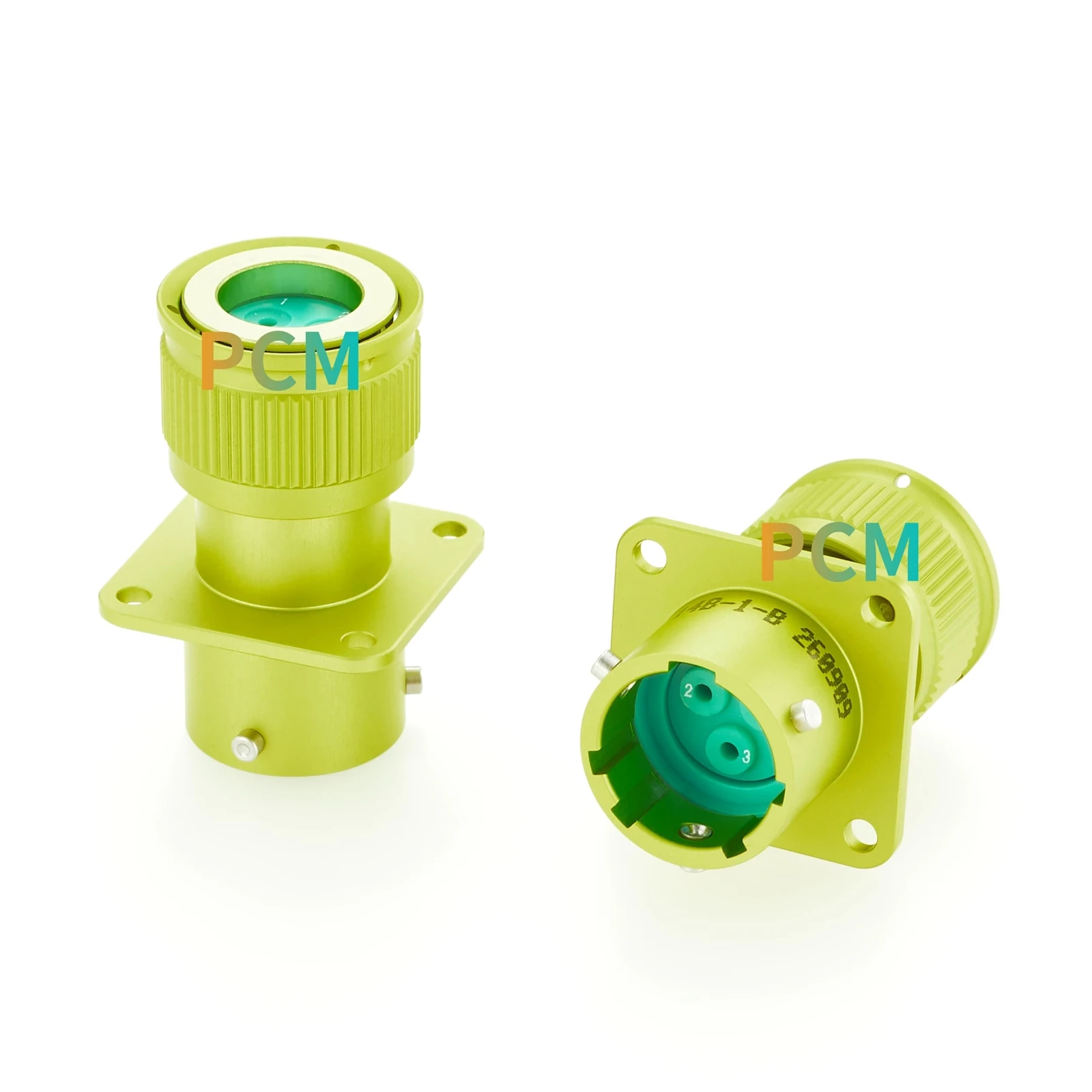

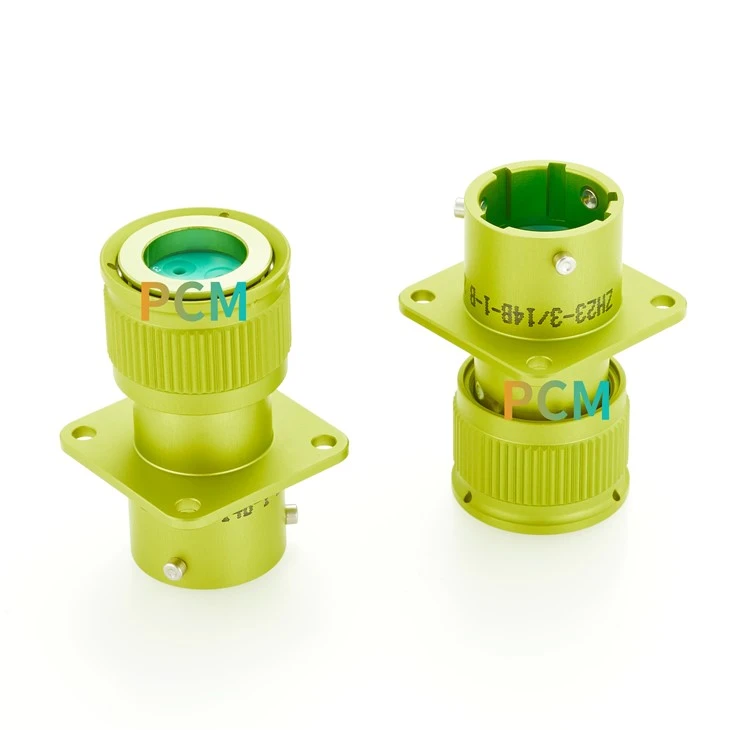

Premier Cable introduces the newly developed ZH23-3/14B-1-B, a Russian-style 3-pin circular aviation connector featuring a shell size 14 housing, three approximately 1.5mm male contacts, and a bayonet coupling interface.

The ZH23 3 Pin Bayonet Circular Connector is designed to provide a mechanically secure, detachable electrical connection for industrial equipment, instrumentation, and specialized electronic systems.

Unlike conventional plastic connectors, its metal circular housing and bayonet mating structure are intended for applications requiring secure mechanical engagement. The straight panel-mount configuration allows integration into equipment enclosures, control cabinets, and electronic instruments.

This connector provides a detachable three-contact electrical interface between internal equipment wiring and external cable assemblies.

Depending on the electrical design, it can support power distribution, control circuits, or low-frequency signal transmission within the connector's verified ratings.

The panel-mounted connector remains fixed to the equipment housing, while a compatible mating cable connector can be engaged and secured through the bayonet coupling mechanism. This configuration supports equipment servicing, cable replacement, and modular system integration.

Technical Specifications

Parameter	Specification
Product Series	ZH23 / СНЦ23
Premier Cable P/N	ZH23-3/14B-1-B
Connector Configuration	Panel-Mount Plug
Contact Gender	Male
Number of Contacts	3 Pin
Shell Size	14
Contact Diameter	Φ1.5 mm
Orientation	Straight

Product Features

Three-Pin Male Contact Configuration

The connector features three individual Φ1.5mm male contacts manufactured from copper alloy with gold-plated contact surfaces. This arrangement provides three electrical contact positions for equipment-specific power, control, or signal circuits.

Bayonet Coupling Mechanism

The bayonet coupling mechanism uses an insert-and-turn mating action to secure the connector to a compatible counterpart. Its mechanical engagement helps reduce unintended separation during normal equipment operation.

Straight Panel-Mount Design

The straight panel-mount configuration incorporates a mounting flange for installation on equipment panels or enclosures. The front interface accepts a compatible mating connector, while the rear termination connects to internal equipment wiring.

OEM Customization & Wholesale Supply

Connector Configuration Customization

Premier Cable can evaluate custom ZH23 connector requirements involving contact gender, key positions, rear configurations, and mating connector selection. Russian-style connector replacement projects should begin with interface compatibility verification.

Custom Cable Assembly Integration

For OEM equipment manufacturers, custom cable assembly options can be evaluated, including wire gauge, cable length, pin assignments, termination methods, and cable identification.

Wholesale Procurement and Quality Requirements

For industrial connector wholesale and bulk purchasing projects, buyers can define order quantities, material requirements, inspection criteria, packaging specifications, and delivery batches during the quotation process.

Product FAQ

What Are the Differences Between ZH23, СНЦ23, and STNS23 ?

ZH23 is commonly used as the Chinese series designation, СНЦ23 is the Russian designation, and STNS23 is one of the English transliterations. These names refer to the corresponding connector family, but interchangeability requires verification of shell dimensions, contact arrangement, keying, and mounting configuration.

Why Does This Connector Use a Bayonet Locking Mechanism ?

The bayonet locking mechanism provides a secure connection through a simple insert-and-turn operation. It helps reduce accidental disconnection and supports convenient mating and unmating, making it suitable for industrial equipment requiring periodic maintenance and quick connections.

Is ZH23-3/14B-1-B a Male or Female Connector ?

ZH23-3/14B-1-B features three Φ1.5mm gold-plated male contacts and must mate with a compatible 3-socket female connector with matching shell dimensions, contact arrangement, and keying. Its panel-mount configuration does not change the contact gender.

Does Premier Cable Offer Custom Connectors and Wholesale Supply ?

Premier Cable offers OEM customization options for ZH23 series connectors, including male and female contact configurations, connector structures, cable lengths, wire specifications, and termination methods. Wholesale supply inquiries are also welcome, with MOQ, lead time, and customization details confirmed according to project requirements.
