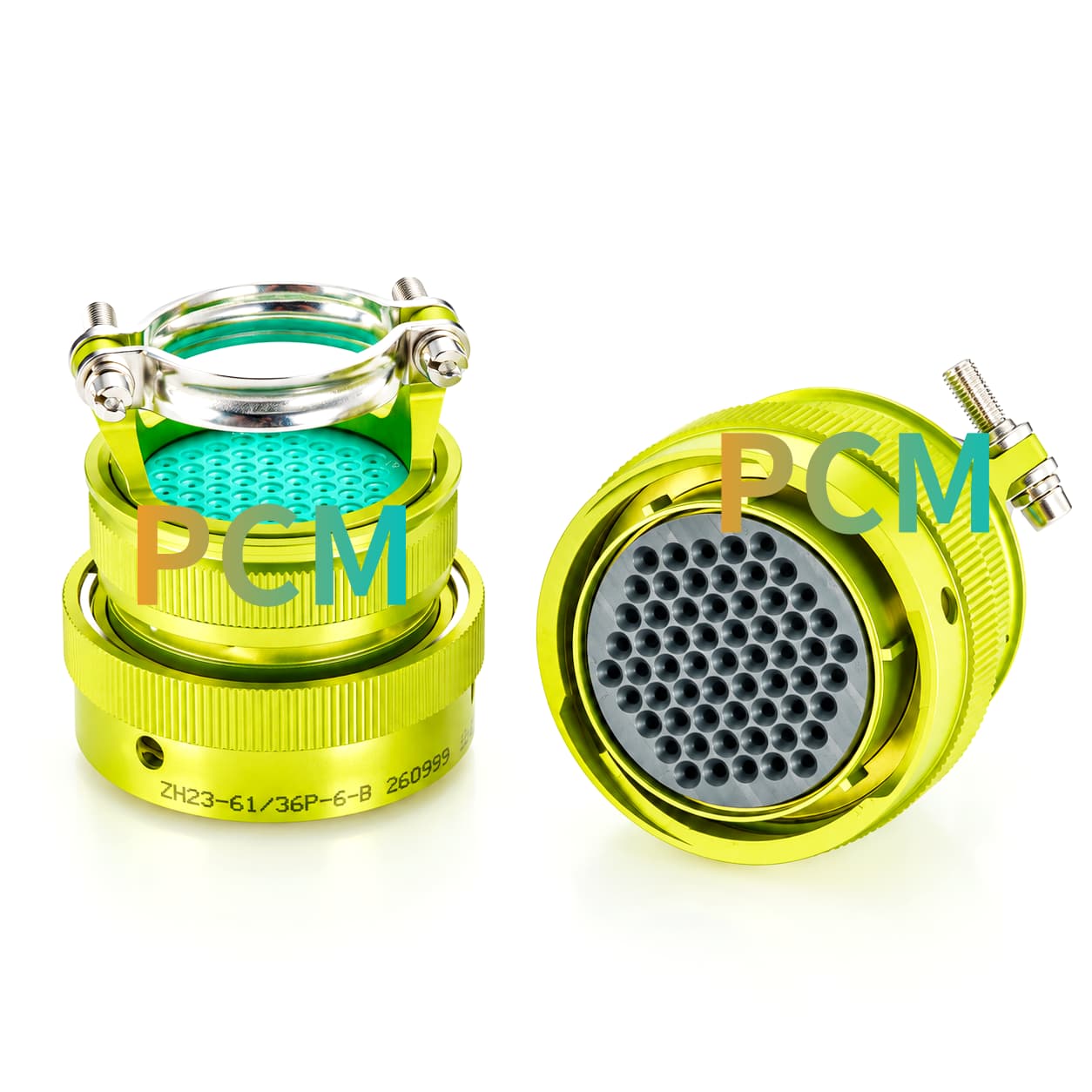

The ZH23-61-36P-6-B is a newly developed 61-contact circular electrical connector from Premier Cable's ZH23 series. It is a cable-end plug featuring a straight cable-clamp tail, a size 36 shell and female socket contacts. The connector is intended for equipment and harness projects requiring numerous electrical circuits to be organized within one assembly.

Its 61 contacts can be assigned to designated control, signal or power circuits according to an approved wiring diagram, while the straight cable-clamp tail provides a defined structure for rear cable routing and assembly. Unlike a fixed equipment-side receptacle, this model is intended primarily for the end of a cable assembly and mates with a connector featuring compatible male pin contacts and mechanical interfaces.

This connector establishes multiple electrical connections between a cable assembly and an equipment-side interface. Its 61 female socket contacts mate with corresponding male pin contacts and carry designated control, signal or power circuits according to the approved wiring diagram.

The straight cable-clamp tail provides a defined rear cable-assembly and retention structure, helping engineers coordinate cable exit direction, harness routing and rear equipment clearance. For specialized equipment with multiple circuits, a unified connector interface provides a clear reference for contact numbering, circuit assignments and harness maintenance.

Technical Specifications

Parameter	Specification
Russian Part Number	СНЦ23-61-36P-6-B
Premier Cable P/N	ZH23-61-36P-6-B
Contact Type	Socket
Number of Contacts	61 Pin
Shell Size	36

Product Features

Female Socket Contact Configuration

The P in the part number indicates female socket contacts designed to mate with corresponding male pin contacts. Contact type describes the internal contact configuration, whereas plug and receptacle identify the overall connector construction. Verify the contact type, connector configuration and mating part number together during procurement.

Straight Cable-Clamp Tail Attachment

The Type 6 configuration uses a straight cable-clamp tail, providing a defined arrangement for cable exit from the rear of the connector. This structure helps engineers plan routing around the cable exit, rear clearance and harness path.

Product Capabilities and Customization

Custom Cable Assembly Development

For projects requiring a complete interconnection solution, matching harnesses can be evaluated based on conductor specifications, cable length, opposite-end interfaces, contact assignments and wire identification. Confirm wiring diagrams, sample mating and cable-retention requirements before production to reduce assembly mismatches and wiring errors.

OEM Customization and Bulk Supply

Premier Cable can discuss part-number verification, technical documentation, sample evaluation, customization, packaging identification and bulk-supply arrangements with industrial equipment manufacturers, system integrators and purchasing teams. Customization scope, minimum order quantities, pricing and lead times depend on the product configuration and order requirements.

Product FAQ

What Type of Connector Is the ZH23-61-36P-6-B ?

The ZH23-61-36P-6-B is a newly developed 61-contact circular cable-end plug from Premier Cable's ZH23 series. It features a size 36 shell, female socket contacts and a straight cable-clamp tail for equipment and harness projects requiring multiple electrical connections.

Which Connector Should Mate With This Model ?

The female socket contacts should mate with a compatible connector featuring the corresponding male pin arrangement. Also verify the complete mating part number, contact layout, shell size, keying, coupling structure and electrical ratings.

What Is the Purpose of the Straight Cable-Clamp Tail ?

The straight cable-clamp tail provides an assembly and retention structure for cable exit from the rear of the connector. It helps with cable routing, harness planning and rear-clearance management.

Does Premier Cable Offer Custom Connectors and Matching Harnesses ?

Premier Cable can evaluate connector customization, OEM integration and cable assembly development according to project requirements. Customers can provide the mating part number, contact-layout drawing, cable length, conductor specifications and estimated order quantity for technical review. Customization scope, minimum order quantities, pricing and lead times are subject to formal confirmation.
