The connector provides a four-contact electrical interface within a defined panel mounting space. Depending on the equipment circuit design, its contacts may be assigned to suitable power or signal circuits, subject to the verified pinout and electrical ratings.
The flange supports organized panel installation, while the bayonet coupling facilitates mating, disconnection and servicing. For equipment with exposed external interfaces, the compatible protective cap helps reduce contamination and accidental contact when the connector is not in use.
Technical Specifications
| Parameter | Specification |
| Part Number | EP ZH23-4/14B-1-B |
| Series | ZH23 СНЦ23 |
| Contact Count | 4 Pin |
| Contact Type | Male Pin |
| Shell Size | 14 |
| Protective Cap | ZH23-27Y14 |
Core Performance Advantages
- Supports Standardized Panel Layouts
The fixed flange allows the connector to be installed at a designated equipment location, supporting consistent interface arrangement and maintenance-space planning. For control equipment with multiple external ports, this mounting approach can make interfaces easier to organize and identify during servicing.
- Simplifies Connector Servicing
Bayonet coupling is suitable for equipment that requires periodic disconnection and reconnection. Once the mating model, key configuration and locking requirements are verified, technicians can follow the specified engagement procedure for servicing. Actual service efficiency depends on the mating design and installation environment.
- Reduces Exposure of Unused Interfaces
The compatible ZH23-27Y14 cap covers the interface when it is not mated, helping reduce the chance of dust and foreign objects entering the connection area. This is useful during transportation, storage, installation or maintenance intervals.
Typical Applications
- Specialized Electrical Equipment
Suitable for specialized equipment requiring fixed interfaces and periodic maintenance or module replacement. Outdoor, vibration and high-humidity suitability must be assessed against verified specifications.
- Equipment Maintenance and Spare Parts
Suitable for compatible connector replacement, maintenance and spare-part sourcing. Verify contact count, shell size, contact type, key position and tail configuration before substitution.
- Testing and Measurement Instruments
The four-contact configuration can serve measuring instruments, inspection equipment and instrument panels that require multiple electrical connections.
Product FAQ
What Is the EP ZH23-4/14B-1-B Connector ?

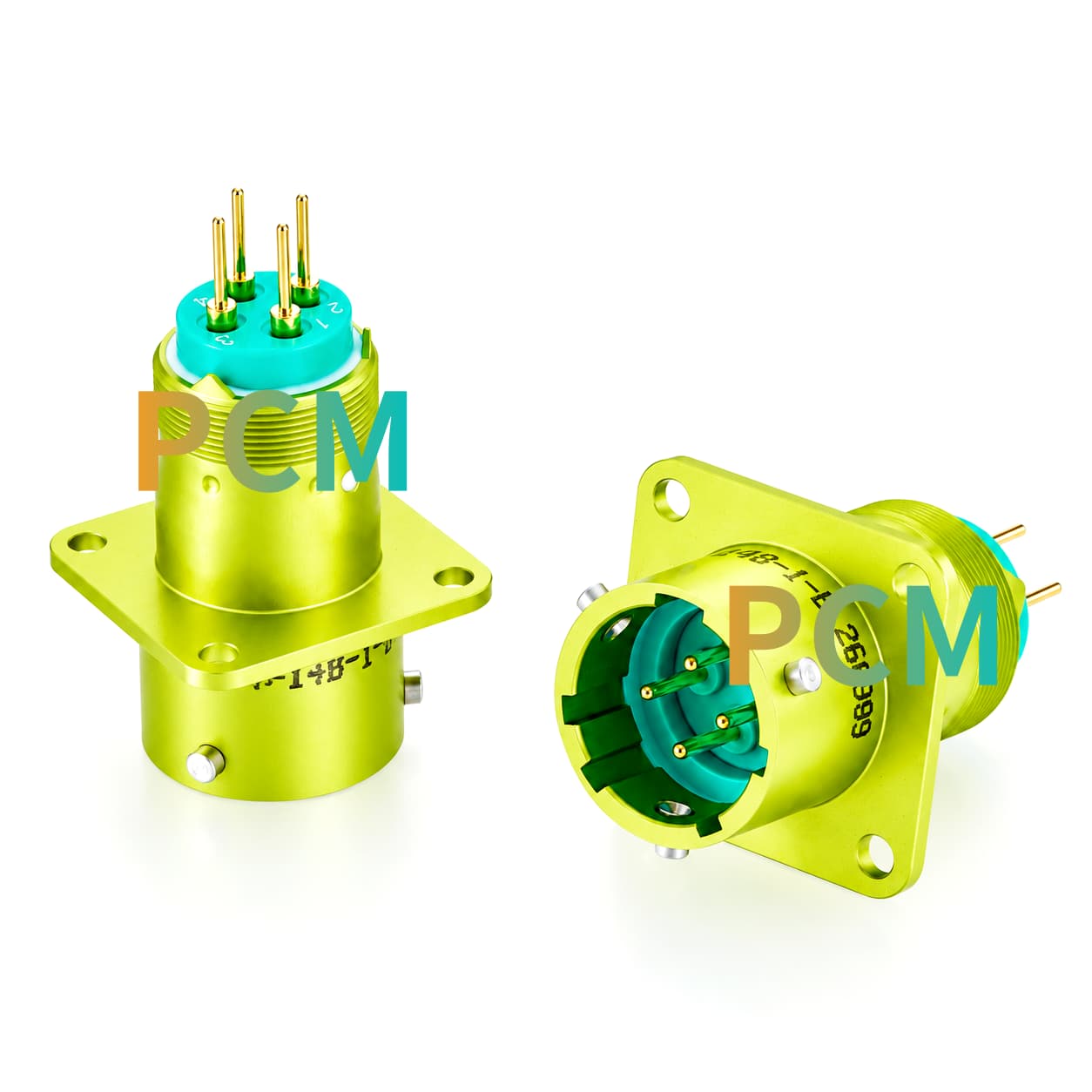

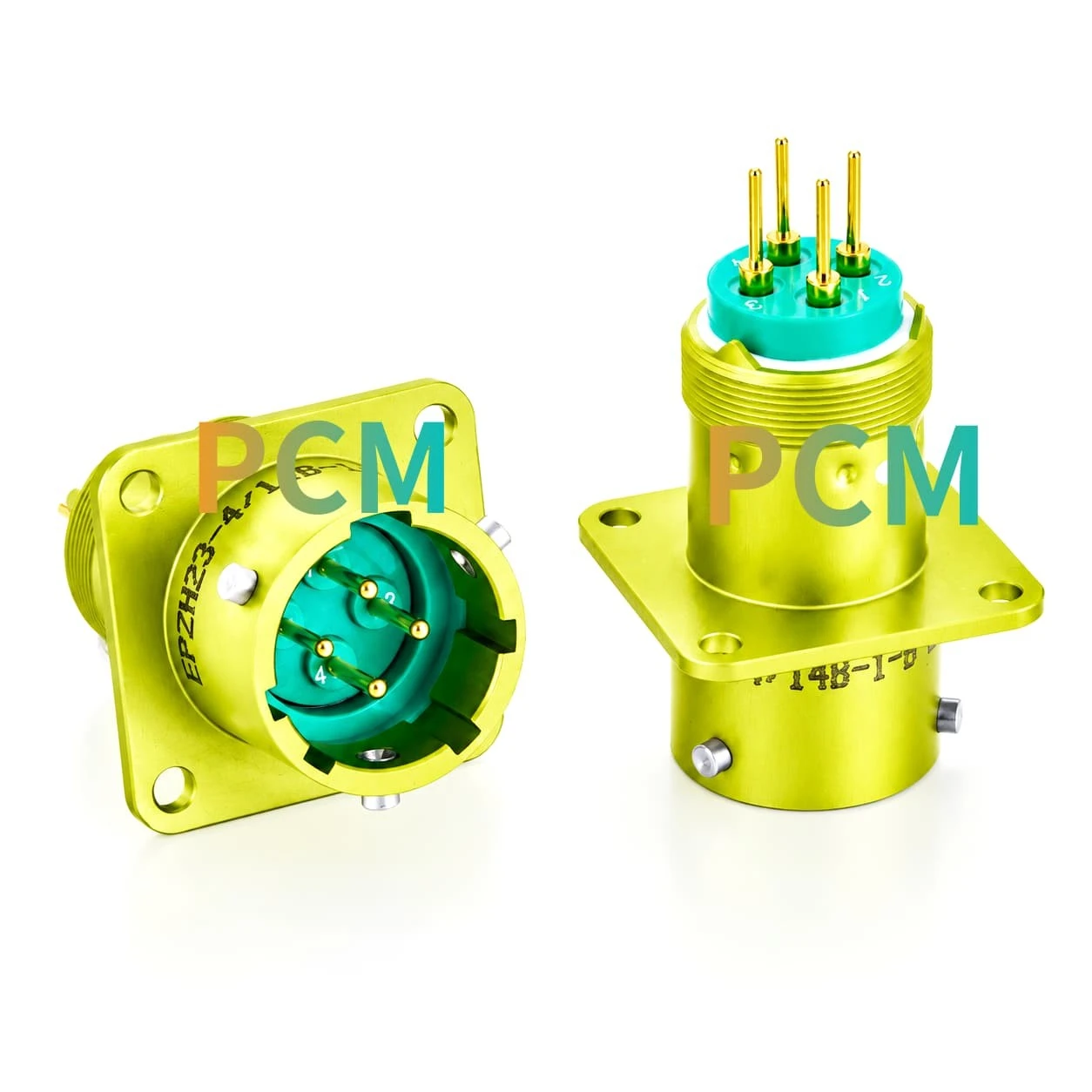

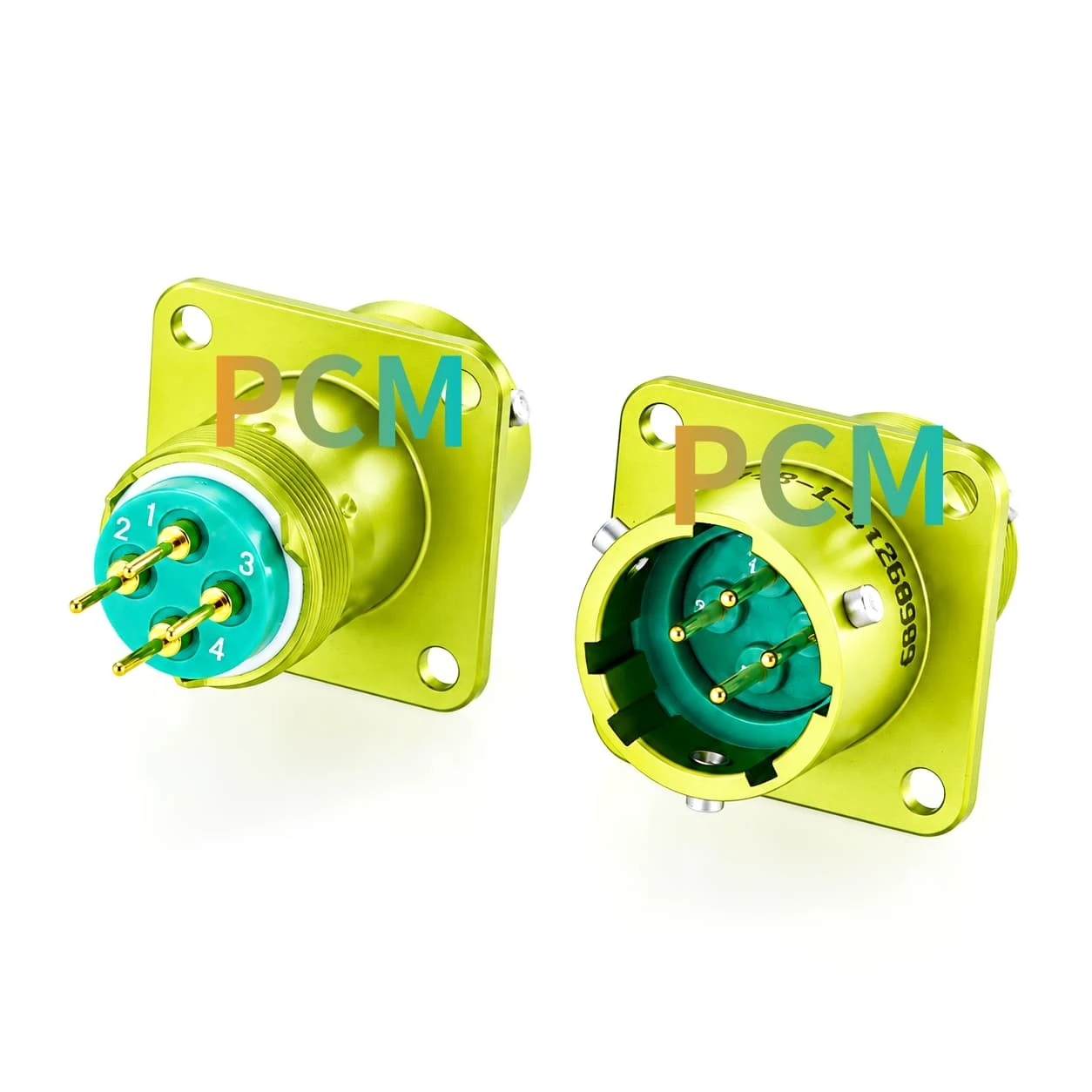

The EP ZH23-4/14B-1-B is a ZH23 series shell size 14 circular electrical connector featuring four male pin contacts, a Type 1 simple tail attachment, and a square mounting flange. It is suitable for electrical equipment requiring a fixed panel-mounted interface.
What Is the ZH23-27Y14 ?

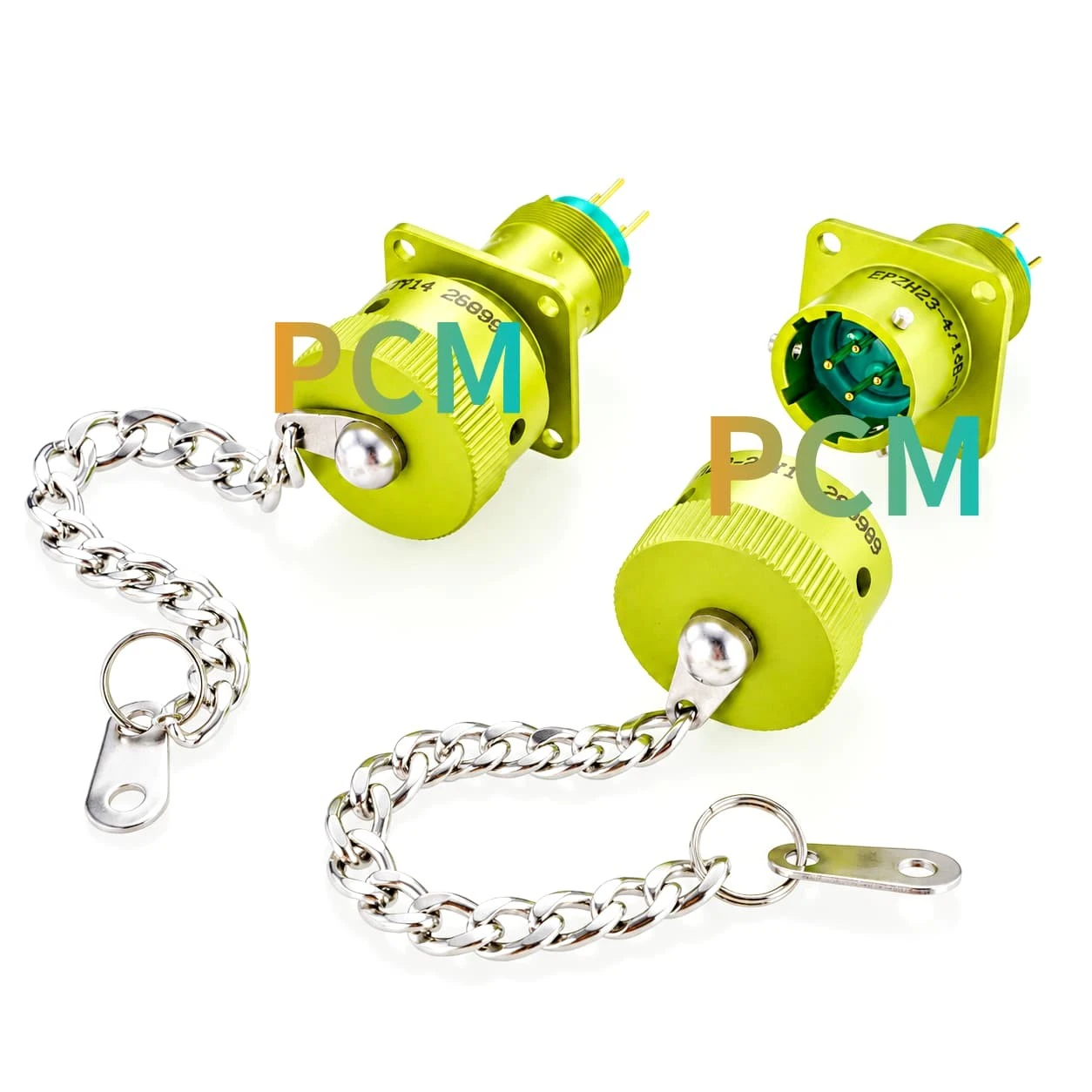

The ZH23-27Y14 is a compatible protective cap designed to cover the corresponding connector interface when it is not in use. Its metal chain and retaining ring help reduce the risk of losing the cap when removed. It is a connector accessory, not a separate electrical connector.
Does Premier Cable Offer Connector Customization and Wholesale Supply ?
Premier Cable can discuss connector selection, compatible protective caps, product labeling, packaging, and bulk purchasing solutions based on project requirements. The available OEM customization options, minimum order quantities, lead times, and quality documentation should be confirmed during project evaluation and quotation.
What Information Is Required Before Ordering ?
Please provide the complete part number, product drawing, mating connector model, operating environment, electrical requirements, order quantity, and packaging requirements. For replacement projects, photos of the existing connector, mounting dimensions, or a physical sample are also recommended to help verify compatibility.
