IP67 Waterproof H-MTD+6 Automotive Ethernet Cable Assemblies for LiDAR, ADAS and Camera Systems
Explore Rosenberger IP67 waterproof H-MTD+6 automotive Ethernet cable assemblies for LiDAR, ADAS sensors, automotive cameras, ECU communication and harsh-environment vehicle networking, including PCM-ZC-0128, PCM-ZC-0130 and PCM-ZC-0131 cable solutions.
- IP67 waterproof H-MTD+6 cable assemblies are designed for high-speed automotive Ethernet and sensor connection in harsh vehicle environments.
- These cables are suitable for LiDAR, ADAS cameras, radar modules, ECUs, domain controllers and vehicle Ethernet systems.
- PCM-ZC-0128 connects IP67 waterproof H-MTD+6 to standard H-MTD+6 with an additional H-MTD branch.
- PCM-ZC-0130 connects IP67 waterproof H-MTD+6 to H-MTD female plus 6 Pin open wire.
- PCM-ZC-0131 connects IP67 waterproof H-MTD+6 to H-MTD male plus 6 Pin open wire.
Definition: An IP67 waterproof H-MTD+6 automotive Ethernet cable assembly is a vehicle-grade high-speed cable solution that combines an H-MTD data interface with additional 6 Pin MQS contacts for power, signal or custom wiring, depending on the final pinout design.
Contents
What Is an IP67 Waterproof H-MTD+6 Automotive Ethernet Cable?
An IP67 waterproof H-MTD+6 automotive Ethernet cable assembly is designed for high-speed data transmission and auxiliary connection in vehicle environments where moisture, dust, vibration and compact routing must be considered. It combines a waterproof H-MTD interface with an additional 6 Pin MQS structure for power, signal or customer-defined wiring.
In ADAS and autonomous driving systems, LiDAR sensors, automotive cameras, radar modules and external sensing units are often installed near the roof, bumper, grille, mirror area or other exposed positions. These locations require cable assemblies with stronger environmental protection than standard interior harnesses.
The products in this article use Rosenberger H-MTD connector technology and GG 2Speed 251 automotive Ethernet cable, making them suitable for high-speed vehicle networking, sensor communication and custom power or signal integration.
Why Waterproof H-MTD+6 Is Used in LiDAR, ADAS and Camera Systems
Modern vehicle sensing systems require reliable high-speed data links between external sensors and internal control units. A waterproof H-MTD+6 cable assembly helps protect the connection while supporting compact high-speed signal routing.
Application Note: IP67 waterproof H-MTD+6 cable assemblies are especially useful when LiDAR, cameras or sensor modules are installed in areas exposed to water, dust, road vibration or outdoor operating conditions.
- High-speed automotive Ethernet communication
- Waterproof connection for external vehicle sensors
- LiDAR data and power integration
- ADAS camera and radar module connection
- ECU and domain controller communication
- Custom open-wire integration for control boards
- Industrial outdoor high-speed communication equipment
Product Selection Guide: PCM-ZC-0128, PCM-ZC-0130 and PCM-ZC-0131
Although these three products are all based on waterproof H-MTD+6 architecture, their opposite-side interfaces are different. Buyers should select the correct version according to connector gender, open-wire requirements and vehicle-side wiring design.
| Model | Cable Structure | Best Use |
|---|---|---|
| PCM-ZC-0128 | IP67 Waterproof H-MTD+6 Female to standard H-MTD+6 Female with single H-MTD Female branch | Waterproof to standard interface conversion with additional H-MTD branch |
| PCM-ZC-0130 | IP67 Waterproof H-MTD+6 Female to H-MTD Female plus 6 Pin open wire | Female H-MTD output and flexible open-wire integration |
| PCM-ZC-0131 | IP67 Waterproof H-MTD+6 Female to H-MTD Male plus 6 Pin open wire | Male H-MTD output and custom power or signal wiring |
Selection Note: Choose PCM-ZC-0128 when both waterproof and standard H-MTD+6 interfaces are required. Choose PCM-ZC-0130 when the downstream H-MTD interface must be female. Choose PCM-ZC-0131 when the downstream H-MTD interface must be male.
Waterproof H-MTD+6 Cable Assembly Options
Each product below is shown as a separate cable solution instead of being placed in one dense product grid. This layout is easier to read and gives buyers enough context to understand the connector structure before viewing the product images.
IP67 Waterproof H-MTD+6 to Standard H-MTD+6 with H-MTD Branch

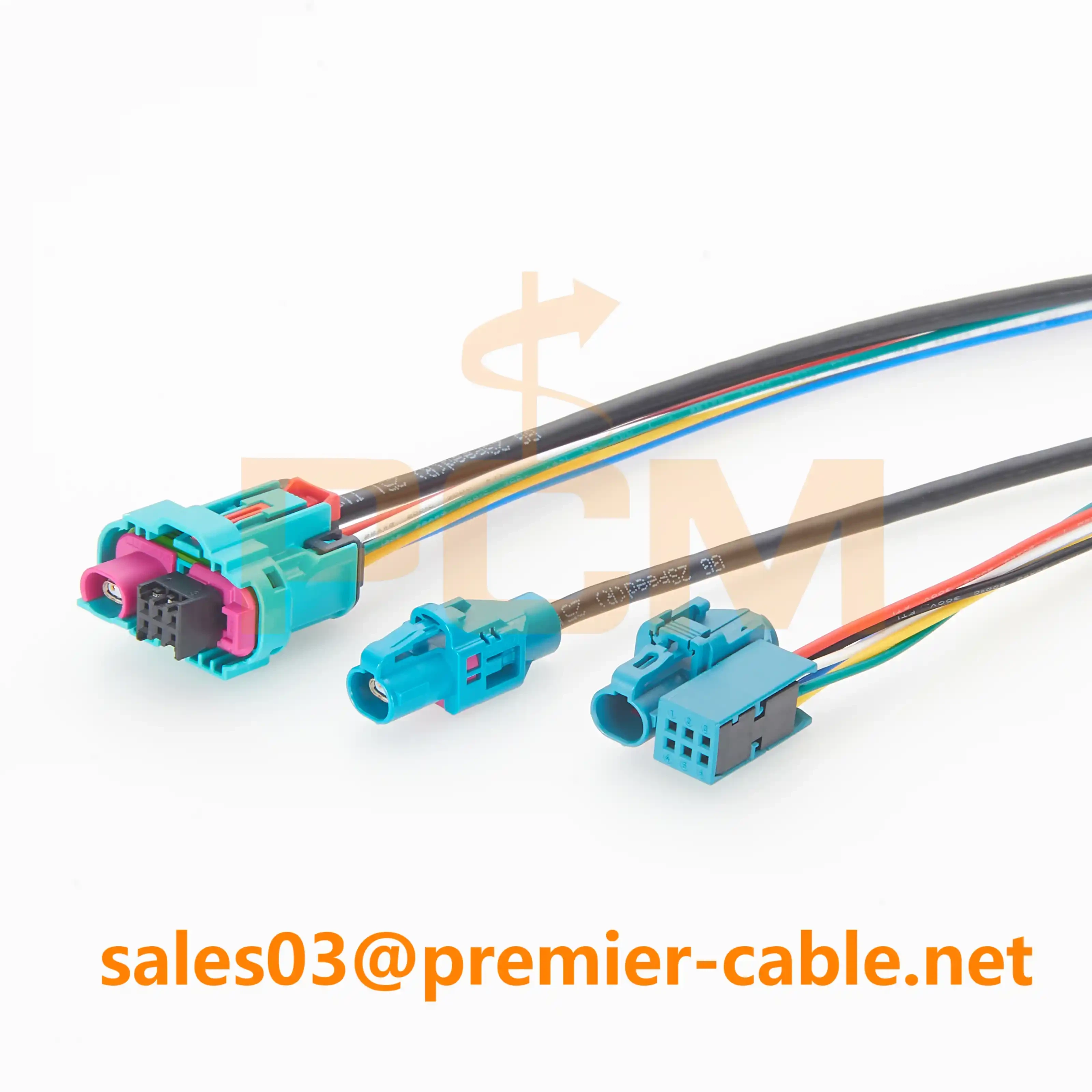

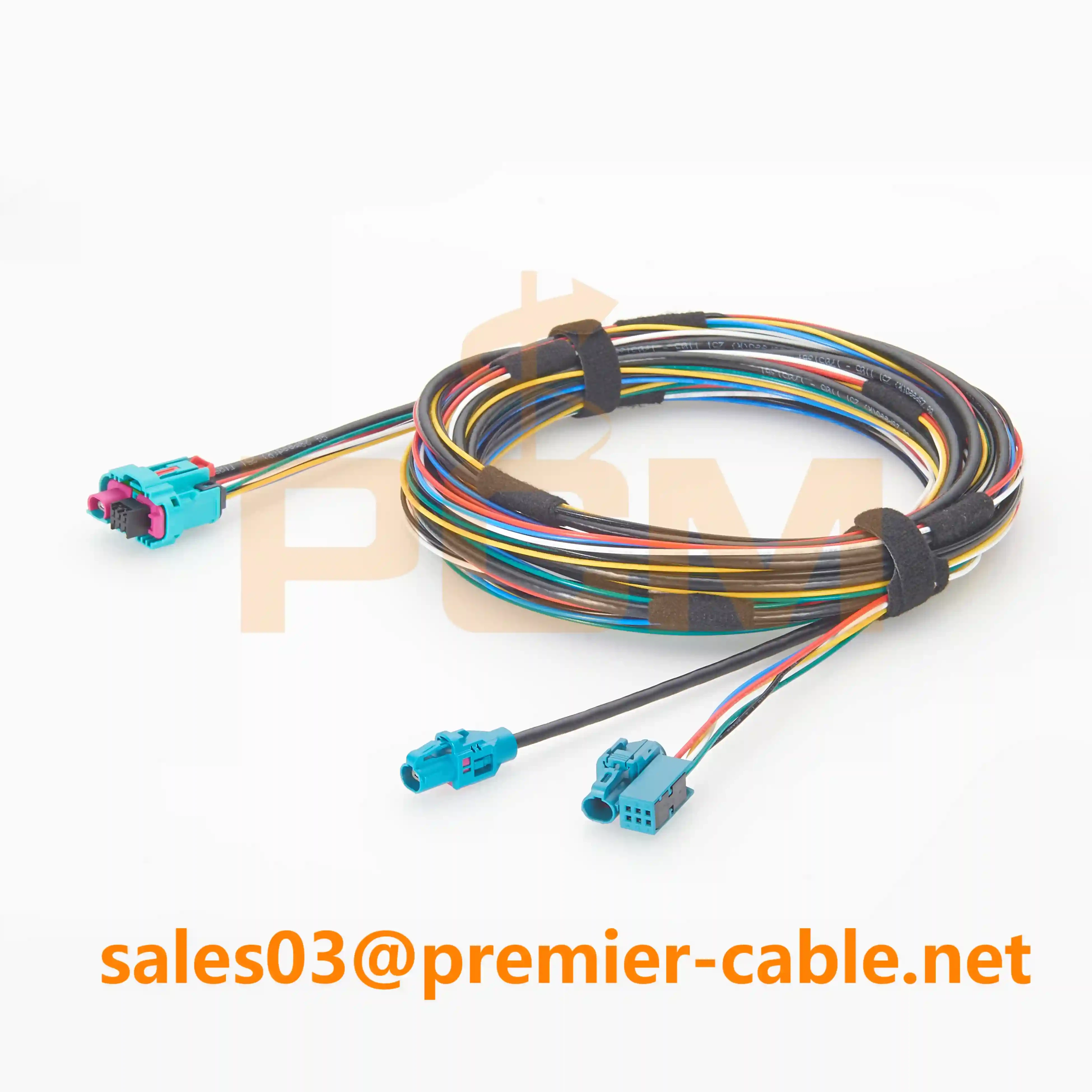

PCM-ZC-0128 is suitable for waterproof-to-standard H-MTD+6 interface conversion where an additional single H-MTD female branch is required for vehicle Ethernet or sensor connection.
PCM-ZC-0128 Product Image
PCM-ZC-0128 Product Image
IP67 Waterproof H-MTD+6 to H-MTD Female with 6 Pin Open Wire

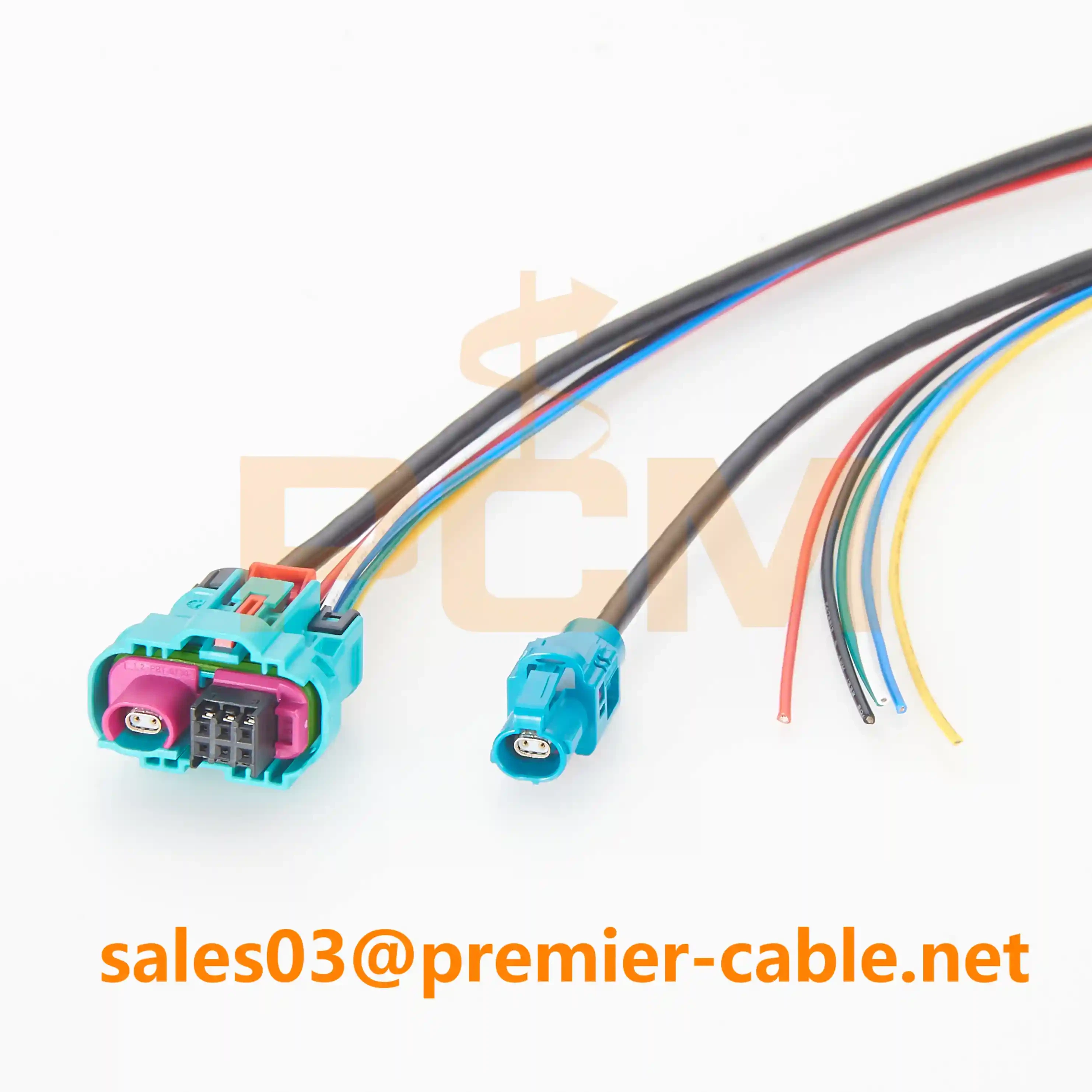

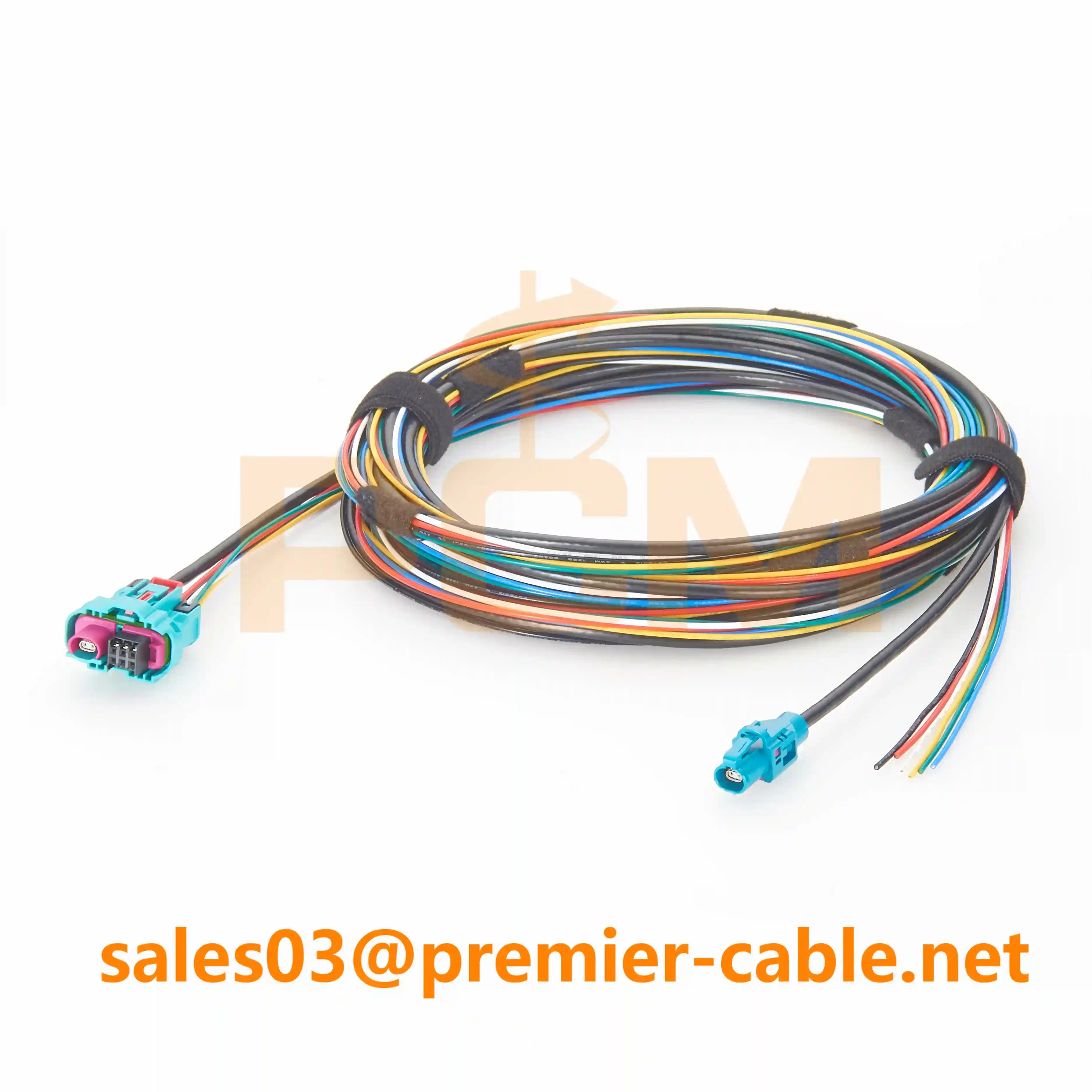

PCM-ZC-0130 is designed for projects requiring a waterproof H-MTD+6 input, an H-MTD female output and a 6 Pin open-wire end for custom power, signal or controller-board integration.
PCM-ZC-0130 Product Image
PCM-ZC-0130 Product Image
IP67 Waterproof H-MTD+6 to H-MTD Male with 6 Pin Open Wire

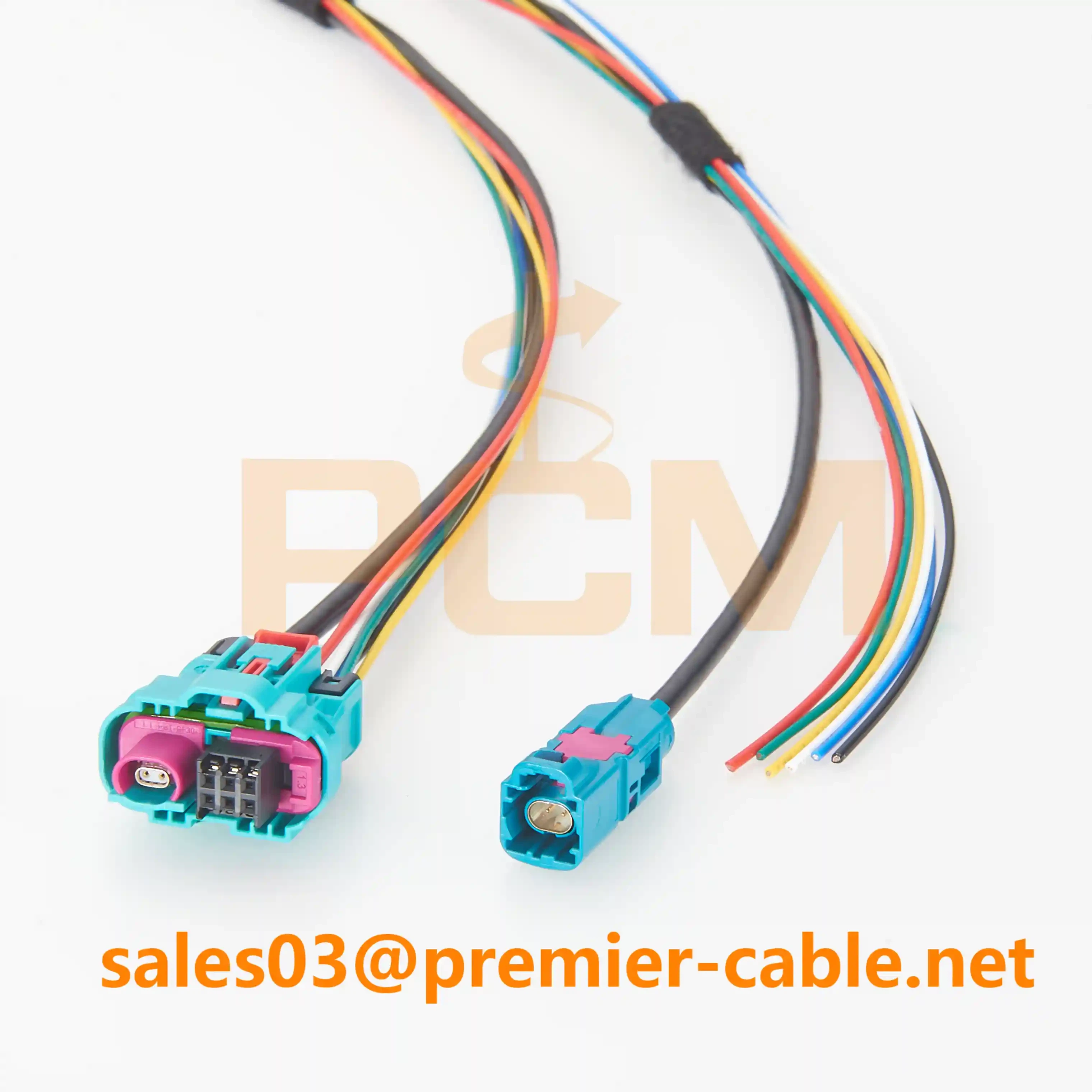

PCM-ZC-0131 is suitable when the downstream device requires an H-MTD male plug connection while the MQS open-wire end is used for custom power or signal wiring.
PCM-ZC-0131 Product Image
PCM-ZC-0131 Product Image
How to Choose the Right Waterproof H-MTD+6 Cable Assembly
- Confirm whether IP67 protection is required: Use waterproof H-MTD+6 when the connector is exposed to moisture, dust or outdoor vehicle conditions.
- Check connector gender: PCM-ZC-0130 uses H-MTD female output, while PCM-ZC-0131 uses H-MTD male output.
- Decide whether open wire is needed: Open-wire versions are suitable for custom controller boards, power distribution or internal device wiring.
- Confirm MQS pin assignment: Power and signal definitions should be confirmed according to the customer's electrical design.
- Specify length and routing environment: Cable length, jacket material, shielding, labeling and packaging can be customized for project requirements.
Typical Applications
Waterproof H-MTD+6 automotive Ethernet cable assemblies are used in intelligent vehicle platforms where external sensors need reliable high-speed data transmission and protected connector interfaces.
LiDAR Systems
Used for waterproof high-speed connection between LiDAR modules and vehicle control units.
ADAS Cameras
Suitable for front cameras, surround-view cameras, side cameras and external sensing modules.
ECU and Domain Controllers
Supports communication between sensors, ECUs, domain controllers and automotive Ethernet devices.
- Automotive Ethernet networks
- LiDAR high-speed data and power connection
- ADAS camera systems
- Radar and external sensor modules
- ECU and domain controller communication
- Autonomous driving platforms
- Industrial outdoor high-speed communication equipment
Frequently Asked Questions
What does H-MTD+6 mean?
H-MTD+6 usually refers to an H-MTD high-speed data interface combined with an additional 6 Pin MQS contact structure. The MQS contacts can be used for power, signal or custom wiring depending on the cable design.
Is every H-MTD+6 cable waterproof?
No. Waterproof protection depends on the connector design. PCM-ZC-0128, PCM-ZC-0130 and PCM-ZC-0131 use IP67 waterproof H-MTD+6 connector structures.
What is the difference between PCM-ZC-0130 and PCM-ZC-0131?
PCM-ZC-0130 uses an H-MTD female connector on the opposite side, while PCM-ZC-0131 uses an H-MTD male connector. Both versions include a 6 Pin open-wire end for custom integration.
Can the open-wire pinout be customized?
Yes. MQS pin assignment, wire gauge, cable length, shielding, label and packaging can be customized according to customer electrical and mechanical requirements.
Which applications need IP67 waterproof H-MTD+6 cable assemblies?
They are commonly used in LiDAR, ADAS cameras, radar modules, external sensors, vehicle Ethernet networks and industrial outdoor communication equipment.
Need IP67 Waterproof H-MTD+6 Cable Assemblies for Your Project?
If you are developing LiDAR, ADAS camera, radar, ECU, domain controller or automotive Ethernet systems, Premier Cable can provide waterproof H-MTD+6 cable assemblies based on Rosenberger connector platforms.
- PCM-ZC-0128 IP67 Waterproof H-MTD+6 to H-MTD+6 and H-MTD branch cable
- PCM-ZC-0130 IP67 Waterproof H-MTD+6 to H-MTD female and 6 Pin open wire cable
- PCM-ZC-0131 IP67 Waterproof H-MTD+6 to H-MTD male and 6 Pin open wire cable
- Custom cable length, pinout, connector type, shielding, jacket material and packaging available
Source Waterproof H-MTD+6 Automotive Ethernet Cable Assemblies
Premier Cable supplies automotive high-speed cable assemblies for LiDAR, ADAS cameras, radar modules, ECUs, domain controllers, automotive Ethernet and autonomous driving platforms. Standard and custom cable assemblies are available.
