Products Description
HPDB100 To HPDB68 Cable
This Advantech compatible PCL-10268 HPDB100 to HPDB68 cable is designed for industrial data acquisition, motion control, and automation systems. Featuring an HPDB100 connector at one end and an HPDB68 connector at the other, it ensures a stable connection between data acquisition cards and I/O modules, terminal boards, or test equipment. Constructed with high-quality conductors and a multi-layer shielding structure, the cable effectively minimizes electromagnetic interference (EMI) and signal crosstalk, guaranteeing high-speed, precise signal transmission. PCM-S-0763 is widely used in Advantech PCL series data acquisition systems, industrial PCs, PLC control systems, machine vision, automated production lines, and test and measurement equipment.
Specification
| Product Name | HPDB100 To HPDB68 Cable |
| Part No. | PCM-S-0763 |
|
Connector A |
HPDB 100Pin Male |
| Connector B | HPDB 68Pin Male |
| OD | 8.0mm |
| Wire | 28AWG*25P+ADB |
|
Cable Length |
OEM |
| Compatible with |
Adavantech PCL-10268-1E Adavantech PCL-10268-2E Adavantech PCL-10268-3E |
Applications
△ Compatible with Advantech PCL-10268: Serves as a direct replacement for the original cable; compatible with Advantech data acquisition cards and related equipment.
△ HPDB100 to HPDB68 Interface Design: Enables stable, high-efficiency signal connectivity between HPDB100 and HPDB68 devices.
△ Highly Reliable Contact Performance: Precision-engineered connectors ensure secure mating, minimizing poor contact and signal loss.
△ Customizable Cable Lengths: Available in various lengths and specifications to meet diverse installation requirements.
△ Plug-and-Play: Allows for quick connection to data acquisition cards, terminal boards, and I/O modules without additional configuration.

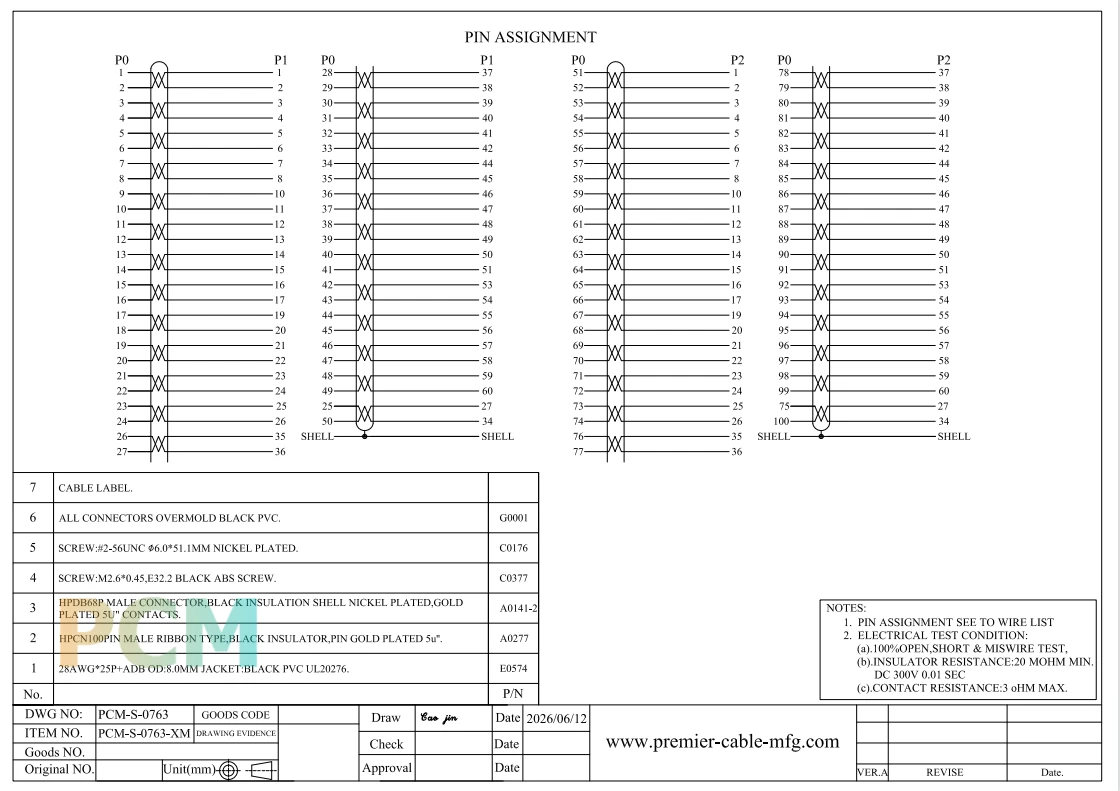

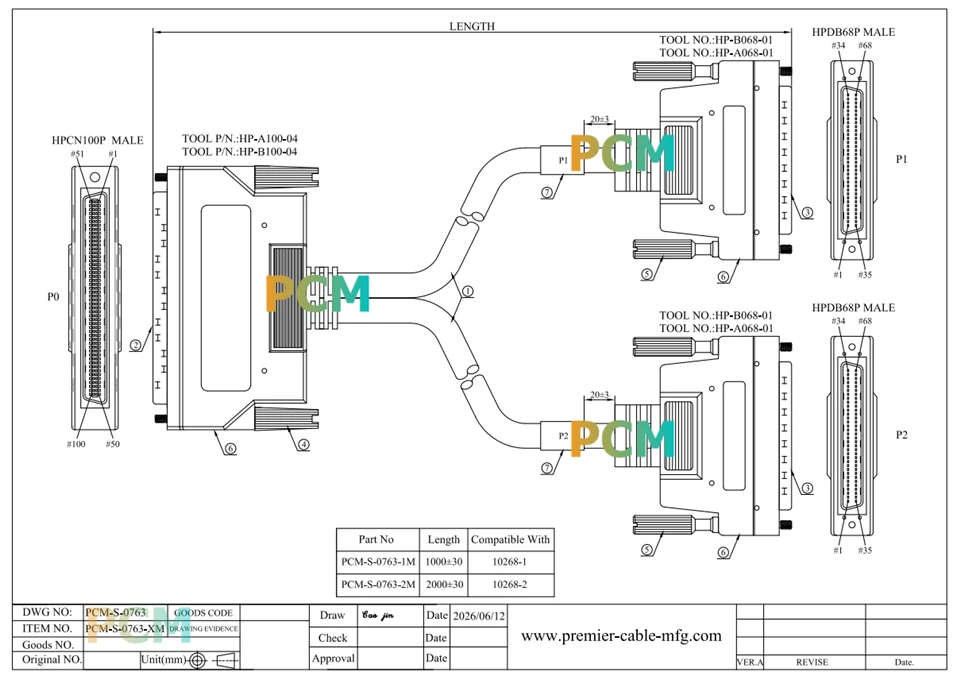

Drawing
