Products Description
M12 X-Coded Industrial Ethernet Drag Chain Cable
M12 X-Coded Jack to Plug | PROFINET Type C | 8-Pin | Shielded PUR | Drag Chain

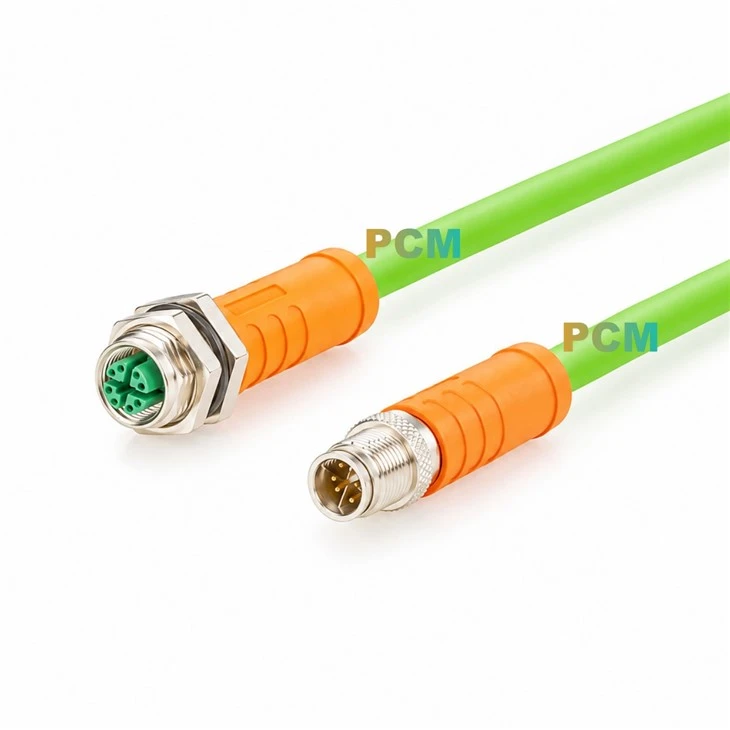

The M12 X-coded industrial Ethernet drag chain cable combines a straight M12 X-coded jack with a straight M12 X-coded plug for reliable network connections between compatible industrial Ethernet devices. The 8-pin male-to-female cable assembly is designed for PROFINET networks, machine control systems, robotics, industrial computers, machine vision equipment and automated production systems.
Built with a highly flexible PROFINET 4 × 2 × AWG26/19 Type C cable, this M12 X-coded Ethernet cable is especially suitable for drag chains and continuously moving machine components. The PUR outer jacket is halogen-free, flame-retardant, oil-resistant and abrasion-resistant, providing durable performance in demanding industrial environments.
High-quality shielding supports reliable high-speed data transmission in electromagnetically stressed areas. Additional cable properties include UV resistance, ozone resistance, LABS-free construction and RoHS compliance. Standard cable lengths are 1 m, 2 m, 5 m and 10 m, while Premier Cable can provide custom M12 X-coded PROFINET cable lengths for OEM and industrial automation projects.
Product Specifications
Item |
Specification |
|---|---|
| Product Name | M12 X-Coded Industrial Ethernet Drag Chain Cable |
| Connector A | M12 X-Coded Jack, Straight |
| Connector B | M12 X-Coded Plug, Straight |
| Connector Configuration | M12 X-Coded Jack to M12 X-Coded Plug |
| Connector Orientation | Straight to Straight |
| M12 Coding | X-Coded |
| Connector Gender | Female (Jack) to Male (Plug) |
| Number of Contacts | 8 Pin |
| Cable Type | PROFINET Type C Highly Flexible Data Cable |

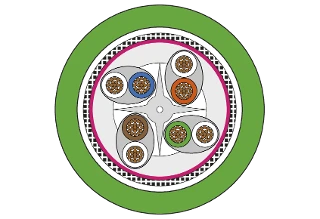

| Cable Construction | 4 × 2 × AWG26/19 |
| Transmission Category | Cat 6 |
| Cable Jacket | PUR |
| Shielding | High-Quality Shielded Construction |
| Network Application | PROFINET / Industrial Ethernet |
| Flexibility | Highly Flexible |
| Compliance | RoHS Compliant |
| Installation Environment | Dry and Humid Industrial Rooms |
| Standard Lengths | 1.0 m / 2.0 m / 5.0 m / 10.0 m |
| Custom Lengths | Available on Request |
| Typical Applications | Machine Control, Robotics, PLCs, Machine Vision, Industrial Computers, Drag Chains & Automated Handling Systems |
Key Product Advantages
M12 X-Coded Connection
Straight 8-pin M12 X-coded jack-to-plug configuration provides a reliable industrial Ethernet connection between compatible X-coded network devices.
Highly Flexible Drag Chain Design
The M12 X-coded drag chain cable uses highly flexible 4 × 2 × AWG26/19 construction for continuous movement in robotics and automated machinery.
Shielded PUR Construction
High-quality shielding and a durable PUR jacket support reliable data transmission while providing resistance to oil, abrasion, UV and ozone.
What Is an M12 X-Coded Drag Chain Ethernet Cable?
An M12 X-coded drag chain Ethernet cable combines an 8-pin industrial Ethernet interface with a highly flexible cable designed for repeated movement. This product uses a straight M12 X-coded jack and a straight M12 X-coded plug with PROFINET Type C 4 × 2 × AWG26/19 cable. Its shielded PUR construction makes it suitable for industrial robots, cable carriers, moving machine assemblies and automated systems requiring reliable data transmission under continuous mechanical movement.
Pin Assignment & Wiring
M12 X-Coded Plug to M12 X-Coded Jack
According to the supplied wiring drawing, all eight conductors are connected straight through from the M12 X-coded plug to the M12 X-coded jack. Each conductor maintains the same pin number at both ends.
| M12 Plug Pin | Wire Color | M12 Jack Pin | Connection |
| Pin 1 | White/Orange | Pin 1 | 1 → 1 |
| Pin 2 | Orange | Pin 2 | 2 → 2 |
| Pin 3 | White/Green | Pin 3 | 3 → 3 |
| Pin 4 | Green | Pin 4 | 4 → 4 |
| Pin 5 | White/Brown | Pin 5 | 5 → 5 |
| Pin 6 | Brown | Pin 6 | 6 → 6 |
| Pin 7 | White/Blue | Pin 7 | 7 → 7 |
| Pin 8 | Blue | Pin 8 | 8 → 8 |
The pin assignment above follows the supplied product wiring drawing. The mating interface and pin assignment should be confirmed against the target equipment before production or installation.
Mating & Compatibility
M12 X-Coded Industrial Ethernet Interfaces
This M12 X-coded male to female Ethernet cable is designed for compatible equipment using M12 X-coded Ethernet interfaces. The straight jack-to-plug configuration provides a practical connection between industrial controllers, machine vision devices, industrial computers, robotic equipment and other compatible network devices.
| Cable Side | Configuration |
| Connector P1 | M12 X-Coded Jack, Straight |
| Connector P2 | M12 X-Coded Plug, Straight |
| Contacts | 8 Pin |
| Cable | PROFINET Type C, 4 × 2 × AWG26/19, PUR |
| Network Application | PROFINET / Industrial Ethernet |
| Typical Equipment | Controllers, PLCs, Machine Vision Equipment, Industrial Computers, Robotics & Compatible M12 X-Coded Devices |
Before ordering, confirm the M12 X-coding, connector gender, mating interface, pin assignment, required cable length and motion requirements. Premier Cable can manufacture custom M12 X-coded Ethernet cable assemblies according to customer drawings and equipment requirements.
Applications
Additional Application Areas
PROFINET Networks • Factory Automation • PLC & Control Systems • Industrial Robotics • Machine Vision • Drag Chain Systems • Industrial Computers • Automated Handling Systems
FAQ
What is an M12 X-coded industrial Ethernet cable?
It is an 8-pin industrial network cable designed to connect compatible equipment using M12 X-coded Ethernet interfaces. This product uses an M12 X-coded jack on one end and an M12 X-coded plug on the other.
What connector configuration does this cable use?
The cable uses a straight M12 X-coded jack and a straight M12 X-coded plug, providing a female-to-male X-coded connection.
What type of cable is used?
The product uses a highly flexible PROFINET Type C cable with 4 × 2 × AWG26/19 conductor construction and a PUR outer jacket.
Is this M12 X-coded cable suitable for drag chains?
Yes. The cable is designed for flexible applications, especially drag chains and continuously moving machine components in dry and humid industrial rooms.
Is the cable shielded?
Yes. High-quality shielding is used to support reliable data transmission in electromagnetically stressed industrial environments.
What are the PUR jacket properties?
The PUR outer jacket is oil-resistant, abrasion-resistant, UV-resistant and ozone-resistant. The cable is also halogen-free and flame-retardant.
Where is this M12 X-coded PROFINET cable used?
Typical applications include machine control systems, robotics, PLC networks, machine vision equipment, industrial computers, drag chains and automated handling systems.
How is the cable wired?
The supplied drawing specifies straight-through 8-pin wiring: Pin 1 to Pin 1, Pin 2 to Pin 2, Pin 3 to Pin 3, Pin 4 to Pin 4, Pin 5 to Pin 5, Pin 6 to Pin 6, Pin 7 to Pin 7 and Pin 8 to Pin 8.
What standard cable lengths are available?
Standard variants include 1.0 m, 2.0 m, 5.0 m and 10.0 m. Other cable lengths are available on request.
Can Premier Cable customize M12 X-coded Ethernet cables?
Yes. Premier Cable can customize cable length, connector configuration, pin assignment, labeling and other cable assembly requirements according to customer drawings.
What should be confirmed before ordering?
Please confirm X-coding, connector gender, pin assignment, mating interface, cable length, target equipment and drag chain or continuous-motion requirements before ordering.
