Right Angle M12 D Code To RJ45 Profinet Cable

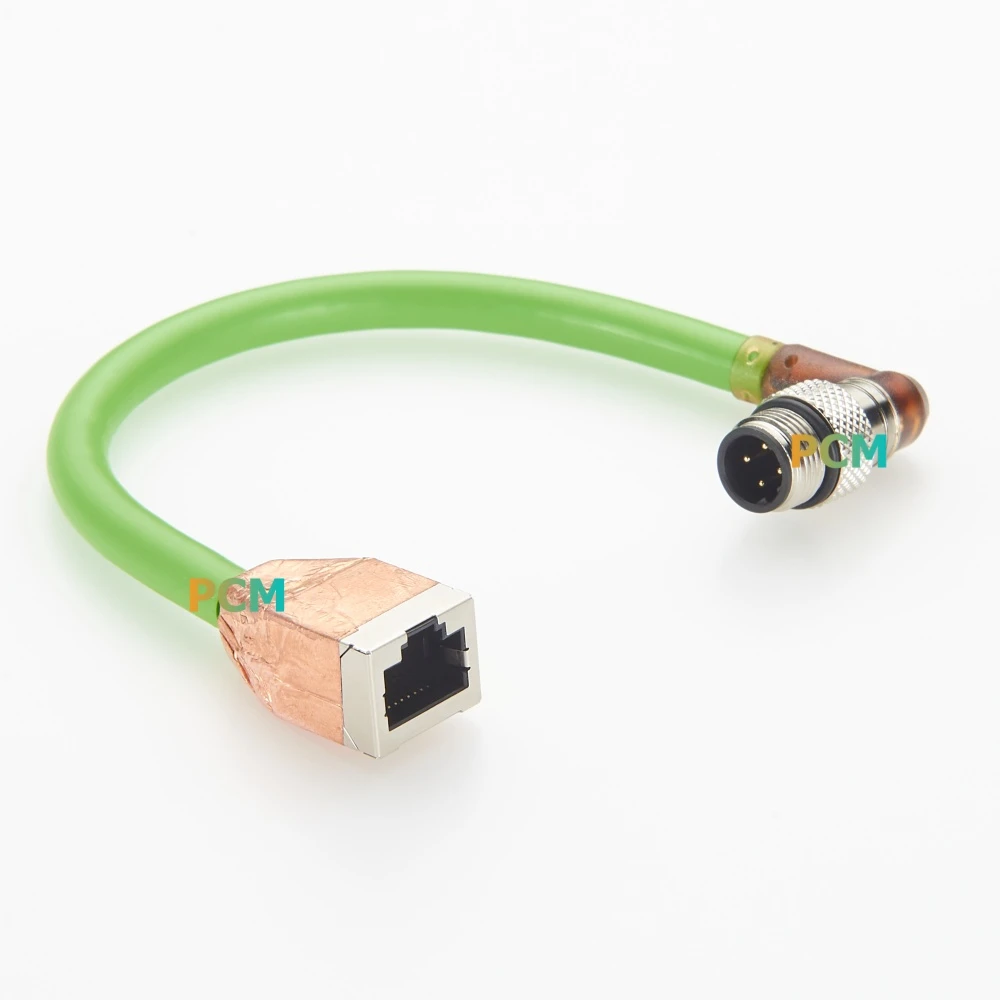

This right-angle M12 D-coded to RJ45 Profinet cable is specifically designed for industrial Ethernet applications. One end features a right-angle M12 D-coded connector, enabling flexible routing in confined spaces and thereby simplifying the installation process; the other end terminates in a standard RJ45 interface, facilitating easy connection to switches or control systems. Compliant with Profinet communication standards, the PCM-HD-0246 cable supports high-speed, stable data transmission while ensuring signal integrity. The connectors feature a fully encapsulated structure utilizing waterproof sealant and copper foil shielding, effectively providing water resistance and protection against electromagnetic interference; as such, this cable is widely applicable across various types of automation equipment and industrial network systems.

Tips: Please confirm the angle of the elbow's anti-foolproofing point before purchasing.

♦ Robotics and Motion Control Systems: The right-angle M12 connector can be mounted on robot arms, end effectors, or compact servo drives, while the RJ45 connector connects to a PLC or host PC within the control cabinet, enabling the real-time transmission of data such as position, velocity, and torque via Profinet.

♦ Distributed I/O in Automated Production Lines: For instance, remote I/O modules-such as the Siemens ET200 series equipped with M12 interfaces-can be connected to the RJ45 network port of a main control PLC to facilitate on-site signal acquisition and command execution.

♦ Field Device Commissioning and Maintenance: Engineers can use this cable to temporarily or permanently connect instruments, valve positioners, or vision systems featuring M12 Profinet interfaces to the RJ45 ports of commissioning laptops or gateways, thereby facilitating network configuration and diagnostics.

♦ Logistics and Packaging Machinery: In high-speed sorting machines, palletizers, or filling lines, interface space on the equipment is often limited. The right-angle M12 connector prevents excessive cable bending and connects to industrial switches (RJ45) located within the control cabinet, ensuring stable communication.

♦ AGV/AMR Mobile Robots: On-board controllers typically utilize RJ45 interfaces, whereas external sensors-such as navigation cameras and LiDAR units-connect via M12 D-coded interfaces. The right-angle M12 connector helps conserve internal cable routing space within the robot and prevents cable abrasion.

Angle of the Elbow's Poka-Yoke Feature

45 degrees to the upper left
