Products Description
The Molex Micro-Fit 4-pin up angled power and signal cable assembly is a high-quality electrical connection solution designed to meet the demands for compact and reliable power and signal transmission in modern electronic devices. Its key feature is the upward-bent design, which allows for more flexible installation and routing, ensuring efficient space utilization and reducing wiring complexity. This design not only improves cable routing efficiency within the device but also effectively prevents cable interference with other components.
The PCM-HD-0214 contains four conductors and is suitable for various power and signal transmission applications. Each conductor's connection port is securely connected to the corresponding device via high-precision terminal connectors, ensuring stable current and signal transmission. Whether in industrial equipment or consumer electronics, it provides lasting reliability and superior performance, making it an ideal choice for efficient system design and optimized wiring.
Specification
| Product name | Molex Micro-Fit 4-Pin Up Angled Power Signal Cable Assembly |
| DWG No. | PCM-HD-0214 |
| OD | 5.5±0.15mm |
| Cable Length | 1.5m |
| Outer Mold | Black 50P PVC |
| Pre Mold | PE LOW DENSITY |
| Cable Type | UL2464 20AWG*4C |
| Rated Voltage | 300V |
| Rated Current | 5.0A |
Features
-
Optimize wiring space
The upward-curving design allows for a more compact arrangement of cables inside the device, avoiding the wasted space that can occur with traditional straight cable layouts. This curved direction allows the cables to follow the upper contours of the device's interior, making efficient use of the upper space and reducing installation difficulties caused by limited wiring space.
-
Improve the cleanliness of the equipment's interior.
In many devices, the neatness of cable routing is crucial for maintenance and future upgrades. The upward-curving design not only improves cable management but also makes the inside of the device look neater and more organized, avoiding the clutter and tangling problems that can occur with traditional straight cable routing.
-
Reduce interference and signal loss.
By preventing direct contact with other electrical components or cables during bending, the upward bending design helps reduce potential electromagnetic interference (EMI) and signal loss. This is especially important for high-frequency signal transmission, helping to maintain signal integrity and transmission stability.

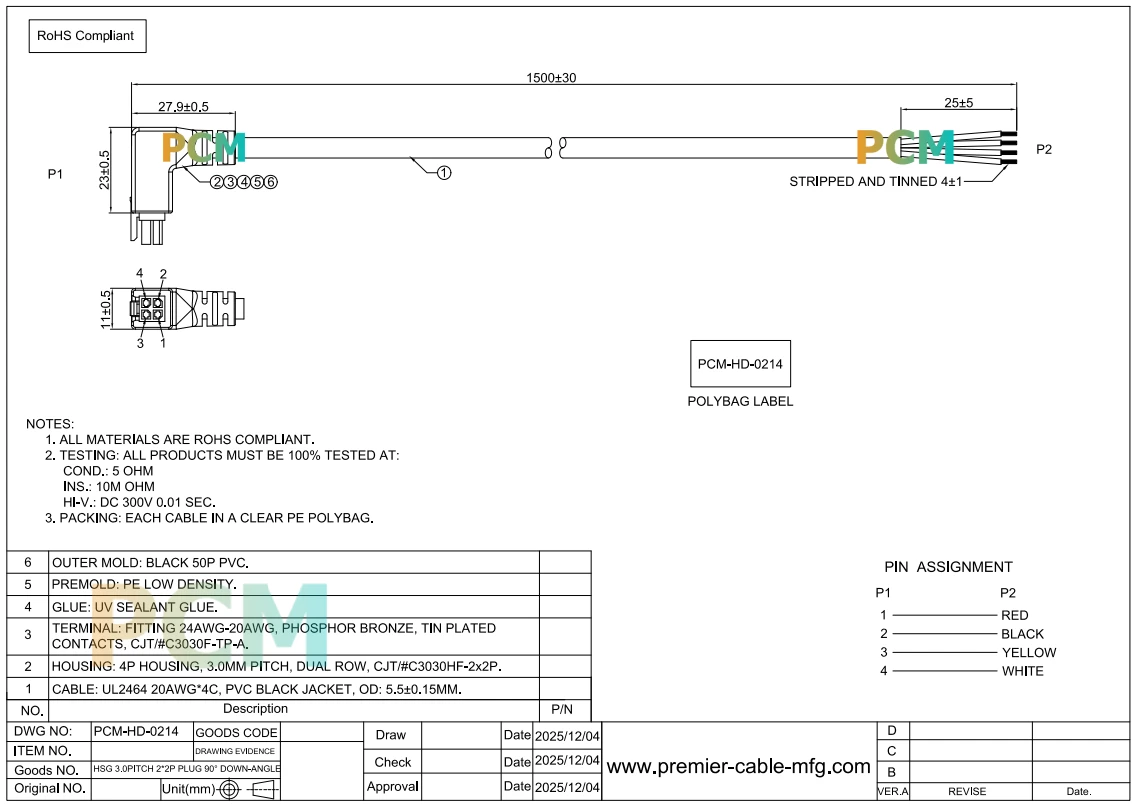

Drawing
