In certain brushless motor control systems, the ESC is installed inside an enclosed control box while the motor is located outside the equipment.
If the three motor phase conductors are routed directly through an enclosure opening, external mating operations, cable movement, and motor replacement may transfer mechanical forces to internal wiring connections.
PCM-0814 secures the MT60 female connector to the exterior equipment panel through a circular mounting structure, while its internal three-conductor extension cable connects to the drive module.
For equipment requiring an external MT60 female interface, this configuration establishes a clearly defined motor connection point and reduces the need to repeatedly open the enclosure and reconnect internal wiring during maintenance.
Core Performance Advantages
Centralized Three Phase Wiring
PCM-0814 integrates three motor phase circuits into one MT60 connector, reducing individual mating operations. With verified phase sequencing, it simplifies motor-to-ESC connections, improves cable organization, and enhances installation efficiency.
Improved Load Distribution and Compatibility
PCM-0814 features a circular threaded panel mount to reduce external mating stress on internal wiring. Its P2 MT60 male connector mates with compatible internal female connectors, enabling panel-mounted upgrades without replacing existing interfaces.
Convenient Motor Replacement and Testing
PCM-0814 provides an external panel connection for independent motor cable replacement without repeatedly opening the enclosure or removing the internal ESC. It simplifies motor testing, modular equipment upgrades, and routine maintenance.
Products Specification
The MT60 3 Pin Female Panel Mount Motor Cable is a passive motor cable assembly that combines three-phase circuit extension, fixed panel mounting, and MT60 male-to-female connectivity.
The product is available in standard 300mm and 800mm lengths, allowing users to select a suitable version according to the internal ESC position and panel mounting distance.

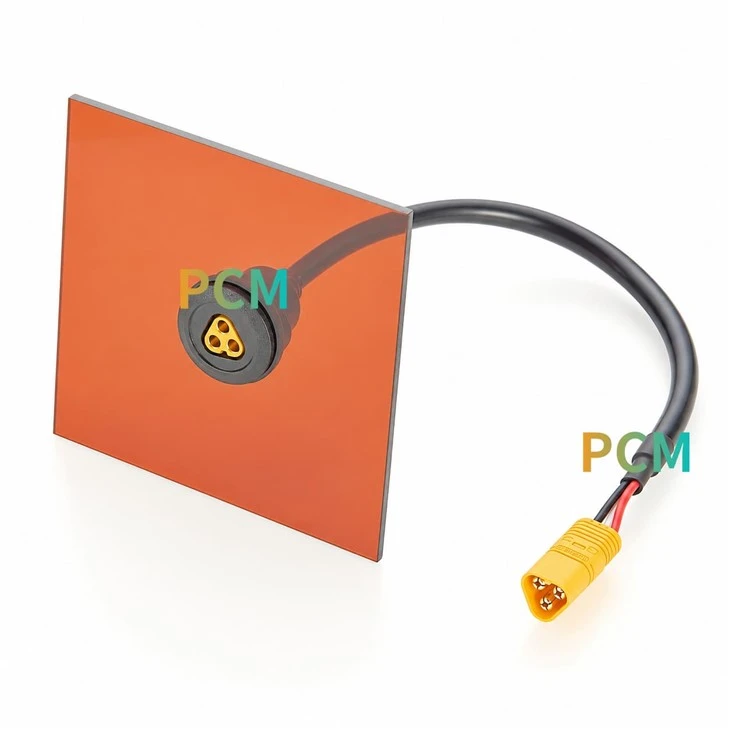

Products Display
Typical Applications
◆ Three Conductor Cable Cutting and Preparation
The UL2464 16AWG×3C cable is cut to the specified 300mm or 800mm length, followed by outer jacket stripping and preparation of the three conductor ends according to the connector termination requirements.
Manufacturing controls should include cable length tolerances, conductor stripping length, and copper strand integrity to prevent excessive stripping or conductor damage from affecting subsequent termination quality.
◆ MT60 Male and Female Contact Termination
The three conductors are terminated to the corresponding MT60H-F and MT60H-M contacts according to the pin assignment specified in the product drawing.
Pin 1 corresponds to the red conductor, Pin 2 to the black conductor, and Pin 3 to the white conductor.
During termination, the connection between each conductor and contact should be inspected to ensure independent continuity of the three circuits and prevent short circuits between adjacent contacts or incorrect wiring positions.
◆ PVC Overmolding and Termination Protection
The product drawing specifies black 45P PVC overmolding material and Ø7.0×20mm black heat-shrink tubing at the P2 cable breakout.
The overmold covers the cable transition area behind the connector, while the heat-shrink tubing organizes the conductor breakout and provides localized insulation protection.
Manufacturing inspection should verify overmold appearance, cable exit direction, and heat-shrink tubing placement to prevent visible molding defects or exposed conductors.
◆ Panel Mounting Hardware Assembly
The MT60H-F female connector mounting structure is assembled with the circular panel-mount body and matching black PVC retaining nut.
During assembly, thread engagement, connector positioning, and mounting-body dimensional consistency should be inspected to ensure proper installation on a compatible equipment panel.
What Is the Difference Between PCM-0814 and PCM-0815 ?
Both products use MT60 three-contact interfaces, circular panel-mount structures, and 16AWG three-conductor cables. Their main difference is the connector gender configuration at the panel and cable ends.
Product Customization Capabilities

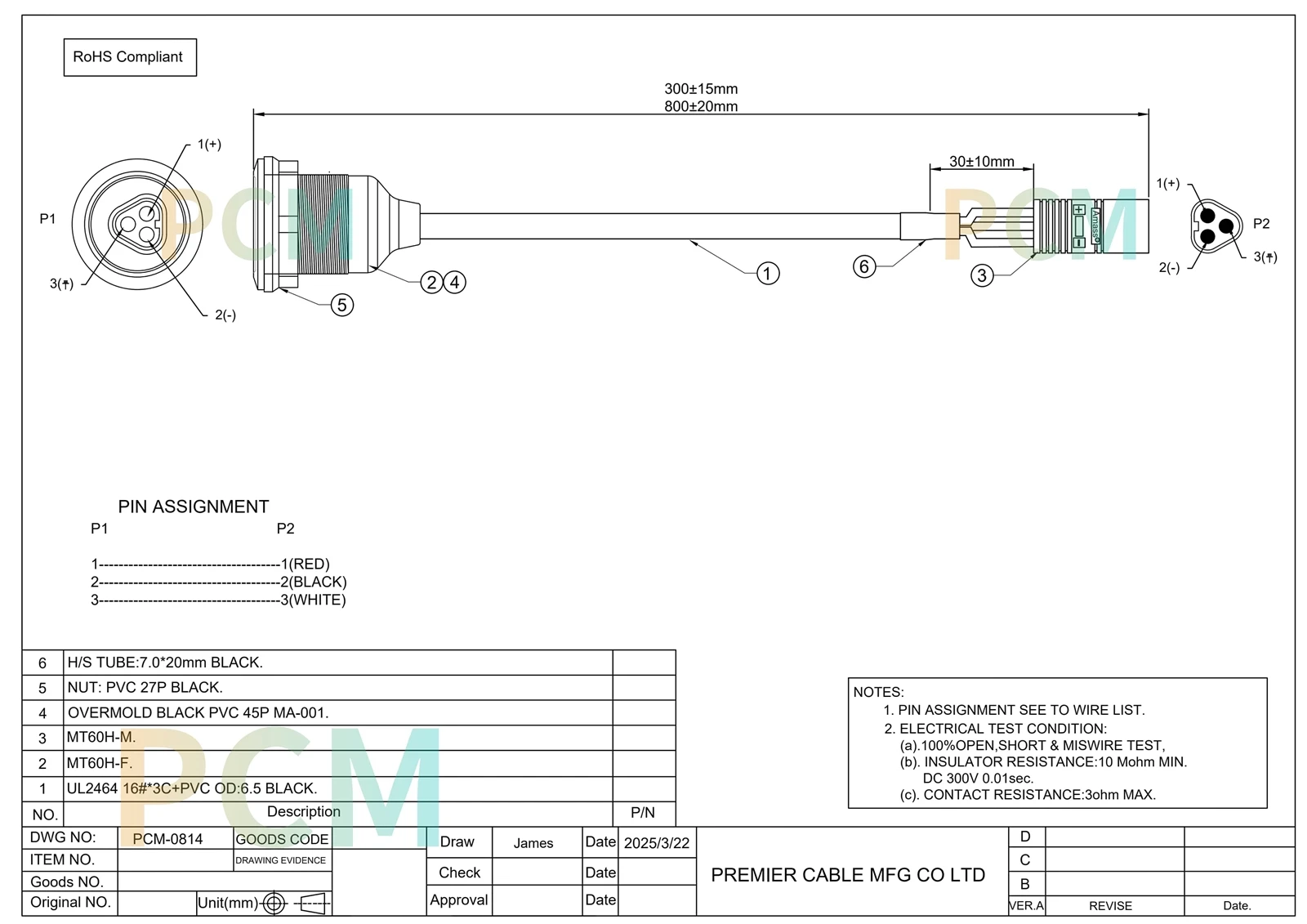

Products Drawing
Product FAQ
What Is PCM-0814 ?
PCM-0814 is a motor extension cable featuring an MT60 three-contact female panel-mount interface and an MT60 male cable-end connector.
It uses a 16AWG three-conductor cable to connect three internal electrical circuits to a fixed external MT60 female interface for brushless motors, ESCs, and motor testing equipment.
What Is the Main Difference Between PCM-0814 and PCM-0815 ?
The main difference between the two products is their front and rear connector gender configuration.
PCM-0814 features an MT60 female connector at the front and an MT60 male connector at the rear, while PCM-0815 uses an MT60 male connector at the front and an MT60 female connector at the rear.
Both products use three-conductor straight-through wiring, but the appropriate model should be selected according to the gender and wiring assignment of the actual mating connectors.
What Is the Required Panel Cutout Diameter ?
The product uses a circular threaded mounting structure with a black PVC retaining nut.
The uploaded drawing does not explicitly specify the panel cutout diameter, thread size, or allowable panel thickness.
Before machining the equipment panel, the mounting parameters should be confirmed against the official mechanical drawing to avoid installation problems caused by incorrect cutout dimensions.
Can PCM-0814 Connect Directly to XT60 or XT30 Connectors ?
No, direct mating is not supported.
PCM-0814 uses an MT60 three-contact interface, while standard XT60 and XT30 connectors primarily use two-contact power configurations.
These connector families have different mechanical mating structures and contact counts and cannot be considered directly interchangeable based on similar naming.
Are Wholesale Orders and OEM Manufacturer Customization Available ?
Premier Cable can evaluate wholesale procurement, manufacturer-direct supply, and OEM cable assembly customization for PCM-0814 according to customer requirements.
For volume projects, customers are advised to provide target order quantities, cable lengths, connector configurations, mechanical dimensions, and electrical requirements to support product specification confirmation, sample validation, and production planning.
