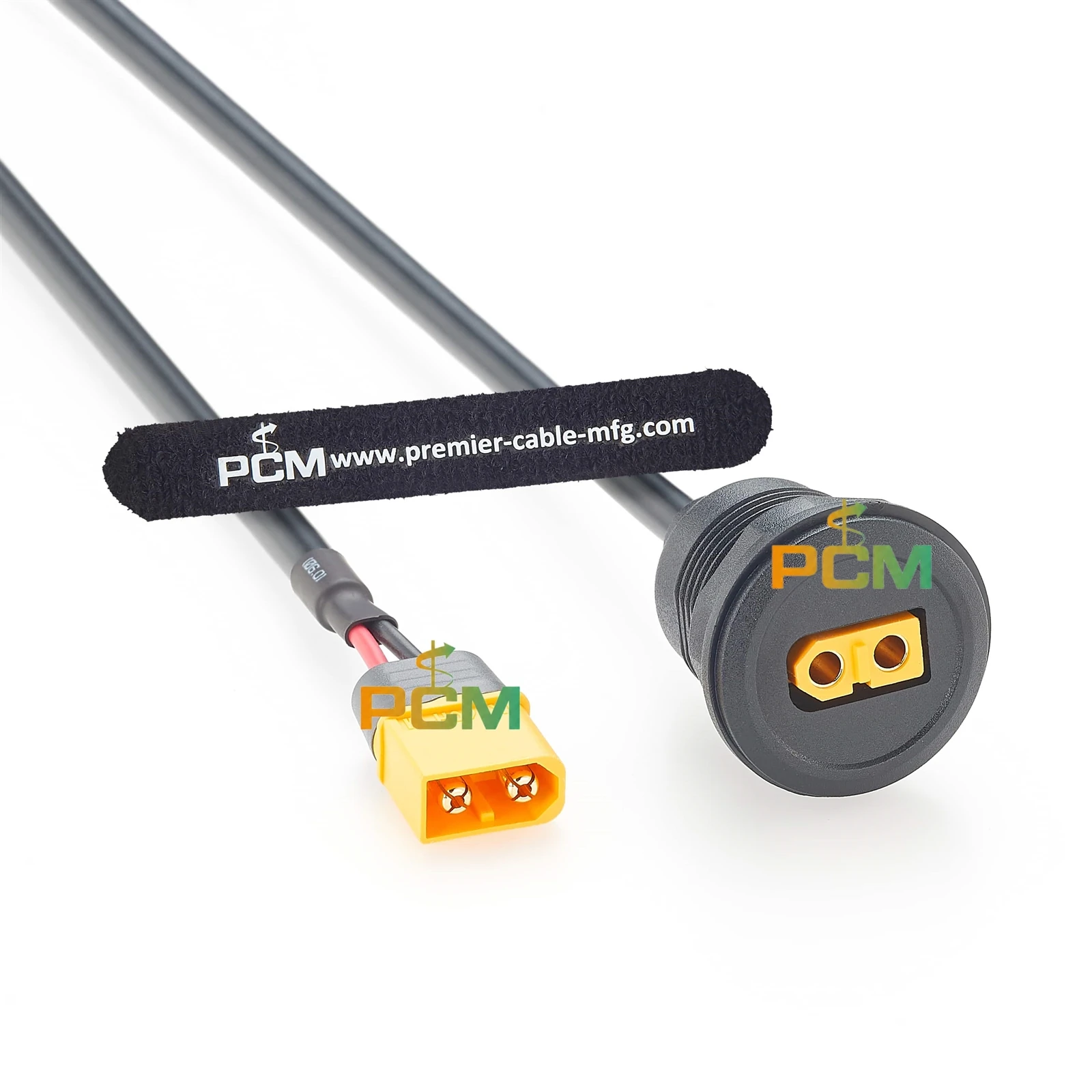

PCM-1012 XT60 Male to Female Panel Mount Cable
XT60 Female Panel Mount | XT60H Male | 16AWG 2C | 300mm | Custom DC Power Cable
The PCM-1012 XT60 male to female panel mount cable provides a compact DC power connection between an equipment panel and internal battery, controller or power module. The assembly combines an XT60 female panel-mount connector with an XT60H male cable connector for reliable removable power connections.
The XT60 female panel mount cable uses UL2464 16AWG × 2C wire with a 6.0 mm black PVC outer jacket. The standard assembly length is 300 ±15 mm, making it suitable for short internal power connections in battery packs, portable power equipment, FPV ground stations and custom electrical enclosures.
Unlike a conventional loose XT60 extension lead, this XT60 panel mount power cable creates a fixed external power interface on the equipment enclosure while routing the cable toward the internal power system. Cable length, wire gauge, connector configuration and overmolding can be customized for OEM applications.
Product Specifications
Item |
Specification |
|---|---|
| Product Name | XT60 Male to Female Panel Mount Cable |
| Part Number | PCM-1012 |
| P1 Connector | XT60 Female Panel Mount Connector |
| P2 Connector | XT60H-M Male Connector |
| Cable | UL2464 16AWG × 2C |
| Cable OD | 6.0 mm |
| Cable Color | Black |
| Conductors | 2 Conductors |
| Main Cable Length | 300 ±15 mm |
| P2 Tail Length | 30 ±10 mm |
| Positive Conductor | Red (+) |
| Negative Conductor | Black (-) |
| Overmold | Black PVC 45P |
| Heat Shrink | 6.0 × 20 mm Black |
| Panel Cutout | Approx. Ø25.7 mm / 24.5 mm Width |
| Compliance | RoHS Compliant |
| Customization | Length / Wire / Connector / Label / Overmold |
Key Product Advantages
Panel Mount XT60 Interface
The XT60 female connector mounts directly to an equipment enclosure, creating a clean and accessible external DC power connection while keeping the cable routed inside the device.
16AWG Power Wiring
UL2464 16AWG × 2C cable provides dedicated red positive and black negative conductors for short DC power connections in battery and portable power equipment.
OEM Custom Cable Assembly
Cable length, wire gauge, connector configuration, overmolding, labels and opposite-end interfaces can be customized for OEM battery and power equipment.
Pin Assignment & Cable Construction
Straight-Through Power Wiring
PCM-1012 uses a direct polarity-matched connection between the XT60 female panel connector and XT60H male connector.
P1 (+) → Red Wire → P2 (+)
P1 (-) → Black Wire → P2 (-)
The two-conductor construction provides a simple DC power path while maintaining consistent positive and negative polarity through the complete XT60 male to female panel mount cable.
Applications
Additional Application Areas

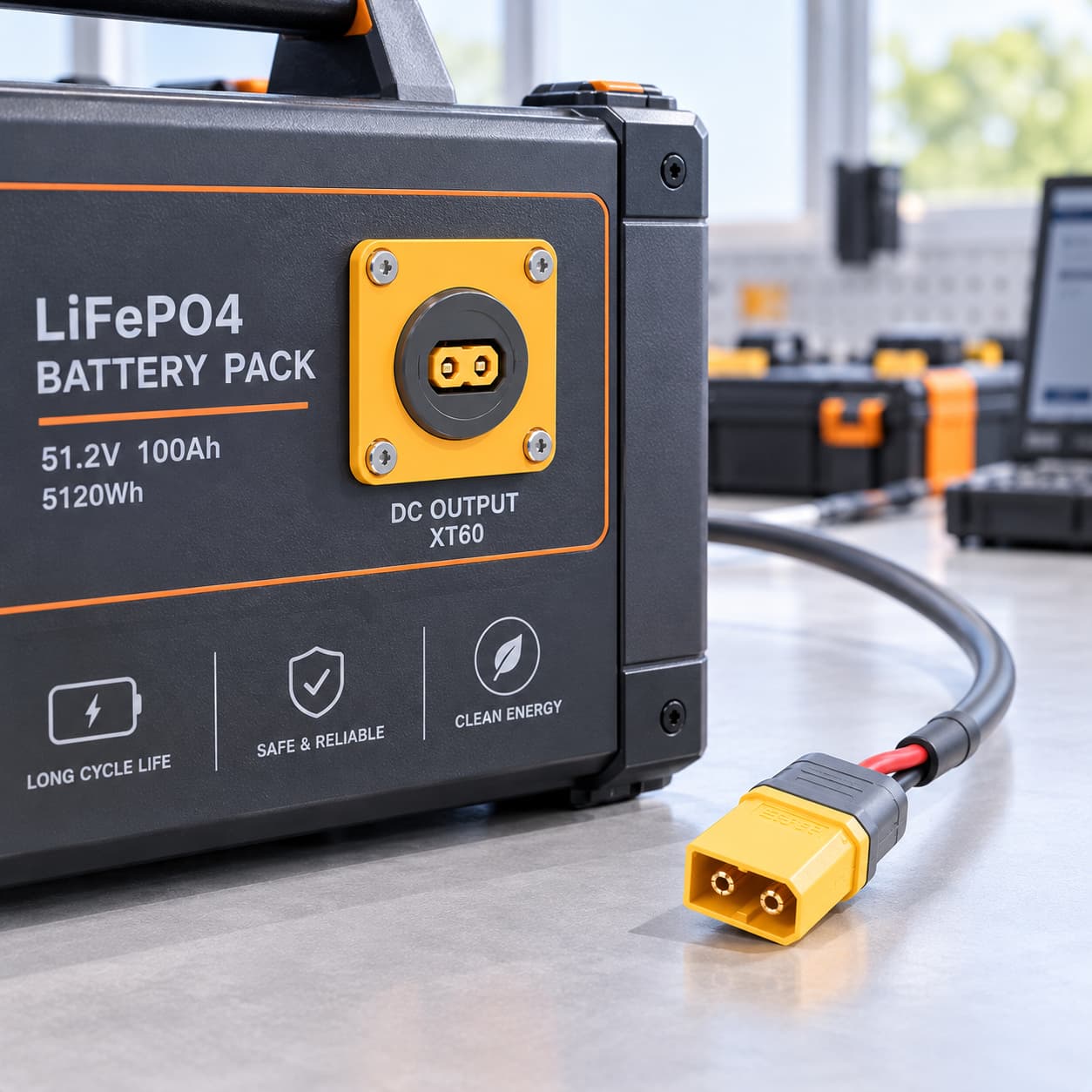

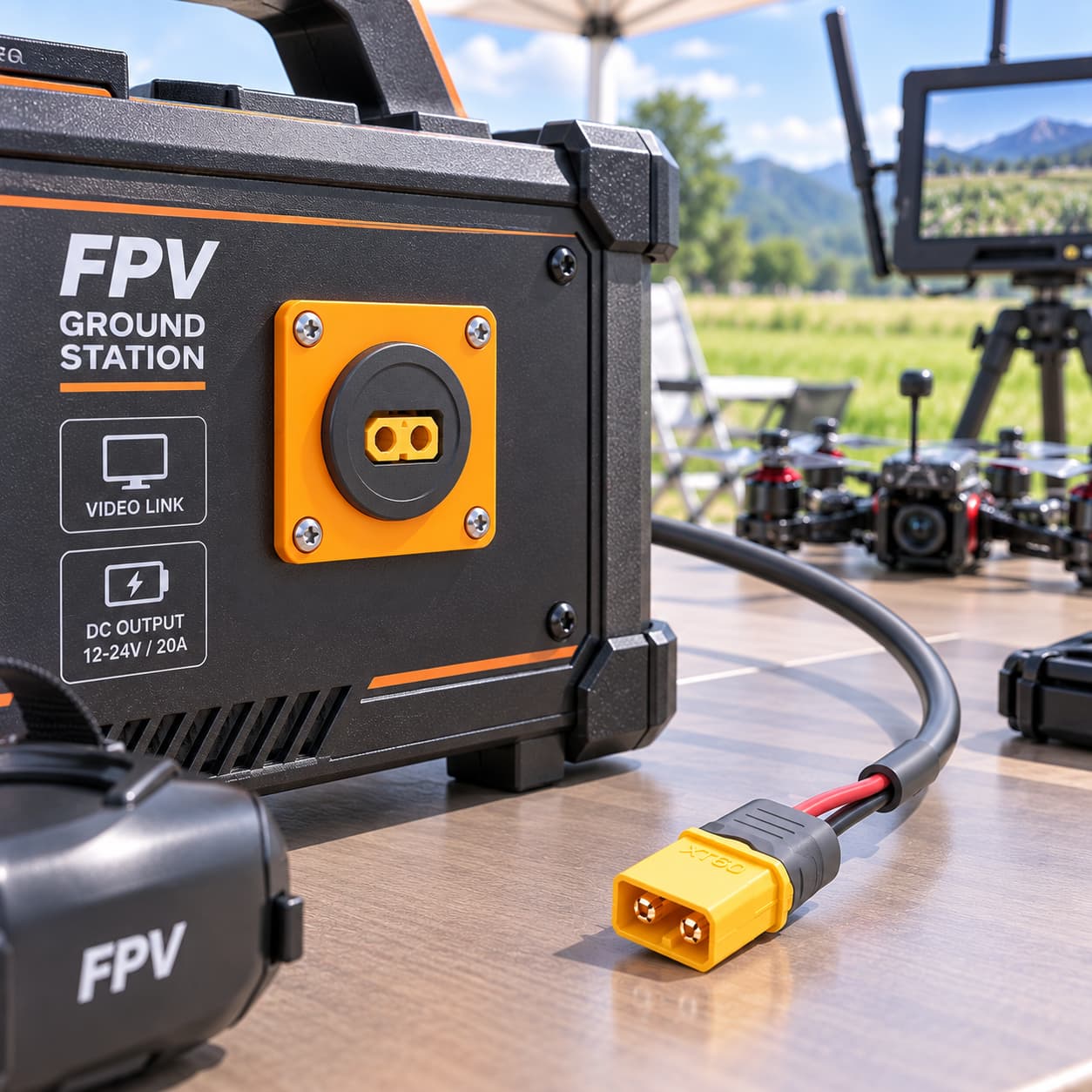

Battery Packs • Portable Power Equipment • FPV Ground Stations • Drone Support Equipment • DC Control Boxes • Test Equipment • Custom OEM Power Systems
FAQ
What is the PCM-1012 XT60 panel mount cable?
PCM-1012 is an XT60 male to female panel mount cable using an XT60 female panel-mounted connector, XT60H male connector and 16AWG two-conductor power cable.
Which side of PCM-1012 is panel mounted?
The XT60 female P1 connector is the panel-mount side. It uses a black circular housing designed for installation on an equipment enclosure.
What connector is used on the opposite end?
The cable-side P2 connector is an XT60H-M male connector.
What cable does PCM-1012 use?
The supplied drawing specifies UL2464 16AWG × 2C black cable with an outer diameter of approximately 6.0 mm.
What is the standard cable length?
The standard main cable length shown on the PCM-1012 drawing is 300 ±15 mm.
How is the XT60 cable wired?
The positive terminal connects directly from P1 (+) to P2 (+) through the red conductor, while the negative terminal connects from P1 (-) to P2 (-) through the black conductor.
Where can this XT60 panel mount power cable be used?
Typical applications include battery packs, portable power equipment, FPV and drone ground equipment, DC control boxes, test systems and custom electrical enclosures.
Can the cable length be customized?
Yes. Premier Cable can customize cable length, wire gauge, connector configuration, overmolding, labeling and other specifications according to OEM equipment requirements.
Is PCM-1012 RoHS compliant?
Yes. The supplied PCM-1012 production drawing specifies RoHS Compliant.
Can Premier Cable manufacture custom XT60 cable assemblies?
Yes. Premier Cable supports custom XT60 panel mount extension cables and other XT60 cable assemblies with application-specific wiring, cable lengths, connector combinations and OEM/ODM requirements.
