Products Description
PCM-0979 6 Port XT60 Solar Charging Connector is a multi-port XT60 parallel adapter cable designed for solar charging, portable power stations, outdoor battery systems, RC charging boxes and custom DC power distribution equipment.
This cable assembly features one XT60 female socket on the main cable side and six XT60 male plug ports on the splitter side. It allows multiple XT60 power sources, such as solar panels or battery charging leads, to be connected into one XT60 interface, helping reduce cable clutter and simplify multi-panel charging setups.
The assembly uses UL2464 14AWG*2C black PVC cable with a standard cable length of 500±20 mm. The green molded housing provides a compact and organized 6-port structure, making it suitable for portable and field-use power applications.
Product Features
- 6-port XT60 parallel connector for solar charging and DC power distribution
- One XT60 female socket to six XT60 male plug ports
- Designed for connecting multiple solar panels or XT60 power leads into one interface
- UL2464 14AWG*2C black PVC cable for DC power applications
- Compact green molded splitter housing for clean cable management
- Suitable for portable power stations, solar panels, RC charging boxes and outdoor battery systems
- Custom cable length, connector orientation and configuration available upon request
- RoHS compliant design
Technical Specifications
| Part Number | PCM-0979 |
| Product Type | 6 Port XT60 Solar Charging Connector / XT60 Parallel Adapter Cable |
| Main Connector | XT60 Female Socket |
| Branch Connectors | 6 × XT60 Male Plug Ports |
| Cable Specification | UL2464 14AWG*2C + PVC |
| Cable Color | Black |
| Cable Outer Diameter | Approx. OD 6.5 mm |
| Standard Length | 500±20 mm |
| Internal Jumper Wire | UL1569 / 1007 14AWG |
| Electrical Test | 100% open, short and miswire test |
| Insulation Resistance | 10 MΩ min. at DC 300V |
| Compliance | RoHS Compliant |
Typical Applications

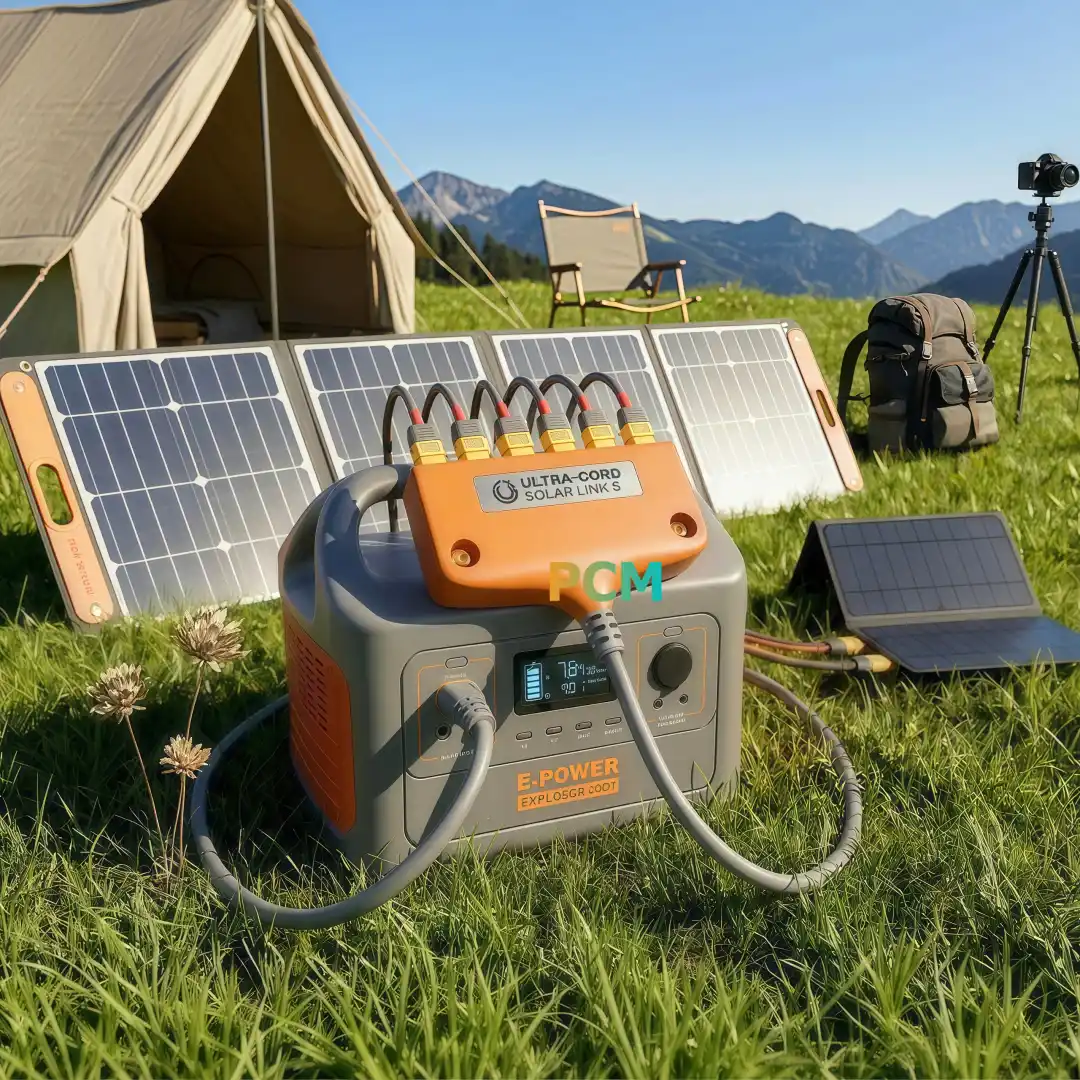

- Portable power station solar charging input expansion
- Multi-panel solar charging connection
- Outdoor battery charging systems
- RC model battery charging boxes
- Field power distribution boxes
- DIY solar generator and energy storage projects
- Custom DC power distribution equipment

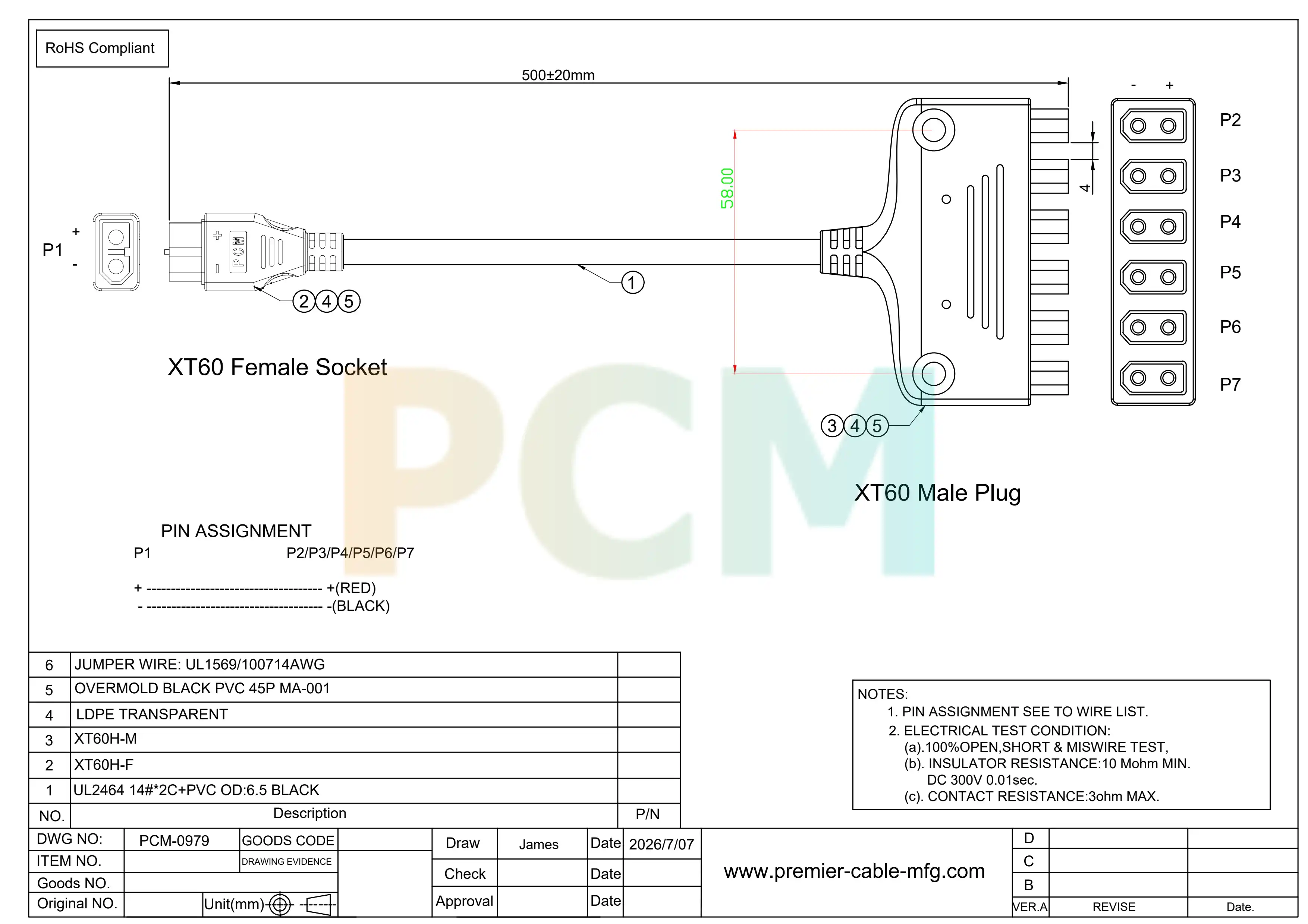

Drawing
