Products Description
PCM-0978 XT60 Male to 6 XT60 Female Power Distribution Splitter Cable is a compact 1-to-6 XT60 power adapter designed for RC charging boxes, drone field power stations, battery output distribution, DC test benches and custom low-voltage power systems.
This cable assembly uses one XT60 male plug on the main cable side and six XT60 female socket ports on the molded splitter housing. It allows one XT60 power source to be distributed to multiple XT60-connected devices, charging leads, test modules or DC loads in a cleaner and more organized way.
The cable is made with UL2464 14AWG*2C black PVC cable, with a standard cable length of 500±20 mm. The green overmolded housing provides six fixed XT60 female ports, helping reduce loose Y-splitter cables and improving cable management in portable power and charging setups.
Product Features
- 1-to-6 XT60 power distribution cable assembly
- One XT60 male plug to six XT60 female socket ports
- Designed to distribute one XT60 power source to multiple XT60-connected devices
- UL2464 14AWG*2C black PVC cable for DC power applications
- Green molded 6-port housing for cleaner cable management
- Suitable for RC charging cases, drone power stations, battery output boxes and DC test systems
- Custom cable length, connector type and port configuration available upon request
- RoHS compliant design
Technical Specifications
| Part Number | PCM-0978 |
| Product Type | XT60 1-to-6 Power Distribution Splitter Cable |
| Main Connector | XT60 Male Plug |
| Branch Connectors | 6 × XT60 Female Socket Ports |
| Cable Specification | UL2464 14AWG*2C + PVC |
| Cable Color | Black |
| Cable Outer Diameter | Approx. OD 6.5 mm |
| Standard Length | 500±20 mm |
| Internal Jumper Wire | UL1569 / 1007 14AWG |
| Electrical Test | 100% open, short and miswire test |
| Insulation Resistance | 10 MΩ min. at DC 300V |
| Compliance | RoHS Compliant |
Application Concept

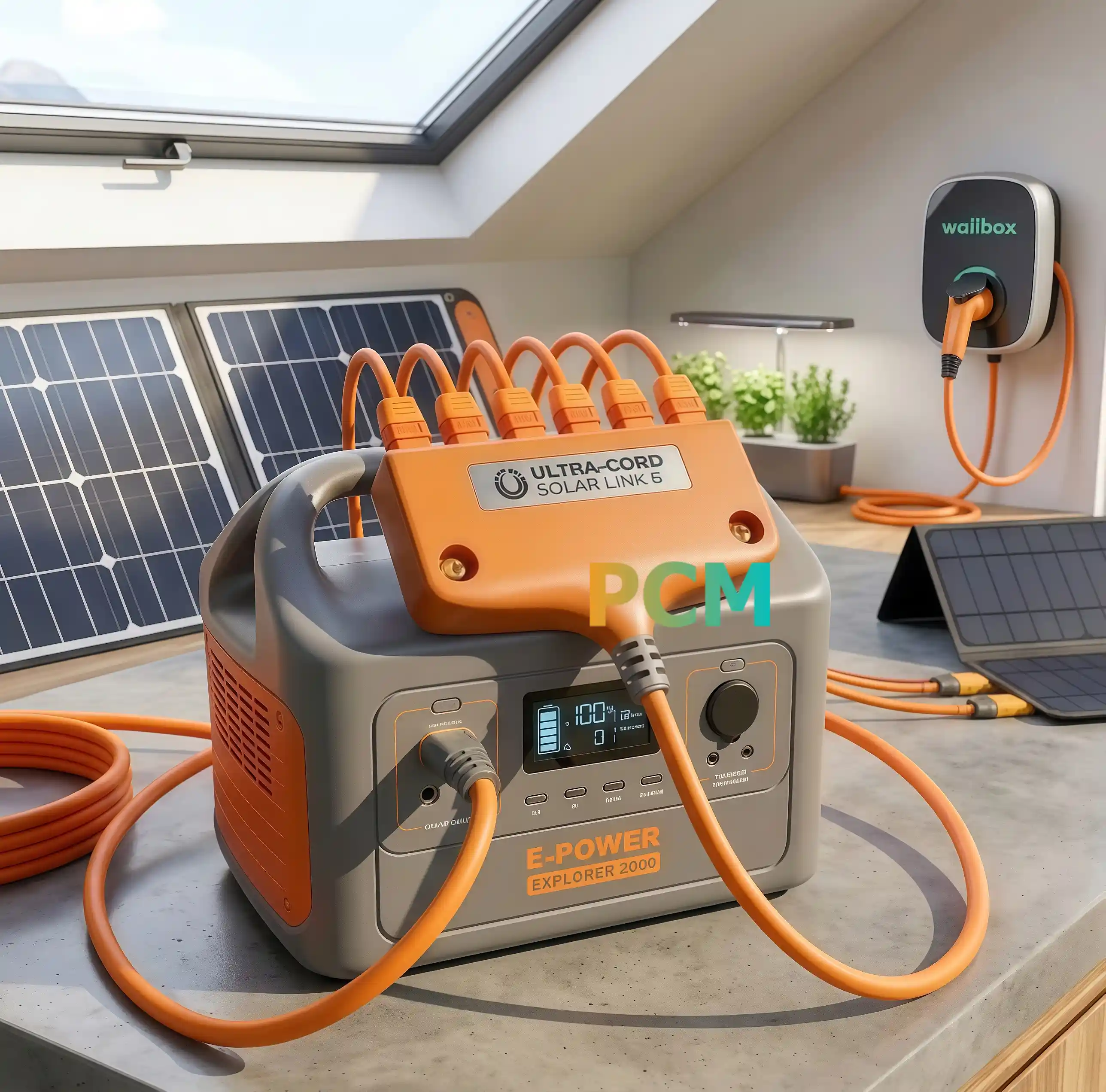

In a typical setup, the main XT60 male plug connects to a battery pack, charger output, portable power station or DC power module. The six XT60 female socket ports can then provide organized connection points for multiple XT60 devices, charging leads, test loads or power accessories.
When distributing power to multiple devices, please make sure the total current, wire gauge, connector rating and protection devices are suitable for the application. For battery charging applications, use a compatible charger or power distribution system with proper current control and protection.
Drawing
