Products Description
PCM-0976 Square Panel Mount XT90 Female Socket to XT90 Male Plug Power Cable is a high-current DC power interface cable assembly designed for battery boxes, portable power stations, RC charging cases, e-bike battery enclosures, AGV battery compartments, solar storage systems and custom power equipment.

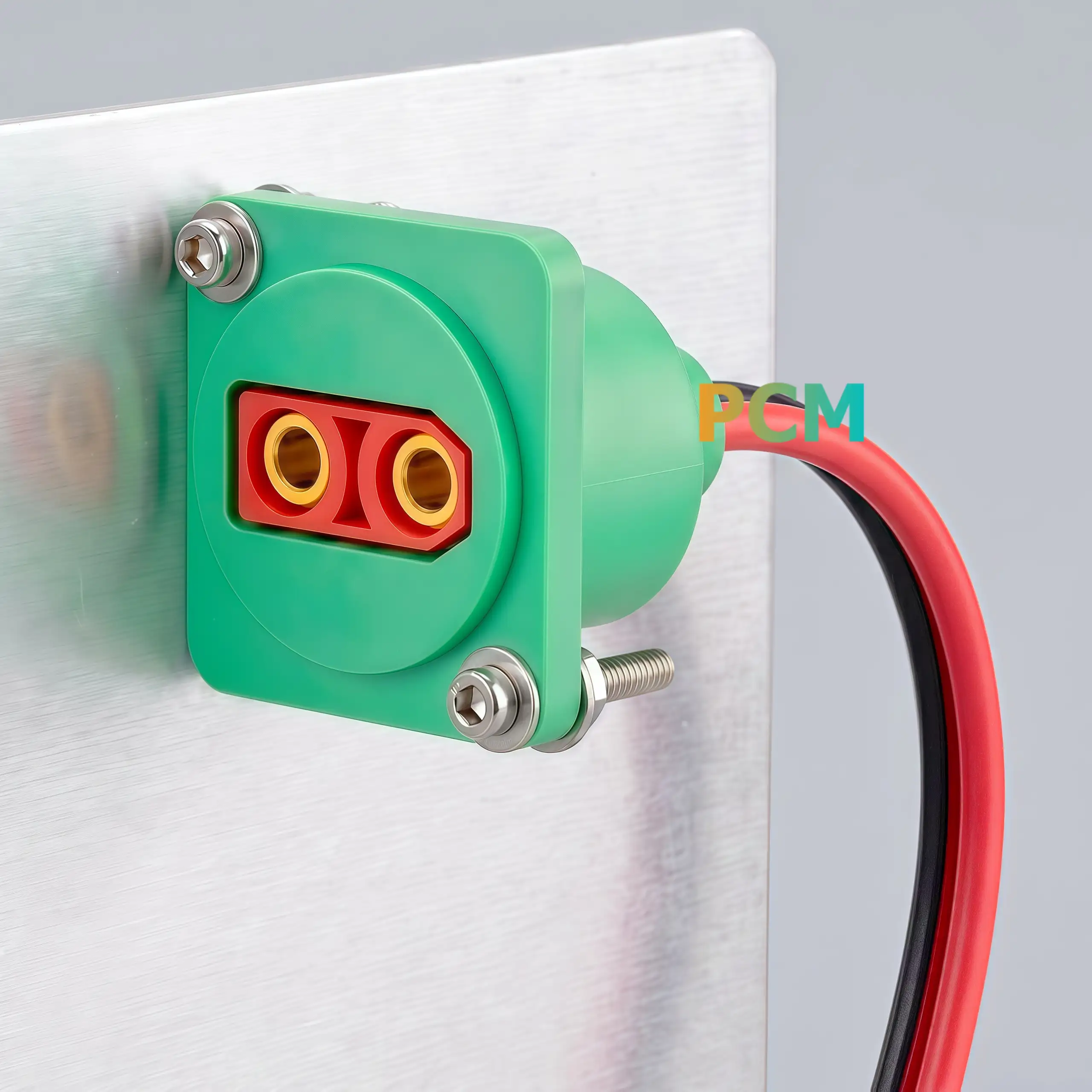

The front side uses a green square-flange XT90 female panel mount socket, allowing the connector to be fixed through the wall of an equipment enclosure. The rear side is connected with red and black UL1015 10AWG wires and an XT90 male plug with cover, making it convenient to connect internally to a battery pack, BMS, controller, charger module or DC power distribution board.
This design is especially useful when the main battery or power module is installed inside a sealed box, while the external XT90 female socket remains accessible from the outside for charging, discharging, maintenance or quick power connection.
Technical Specifications
| Part Number | PCM-0976 |
| Connector A | XT90 Female Panel Mount Socket |
| Connector B | XT90 Male Plug with Cover |
| Wire | UL1015 10AWG, Red and Black |
| Wire Outer Diameter | Approx. OD 5.1 mm |
| Mounting Screw | M3 Screw and Nut |
| Panel Cutout Reference | Main cutout approx. Ø27.65 mm, mounting hole approx. Ø3.7 mm |
| Available Length | 1FT / 2FT / 3FT, custom length available |
| Compliance | RoHS Compliant |
Typical Applications
- DIY LiFePO4 battery boxes and portable power stations
- Solar energy storage input or output ports
- RC model charging cases and field battery boxes
- E-bike and scooter removable battery enclosures
- AGV, AMR and mobile robot battery compartments
- Camper van, marine and off-grid DC power systems
- Industrial test power boxes and custom DC equipment panels

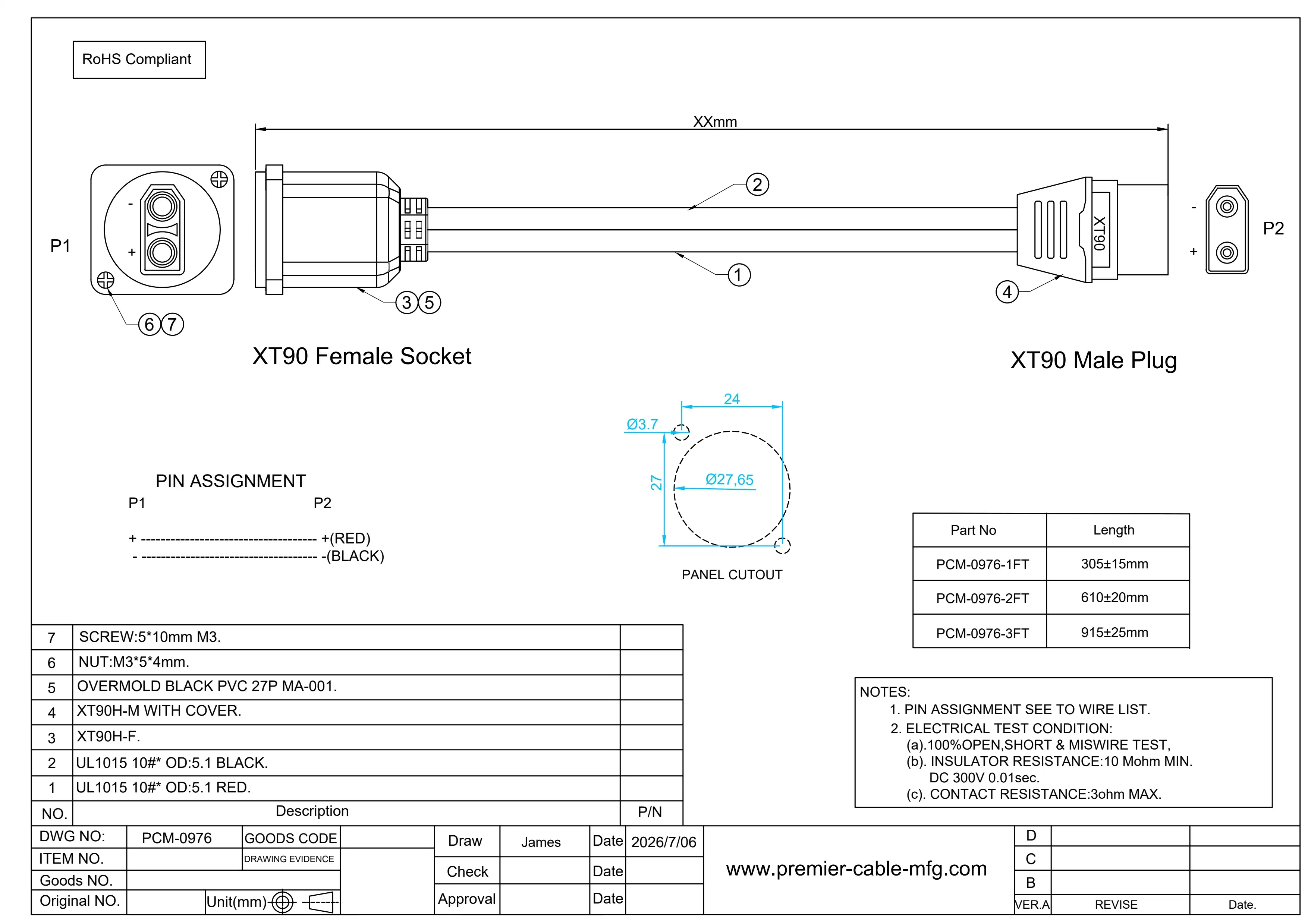

Drawing
