The EP ZH23-19-22B-1-B is a 19-contact circular electrical connector with a shell size 22 configuration, designed for equipment requiring a fixed electrical interface. It integrates 19 individual male pin contacts within a circular insulating assembly, supported by a metal housing, square flange and bayonet coupling. The Type 1 simple tail attachment provides a defined rear configuration for wiring and assembly according to the product design.

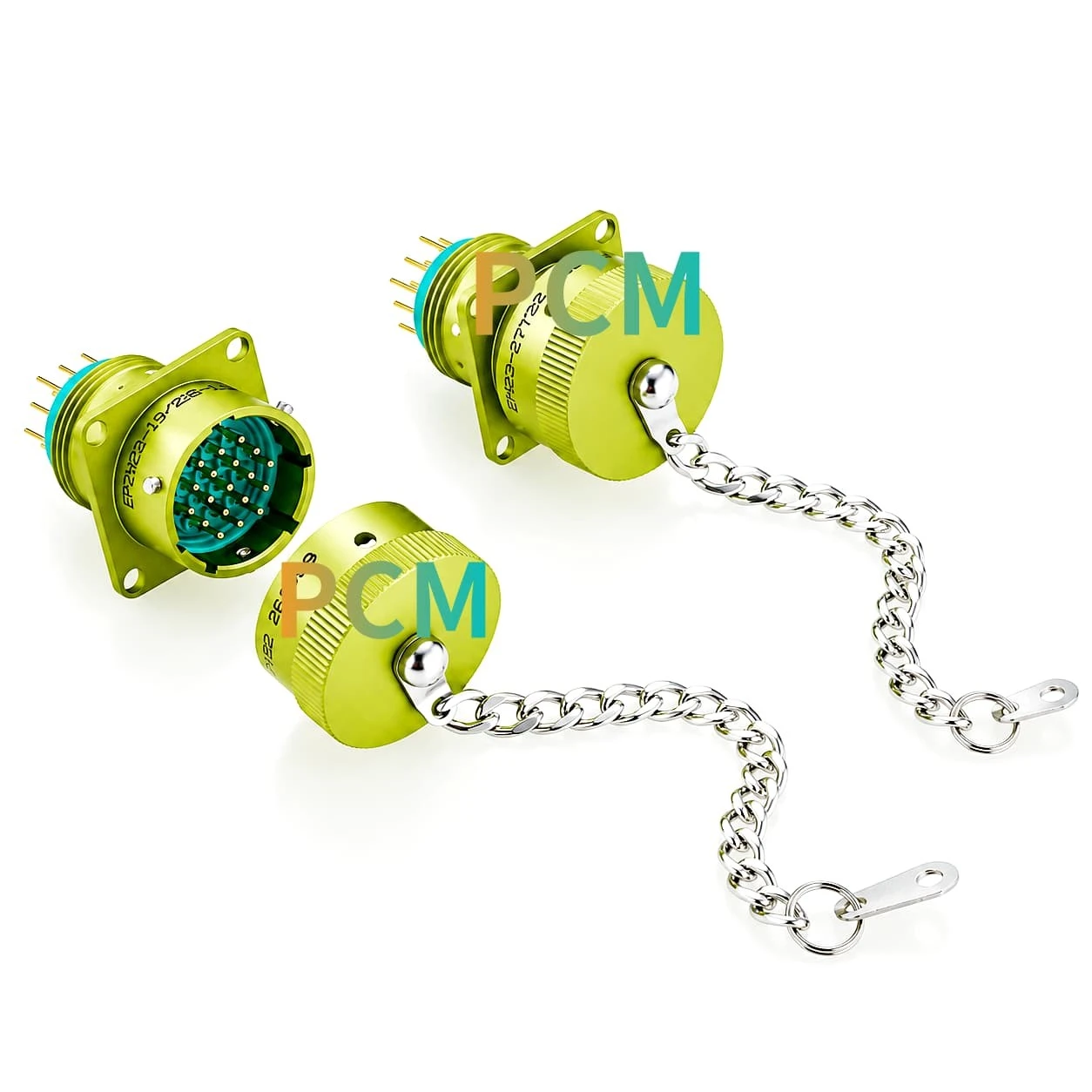

This ZH23 19 Pin Panel Mount Circular Connector is suitable for equipment that consolidates multiple electrical circuits into one interface. It helps equipment manufacturers establish organized external connection ports and can form a complete electrical connection system with a compatible cable-side connector. The ZH23-27Y22 protective cap covers the interface when it is unmated.

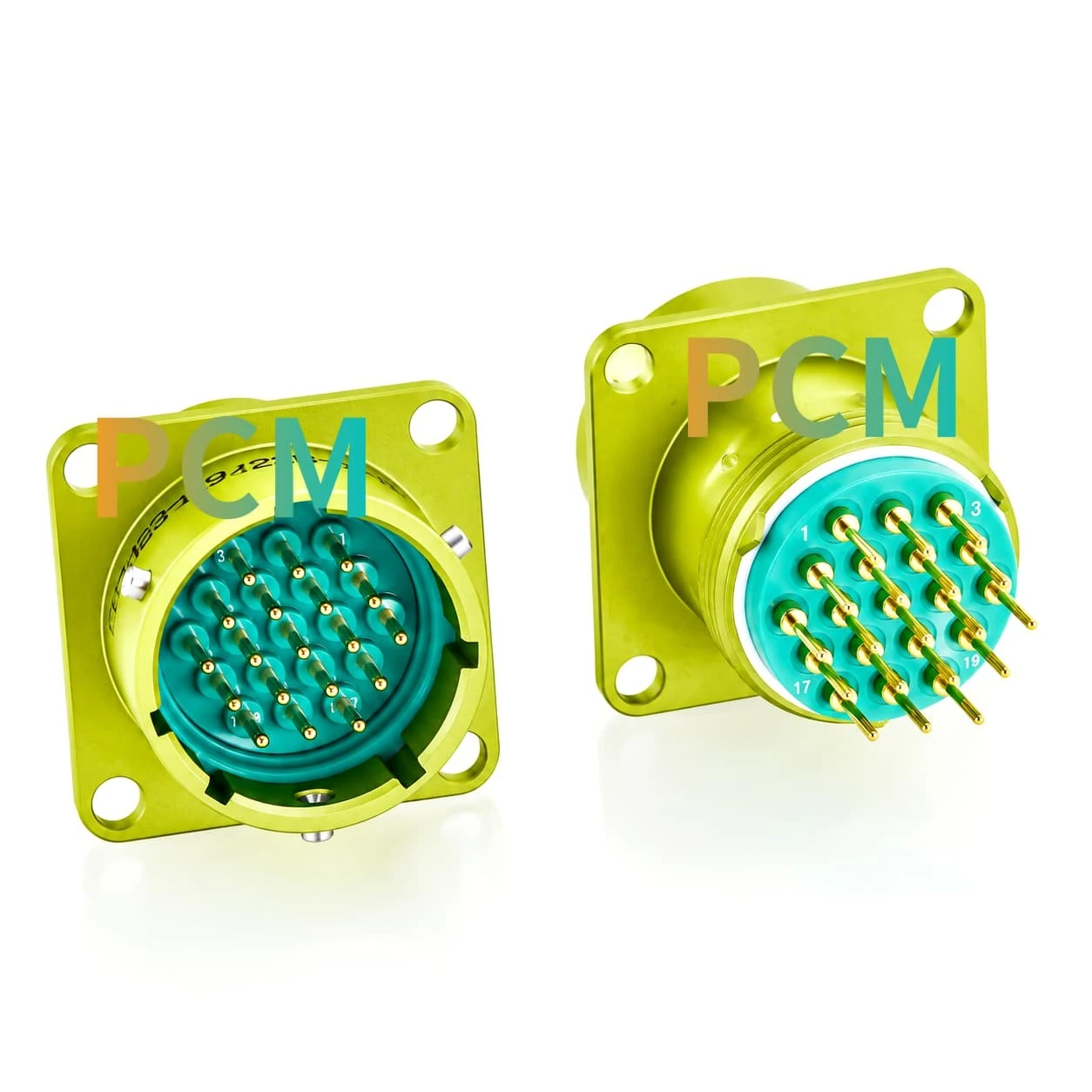

The connector establishes a 19-contact electrical interface between an equipment panel and a compatible external connector. Depending on the equipment circuit design, individual contacts may be assigned to power, control or signal connections, subject to the defined pinout and electrical ratings. The square flange provides a mounting base, while the bayonet mechanism enables mating and locking with a compatible connector.

Compared with multiple separate interfaces, a 19-pin circular connector consolidates several circuits at one connection point, supporting port identification, wiring management and maintenance. When the interface is temporarily unused, the ZH23-27Y22 protective cap provides physical coverage to help reduce direct exposure to dust and foreign objects.

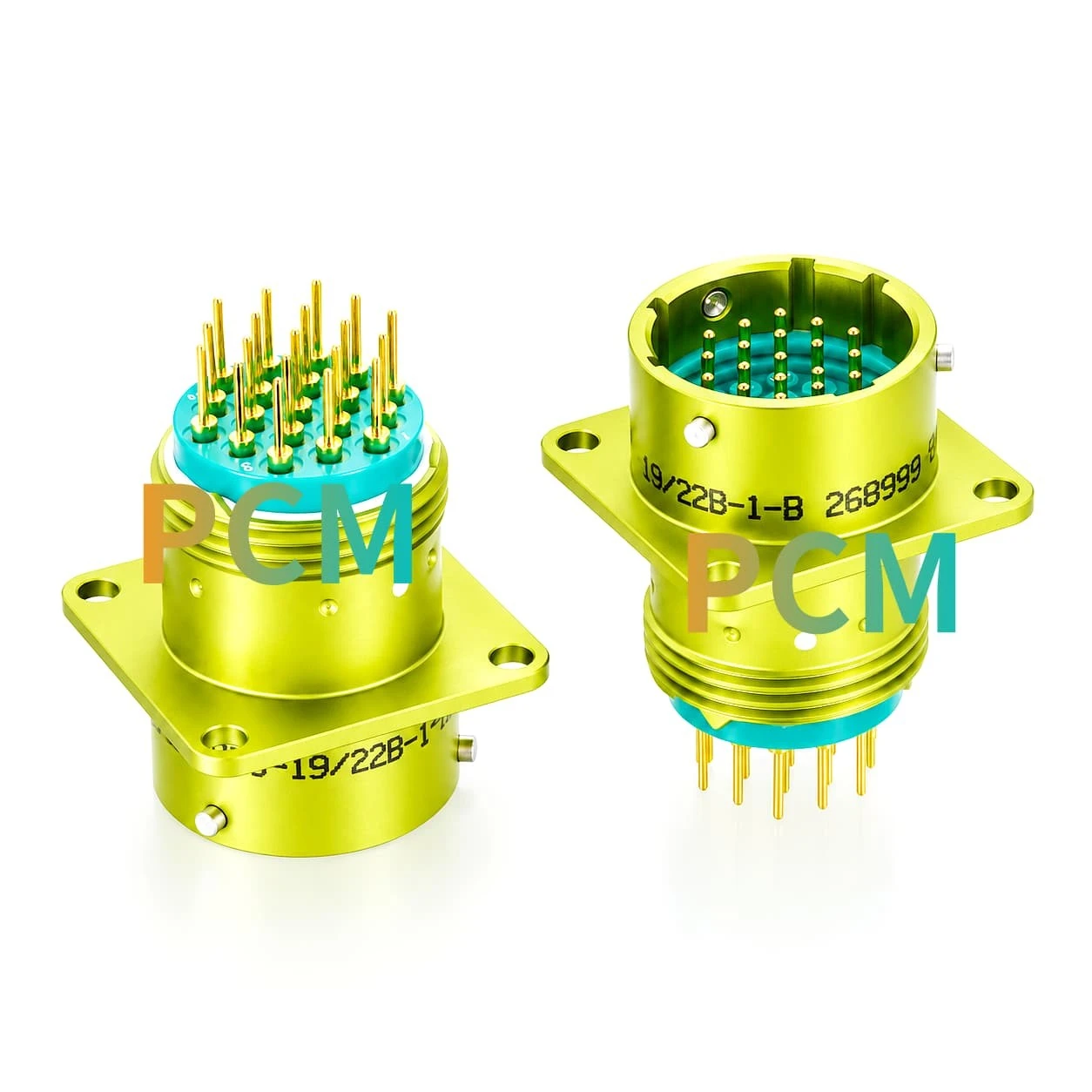

The EP ZH23-19-22B-1-B is a ZH23 series 19-contact circular electrical connector featuring a shell size 22 housing, male pin contacts, a square mounting flange and a Type 1 simple tail attachment. It is suitable for panel-mounted equipment requiring multiple electrical connections.
