PCM-KW-665 · COMPACT STUDIO AUDIO ADAPTER

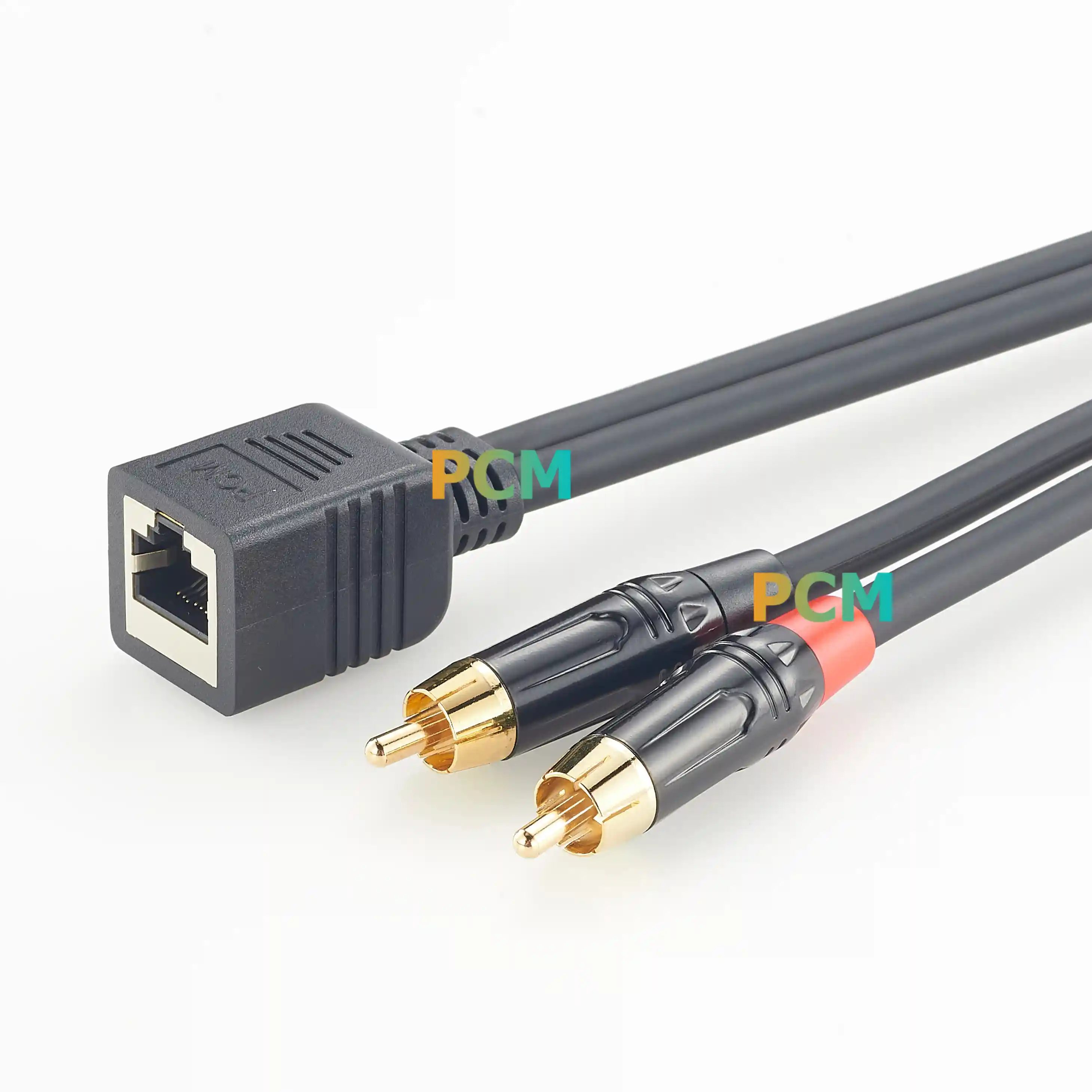

RJ45 Female to Dual RCA Male StudioHub Audio Adapter Cable
PCM-KW-665 is a compact 20cm audio adapter that converts a compatible RJ45 broadcast audio interface to two RCA male connections. Designed for short-distance studio and rack wiring, it provides a practical way to connect StudioHub-style or compatible broadcast audio infrastructure with RCA-equipped audio devices.
RJ45 INTERFACE
8P8C Female + ShellAUDIO OUTPUT
Dual RCA MaleCONTACT
Gold PlatedOVERALL LENGTH
200 ± 10 mm
SHORT-FORM BROADCAST ADAPTER
A Compact RJ45-to-RCA Interface for Studio Wiring
PCM-KW-665 is designed as a short adapter rather than a long interconnect cable. The RJ45 female interface allows it to be paired with an appropriate shielded RJ45 patch cable, while the two RCA male connectors provide direct access to conventional analog audio equipment.
This modular arrangement is useful in studios where the RJ45 infrastructure is already installed and only a short adapter is needed at the destination equipment.
STUDIOHUB-STYLE CONNECTION
RJ45 Audio Wiring Is Not the Same as Ethernet
The RJ45 connector in this application is used as an audio wiring interface. Compatibility depends on the audio pin assignment of the equipment, so the cable should not be selected simply because the device has an RJ45 socket.
ANALOG AUDIO BREAKOUT
Two RCA Connections from One RJ45 Audio Port
The adapter separates two audio channels carried by the compatible RJ45 interface and routes them to individual RCA male connectors. This makes it possible to integrate RCA-equipped recorders, processors, playback devices and other audio equipment into an RJ45-based studio wiring system.
Gold-plated RCA contact surfaces and metal connector shells provide a durable termination for repeated professional installation and equipment connection.
RCA interfaces are normally unbalanced. Always verify the source and destination wiring requirements when connecting a balanced RJ45 audio interface to unbalanced equipment.
CHANNEL ASSIGNMENT
Studio Audio Channel Wiring
PCM-KW-665 uses the common RJ45 audio channel positions shown below.
RJ45 Pins 3 / 6
Signal: RJ45 Pin 3
Return: RJ45 Pin 6
Shield: Pin 4 + Connector Shell
RJ45 Pins 1 / 2
Signal: RJ45 Pin 1
Return: RJ45 Pin 2
Shield: Pin 4 + Connector Shell
Verify the target equipment pinout before installation.
RACK & CONSOLE INSTALLATION
20cm Adapter Keeps Studio Connections Short and Organized
The 200mm adapter length is well suited to equipment racks, broadcast consoles and workstations where a long pigtail would create unnecessary cable loops.
Typical installations include Axia audio nodes, broadcast consoles, studio processors, monitoring equipment, recorders, radio station infrastructure and professional AV systems requiring an RCA interface.
Product Specifications
| Premier Cable No. | PCM-KW-665 |
| Connector A | RJ45 8P8C Female + Shield Shell |
| Connector B | 2 × RCA Male |
| RCA Contact | Gold Plated |
| RCA Shell | Black Zinc Alloy |
| Overall Length | 200 ± 10 mm |
| Cable Construction | 24AWG × 2C shielded cable |
| Application | StudioHub-style broadcast and analog audio equipment integration |
Why Use a Female RJ45 Audio Adapter?
A female RJ45 adapter can be combined with a separate shielded RJ45 patch cable, allowing the main cable run and equipment-side adapter to be selected independently. This can simplify replacement, rack reconfiguration and changes in cable length.
The short adapter format is particularly useful in broadcast studios where standardized RJ45 audio infrastructure is already installed behind consoles, racks and equipment furniture.
CUSTOM AUDIO ASSEMBLIES
Custom RJ45 to RCA Broadcast Audio Adapters
Premier Cable supports custom cable length, channel wiring, connector configuration, cable construction, molding and labeling. Equipment model, pinout, drawing, photos or existing cable samples can be provided for compatibility review and custom development.
Hot Tags: rj45 female to dual rca male studiohub audio adapter cable, China rj45 female to dual rca male studiohub audio adapter cable manufacturers, suppliers, factory
