In automotive electronics development, different modules may use connectors with different mechanical configurations. Engineers must verify connector mating relationships while considering equipment spacing, cable routing, interface layout, and the electrical requirements of the complete communication channel.

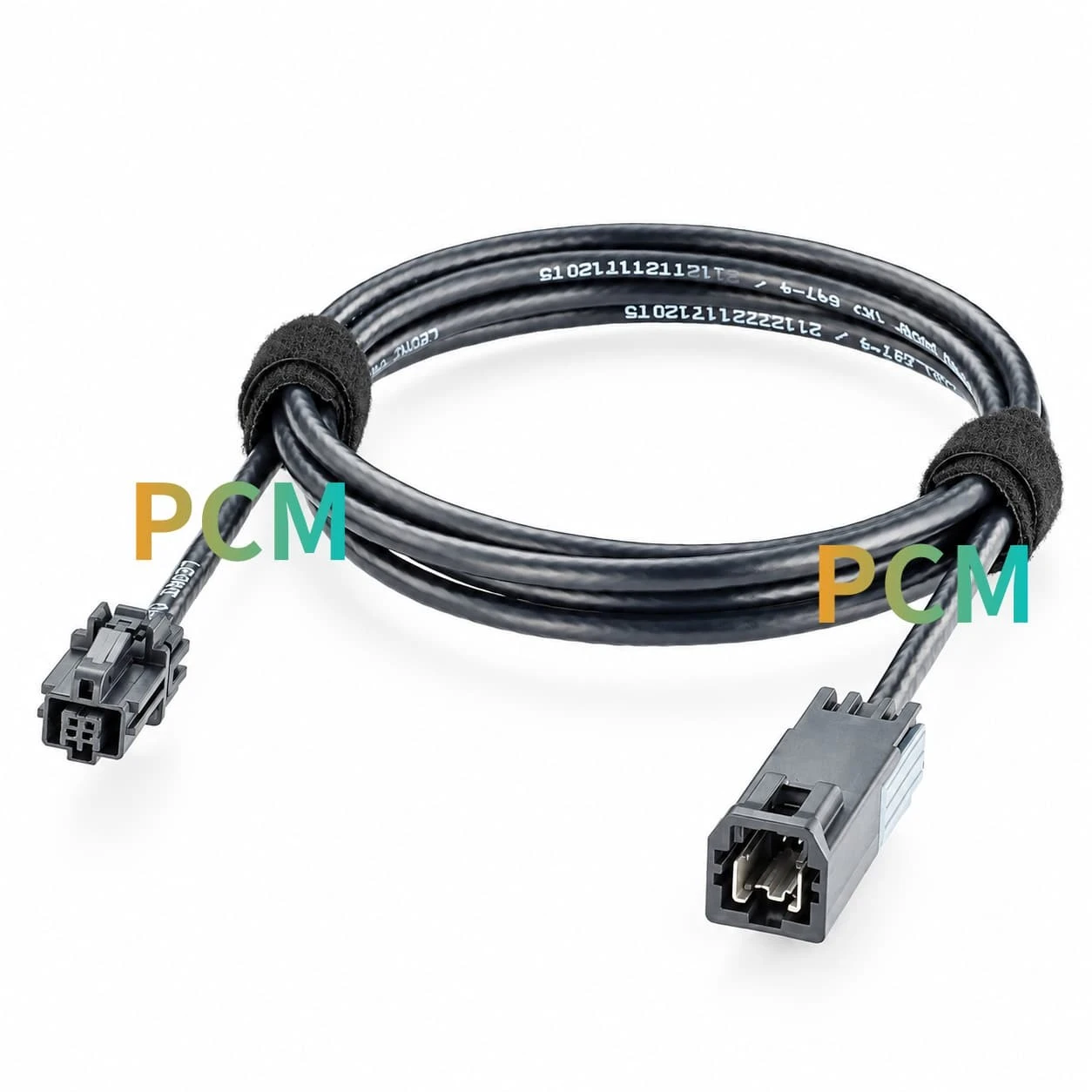

Premier Cable PCM-XY-0009 is an automotive Ethernet extension cable assembly featuring Aptiv 35191760 and Aptiv 35435069 connectors. Built with LEONI Dacar 647-4 cable, it provides a pre-assembled interconnection solution for selected automotive electronic interfaces with different connector configurations at each end.

Unlike an extension cable with identical connectors on both ends, PCM-XY-0009 features two different interface configurations, allowing engineers to select a cable according to the actual equipment interfaces. The product drawing lists three cable-length options for evaluating different routing distances.

Product Overview

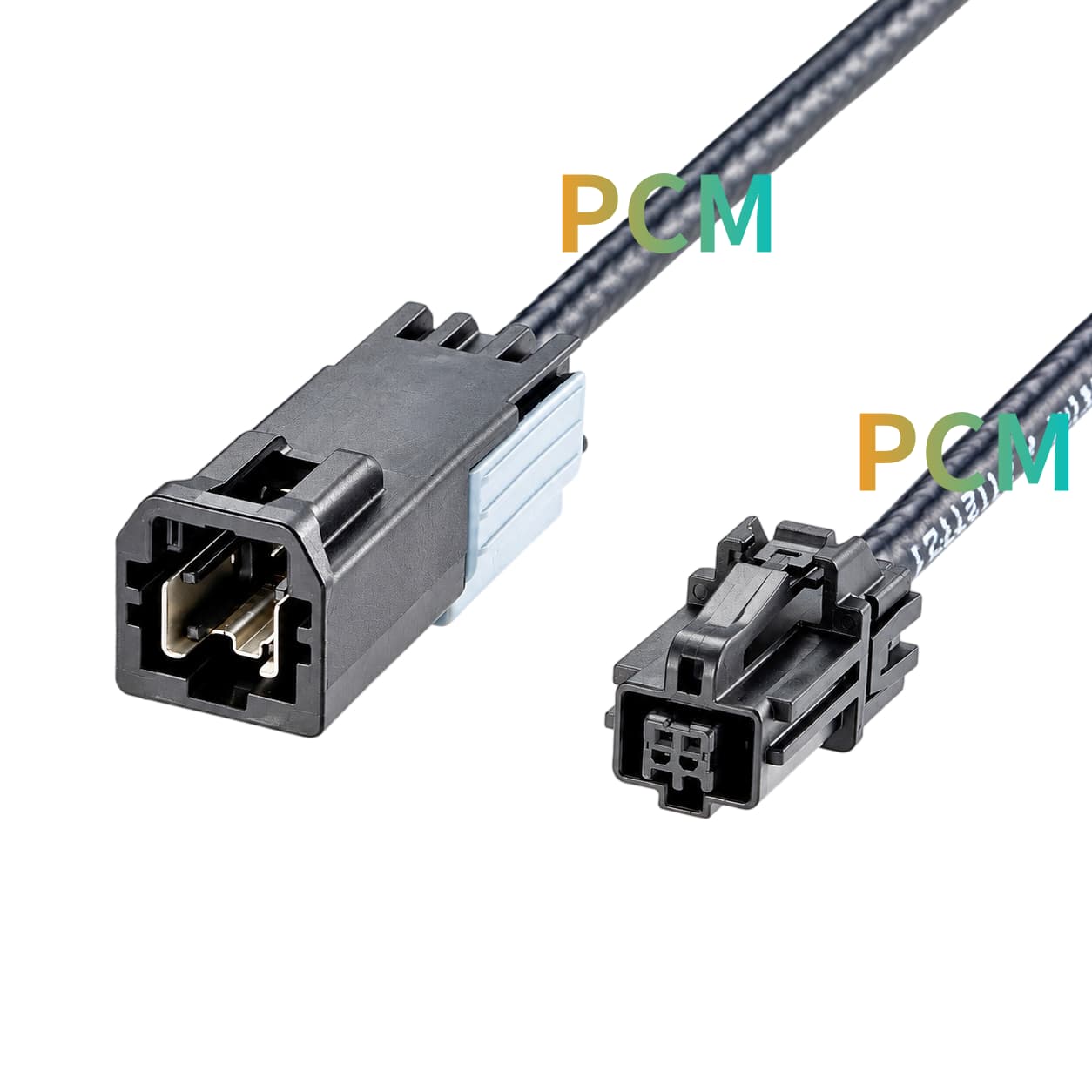

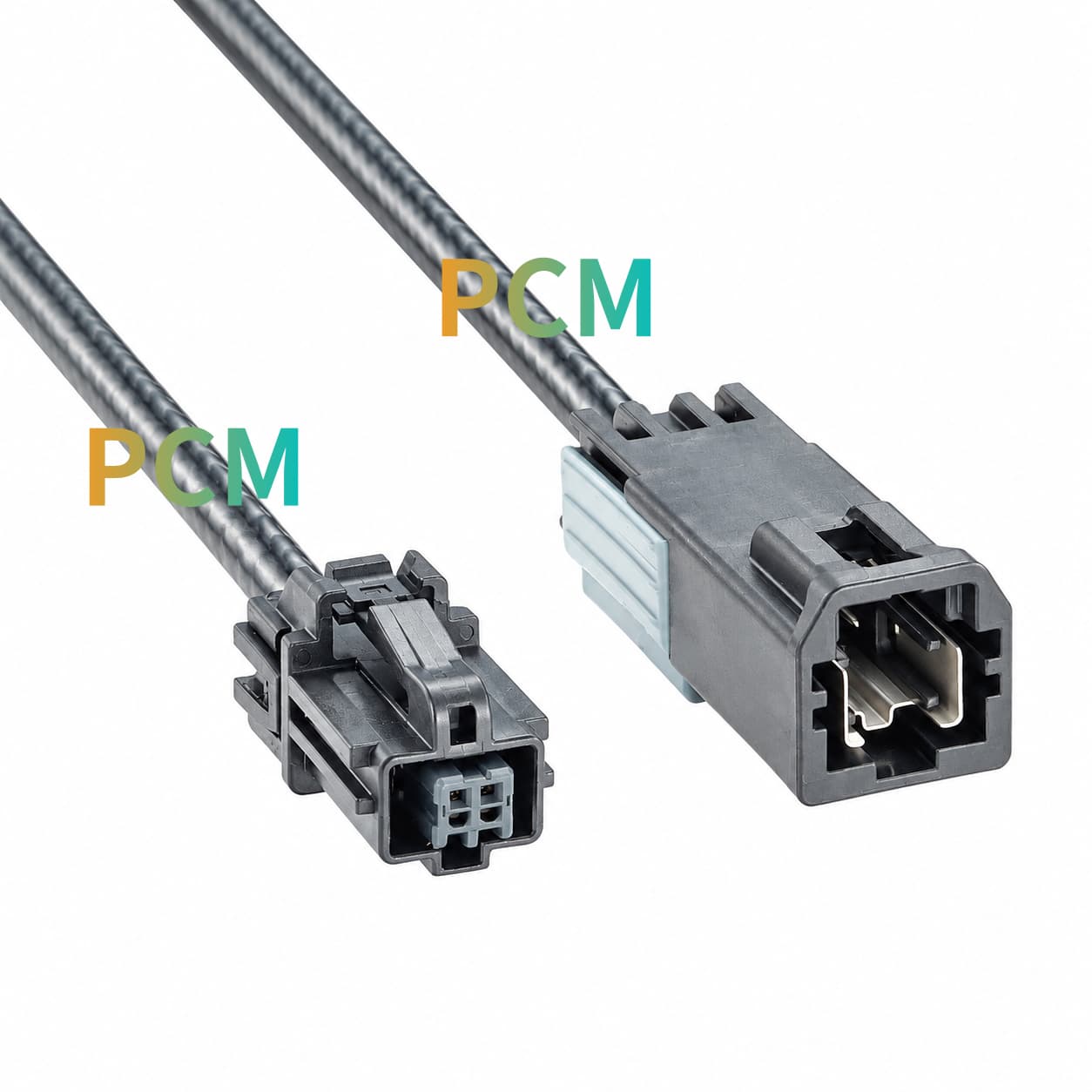

PCM-XY-0009 is an Aptiv automotive Ethernet extension cable assembly developed by Premier Cable. The P1 end uses Aptiv 35191760, the P2 end uses Aptiv 35435069, and the middle section employs LEONI Dacar 647-4 Ethernet Cable.

This product is a pre-assembled automotive data cable assembly, not an independent network switching device or protocol converter. Its primary function is to establish a physical connection between two devices within a system that meets mechanical and electrical requirements.

Due to differences in the models of the connectors at both ends, it is necessary to verify the device-side interfaces separately during selection to avoid confusing them with Aptiv extension cables that have identical connectors on both ends.

Product Specifications

Item	Specification
Part Number	PCM-XY-0009
Connector 1	Aptiy 35191760
Connector 2	Aptiy 35435069
Cable Model	LEON Racar 647- 4 Ethernet Cable
Nominal Impedance	100 ohm
Frequency Range	DC-10 GHz
Cable Length	0.5 m, 1.56 m, 2 m
Operating Temperature	-40°C to +105°C

What Does This Product Do ?

PCM-XY-0009 can provide a physical connection between automotive electronic modules with compatible mating interfaces. When an existing harness is too short or the equipment requires different connector types, this assembly can serve as an extension cable solution subject to engineering evaluation.

In automotive Ethernet systems, it can be evaluated for connections involving controllers, gateways, test equipment, and other compatible modules. Actual communication functionality depends on both devices, network topology, pin assignments, and the performance of the complete cable channel.

A passive extension cable provides physical interconnection only. It does not automatically add network ports, convert communication protocols, or improve the bandwidth of the original system.

Why Are Different Connector Types Used at the Two Ends of an Extension Cable ?

Automotive electronic systems may use different interface constructions to meet equipment-layout, connection, and integration requirements. Using different connector models at the two ends of an extension cable does not necessarily indicate signal conversion; it may simply provide the physical interfaces required by the connected equipment.

For PCM-XY-0009, the Aptiv 35191760 and Aptiv 35435069 combination should be checked against the official equipment drawings. Even when both connectors belong to automotive Ethernet applications, mating structures and pin assignments must be verified rather than inferred from the connector family or appearance.

Product FAQ

Which Cable Lengths Are Available ?

The engineering drawing lists three lengths: 0.5 m, 1.56 m, and 2 m, corresponding to PCM-XY-0009-0.5M, PCM-XY-0009-1.56M, and PCM-XY-0009-2M. Refer to the approved product drawing for the exact dimensions and tolerances.

Does the Cable Automatically Convert Between Different Interfaces ?

No. PCM-XY-0009 is a passive cable assembly designed to establish a physical connection according to the specified wiring arrangement. Successful communication between the interfaces depends on pin mapping, electrical design, and compatibility of the target devices. The cable itself does not provide active protocol conversion.

What Should Be Confirmed Before Bulk Purchasing ?

Confirm the complete product model, connector part numbers at both ends, cable length, wiring-drawing revision, inspection requirements, and delivery conditions. If the cable is intended for a specific automotive Ethernet protocol, define the required complete-assembly performance tests rather than treating connector specifications as proof of finished-cable performance.

Can Premier Cable Evaluate OEM Cable Lengths or Custom Configurations ?

Special cable lengths, interface configurations, and other harness requirements can be evaluated according to project documentation. Provide equipment interface drawings, target length, routing path, wiring assignments, and test requirements to establish a feasible configuration, sample-validation plan, and volume-supply conditions.
