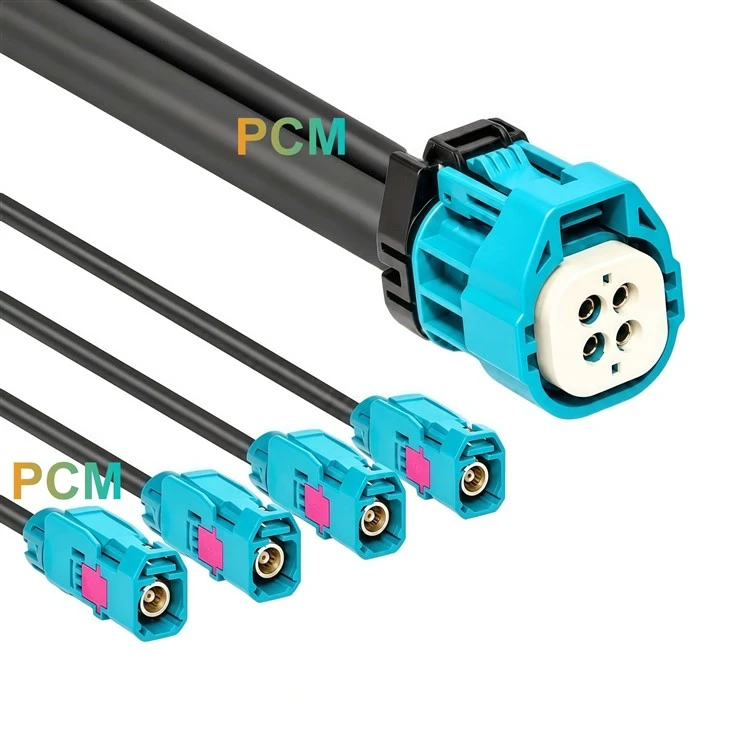

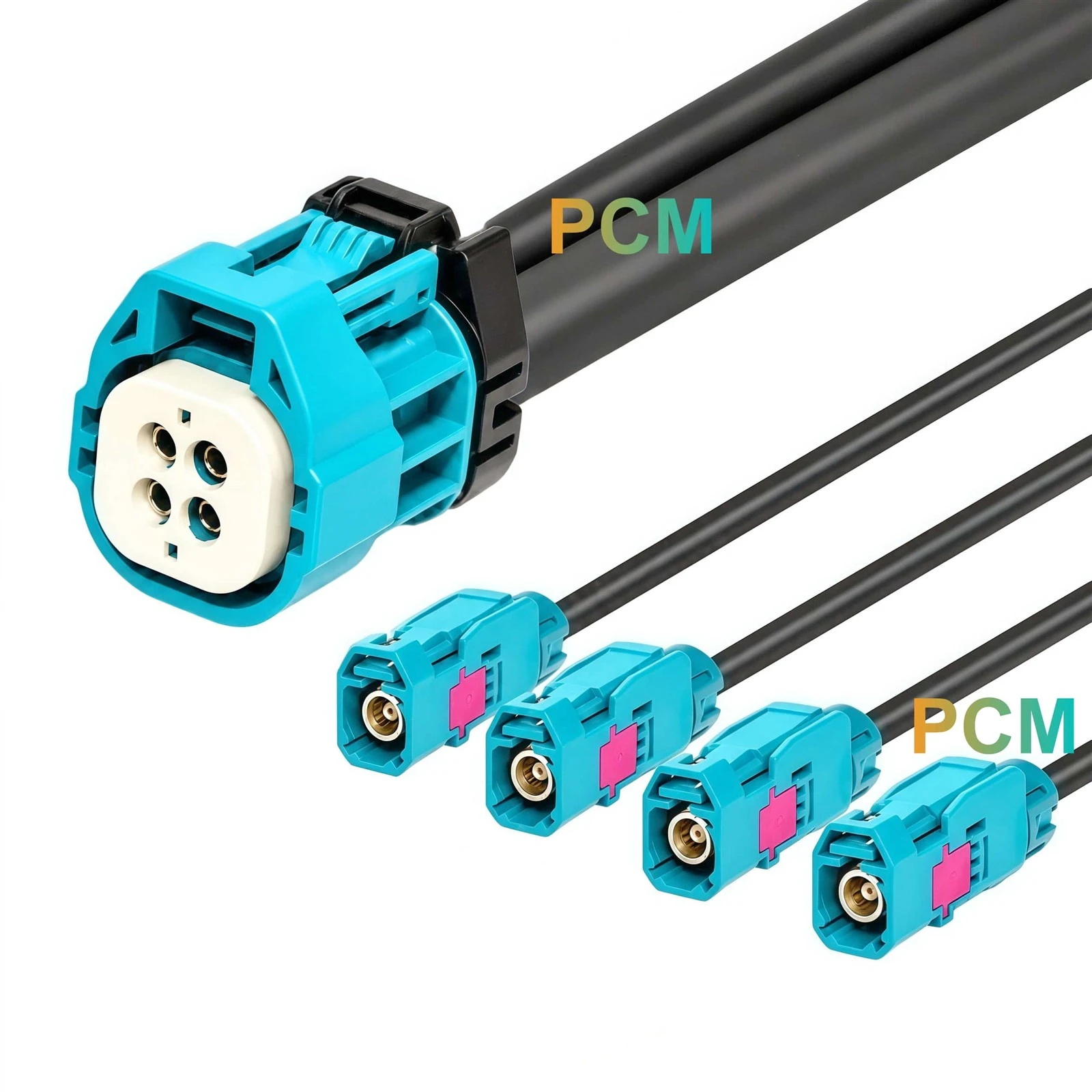

ECT Mini FAKRA to FAKRA Automotive Camera Harness

This Premier Cable automotive camera harness connects an ECT Mini FAKRA four cavity female interface to four ECT FAKRA straight female ends. It brings a grouped coaxial connection out to separate mating positions, allowing the harness route to follow the vehicle equipment layout.

IP67 Waterproof connectors are specified at the integrated end and all four branches. The assembly addresses projects requiring protected connections across both interface formats, with channel assignment defined in the approved wiring drawing.

Product Specifications

Protected Interfaces And Four Coaxial Branches

Four Cavities in One ECT Mini FAKRA Housing

ECT Mini FAKRA 818018737 groups four female coaxial positions behind a shared front insert, with a common outer housing and latch.

IP67 Waterproof FAKRA Terminations

Each ECT 818014116 Z Code straight female branch uses an IP67 Waterproof connector, extending protection to the remote mating points.

Individual Straight Cable Exits

Four separate coaxial runs terminate in straight FAKRA bodies, allowing each connection to follow its own installation route.

Applications & Customer Value

Automotive Camera Interface Adaptation

Connects a grouped ECT Mini FAKRA interface to individual FAKRA mating points when the main equipment and peripheral harness use different formats.

Vehicle Harness Packaging

Independent branches accommodate spaced connection locations, allowing routing to follow mounting positions and available installation clearance.

Automotive Prototype Evaluation

The specified connector combination supports mating checks, branch identification and installation assessment before the harness drawing is released.

Product FAQ

Q1. Does this harness split one camera signal into four outputs ?

No signal duplication function is specified. The four cavity connector groups separate coaxial connections, with branch assignment confirmed through the wiring drawing.

Q2. How does the IP67 Waterproof branch version differ from a nonsealed version ?

This version uses ECT 818014116 branch connectors. Selection depends on the required mating interface and the environmental conditions at each connection location.

Q3. Is it compatible with a particular vehicle, camera or video protocol ?

No specific compatibility is confirmed. Submit the mating connector references, channel definition and electrical link requirements for assessment.

Q4. What must be checked when installing IP67 Waterproof connectors ?

Confirm the mating components, seal condition and complete locking engagement. Cable routing must also avoid excessive loading at the connector entries.

Q5. What can Premier Cable customize for an OEM project ?

Premier Cable supports connector type, gender, coding and housing review, plus cable length, jacket, shielding and structure customization. Electrical review covers pin assignment, wiring definition, circuit configuration and applicable resistance or power requirements. OEM services include drawing review, prototypes, mass production, labels and packaging.
