ECT Mini FAKRA to TE MATE-AX Female Camera Cable

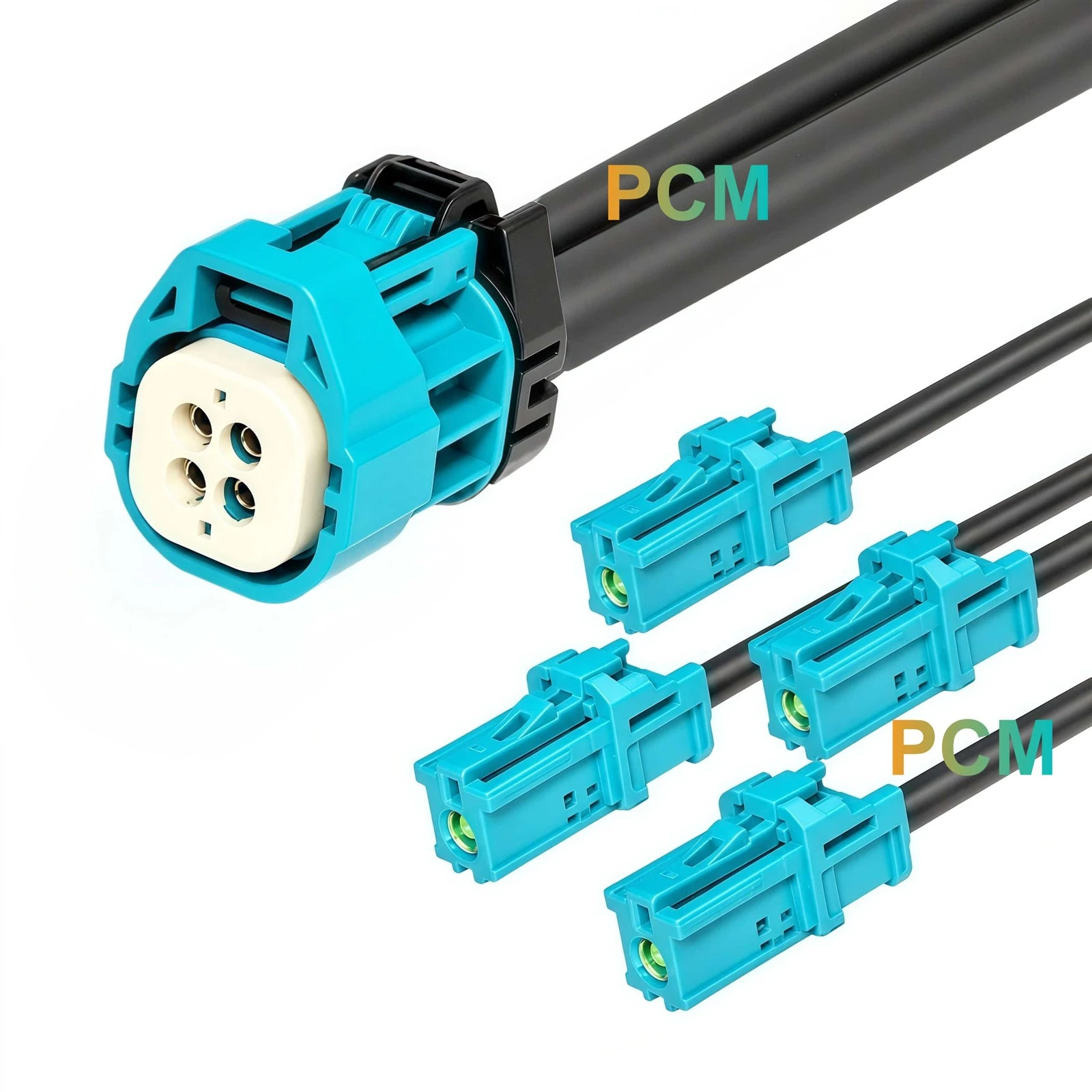

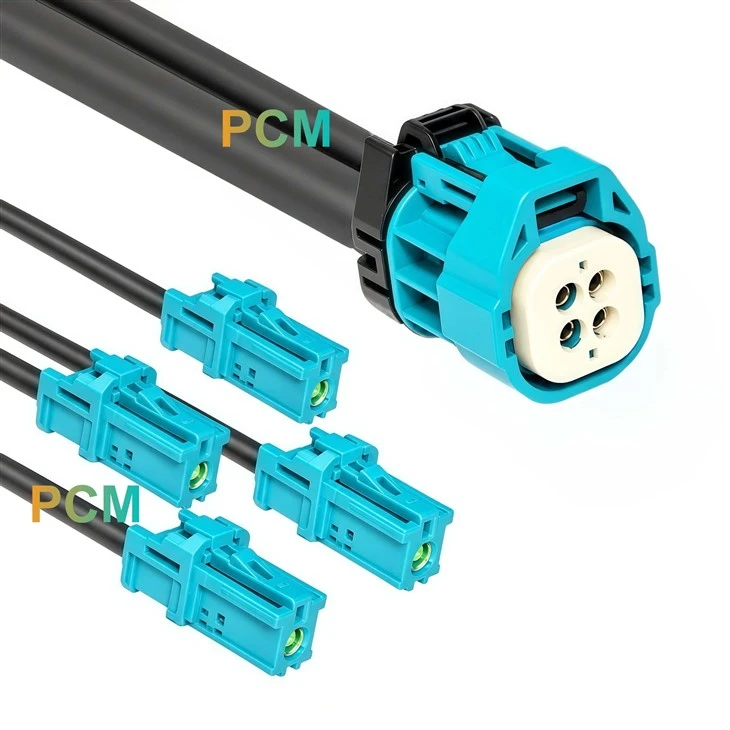

This Premier Cable harness adapts an ECT Mini FAKRA four cavity female connection to four TE MATE-AX single cavity female ends. It serves camera wiring projects that specify a grouped interface at the main connection and individually positioned MATE-AX interfaces elsewhere in the assembly.

Four coaxial branches separate the remote mating locations. The ECT Mini FAKRA end uses waterproof construction, while protection requirements at the TE terminations must be confirmed for the intended installation.

Product Specifications

ECT Mini FAKRA to Individual MATE-AX Connections

Grouped Four Cavity Interface

ECT Mini FAKRA 818018737 retains four female coaxial mating positions in one Z Code housing with a shared front insert.

TE MATE-AX Single Cavity Ends

Four TE 1-2310137-9 MATE-AX Z Code female ends each use an elongated housing with a top latch and a straight rear cable exit.

Separate Routes to Remote Interfaces

Individual coaxial branches leave the grouped connector and reach separate MATE-AX mating points without a fixed spacing between ends.

Applications & Customer Value

TE MATE-AX Harness Integration

Combines the specified connector families when the camera equipment and peripheral harness use different mating formats.

Enclosure Connection Layouts

Individually positioned ends allow connection spacing to follow the enclosure design, with clearance reserved for each top latch.

Camera Prototype Assembly

Separate branches make it easier to assign camera paths and evaluate routing before releasing the final harness drawing.

Product FAQ

Q1. What does a four branch camera harness do?

It brings grouped coaxial connection positions out to individual cable ends. No signal switching, video combining or protocol conversion function is confirmed.

Q2. Can these MATE-AX ends replace HFM or standard FAKRA ends?

Replacement requires a mating interface review. Connector family, gender, coding and mechanical geometry must match the corresponding equipment connector.

Q3. Is this cable compatible with a specific camera or controller?

The supplied material does not confirm device or protocol compatibility. Submit the mating references, channel assignment and electrical requirements for assessment.

Q4. Are both connector ends waterproof?

Only the ECT Mini FAKRA end is identified as a waterproof type. The material does not establish a specific IP rating or confirm protection at the MATE-AX ends.

Q5. What can Premier Cable customize for an OEM order?

Premier Cable supports connector type, gender, coding and housing review, plus cable length, jacket, shielding and structure customization. Electrical review covers pin assignment, wiring definition, circuit configuration and applicable resistance or power requirements. OEM services include drawing review, prototypes, mass production, labels and packaging.
