ECT Mini FAKRA to SMA Female Bulkhead Test Cable

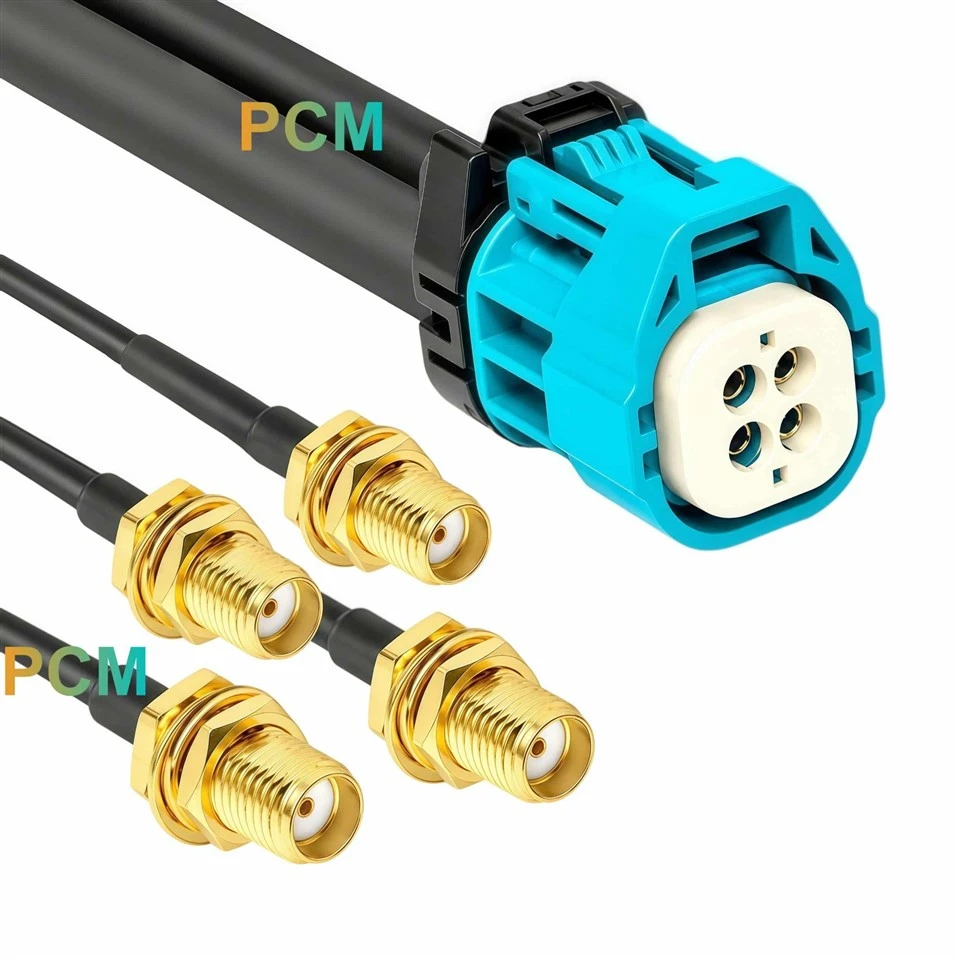

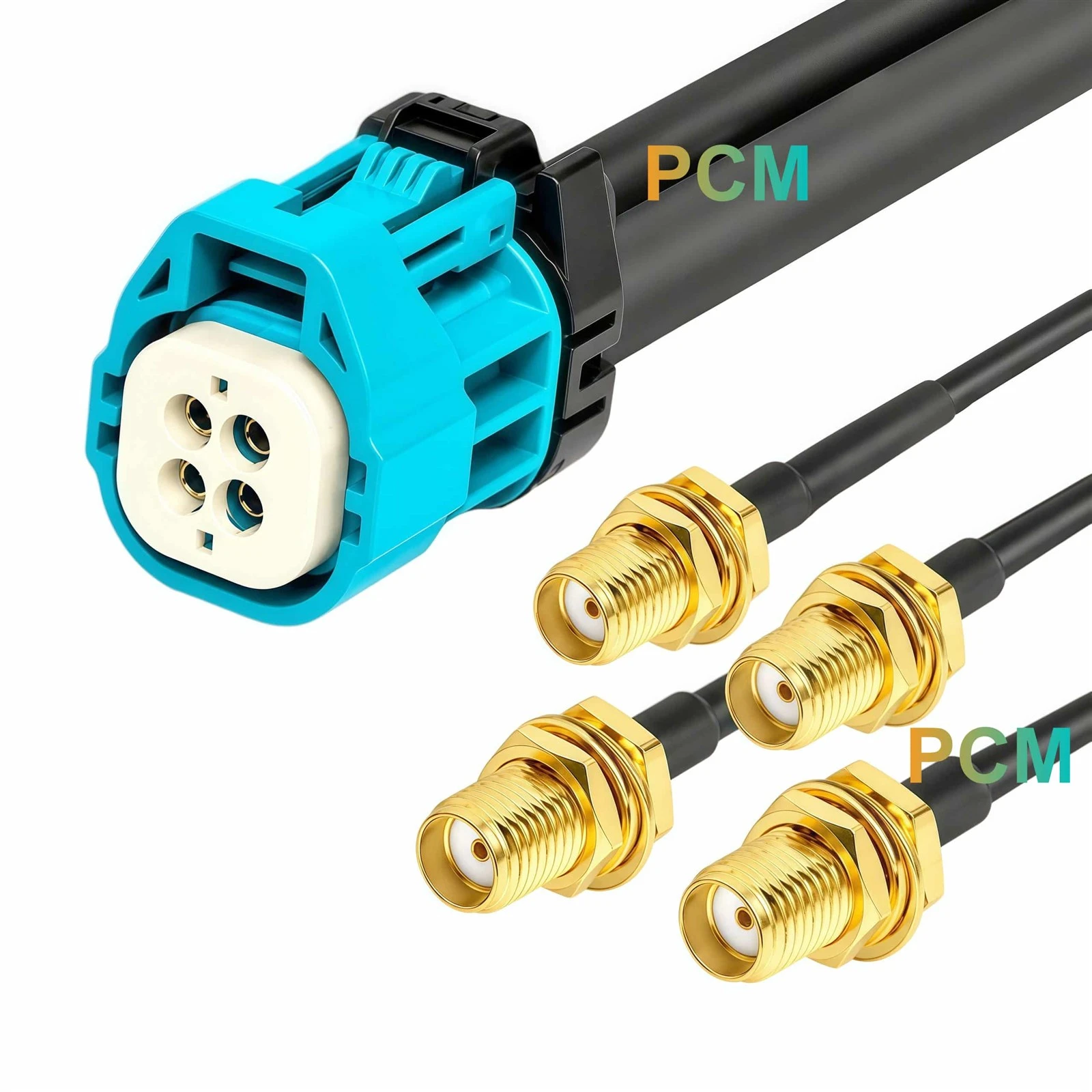

This Premier Cable brings four coaxial connections from an ECT Mini FAKRA female interface to individual SMA female test points. Each SMA termination includes mounting hardware, allowing customers to arrange the connection points on a fixture panel after confirming the installation dimensions.

The cable separates the equipment connection from routine test lead access. Operators can connect matching SMA male leads at the panel while the grouped ECT Mini FAKRA interface remains connected to the equipment.

Product Specifications

Panel Test Points And Grouped Equipment Connection

SMA Female Mating Interfaces

Each SMA-KY-2 female end uses an external thread and center socket to accept the corresponding SMA male test lead.

Individual Bulkhead Hardware

Nuts and washers allow each SMA body to occupy a separate panel position once the cutout and panel thickness are confirmed.

ECT Mini FAKRA Equipment Access

ECT Mini FAKRA 818018737 groups the four coaxial connections in one Z Code housing at the equipment side of the fixture.

Applications & Customer Value

Automotive Test Panels

Customers can place the SMA female ends on a panel and connect external test leads without reaching into the equipment area.

Repeatable Fixture Setup

Fixed port positions and project labels give technicians a consistent reference when reconnecting the same four test paths.

Equipment Interface Evaluation

Engineers can bring the grouped automotive interface to accessible coaxial test points after confirming the required electrical characteristics.

Product FAQ

Q1. Does this cable contain measurement or signal conversion electronics ?

No active electronics are specified. The assembly creates physical coaxial connections between the equipment interface and the SMA test points.

Q2. How does this version differ from the SMA male version ?

These branches accept SMA male leads and include bulkhead mounting hardware. The male version uses a different mating contact and coupling arrangement.

Q3. Can I use the SMA ends with any RF instrument ?

Confirm connector polarity, impedance, operating limits and the intended measurement range first. Mechanical fit alone does not establish electrical suitability.

Q4. What information is needed to design the mounting panel ?

Confirm the connector mounting dimensions, panel thickness, port spacing and rear cable clearance. Define cavity mapping and labeling in the fixture drawing.

Q5. How does Premier Cable support a custom test fixture cable ?

Premier Cable reviews connector type, gender, coding and housing requirements, then defines cable length, jacket, shielding and structure. Electrical review covers pin assignment, wiring definition, circuit configuration and applicable resistance or power requirements. OEM services include drawing review, prototypes, mass production, port labels and packaging.
