TE GEMnet Quad Port Ethernet Cable

Zonal and domain based vehicle architectures push four or more high speed Ethernet channels into a single ECU. Running four separate coax cables through four separate bulkhead holes wastes panel space, adds weight and creates four leak paths. TE GEMnet is the quad port connector system that solves this: one black plastic housing carries four independent 10 Gigabit Ethernet channels, each with its own gold plated contact, in a single mated pair.

This harness is the female to female extension of that concept. Both ends are the same GEMnet quad port female, so the harness bridges two panel mounted quad receptacles, or extends a factory GEMnet pigtail to a relocated domain controller. The cable is GG 2SPEED R 251, a fully shielded 10G twisted pair line built to hold the 100 ohm differential impedance and 360 degree shielding that four parallel 10 Gigabit links demand. The red and purple release latches on the two ends let service technicians tell the vehicle side from the device side at a glance.

Whether you are bridging two GEMnet quad bulkhead receptacles on a prototype zonal vehicle, extending a domain controller pigtail to a relocated ECU, or building a four channel 10G test harness on the bench, this female to female GEMnet jumper carries all four channels in one certified assembly. Pick the length that matches your routing run.

Product Specifications

Available Configurations

TE GEMnet 10G Automotive Ethernet Cable

This harness is a female to female extension of the TE GEMnet quad port connector, the same black 4 cavity housing used on zonal and domain controllers.

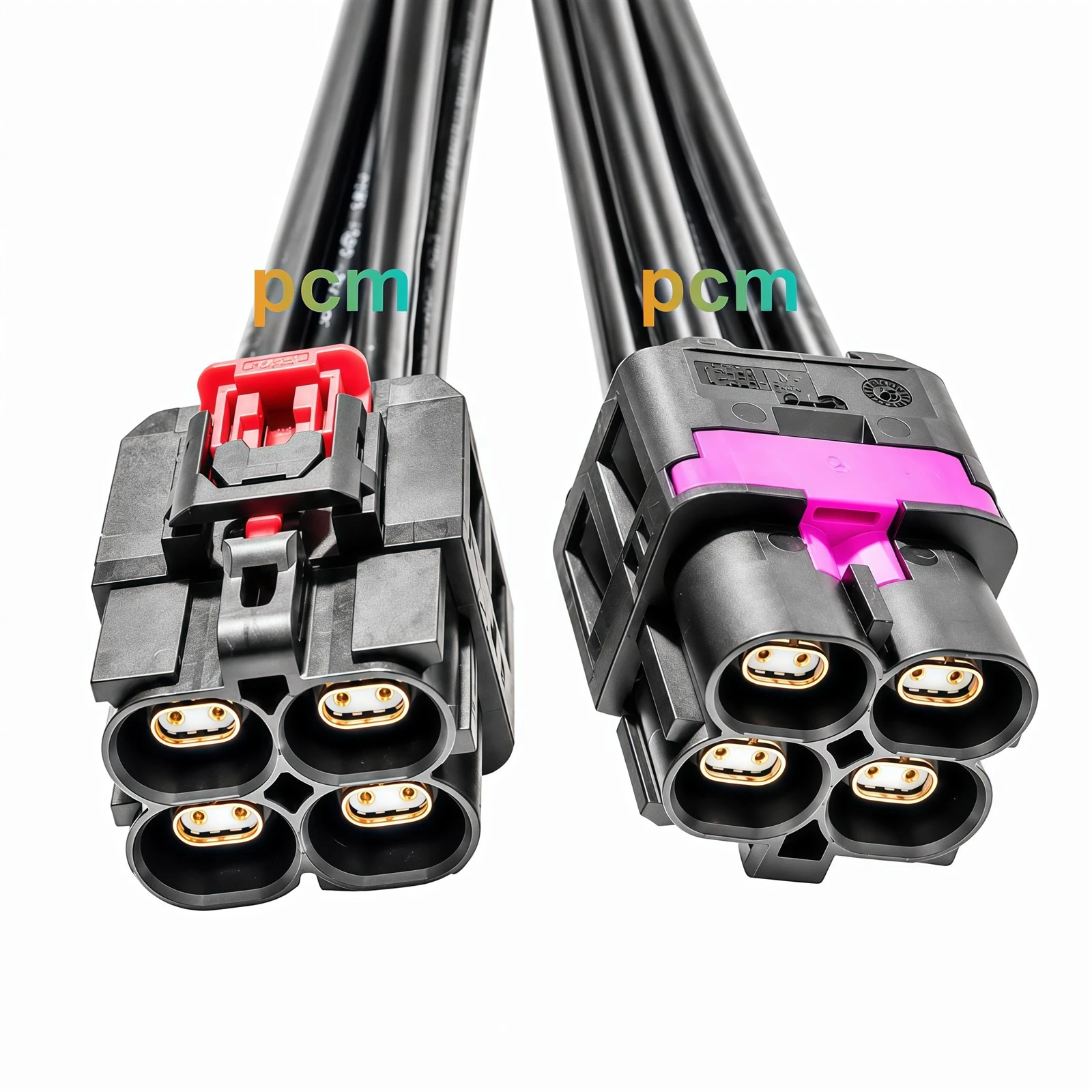

One end is keyed with a red release latch and the other with a purple release latch, so that when the harness is installed in a vehicle the technician can tell which end goes to the body bulkhead and which goes to the ECU without reading a label.

Both ends carry four independent 10 Gigabit Ethernet channels, and the gold plated contacts inside each cavity mate directly to the corresponding contacts on a factory GEMnet male pigtail or panel receptacle.

Quad Port Female to Female Ethernet Cable

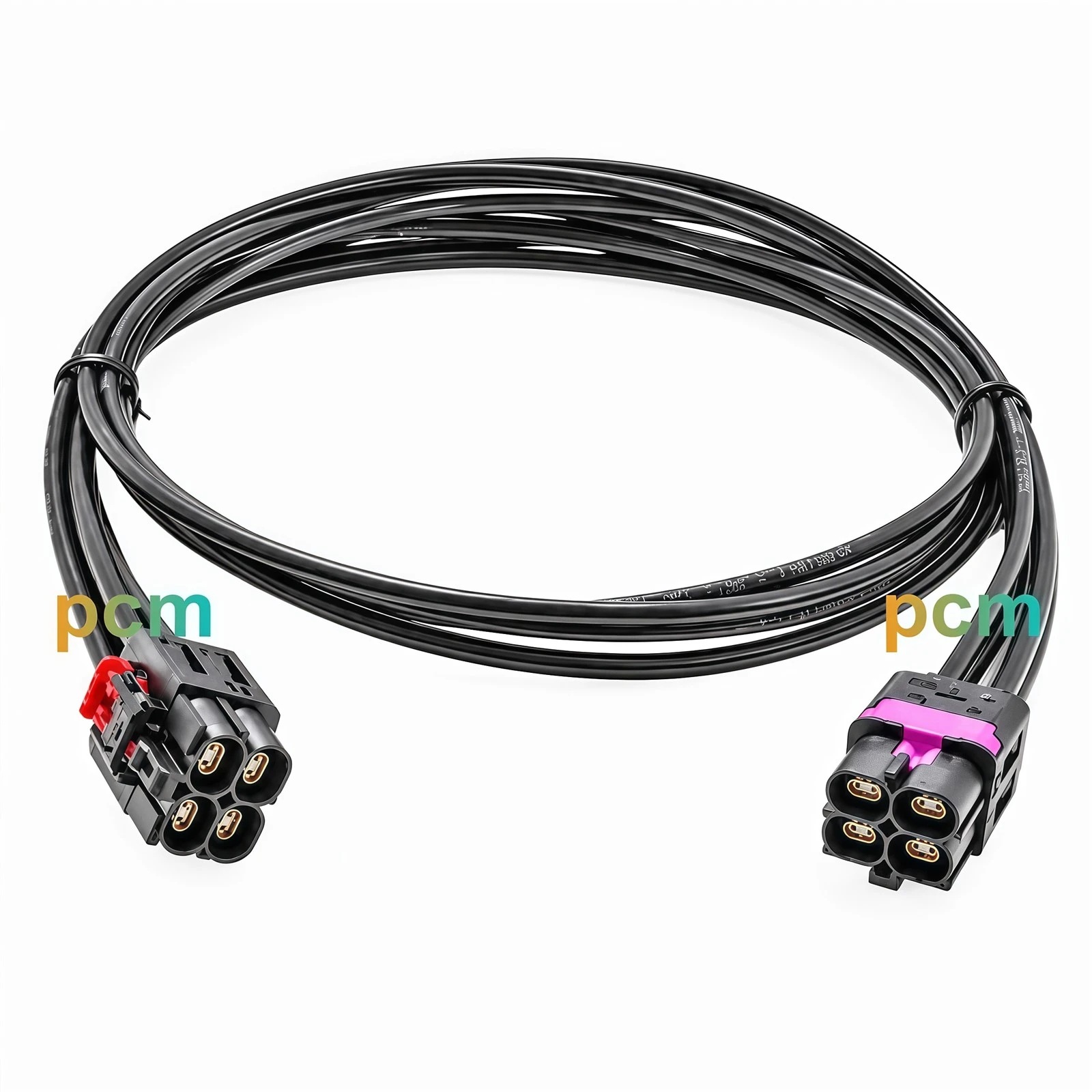

The cable is GG 2SPEED R 251, a fully shielded 10G twisted pair line with a round black jacket, sized to preserve the 100 ohm differential impedance on all four channels end to end.

Because the harness is factory terminated as one assembly rather than four loose jumpers, there are four fewer mated pairs on the vehicle and four fewer potential points of failure.

Available in 7 lengths from 0.5 m for bench jumps to 5 m for trunk to cabin routing, every assembly is continuity and shielding tested before dispatch.

Applications

Closing line: because all four 10G channels run through factory terminated GEMnet connectors on the same shielded GG 2SPEED 251 cable, the link stays sealed and impedance matched end to end, and the red and purple latches make every mating visually self checking.

Professional Services

Engineering docs: datasheet, mating part list and cable drawing available on request.

Fast sampling: small batch samples in days, production volumes on a confirmed lead time.

Length customization: 0.5 m to 5 m in stock. Non standard long runs built to your drawing.

Configuration customization: female to female as shown. Other gender combinations and port counts quoted on request.

Quality before dispatch: 100 percent per channel continuity and shielding continuity tested on every assembly before dispatch.

OEM and bulk support: zonal ECU developers, ADAS integrators and R and D labs get volume pricing and private label packaging.

Product FAQ

Q1: What data rate does it support?

Up to 10 Gbps per channel over the GG 2SPEED R 251 fully shielded twisted pair, built for multi gigabit automotive Ethernet in zonal and domain controller architectures.

Q2: Is this a genuine TE GEMnet connector?

Yes. The quad port female housing is genuine TE GEMnet, part number 2386629-1, black housing with four cavities. The cable is GG 2SPEED R 251 fully shielded 10G automotive Ethernet.

Q3: Can you make custom lengths or gender combinations?

Yes. We support custom lengths from 0.5 m to 5 m and beyond, and can quote other GEMnet gender and port combinations on request. Send us your connector photos and target length, and we will quote the matching assembly.

Q4: Why are the two latches different colors?

One end has a red release latch and the other has a purple release latch. This is a service aid: technicians can tell the vehicle side from the device side at a glance without reading a label, reducing mis mating during assembly and service.
