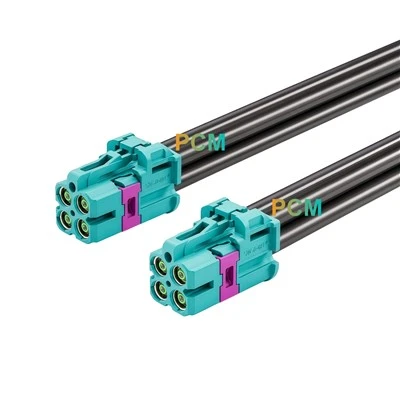

Compact RF Interconnect for Automotive Electronics
The Mini FAKRA Type A Jack to Jack RF Cable provides a compact 50Ω coaxial connection for automotive RF and high-frequency electronic systems. Its straight jack-to-jack configuration supports direct interconnection between compatible Mini FAKRA interfaces while helping reduce installation space compared with conventional automotive RF connectors.
Designed for applications such as ADAS, GPS navigation, telematics, antenna systems and in-vehicle electronics, the cable supports stable signal transmission in space-constrained installations. Multiple coding options and customizable cable lengths can be configured to meet different vehicle platform and equipment integration requirements.
Product Specifications
| Specification | Details |
|---|---|
| Impedance | 50Ω |
| Mating Cycles | ≥25 |
| Cable Color | Black |
| Cable Length | 1000 mm |
| Frequency Range | DC to 6 GHz |
| Mounting Type | Cable Mount |
| Cable Type | Coaxial Cable |
| Cable OD | Approx. 2.5 mm |
| Operating Temperature | -40°C to +105°C |
| Contact Gender | Female to Female |
| Connector Orientation | Straight to Straight |
| Connector A | Mini FAKRA Type A Jack |
| Connector B | Mini FAKRA Type A Jack |
| Product Type | Automotive RF Coaxial Cable Assembly |
| Coding | Multiple Color / Mechanical Coding Options |
| Custom Options | Cable Length / Coding / Cable Configuration |
Designed for Efficient Vehicle Integration
The compact Mini FAKRA interface helps engineers manage RF connections within increasingly space-constrained vehicle electronics. Its streamlined cable assembly is suitable for routing between control modules, communication units and other compatible RF interfaces without adding unnecessary connector bulk.
For OEM projects and equipment integration, the assembly can be adapted to different installation layouts through cable length, coding and identification options. This makes it easier to match specific module positions, signal paths and vehicle wiring requirements.
Typical Applications
Product Features
Compact Mini FAKRA Design
The smaller connector footprint helps effectively optimize available installation space in densely integrated automotive electronic systems.
Straight Jack-to-Jack Connection
Provides a convenient extension or interconnection between compatible Mini FAKRA interfaces without additional adapters.
Coding for Mismating Prevention
Color and mechanical coding options help identify different signal paths and reduce incorrect connections during assembly and maintenance.
50Ω RF Signal Transmission
Maintains a consistent 50Ω coaxial signal transmission path for stable RF connectivity across compatible automotive electronic systems.
Why Choose Premier Cable
Automotive Cable Assembly Expertise
Premier Cable manufactures RF and automotive cable assemblies for vehicle electronics, test equipment and system integration projects.
Flexible OEM Production
Support is available for prototype quantities, customized assemblies and production requirements based on customer drawings or interface specifications.
Configuration Support
Connector coding, cable selection and assembly details can be matched to the required equipment interface and installation environment.
Quality-Focused Assembly
Cable assemblies are produced with attention to connector fit, wiring consistency and reliable signal connectivity for automotive applications.
Product FAQ
Q1: What is the difference between Mini FAKRA and standard FAKRA?
Mini FAKRA uses a more compact connector design, making it suitable for high-density automotive electronics where installation space is limited.
Q2: Is this cable Mini FAKRA on both ends?
Yes. This specific cable configuration uses a straight Mini FAKRA Type A jack on both ends for connecting compatible mating interfaces.
Q3: Can I select a different Mini FAKRA coding?
Yes. Coding can be selected based on mating interfaces and signal requirements. Please provide coding or connector details when requesting a quotation.
Q4: Can the cable length be customized?
Yes. PCM can manufacture customized cable lengths according to specific equipment layout, application needs and installation requirements.
Q5: What information is needed for a custom quotation?
Please provide connector coding, cable length, quantity and cable or labeling requirements. Drawings or interface details can confirm specifications.
