Huawei Quad Port To TE MATEnet Ethernet Cable

Huawei spec automotive and telecom equipment uses its own 4 cavity waterproof Ethernet connector interface. When a Huawei based domain controller or telematics module has one quad waterproof Ethernet port, the four gigabit channels inside that single connector still need to reach four separate MATEnet equipped sensors, cameras or test jigs. A factory made 1 to 4 fan out harness bridges that gap, instead of four hand built cables that fail impedance and shielding tests.

This harness is that bridge. The waterproof quad female end bolts to the Huawei spec panel, and the cable fans out to four TE MATEnet single port connectors, either male or female. The cable is a fully shielded pure copper gigabit Ethernet line, preserving the 100 ohm differential impedance that a 1 Gbps automotive Ethernet link needs.

Whether you are bringing a Huawei spec quad waterproof Ethernet port out to four MATEnet sensors, adapting a Huawei based telematics module to MATEnet test equipment, or extending a quad panel feed to four camera or radar channels, this harness does the fan out for you. Pick Config 1 for MATEnet male ends or Config 2 for MATEnet female ends.

Product Specifications

Available Configurations

Huawei Waterproof Female to MATEnet Male x4.

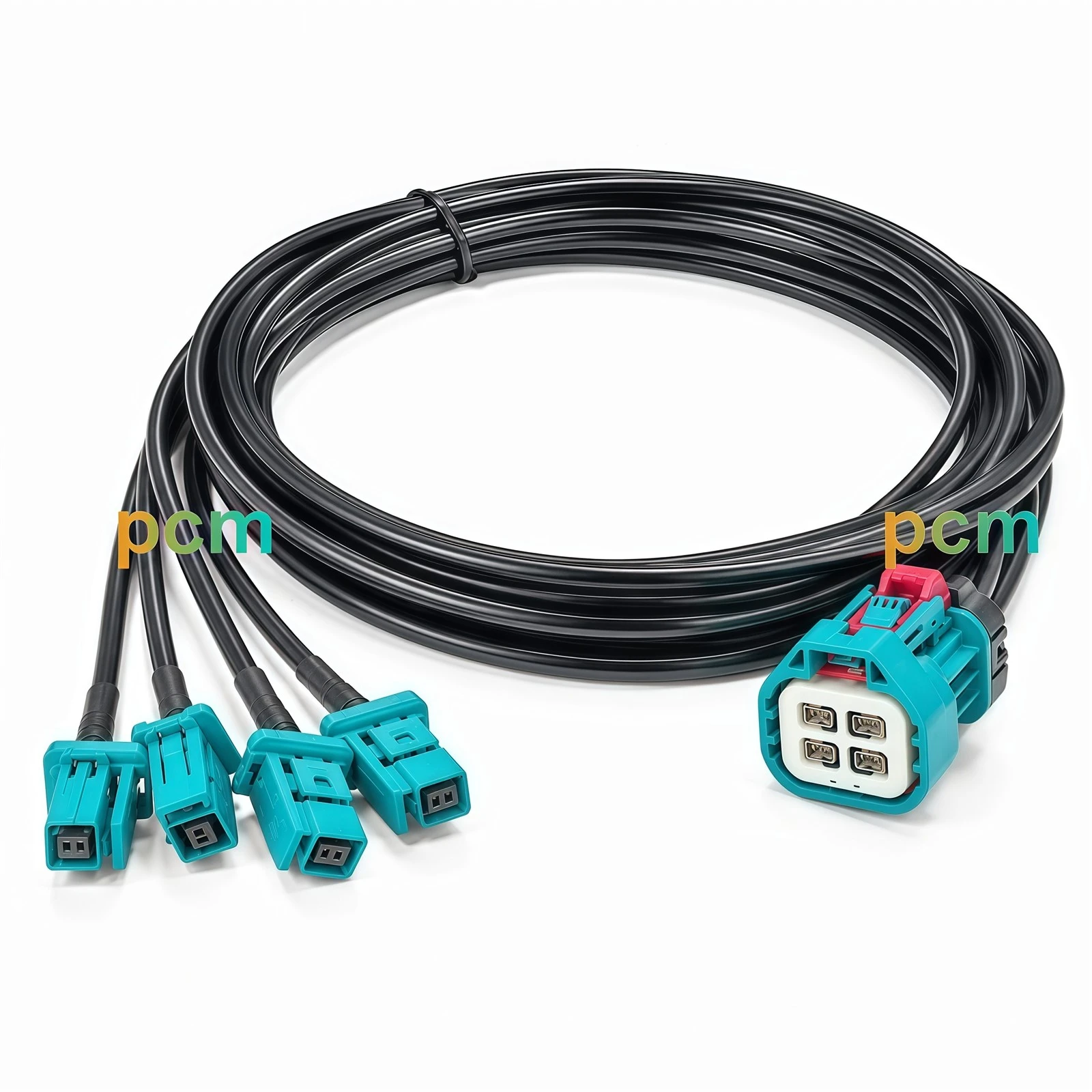

The waterproof quad Huawei female end mounts to the Huawei spec panel, and the cable fans out to four water blue TE MATEnet male plugs. Each male plug mates directly into a MATEnet female sensor, camera or ECU port.

Use it when the four devices on the other end have MATEnet female sockets, such as factory cameras or radar modules. The waterproof quad end seals against water and dust at the Huawei panel, while the four MATEnet male ends plug straight into existing sensor pigtails with no adapter. The 0.5 m to 5 m length range covers everything from a tight panel to sensor jump to a trunk to cabin run.

Huawei Waterproof Female to MATEnet Female x4

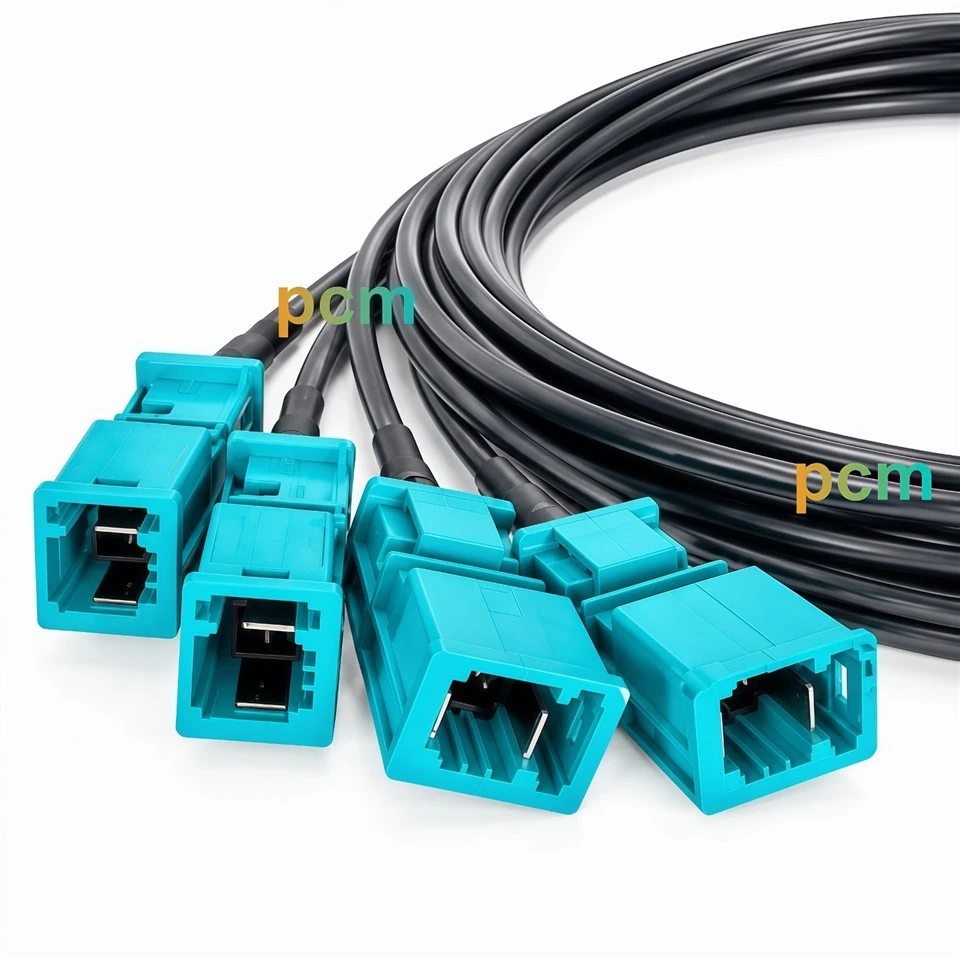

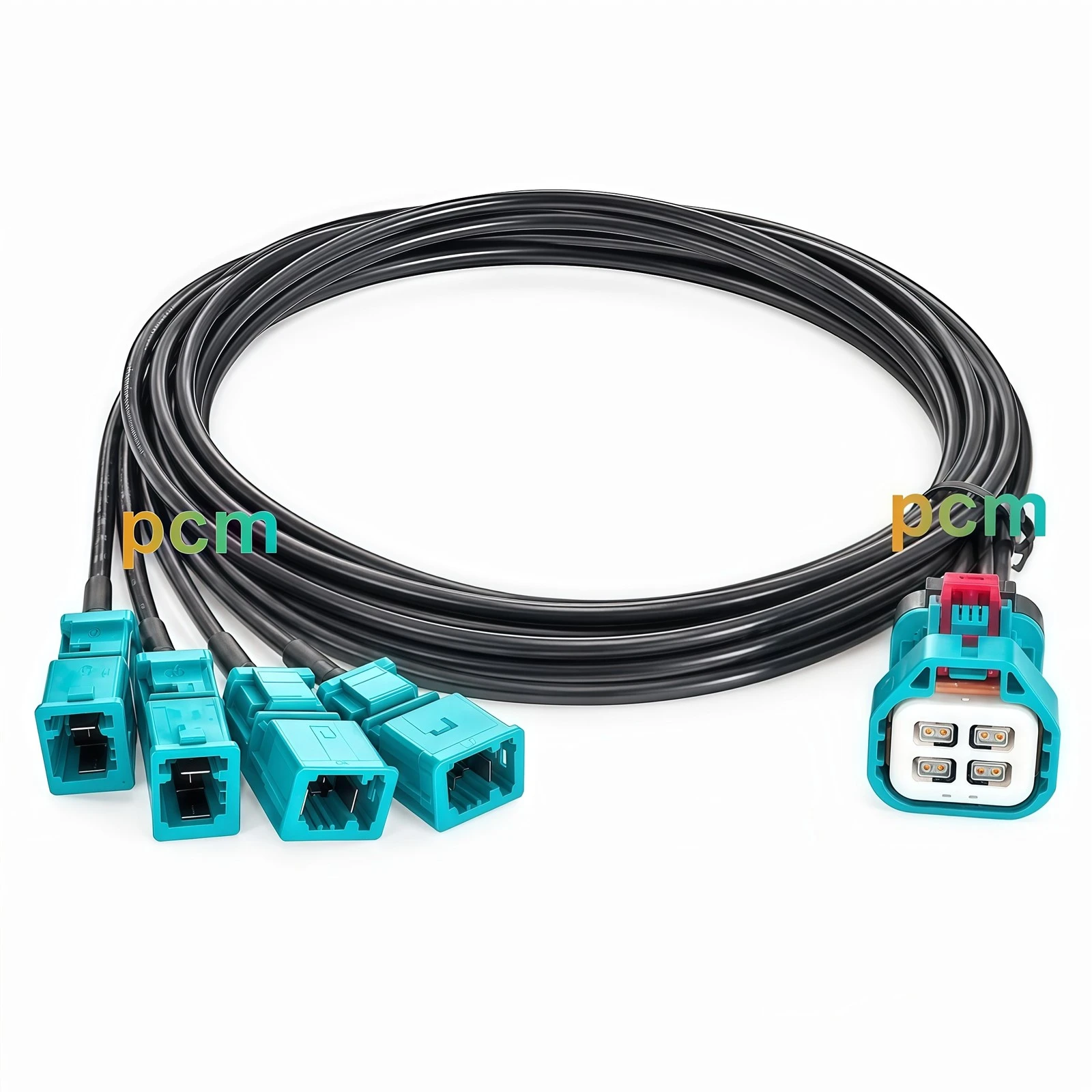

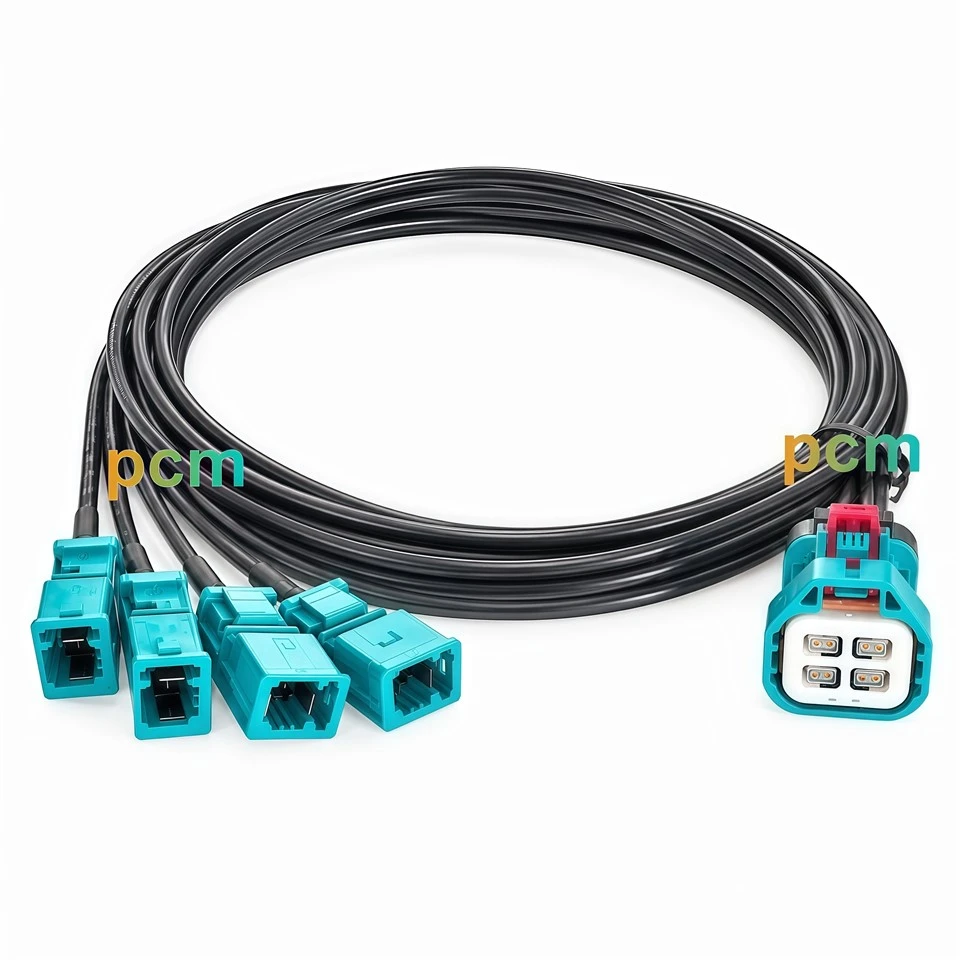

The waterproof quad Huawei female end mounts to the Huawei spec panel, and the cable fans out to four water blue TE MATEnet female receptacles. Each female socket accepts a MATEnet male plug coming from a sensor or test jig.

Use it when the four devices on the other end have MATEnet male pigtails, such as bench test equipment or male ended sensor harnesses. The waterproof quad end keeps the Huawei side sealed, and the four MATEnet female ends let standard male pigtails plug straight in. The shielded pure copper cable preserves the gigabit signal on all four channels, and the water blue MATEnet housing is visually self checking when mating.

Applications

Closing line: because the waterproof quad Huawei end and the four MATEnet ends are factory terminated on the same shielded pure copper cable, the four gigabit links stay impedance matched and sealed end to end.

Professional Services

Fast sampling: small batch samples in days, production volumes on a confirmed lead time.

Connector customization: other Huawei interface and MATEnet variants quoted on request.

Length customization: 0.5 m to 5 m in stock. Non standard cut lengths built to your drawing.

Quality before dispatch: 100 percent per channel continuity and shielding continuity tested on every assembly before dispatch.

OEM and bulk support: ADAS integrators, telecom module makers and retrofit shops get volume pricing and private label packaging.

Customization: Config 1 is quad to MATEnet male x4, Config 2 is quad to MATEnet female x4. Other gender combinations quoted on request.

Product FAQ

Q1: What is the difference between Config 1 and Config 2?

Config 1 fans out to four MATEnet male plugs, which mate to MATEnet female sensor sockets. Config 2 fans out to four MATEnet female receptacles, which accept MATEnet male pigtails from sensors or test jigs.

Q2: Is the quad end waterproof?

Yes. The ECT Huawei interface quad female is the waterproof version, designed for panel mounting where water and dust must be kept out. The MATEnet fan out ends are the standard in cabin non waterproof version.

Q3: Can you make custom lengths or gender combinations?

Yes. We support custom lengths from 0.5 m to 5 m and beyond, and can mix male and female MATEnet ends across the four channels on request. Send us your connector photos and target length, and we will quote the matching assembly.

Q4: Is this a genuine ECT Huawei interface connector?

Yes. The quad waterproof female housing is ECT Huawei interface 4 cavity, teal housing with pink release latch. The four fan out ends are genuine TE MATEnet Z coded connectors, water blue. The cable is a fully shielded pure copper gigabit automotive Ethernet line..
