Products Description
PCM-S-0806 The Amphenol ATHP042P25EL 2 Pin HVIL Connector to Ring Terminal Wire Harness is designed for compact internal electrical connections where a 2-position HV loop interface needs to transition to individual ring terminal connections.
The P1 side uses an Amphenol ATHP042P25EL 2-position orange HV loop EMC shield plug housing with Amphenol SP12A1T tin-plated crimp terminals.
Two 14AWG UL1452 red wires extend from the P1 connector through an orange corrugated protective tube and separate into two branches. Each branch terminates with a blue insulated ring terminal, providing a practical connection to equipment-side studs or terminal points.
With its short 374 mm overall length, protected wire routing and clearly identified branches, the assembly is suitable for compact internal wiring applications such as battery packs, energy storage equipment and industrial electrical systems.
Key Features
Amphenol ATHP042P25EL Connector
Uses an Amphenol ATHP042P25EL 2-position orange HV loop connector housing, providing a compact connector interface for internal electrical and interlock wiring.
Amphenol SP12A1T Crimp Terminals
P1 incorporates Amphenol SP12A1T tin-plated crimp terminals, providing a defined connector-to-wire termination according to the specified harness design.
14AWG UL1452 Red Wire
Two 14AWG UL1452 red wires with 2.9 mm OD provide independent connections from P1 positions A and B to the corresponding ring terminal branches.
Dual Blue Insulated Ring Terminals
The opposite end separates into two blue insulated ring terminals with 5.3 × 8.5 mm specification, suitable for stud or terminal-point connections.
PRODUCT SPECIFICATIONS
| Products Type |
|
Product Model | PCM-S-0806 |
| Connector 1 |
|
Connector 2-3 |
|
| P1 Crimp Terminal | Amphenol SP12A1T | Test Condition | DC 300V / 0.1 sec |
| Wire Style | UL1452,14 AWG | Insulation Resistance | ≥20 MΩ |
Application Scenarios

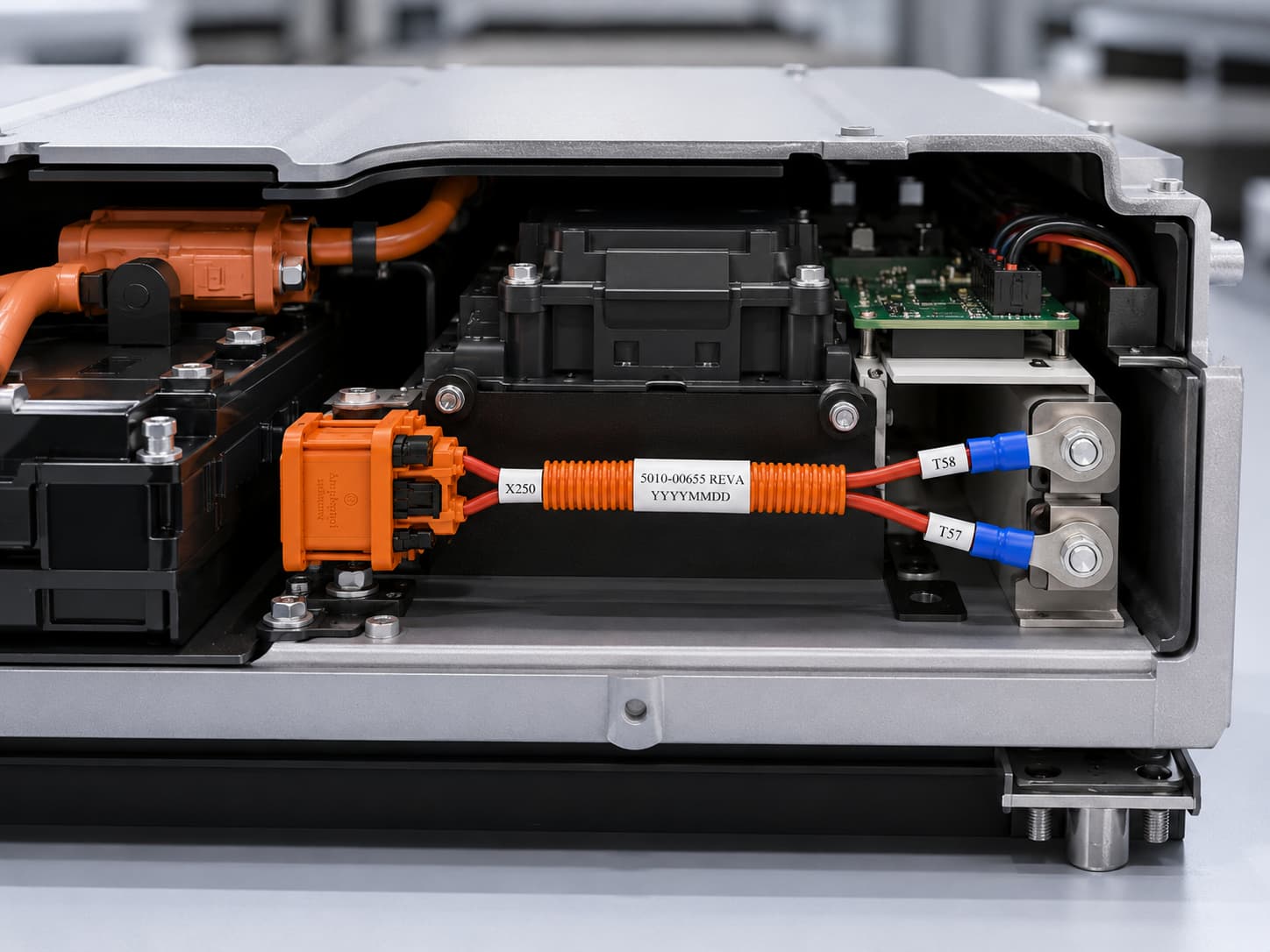

Battery Pack Internal Wiring
Suitable for short-distance internal wiring between an HV loop connector interface and stud-mounted or terminal-point connections inside battery pack assemblies.

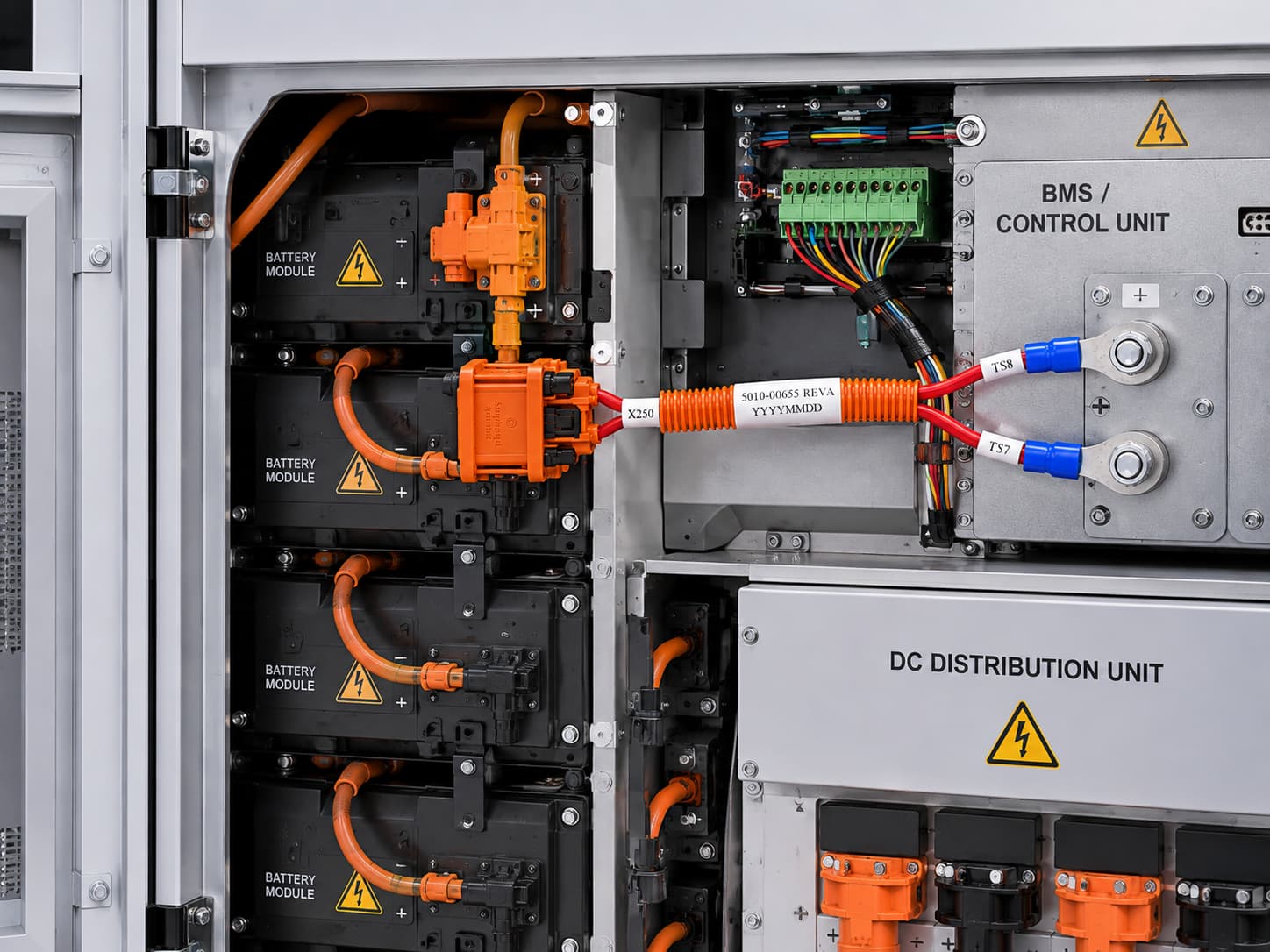

Battery Energy Storage Systems
Can be integrated into energy storage equipment for internal low-current control, interlock or auxiliary wiring where a compact two-branch harness is required.

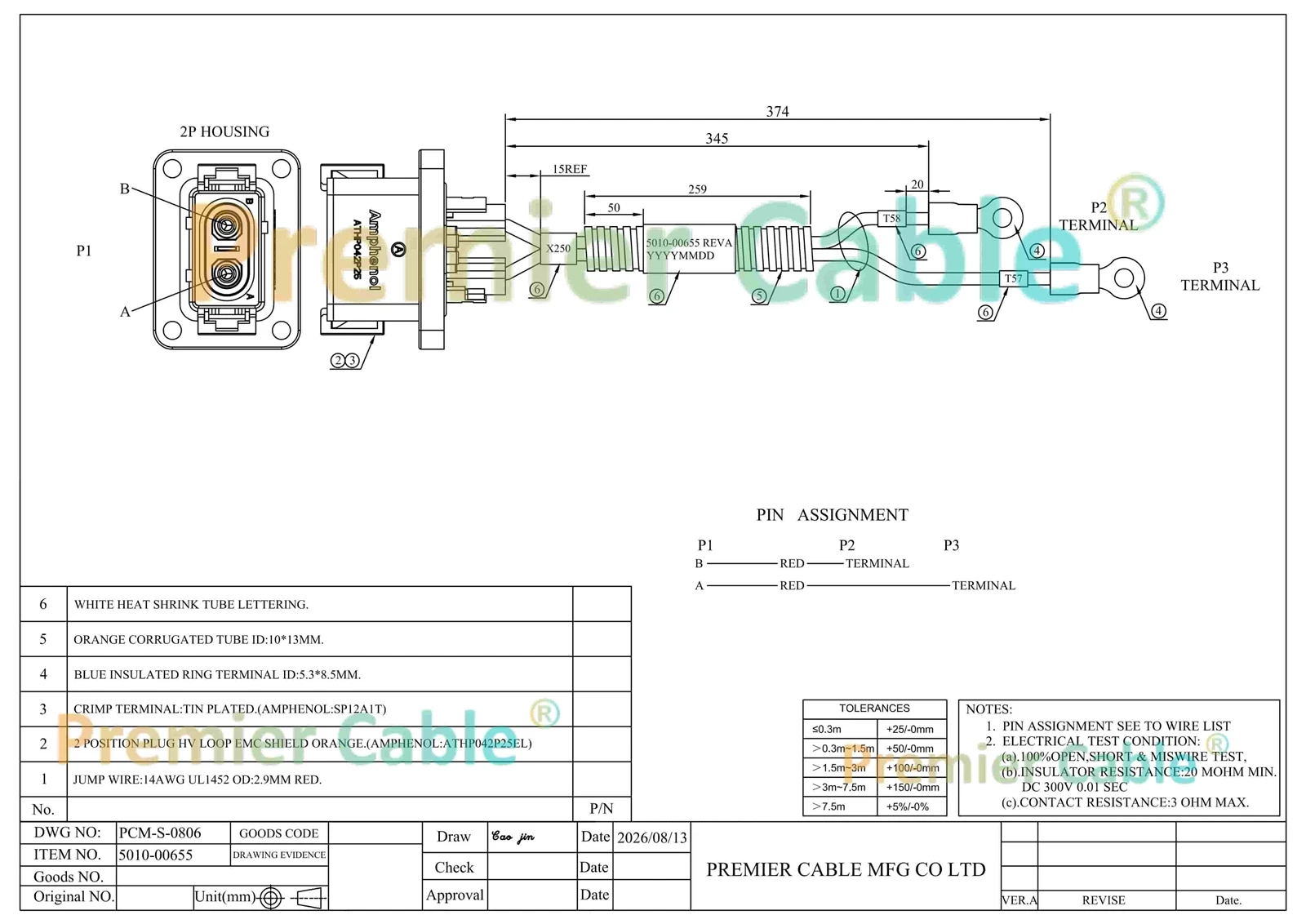

Products Drawing
