Products Description
The PCM-S-0795 is a custom 2 AWG high-current power jumper cable assembly designed for short-distance electrical connections between battery terminals, busbars, contactors, power distribution units and other high-current DC components.

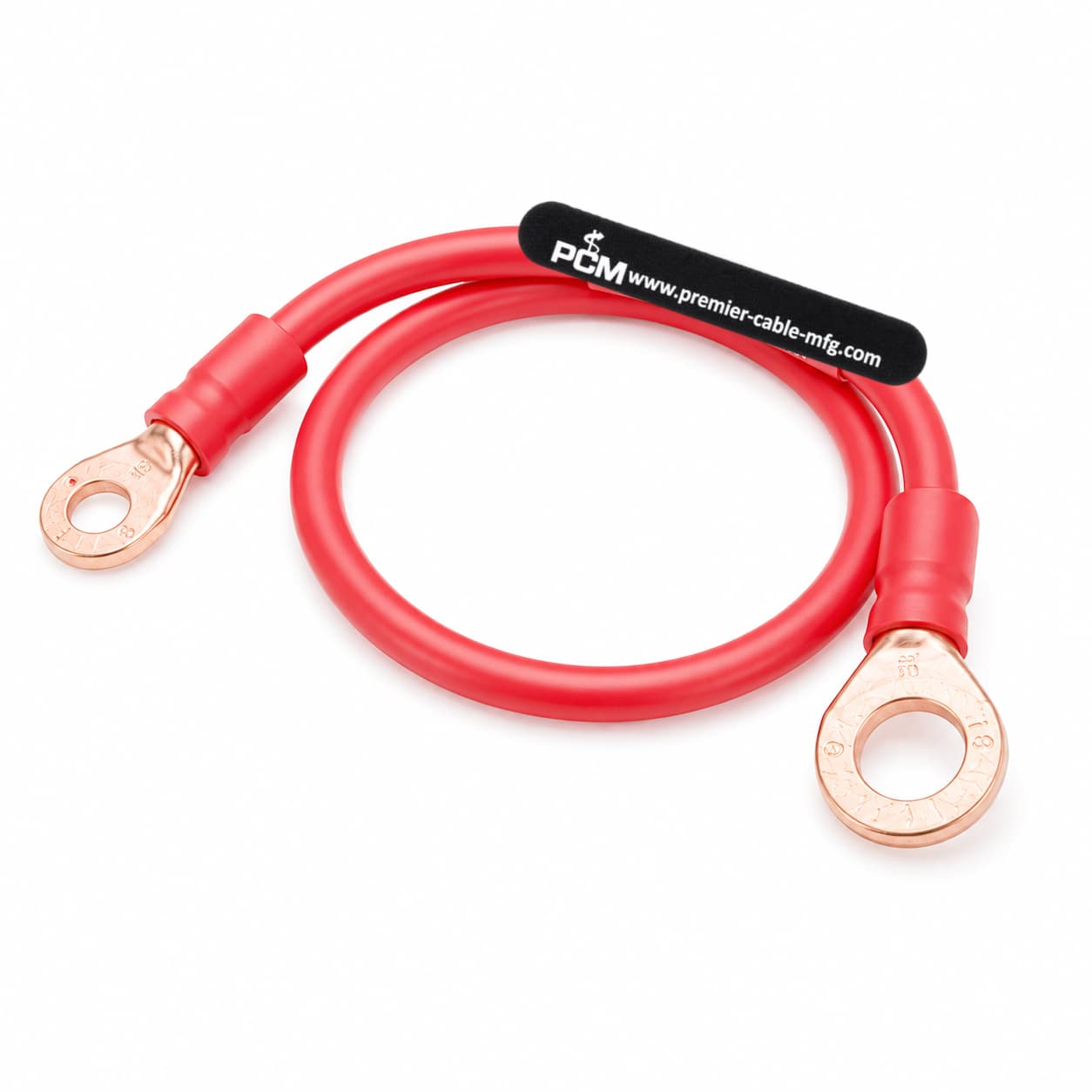

The assembly uses a heavy-gauge red UL10269 2 AWG wire with an outer diameter of approximately 11.8 mm. Both ends are terminated with easy-entry copper tube ring terminals, providing secure bolted connections for demanding electrical equipment.
According to the drawing, the P1 side uses a 6.4 mm ID ring terminal, while the P2 side uses a larger 13 mm ID ring terminal, allowing the cable to connect electrical components using different stud sizes.
Red heat-shrink tubing is applied around both terminal crimp areas for insulation, mechanical protection and a clean finished appearance. Identification heat shrink and a centered product label support traceability during equipment assembly and maintenance.
Connector & Product Configuration
| Item |
Specification |
|---|---|
| Product No. |
|
| Connector 1 |
|
| Connector 2 |
|
| Insulation Resistance |
|
| Test Voltage | DC 300 V |
| Contact Resistance |
≤3 Ω |
Key Product Advantages
2 AWG High-Current Construction
Heavy-gauge 2 AWG wire provides a robust electrical path for battery, DC power distribution and other high-current connection applications.
Different Ring Sizes on Each End
6.4 mm and 13 mm terminal mounting holes allow the assembly to connect components with different stud dimensions.
Copper Tube Ring Terminals
Easy-entry copper tube terminals provide a secure crimp connection and reliable bolted interface with batteries, busbars and electrical equipment.
Protected Terminal Connections
Red heat-shrink tubing covers the terminal crimp areas to improve insulation, strain protection and overall cable assembly durability.
Application Scenarios
Battery Pack Power Connections
The 2 AWG jumper cable can provide short-distance high-current connections between battery terminals, internal busbars, contactors and DC power distribution components.
Industrial DC Power Systems
The different ring terminal sizes make the cable suitable for connecting DC busbars, contactors, switches and other bolted high-current electrical components.
Products Drawing
