Products Description

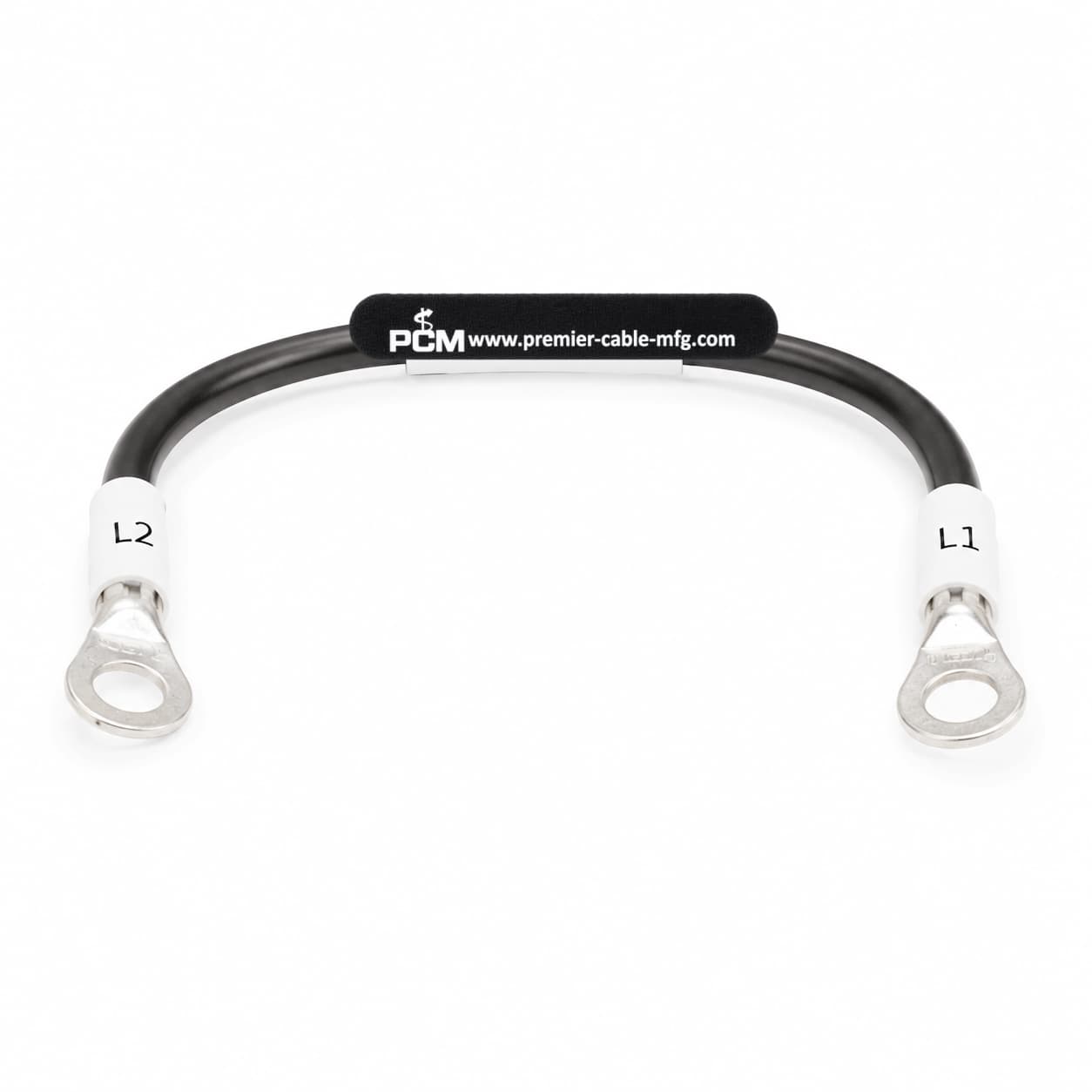

The PCM-S-0799 is a compact point-to-point jumper cable assembly manufactured with 16AWG UL1015 black wire and non-insulated ring terminals on both ends.
The ring terminals feature a 3.7 mm inner diameter and 6.6 mm outer diameter, providing a simple and secure connection to compatible studs, screws and terminal points.
Designed for short-distance electrical connections inside equipment, this cable assembly is suitable for battery packs, industrial DC power systems, control equipment, electrical cabinets and internal equipment wiring.
Custom wire length, terminal specifications, labeling and cable configurations can also be provided for OEM applications.
Connector & Product Configuration
| Item |
Specification |
|---|---|
| Product No. |
|
| Connector 1 Terminal |
|
| Connector 2 Terminal |
|
| Identification |
|
| Wire Type |
|
Key Product Advantages
16AWG UL1015 Wire
Durable 16AWG UL1015 insulated wire provides a reliable connection for short internal power and electrical circuits.
Dual Ring Terminal Design
Ring terminals on both ends allow convenient connection to compatible screws, studs and electrical terminal points.
Compact Jumper Configuration
The short point-to-point cable design is ideal for organized internal equipment wiring where installation space is limited.
Clear Cable Identification
White heat-shrink markings and a centered identification label help simplify cable identification during assembly and maintenance.
Application Scenarios

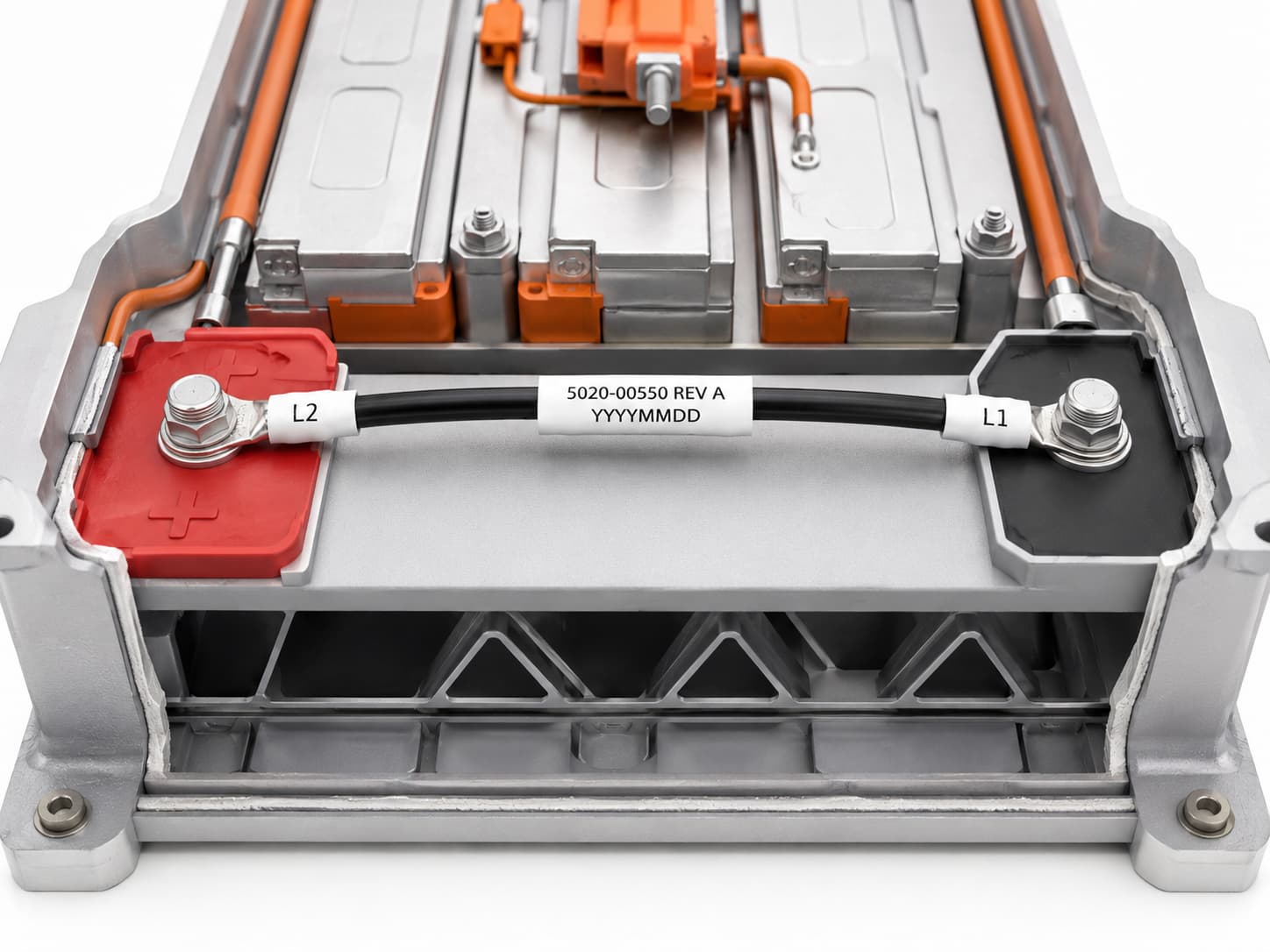

Battery Pack Internal Wiring
The short ring-terminal jumper can provide point-to-point electrical connections between compatible terminal studs and internal electrical components inside battery pack assemblies.
Industrial DC Power Systems
Suitable for short-distance electrical connections between terminal blocks, DC distribution components and compatible bolted connection points.

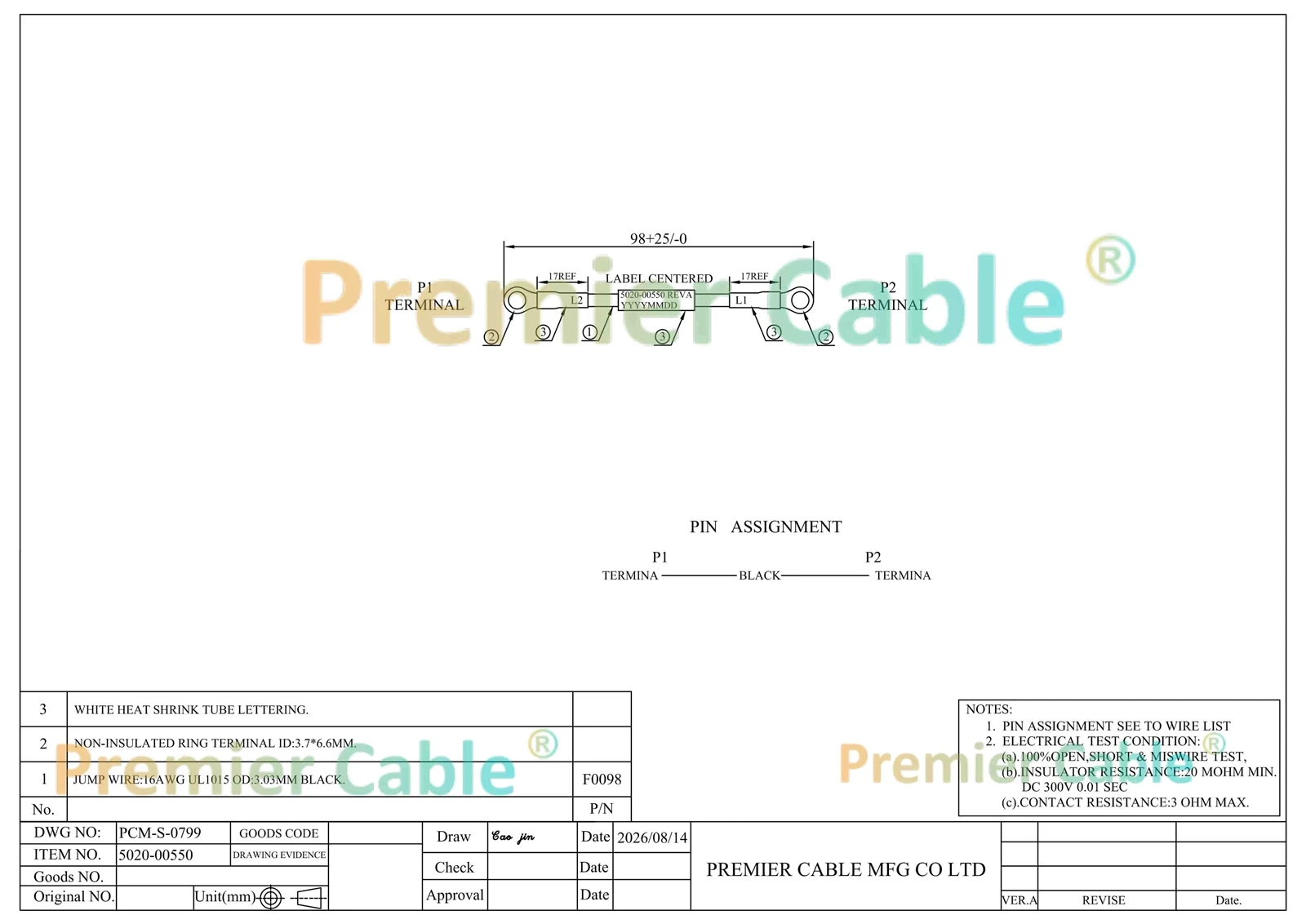

Products Drawing
