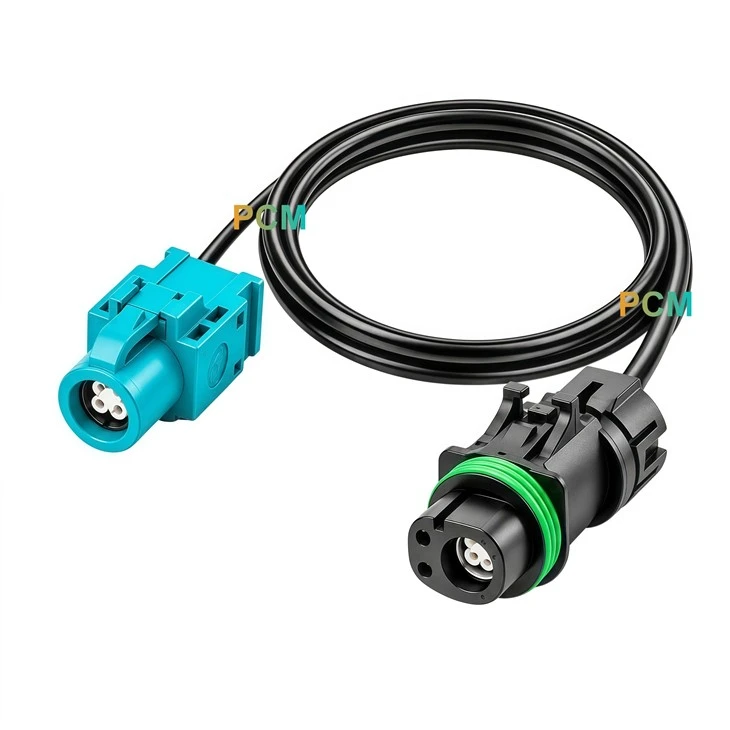

BMW 360 Camera RGB Video Extension Cable
This BMW video cable assembly is designed for 360° surround view camera, reversing camera, RGB video, and OEM display integration, providing an extension connection between compatible factory video interfaces and vehicle multimedia equipment.
Two connector configurations are available: female to female and female to male, allowing the mating arrangement to be selected according to the original vehicle interface and target module.
The cable is intended for BMW multimedia and camera integration projects involving compatible 3 Series, 5 Series, 5 Series GT, 7 Series, X5, and related vehicle platforms. Exact compatibility should be confirmed by vehicle generation, model year, multimedia system, and connector interface before ordering.
Product Specifications
| Specification | Details |
|---|---|
| Cable Length | Customizable |
| Wiring | Vehicle Specific |
| Video Interface | RGB Video Connection |
| Vehicle Application | BMW 3 / 5 / 5 GT / 7 Series / X5 |
| Configurations | Female to Female / Female to Male |
| Product Type | Automotive RGB Video Extension Cable |
| Primary Use | 360° Camera / Reversing Camera / OEM Video |
| Compatibility | Confirm by Vehicle Year & Multimedia System |
Available Configurations
BMW RGB Video Female to Female Extension Cable
Same Gender Video Interface Connection
The female to female version provides an extension path between compatible male video interfaces in BMW camera and multimedia systems.
It is suitable for retrofit or replacement projects where the original equipment and target video module require female cable-side connectors at both ends, helping extend the connection without changing the mating arrangement of the equipment.
BMW RGB Video Female to Male Extension Cable
Inline Video Extension
Combines one female and one male connector to extend a compatible existing video connection while preserving the required mating direction between the original vehicle interface and downstream equipment.
This configuration is particularly useful when integrating compatible camera, display, or multimedia equipment into an existing vehicle video path without using an additional gender-changing adapter.
Typical Applications
Product Features
BMW-Oriented Video Interface Design
The cable configuration is intended for BMW camera and multimedia connection projects rather than general-purpose video wiring, allowing the connector arrangement to match compatible vehicle-side equipment.
Two Mating Configurations
Female to female and female to male versions provide different mating arrangements for original vehicle interfaces, camera modules, multimedia equipment, and retrofit systems.
Dedicated Video Extension Architecture
The cable provides a purpose-built extension path between compatible video interfaces, avoiding the need to combine several short adapter leads when additional routing distance is required.
Vehicle-Specific Connection Layout
Connector configuration and wiring can be produced according to the target BMW platform, multimedia architecture, and camera system rather than relying on one universal wiring definition.
CORE BENEFITS
Extend the Original Video Connection
The harness allows compatible BMW camera or multimedia video interfaces to be repositioned without replacing the complete vehicle-side wiring path.
Reduce Additional Adapter Connections
Selecting the correct female-to-female or female-to-male configuration can reduce intermediate adapters and simplify the physical connection between original and retrofit equipment.
Cleaner Camera Retrofit Installation
A dedicated extension harness provides a more organized connection path when installing or relocating surround-view, reversing-camera, display, or video-interface equipment.
Better Support for Vehicle-Specific Projects
Connector configuration, cable length, and electrical mapping can be defined according to the actual BMW model and multimedia system, helping avoid assumptions based only on the vehicle series name.
Connection & Ordering Notes
BMW video and camera interfaces vary between vehicle generations, model years, multimedia systems, and equipment configurations. The vehicle model alone is not sufficient to determine cable compatibility.
Before ordering, please confirm:
- BMW model and chassis generation
- Vehicle production year
- Original multimedia system
- 360° camera / reversing camera configuration
- Female to Female or Female to Male version
- Connector shape and coding
- Required pin assignment
- Cable length
- Target camera, display, or video interface module
For custom projects, please provide clear connector photos, mating connector information, or the original wiring diagram before production.
Product FAQ
Q1. Is this cable compatible with all BMW 3 Series, 5 Series, 7 Series and X5 models?
A1. Not necessarily. BMW camera and multimedia interfaces vary by vehicle generation, model year, original multimedia system, and equipment configuration. The connector and system type should be confirmed before ordering.
Q2. What is the difference between the female to female and female to male versions?
A2. The difference is the mating arrangement. The female-to-female version connects compatible male interfaces at both ends, while the female-to-male version can extend an existing connection where opposite cable-side genders are required.
Q3. Can this cable be used for a BMW 360° surround-view camera system?
A3. It is intended for compatible BMW 360° surround-view, reversing-camera, and video-interface applications. Exact compatibility should be verified from the original connector and vehicle multimedia system before production.
Q4. Is this an LVDS cable?
A4. BMW factory display and aftermarket multimedia systems can use LVDS connections, and BMW integration documentation shows LVDS links between multimedia interfaces and factory displays. However, the exact signal standard for this specific cable should be confirmed from its wiring and target equipment rather than assumed from vehicle application alone.
Q5. Can the cable length and wiring be customized?
A5. Yes. Cable length, connector configuration, pin assignment, labeling, and other harness requirements can be customized according to the target BMW camera, display, or multimedia integration project.
