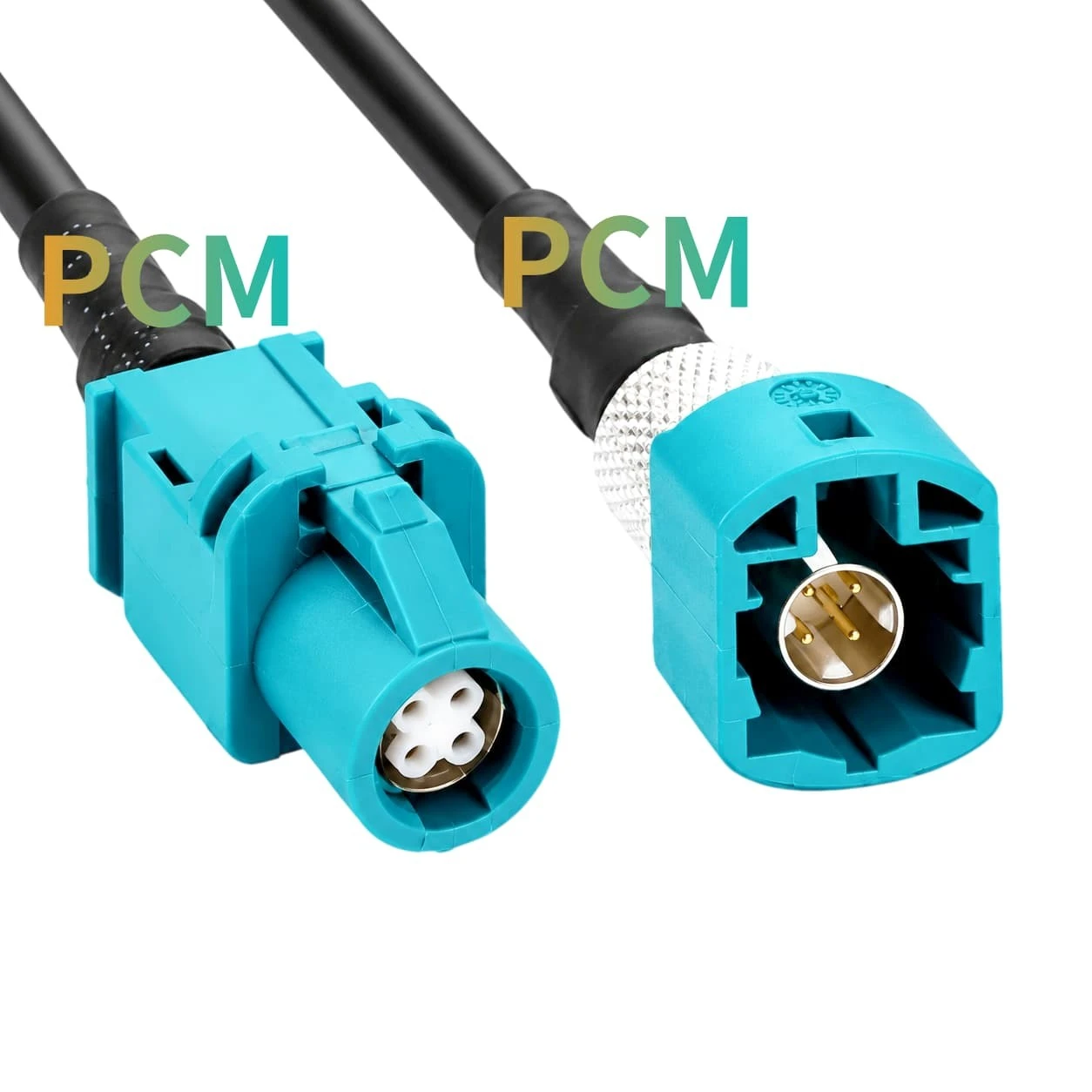

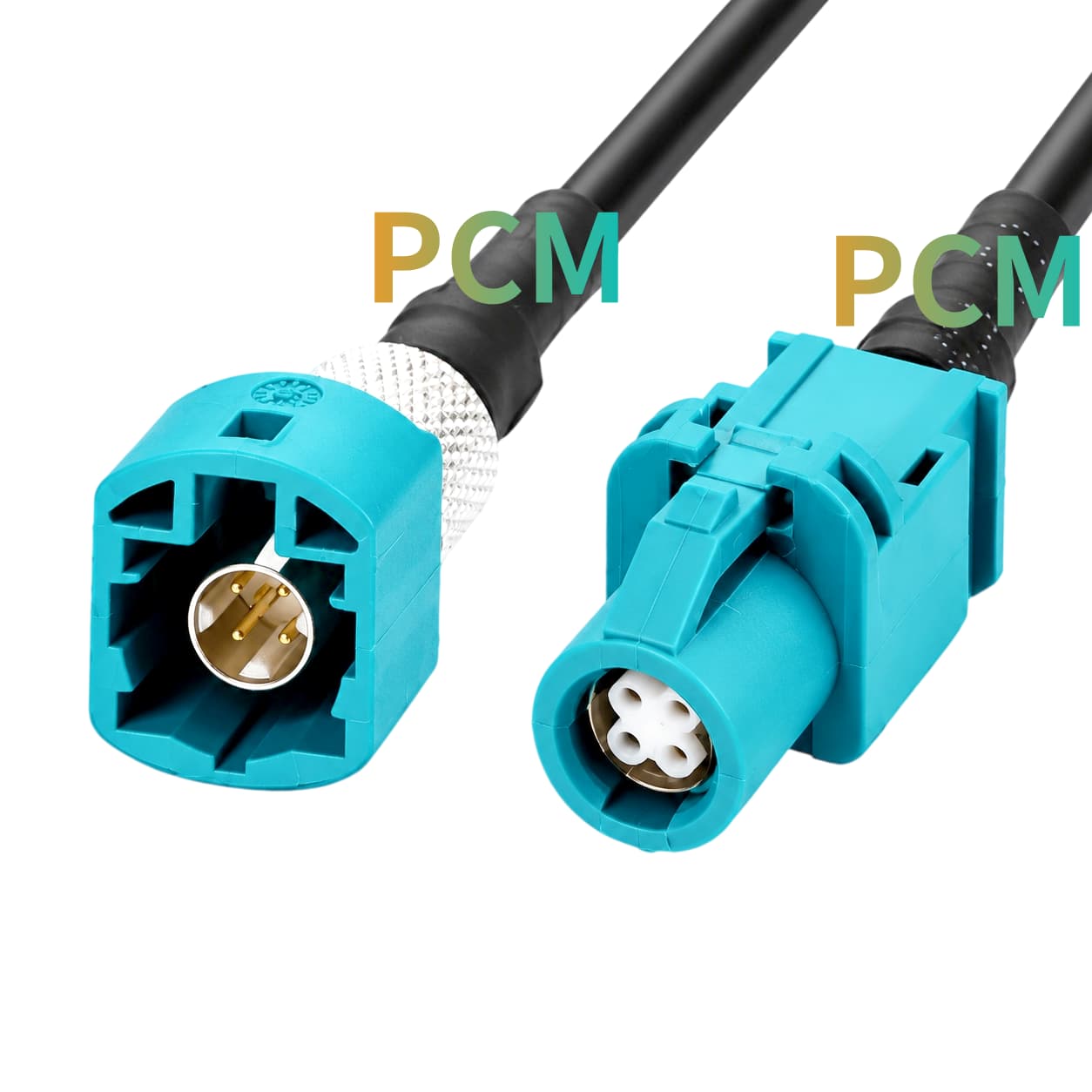

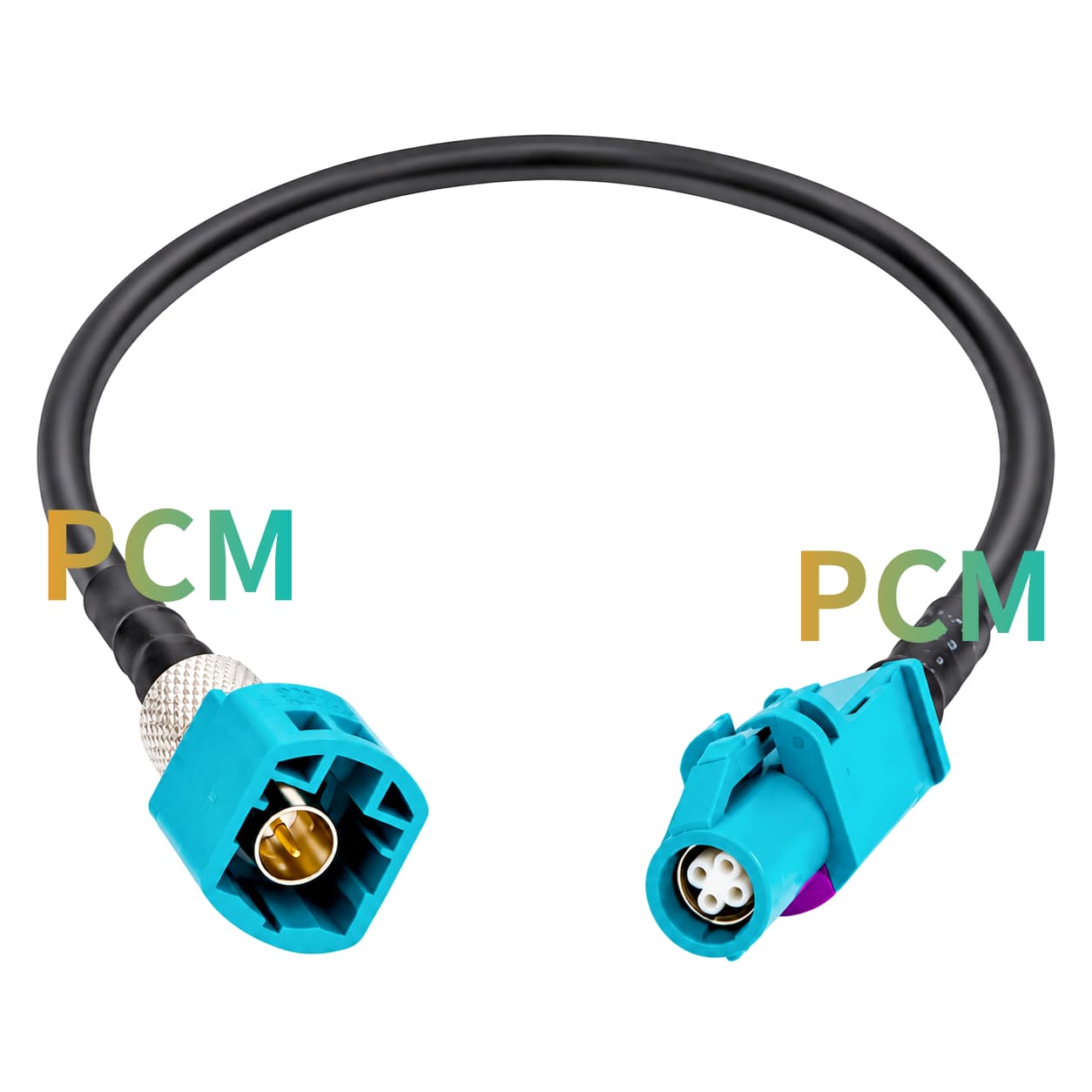

The HSD 4-pin straight female-male connector cable assembly is a pre-fabricated connection line used in automotive electronics and related equipment. One end features an HSD straight female inner hole structure, while the other end adopts an HSD straight male inner pin structure. Both ends are encased in blue plastic housings, complemented by black cables and connector fixing structures.

HSD is an abbreviation for High-Speed Data, referring to a connector system designed for high-speed data interconnection. The Rosenberger HSD series employs designs such as impedance control, shielding, and mechanical coding, and is applied in fields including automotive cameras, USB, Ethernet, and in-vehicle infotainment systems.

When both ends are correctly matched to the equipment interfaces, the assembly establishes the required electrical connection between electronic modules, carrying data or signals defined by the system design. Depending on the equipment configuration, potential applications include camera data, display signals, USB connectivity, or other automotive electronic communication links.

The cable itself is not a data converter and does not independently determine the communication protocol.Supported data rates, signal types, and transmission distances must be verified against the host interfaces, cable specifications, pin assignments, and complete-link test results.

It can be evaluated as a candidate cable, provided the camera and associated equipment have compatible HSD interfaces and the assembly meets the electrical requirements of the target signal link. Verify interface coding, pin assignments, cable length, and protocol before testing.
