MATE-AX To FAKRA Z Code Cable Assembly

The TE MATE-AX to FAKRA cable assembly converts a dual cavity automotive coaxial interface into two independent FAKRA Z Code connections. Its 2-2306868-9 MATE-AX female connector combines two RF channels within one compact housing, while the opposite end separates them into individual FAKRA connectors for equipment integration and signal access.

Four termination configurations are available, including straight female, straight male, right angle female, and Amphenol short straight female FAKRA connectors. These variations accommodate different mating interfaces and installation directions without changing the dual cavity MATE-AX connection. The FAKRA ends use connector models specified as IP67 Waterproof versions, while the protection rating of the complete assembly requires separate verification.

The assembly incorporates FDC402 automotive coaxial cable and is offered in lengths from 0.5m to 15m. Premier Cable supports connector selection, cable length adjustment, branch layout, and OEM production for automotive RF systems, engineering prototypes, and vehicle wiring projects.

Product Specifications

Available Configurations

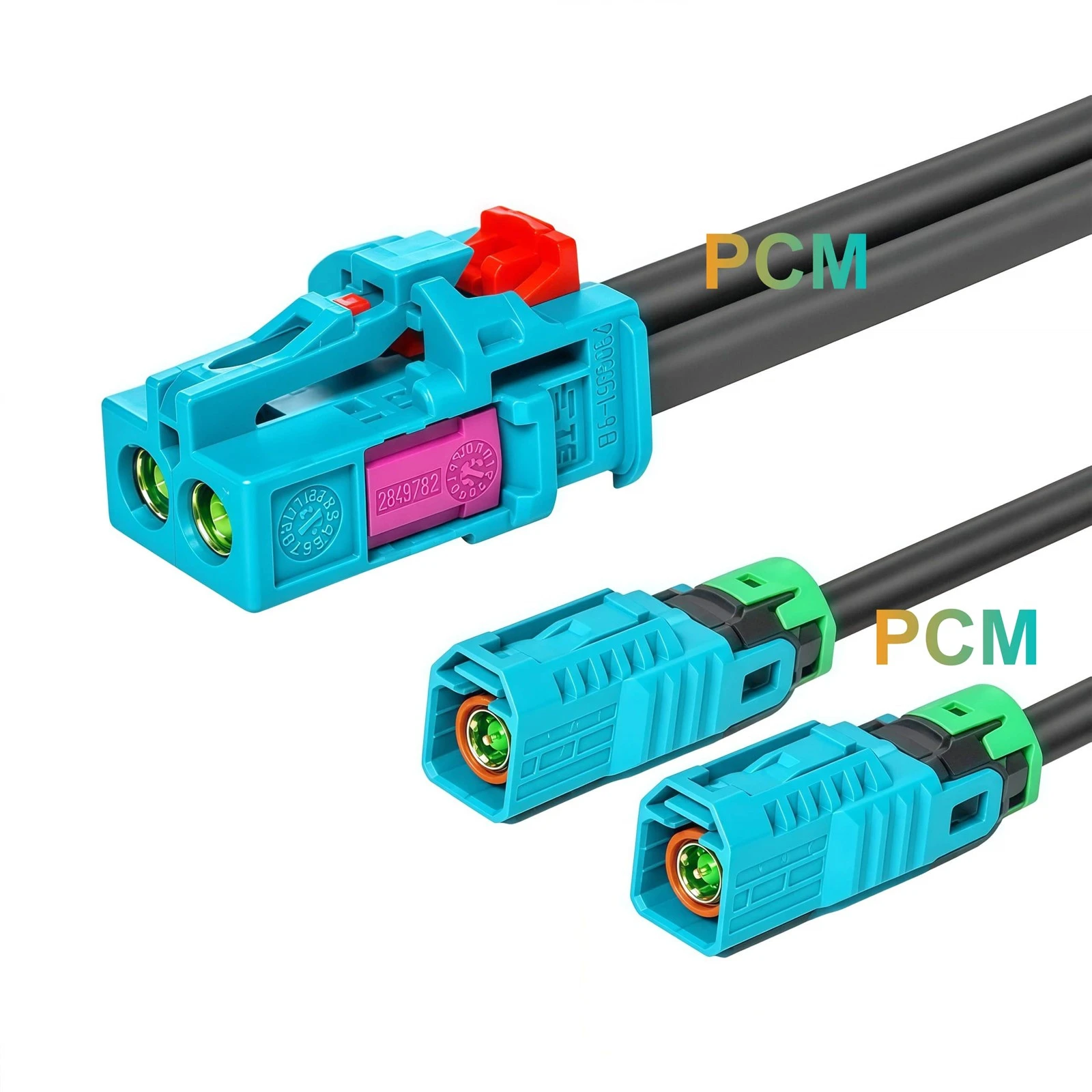

MATE-AX Dual Cavity Female to Dual Straight FAKRA Female Cable

Connector A: TE MATE-AX 2-2306868-9, Dual Cavity Female

Connector B: 2 × TE FAKRA 2-2380551-0, Straight Female

Two individual straight female FAKRA connectors terminate the MATE-AX dual cavity interface. This version accommodates equipment with corresponding male FAKRA mating ports and offers a straightforward connection arrangement for automotive RF modules.

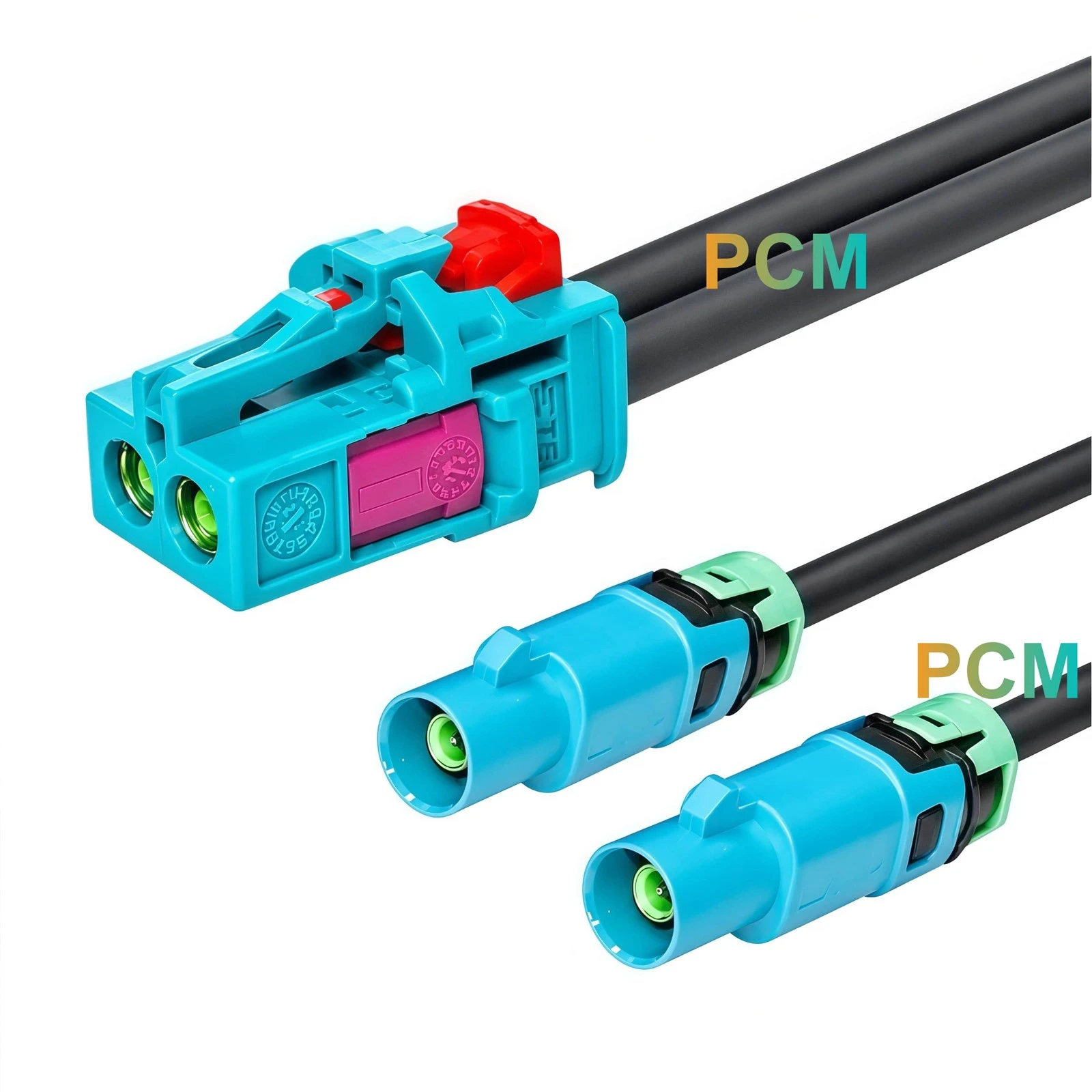

MATE-AX Dual Cavity Female to Dual Straight FAKRA Male Cable

Connector A: TE MATE-AX 2-2306868-9, Dual Cavity Female

Connector B: 2 × TE FAKRA 2-2307198-0, Straight Male

The straight male FAKRA terminations provide two separate RF connections for devices equipped with matching female FAKRA interfaces. This arrangement is useful when adapting a compact dual cavity MATE-AX connection to conventional single cavity FAKRA ports.

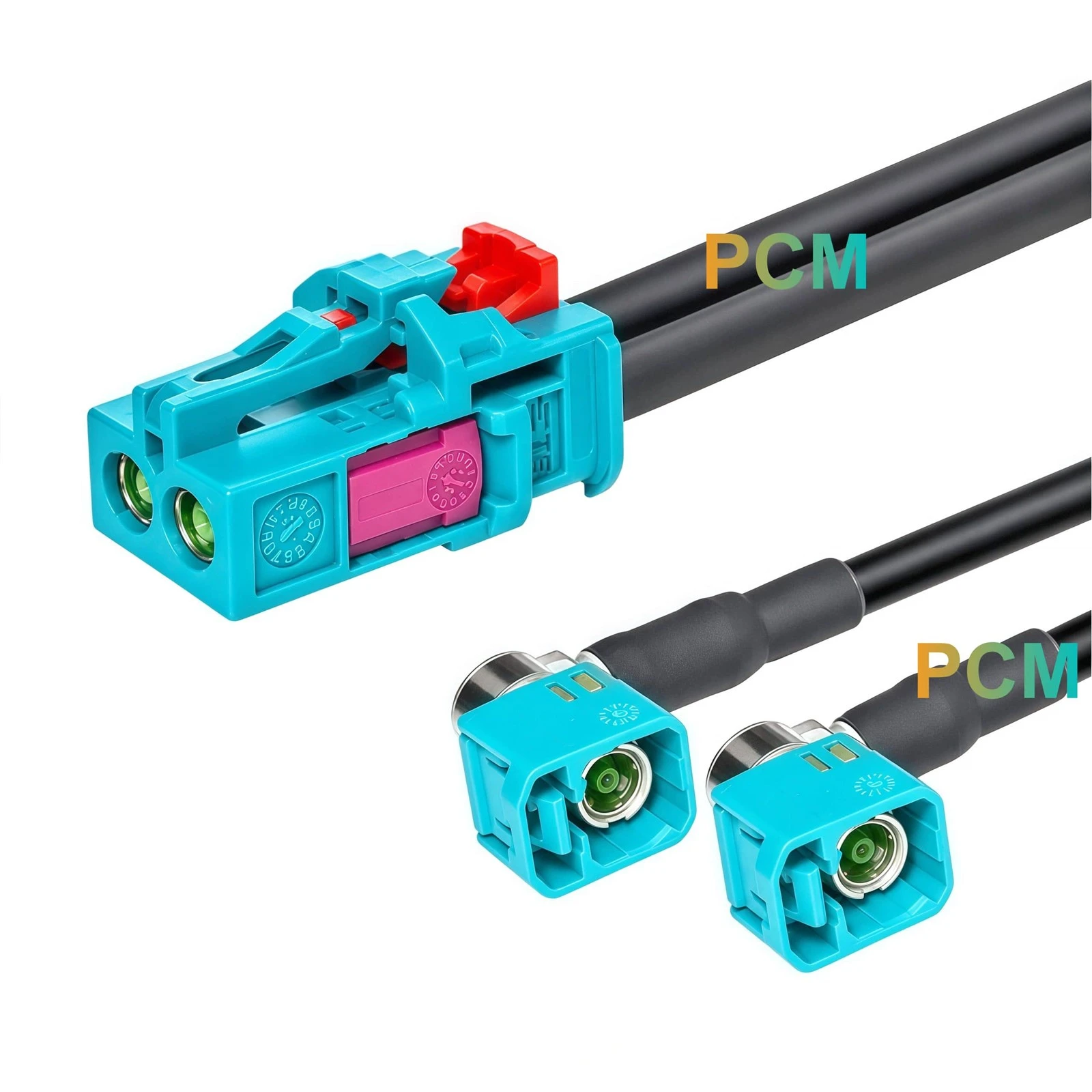

MATE-AX Dual Cavity Female to Dual Right Angle FAKRA Female Cable

Connector A: TE MATE-AX 2-2306868-9, Dual Cavity Female

Connector B: 2 × TE FAKRA 1-2392990-4, Right Angle Female

The right angle FAKRA connector configuration offers an alternative mating orientation for automotive RF modules with restricted installation space. This configuration is particularly relevant to RF modules installed close to enclosure walls or adjacent components where a straight cable exit may interfere with the available installation space.

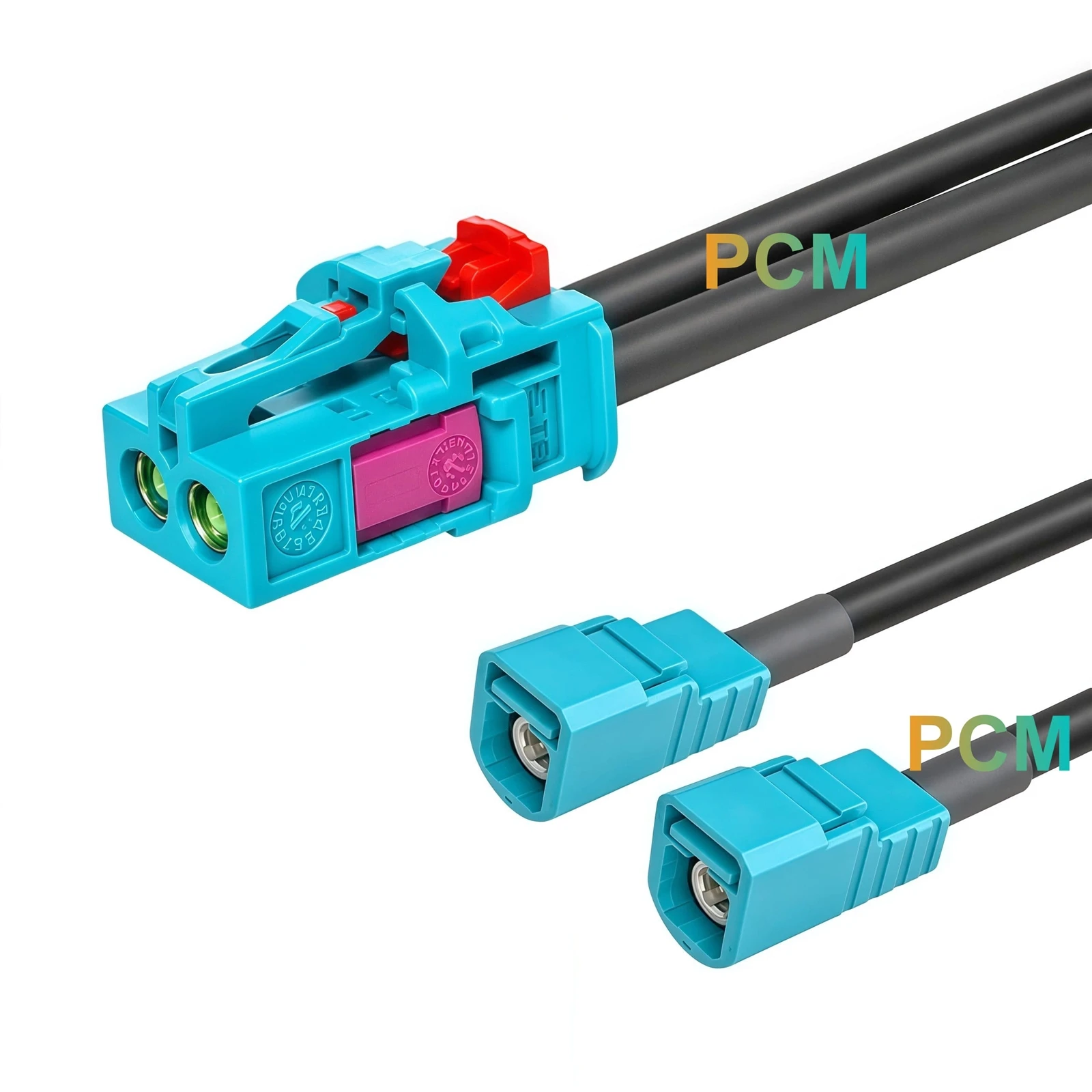

MATE-AX Dual Cavity Female to Dual Amphenol Straight FAKRA Female Cable

Connector A: TE MATE-AX 2-2306868-9, Dual Cavity Female

Connector B: 2 × Amphenol FAKRA 3FA1ENZSJ-C30ES, Short Straight Female

This version uses Amphenol short straight FAKRA female connectors on both RF branches. The compact connector body offers an alternative termination structure for installations with limited connector clearance or projects requiring Amphenol mating components.

Applications & Customer Value

Automotive Camera and ADAS Development

Modern ADAS systems often integrate multiple coaxial channels within compact connector housings. This cable allows two MATE-AX RF channels to be accessed through individual FAKRA interfaces for camera module integration, prototype wiring, and development bench connections. The separate FAKRA terminations make it easier to connect equipment that does not use the same dual cavity connector architecture.

Automotive RF Module Integration

Vehicle RF equipment may use different connector families across modules, harnesses, and generations of electronic platforms. The MATE-AX to FAKRA assembly creates a physical interface transition between these connector systems. Straight male and female options allow engineers to select the correct mating interface without introducing additional standalone adapters.

HIL Testing and Engineering Validation

During hardware in the loop testing and automotive electronics validation, engineers frequently need access to individual coaxial channels for signal routing and diagnostic connections. The two FAKRA branches can be connected independently to compatible RF fixtures, test harnesses, and evaluation equipment. Cable length and branch layout can be adjusted to match the physical arrangement of the test bench.

Space-Constrained Vehicle Installations

The right angle FAKRA option is relevant when a straight connector would require excessive clearance behind an electronic module. The Amphenol short straight connector version offers another mechanical option for compact packaging. Both configurations allow engineers to address connector access and cable routing requirements during harness design.

Product Features

Customization Capabilities

Premier Cable supports OEM manufacturing of MATE-AX to FAKRA cable assemblies based on customer drawings, connector specifications, and installation requirements.

Connector Configuration

Select the required FAKRA termination type, connector manufacturer, mating gender, and orientation. Alternative compatible connector combinations can be evaluated for specific projects.

Cable Length and Branch Layout

Adjust the main cable length, individual branch lengths, and breakout position to match module spacing and harness routing requirements. Custom cable routing arrangements can be reviewed against customer drawings.

Cable and Assembly Requirements

Cable material, shielding requirements, outer jacket specifications, and assembly construction can be evaluated according to the electrical and mechanical needs of the project.

Labeling and OEM Production

Custom identification labels, channel markings, packaging, assembly drawings, prototype samples, and batch manufacturing are available for project requirements.

Customers can submit connector part numbers, dimensional drawings, and cable specifications for technical evaluation before production.

Product FAQ

Q1: What is a MATE-AX to FAKRA cable assembly?

A: This assembly connects a TE MATE-AX 2-2306868-9 dual cavity female interface to two independent FAKRA Z Code connectors, allowing separate connections for two automotive coaxial channels.

Q2: What FAKRA connector configurations are available?

A: Four configurations are available: TE straight female 2-2380551-0, TE straight male 2-2307198-0, TE right angle female 1-2392990-4, and Amphenol short straight female 3FA1ENZSJ-C30ES.

Q3: Are the complete cable assemblies IP67 Waterproof?

A: The supplied product information identifies the FAKRA connector options as IP67 Waterproof versions. The complete assembly requires separate verification before an IP67 Waterproof rating can be claimed.

Q4: Can the two FAKRA branches have different lengths?

A: Yes. Premier Cable supports customized branch lengths, breakout positions, and main cable dimensions according to customer drawings and installation requirements.

Q5: Can these cables connect to any FAKRA interface?

A: Compatibility depends on connector gender, coding, and mechanical mating structure. Customers should confirm the corresponding FAKRA connector model before selecting a configuration.
