Rosenberger FAKRA Z-Code Straight Cable
The Rosenberger FAKRA Z-Code Straight Cable is an automotive coaxial cable assembly featuring Rosenberger FAKRA straight connectors on both ends. It provides a direct connection solution for compatible automotive camera systems, RF modules, and vehicle electronic applications.
Three configurations are available, including dual female, female-to-male, and dual male versions. The assemblies use Rosenberger 59Z113-000Z straight female and 59Z114-000Z straight male connectors, allowing selection according to different FAKRA mating requirements.
Using Dacar 302-4 automotive coaxial cable, the cable assembly supports multiple cable lengths from 0.5 m to 20 m. The Z-Code light-blue connector design provides a consistent interface solution for automotive RF and camera wiring applications.
Product Specifications
| Specification | Details |
|---|---|
| Coding | Z-Code |
| Channels | Single |
| Cable Model | Dacar 302-4 |
| Connector Color | Light Blue |
| Cable Length | 0.5 m to 20 m |
| Connector Type | FAKRA Straight |
| Connector Gender | Male / Female |
| Available Versions | 3 Configurations |
| Connector Brand | Rosenberger |
| Female Connector | 59Z113-000Z |
| Male Connector | 59Z114-000Z |
| Product Type | Automotive Coaxial Cable Assembly |
Available Configurations

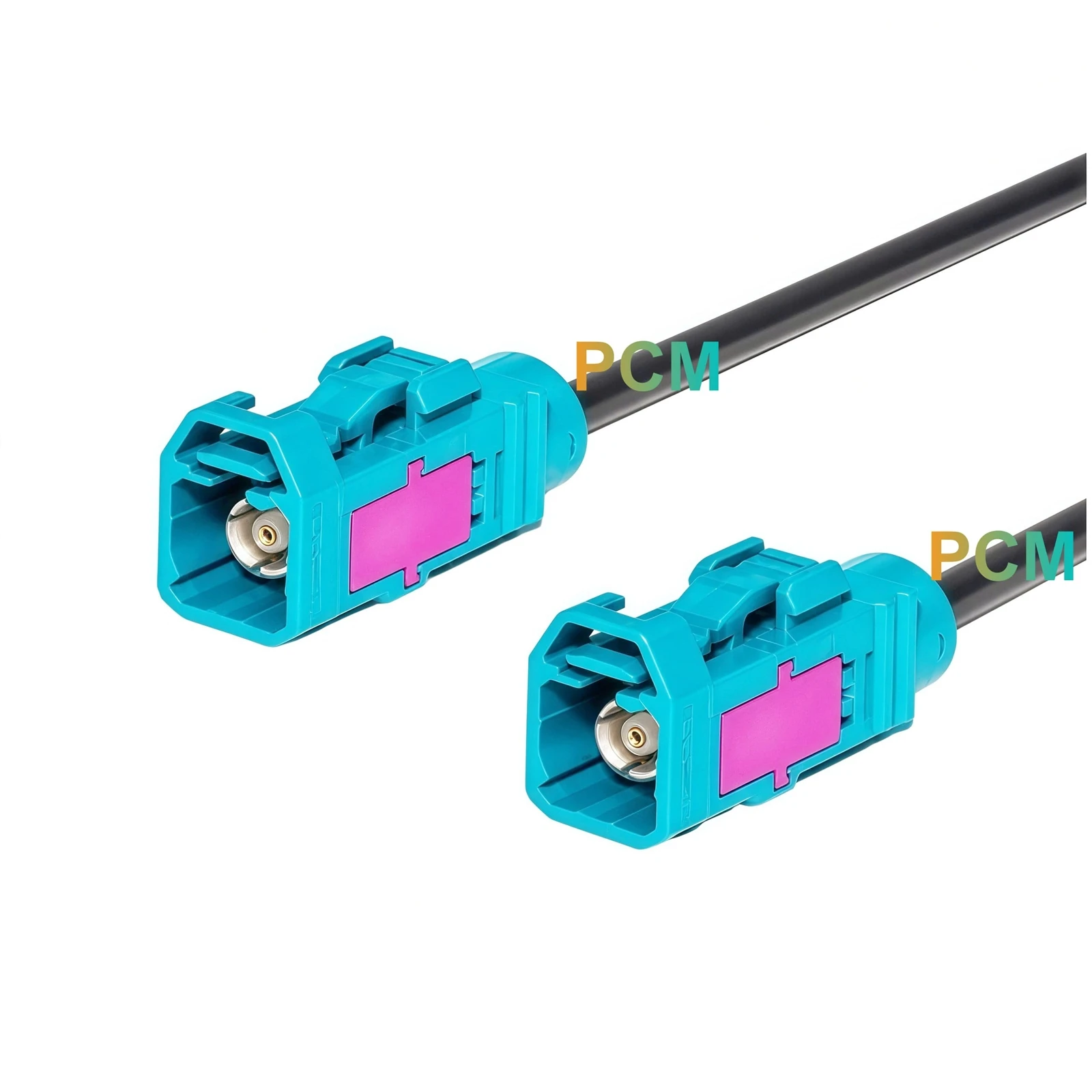

Dual Rosenberger FAKRA Straight Female Cable
Female-to-Female FAKRA Connection
This configuration uses two Rosenberger 59Z113-000Z straight female FAKRA connectors on both ends of the cable assembly. The female-to-female structure is suitable for connecting two compatible male FAKRA interfaces through one coaxial cable. It provides a direct cable-based connection solution without additional intermediate adapters. Using Dacar 302-4 coaxial cable, this version supports automotive RF and camera wiring applications requiring female FAKRA terminations at both ends.

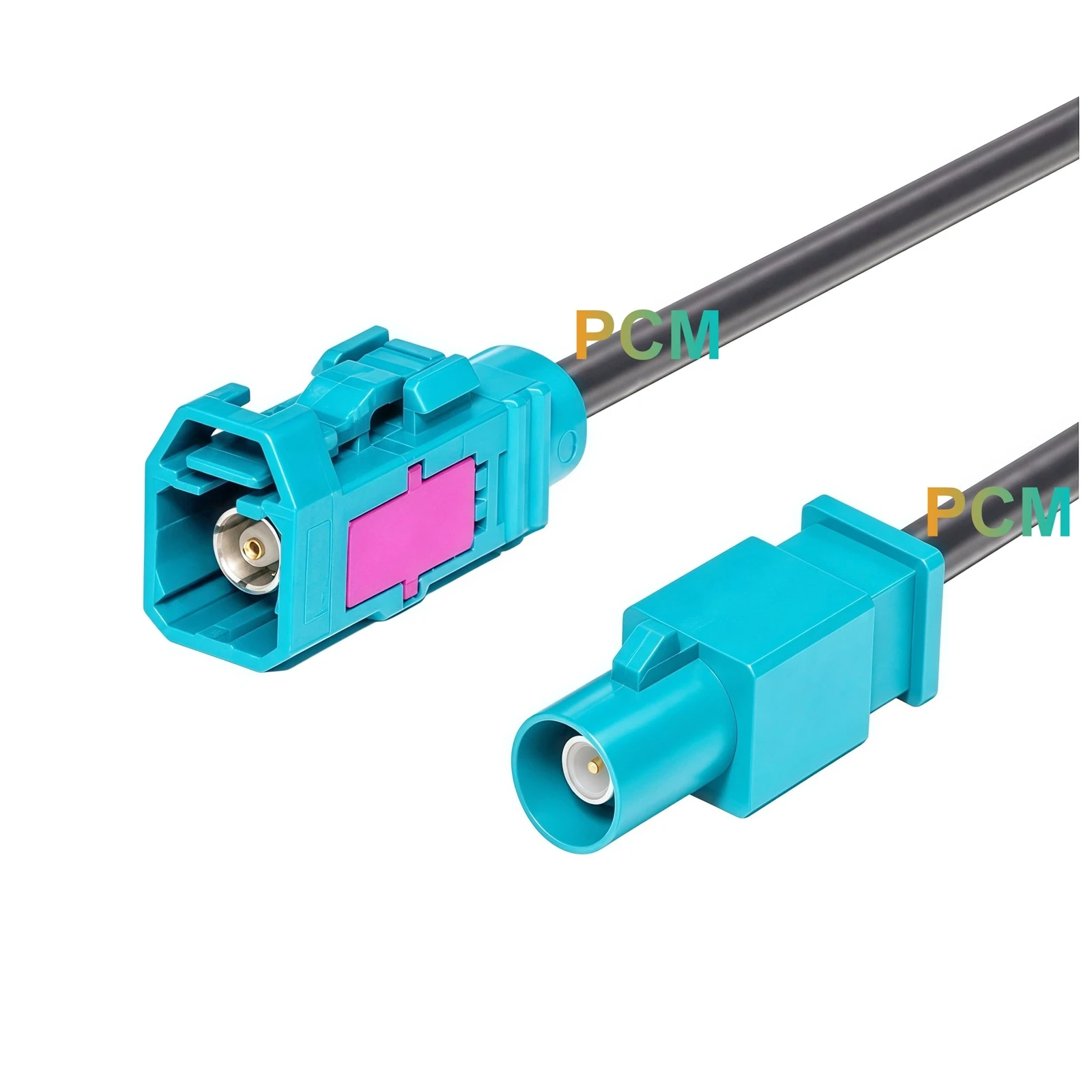

Rosenberger FAKRA Straight Female to Straight Male Cable
Mixed Gender FAKRA Connection
This configuration combines one Rosenberger 59Z113-000Z straight female connector and one Rosenberger 59Z114-000Z straight male connector. The female-to-male arrangement allows connection between compatible FAKRA interfaces with different genders, providing a practical solution for cable extension and interface adaptation. This version is suitable for automotive electronic systems where the required mating interfaces include both male and female FAKRA connectors.

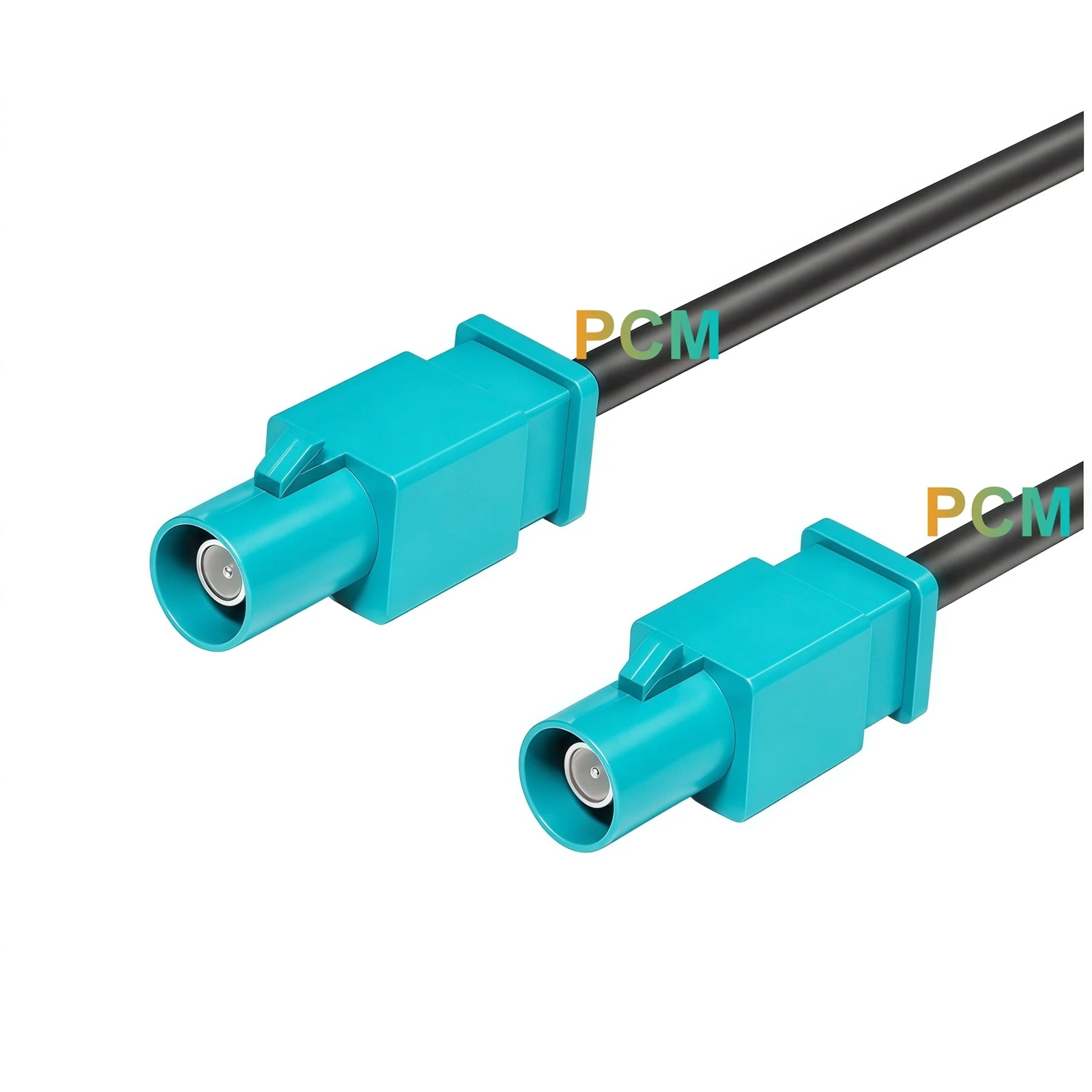

Dual Rosenberger FAKRA Straight Male Cable
Male-to-Male FAKRA Connection
This configuration features two Rosenberger 59Z114-000Z straight male FAKRA connectors connected by Dacar 302-4 coaxial cable. The male-to-male structure provides a direct connection between two compatible female FAKRA interfaces, offering an alternative solution for specific automotive coaxial connection requirements. It is suitable for applications requiring matching male FAKRA connectors at both ends of the cable assembly.
Applications & Benefits
Automotive Camera Systems
The Rosenberger FAKRA cable assembly provides a reliable coaxial connection solution for compatible automotive camera modules and vehicle vision systems using FAKRA interfaces.
Vehicle RF Module Connections
The straight connector design supports connections between automotive RF modules, electronic units, and coaxial harness systems where space allows inline cable routing.
Automotive Prototype & Harness Development
Different gender combinations allow engineers to select the most suitable cable assemblies during prototype development, testing, and OEM harness integration.
Flexible FAKRA Interface Matching
Female-to-female, female-to-male, and male-to-male versions reduce the need for adapters when connecting compatible FAKRA interfaces with different gender requirements.
Customization Capabilities
Custom Cable Lengths
Premier Cable supports customized cable lengths according to vehicle layout, installation distance, and harness routing requirements.
FAKRA Gender Configurations
Different Rosenberger FAKRA connector gender combinations can be provided according to the required mating interface, including female-to-female, female-to-male, and male-to-male configurations.
Coaxial Cable Selection
Cable specifications can be reviewed according to application requirements, installation environment, and OEM project needs.
OEM Cable Assembly Services
Premier Cable provides OEM/ODM cable assembly services including connector selection, cable length customization, labeling, and packaging requirements.
Product FAQ
Q1. What connector models are used in this FAKRA cable?
The cable uses Rosenberger FAKRA Z-Code straight connectors, including 59Z113-000Z female connectors and 59Z114-000Z male connectors.
Q2. What versions are available for this cable assembly?
Three versions are available: dual female, female-to-male, and dual male FAKRA straight cable configurations.
Q3. Is this cable IP67 Waterproof?
No. This product uses standard Rosenberger FAKRA straight connectors and is not specified as an IP67 Waterproof cable assembly.
Q4. What coaxial cable is used?
The supplied configuration uses Dacar 302-4 automotive coaxial cable.
Q5. Can the cable length and connector combination be customized?
Yes. Premier Cable supports customized cable lengths, connector gender combinations, and OEM cable assembly requirements according to project specifications.
