ECT Mini FAKRA Quad Port To FAKRA Cable

This harness connects a B Code four cavity automotive interface to four individually terminated FAKRA cables. The range focuses on sealed branch connections, with termination choices for different mating requirements and cable routing directions.

Straight female, straight male and right angle female options allow the branch ends to be selected around the actual connection locations. Each cable carries a separate coaxial path between the grouped interface and its assigned endpoint.

Product Specifications

Available Configurations

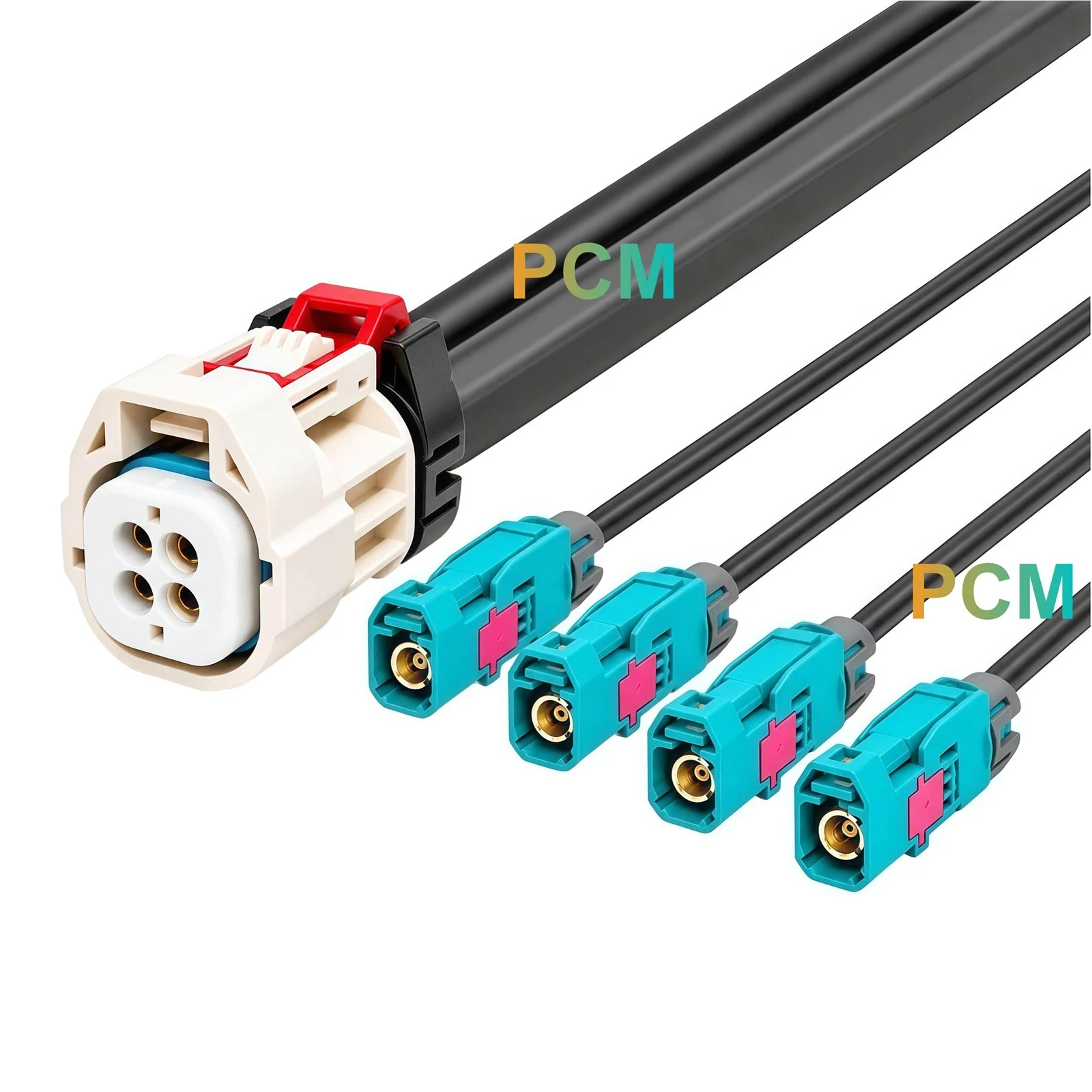

ECT Mini FAKRA B Code to Four ECT FAKRA Female Cable

Connection Structure
One 818018734 ECT Mini FAKRA B Code four cavity female connector connects to four sealed ECT FAKRA Z Code straight female ends, referenced as 818014116.

Unique Difference
Uses ECT references for both the grouped endpoint and the four branch terminations.

Suitable Installation
Assemblies specifying ECT female branch connectors, with enough clearance for cables to leave along the mating axis.

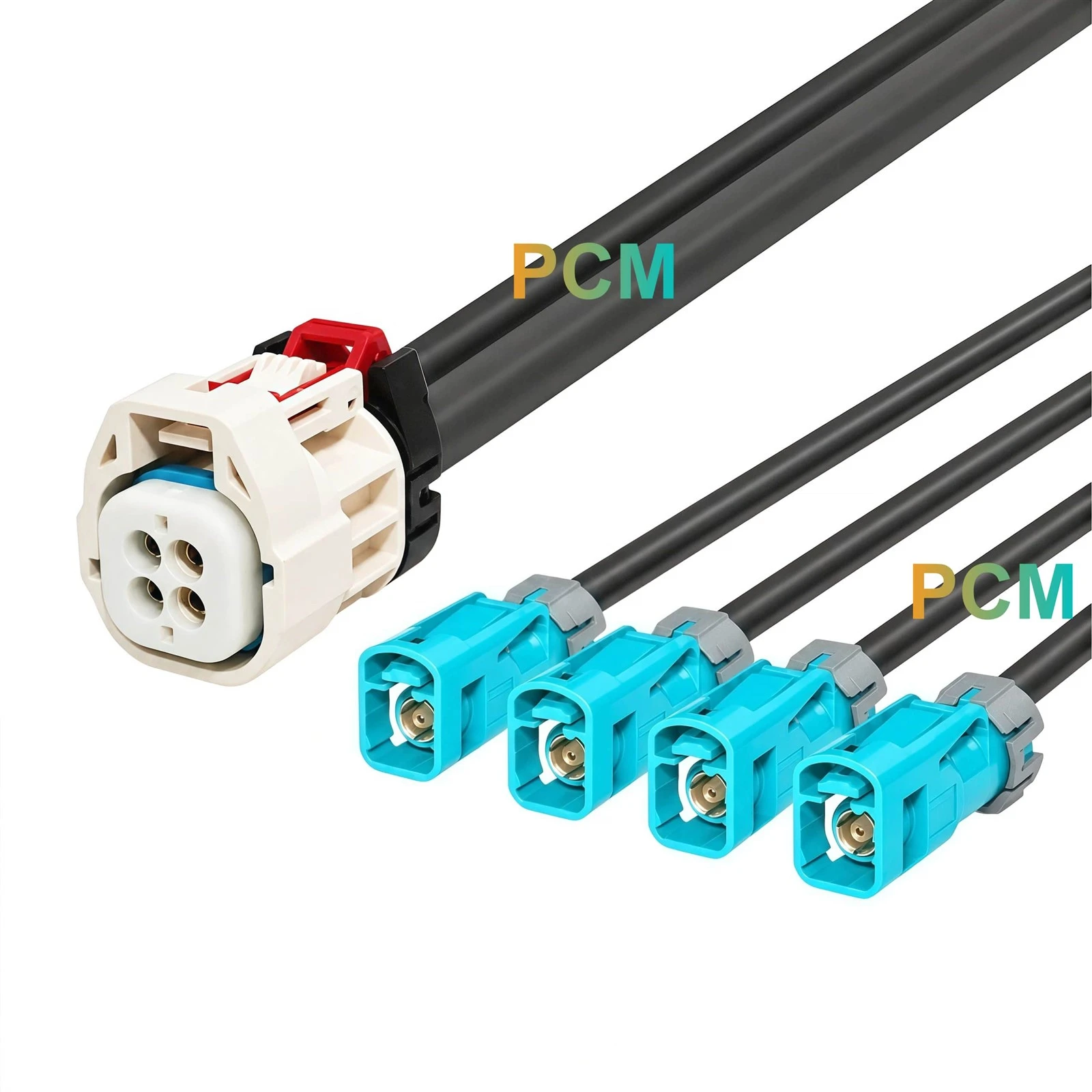

ECT Mini FAKRA B Code to Four Rosenberger Type FAKRA Female Cable

Connection Structure
One 818018734 ECT Mini FAKRA B Code four cavity female connector connects to four sealed FAKRA Z Code straight female ends. The supplied Rosenberger type housing reference is 59Z163-003Z.

Unique Difference
Provides a different female branch housing arrangement from Version 1 while retaining straight cable exits.

Suitable Installation
Connection points whose mating documentation specifies the corresponding Rosenberger type female housing system.

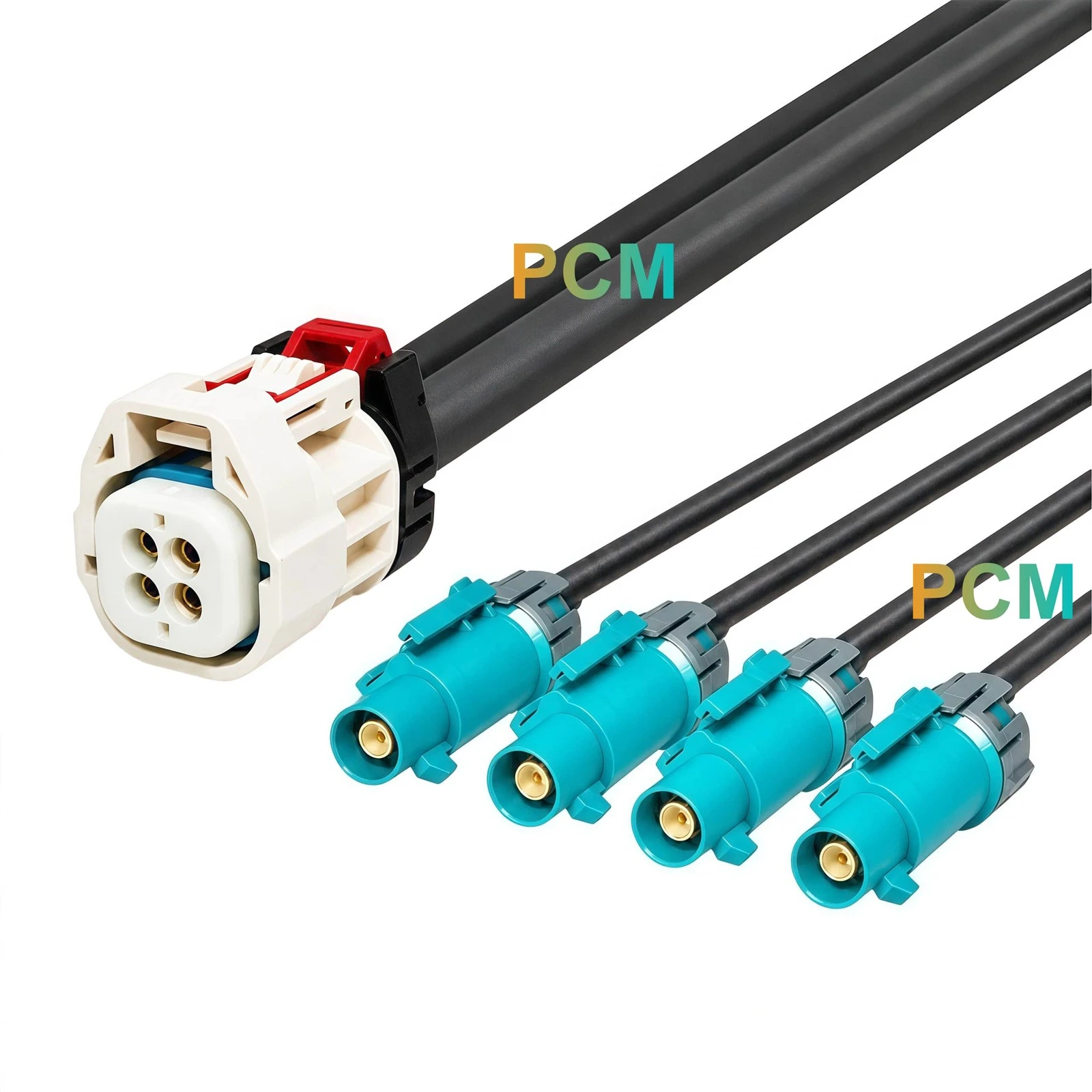

ECT Mini FAKRA B Code to Four Rosenberger Type FAKRA Male Cable

Connection Structure
One 818018734 ECT Mini FAKRA B Code four cavity female connector connects to four sealed FAKRA Z Code straight male ends. The supplied Rosenberger type housing reference is 59Z176-C01Z.

Unique Difference
Changes all four branch interfaces to male terminations.

Suitable Installation
Joining existing sealed female cable ends to the grouped equipment interface, with individual junctions positioned along the harness route.

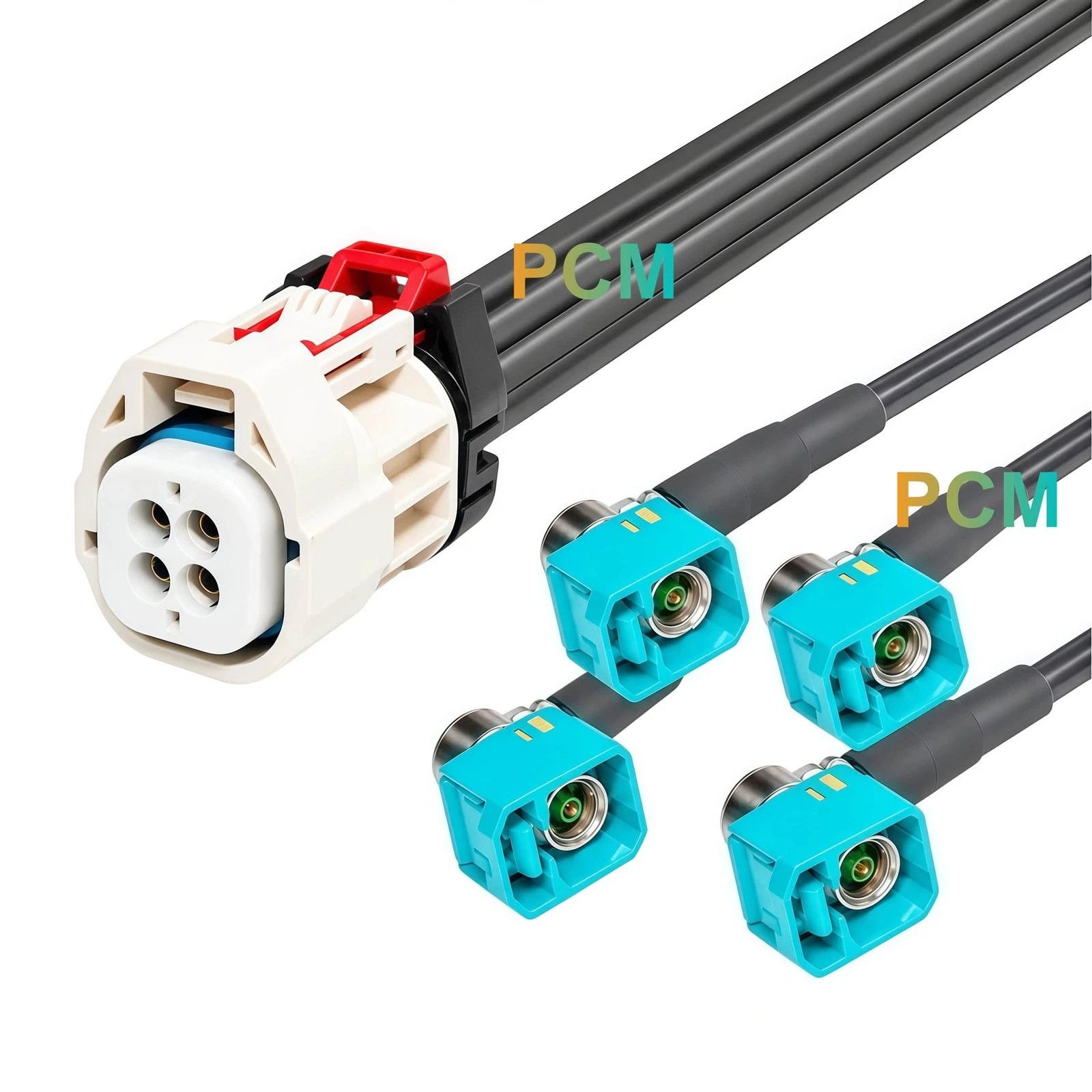

ECT Mini FAKRA B Code to Four TE Type Right Angle FAKRA Female Cable

Connection Structure
One 818018734 ECT Mini FAKRA B Code four cavity female connector connects to four sealed FAKRA Z Code right angle female ends, with supplied TE reference 1-2392990-4.

Unique Difference
Turns each cable exit sideways at the connector rather than continuing directly behind it.

Suitable Installation
Recessed ports or connections close to covers and mounting surfaces where a straight termination would restrict cable routing.

Applications & Customer Value

Camera Connections Behind Protective Covers

A cover may protect the connection while leaving little room for the cable. Selecting the termination direction around that space allows the cover and harness to be positioned without forcing an immediate cable bend.

Harness Junctions Outside the Main Enclosure

Some junctions sit away from the protected equipment housing. Sealed branch construction allows these locations to be evaluated for their own environmental requirements rather than relying solely on enclosure protection.

Installation Across Separate Camera Locations

Remote connection points may require different cable reaches. Defined branch dimensions support routing around mounting brackets and attachment points while keeping excess cable away from service areas.

Specification Based Replacement

A replacement harness must match the receiving interfaces and installation envelope. Recording the selected branch references and exit directions gives procurement a clearer specification than the general description "four camera cable."

Product Features

Customization Capabilities

Premier Cable supports:

Connector Customization

Premier Cable reviews connector type, gender, coding and housing design against the specified mating parts. Mixed branch combinations can be assessed when individual connection locations require different terminations or cable exit directions.

Cable Customization

Overall length, branch reach, jacket, shielding and cable structure can be reviewed from the routing drawing. Alternative cables require confirmation against the selected contact and sealing components.

Electrical Customization

Pin assignment, cavity mapping and wiring definitions can be documented on the approved drawing. Requests involving circuit configuration, resistance values or power ratings require separate engineering assessment.

OEM Manufacturing

Premier Cable supports drawing review, prototype preparation and mass production following specification approval. Channel labels, assembly identification and packaging can be defined for installation handling and repeat orders.

Product FAQ

Q1. Is this harness an RF power divider ?

No. It routes four separate coaxial connections. No power dividing or signal combining circuit is specified.

Q2. Can Versions 1 and 2 use the same mating parts ?

Both have female FAKRA branches, but mating suitability must be checked against the complete connector system. Gender and color alone do not establish interchangeability.

Q3. Does the B Code connector confirm compatibility with a particular vehicle ?

No. Vehicle fitment requires confirmation of the equipment interface, channel assignment, cable dimensions and electrical requirements.

Q4. Does IP67 Waterproof apply when the connectors are disconnected ?

Do not assume it does. The required mating state, unused port protection and complete assembly validation must be defined for the installation.

Q5. What should be specified for the right angle version ?

Provide the mating references, branch lengths and required cable exit orientation. A layout drawing is useful for checking clearance around covers, brackets and adjacent connectors.
