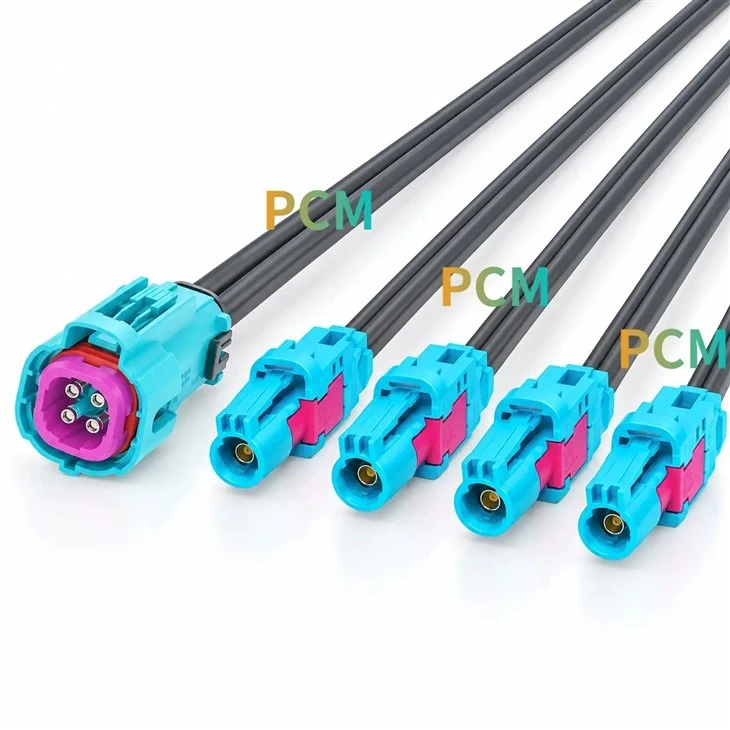

The Waterproof Quad HFM Mini FAKRA Female to 4 Single Female Coaxial Cable Assembly is designed for multi-channel high-frequency signal and high-speed data connections in automotive electronic systems. One end features an AMK148-1M4Z5-Z waterproof-type HFM quad-port female connector, while the opposite end terminates in four individual AMK16A-1M4Z5-Z HFM Mini FAKRA single-port female connectors. All connectors use water-blue Z-code configurations for compatible automotive interfaces.

Built with Dacar 302-4 automotive coaxial cables, the assembly separates four independent 50-ohm coaxial channels from a compact quad-port interface into four individual single-port connections. Compared with multiple separate cable assemblies, this integrated breakout design reduces connector space requirements on the quad-port side and allows individual signal branches to be routed and connected more conveniently.

The quad-port end uses a waterproof-type connector structure intended for automotive installations requiring environmental protection. The sealing performance of the four single-port ends depends on their specific connector designs and mating conditions. Universal Z-code configurations provide flexible integration options within compatible HFM connector systems.

Product Specifications

Parameter	Specification
Product Name	Quad HFM to 4 Mini FAKRA Cable
Connector P1	AMK148-1M4Z5-Z
Connector P2-P5	4 × AMK16A-1M4Z5-Z
P2–P5 Configuration	Single-Port Female
Coding	Z Code
Color	Water Blue
Applications	ADAS / Camera / Infotainment / ECU
Cable Type	Dacar 302-4 Automotive Coaxial
Customization	OEM / ODM / Wholesale

What Is a Quad HFM to Four Single Mini FAKRA Breakout Cable ?

A Quad HFM to Four Single Mini FAKRA Breakout Cable is a multi-channel automotive coaxial connection solution. It separates four independent coaxial paths from one quad-port connector into four individual single-port connectors.

This configuration does not amplify or actively distribute signals. Each single-port connector corresponds to one independent channel within the quad HFM interface.

In ADAS and automotive electronic systems, the quad-port end can connect to a centralized control module, while the four single-port branches connect to separate cameras or electronic devices, simplifying harness organization and module routing.

490e8ae7-07c3-486f-9bed-04b2518515cb 1 1

Why Do ADAS Multi-Camera Systems Use Quad HFM Connectors ?

5b5ab581-e019-4cba-a11c-832679fa3787 1 1

Modern ADAS systems often connect multiple cameras and electronic sensing modules. As camera counts increase, using separate coaxial connectors can consume additional controller interface space and complicate harness assembly.

Quad HFM connectors integrate four independent coaxial channels into one compact housing, making them suitable for high-density automotive electronics. Combined with a four-branch breakout cable, they provide centralized connectivity at the controller and individual connections at the camera modules.

This architecture helps reduce controller-side connector space requirements and improves harness organization in multi-camera systems. Actual transmission performance depends on cable specifications, termination quality, and complete link design.

Product FAQ

Can this HFM cable connect four automotive cameras ?

Yes. The cable can be used in compatible four-camera systems, with each independent coaxial branch connecting to a corresponding camera module. Support for GMSL, FPD-Link, and specific transmission distances depends on equipment requirements and link validation.

What is the difference between a quad-to-four breakout cable and a quad extension cable ?

A quad extension cable typically uses quad-port connectors at both ends. This breakout cable converts one quad-port interface into four individual single-port interfaces, making it suitable for centralized controllers connected to distributed devices.

Is Z-Code compatible with all Mini FAKRA connectors ?

Z-code is a universal coding option, but it does not guarantee compatibility with every Mini FAKRA connector. Connector series, mating dimensions, gender, and locking structures must be verified before installation.

Can this HFM cable be customized for OEM and wholesale orders ?

Yes. Premier Cable offers OEM customization of overall cable length, individual branch lengths, connector configurations, channel mapping, and assembly requirements for ADAS development, automotive module integration, and wholesale orders.
