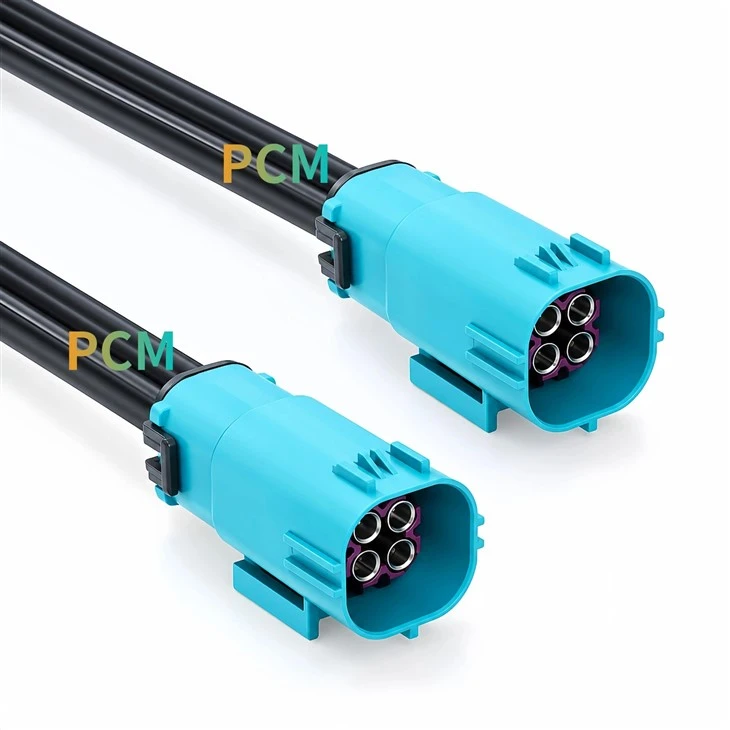

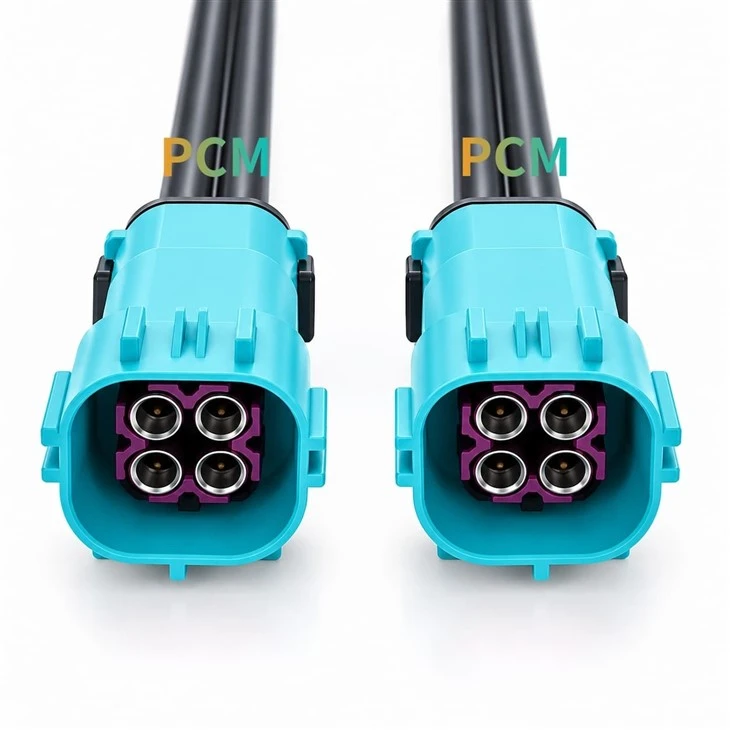

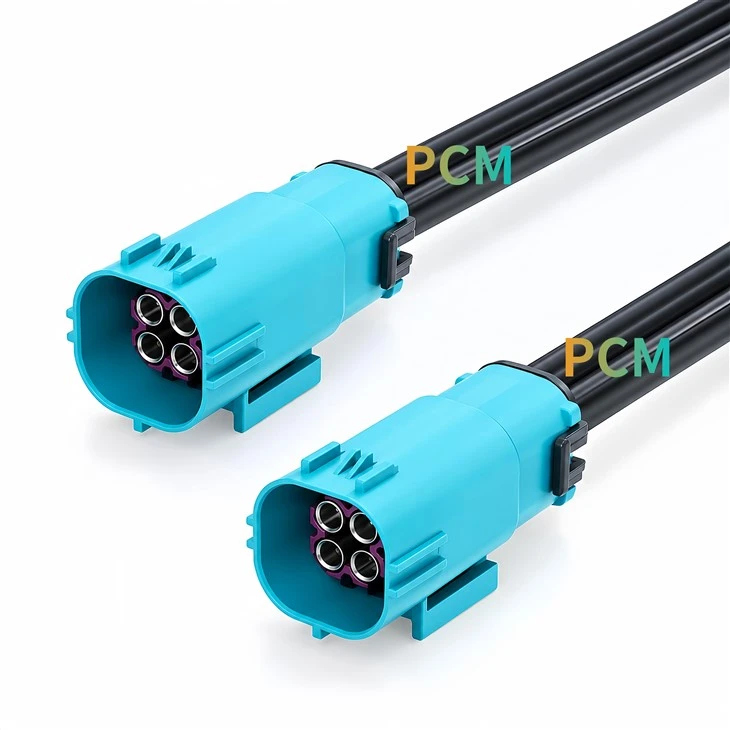

The HFM Mini FAKRA 4-Port Male to Male Automotive Coaxial Cable Assembly is designed for multi-channel high-frequency signal and high-speed data connections in automotive electronic systems. Both ends feature waterproof-type HFM four-port male connectors, specified as AMS14D-1M4Z5-Z, with water-blue Z-code configurations for connecting compatible automotive modules equipped with HFM four-port female interfaces.

Built with Dacar 302-4 automotive coaxial cables, the assembly provides four independent 50-ohm coaxial transmission paths. Compared with multiple individual single-port connectors, the integrated quad-port design reduces connector space requirements and simplifies cable routing in high-density automotive electronic architectures.

The male-to-male configuration provides direct coaxial connectivity between compatible HFM female interfaces. Universal Z-code housings offer greater interface selection flexibility within compatible connector systems, while waterproof-type connector structures are intended for automotive applications requiring environmental protection. The actual protection rating must be confirmed through mating and assembly validation.

Product Specifications

Parameter	Specification
Product Name	HFM Mini FAKRA 4-Port Cable
Connector A	AMS14D-1M4Z5-Z
Connector B	AMS14D-1M4Z5-Z
Connection	Male to Male
Coding	Z Code
Color	Water Blue
Applications	ADAS / Camera / Infotainment / ECU
Cable Type	Dacar 302-4 Automotive Coaxial
Customization	OEM / ODM / Wholesale

Product Features

Dual HFM 4-Port Male Connectors

Both ends feature AMS14D-1M4Z5-Z waterproof-type HFM four-port male connectors, forming a male-to-male connection. Each connector integrates four independent coaxial interfaces for automotive devices equipped with compatible HFM quad-port female connectors.

Water-Blue Universal Z-Code Configuration

Both connectors use water-blue Z-code configurations, providing a universal coding option within the HFM connector system. This design offers flexible mating options for compatible automotive interfaces, subject to mechanical compatibility verification.

Dacar 302-4 Automotive Coaxial Cable

The assembly uses Dacar 302-4 automotive coaxial cables featuring center conductors, dielectric insulation, and shielding structures. The nominal 50-ohm impedance supports compatible automotive RF and high-speed data links, with customizable cable lengths and termination configurations.

6cc5efee-5c1a-4a35-8c8c-eafc1a168f7c 1 1 1 1 1

Typical Applications

◆ Automotive ECU and Telematics

Suitable for four-channel coaxial connections between telematics modules, automotive electronic control units, and development or testing equipment.

◆ Automotive Camera Systems

Suitable for coaxial cable extension in surround-view, rear-view, and multi-camera systems, connecting compatible camera modules with automotive electronic controllers.

◆ Automotive Infotainment

Provides coaxial interconnections between infotainment head units, display-related modules, and compatible high-speed interfaces in compact vehicle electronic systems.

Product FAQ

What devices can the HFM 4-Port Male to Male Cable connect ?

This cable connects automotive devices equipped with compatible HFM four-port female interfaces, including ADAS camera modules, infotainment systems, electronic control units, and automotive testing equipment. Connector coding and mating compatibility must be verified.

Can Z-Code HFM connectors mate with other coding types ?

Z-code is a universal coding option that offers flexible mating possibilities within compatible HFM connector systems. Mechanical geometry and locking structures must still be verified using mating drawings.

Can this HFM automotive coaxial cable be customized ?

Yes. Premier Cable offers OEM customization, including cable lengths, connector configurations, channel mapping, and assembly requirements for automotive prototype development, equipment integration, and wholesale manufacturing.

Is the HFM 4-Port Male to Male Cable waterproof ?

The assembly uses waterproof-type HFM connector structures intended for automotive environments requiring protection. However, the actual IP rating depends on sealing, mating connectors, and complete cable assembly testing.
