The Quad HFM Mini FAKRA Female to 4 Male Coaxial Breakout Cable is designed for multi-channel high-frequency signal and high-speed data connections in automotive electronic systems.

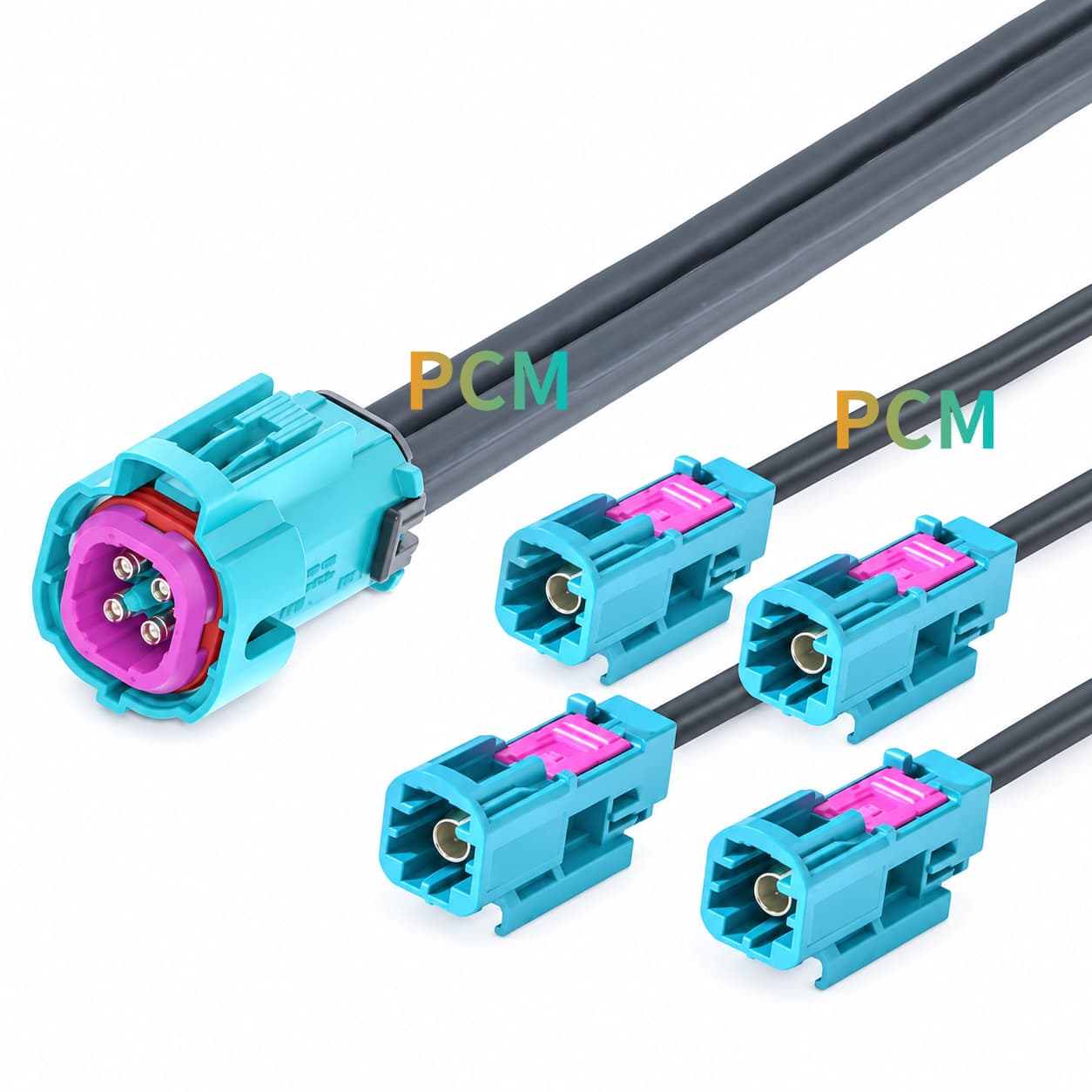

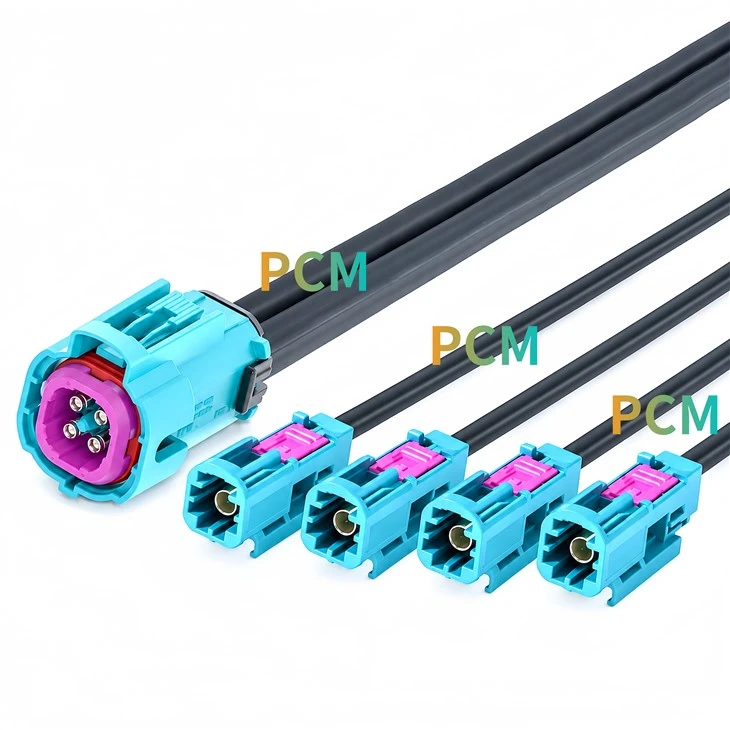

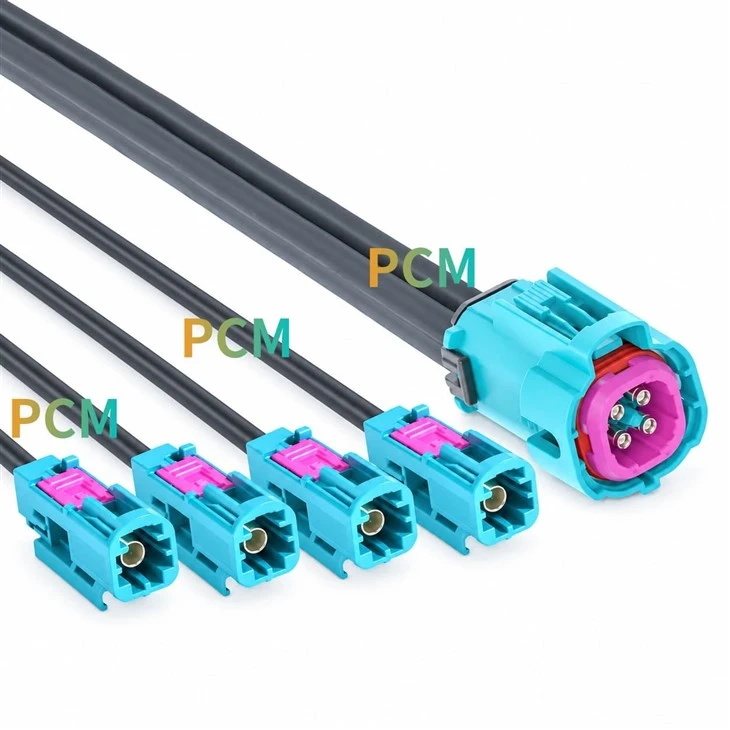

One end features an AMK148-1M4Z5-Z waterproof-type HFM quad-port female connector, while the opposite end terminates in four Rosenberger AMS11A-1M4Z5-Z HFM Mini FAKRA single-port male connectors. The assembly uses Z-code configurations for compatible automotive HFM interfaces.

The quad-port connector features a waterproof-type structure intended for automotive installations requiring environmental protection. The four single-port male connectors are non-waterproof and are better suited to protected equipment interiors or enclosed connection environments. Customizable branch routing supports organized wiring and efficient integration of multiple automotive electronic modules.

Product Specifications

Parameter	Specification
Product Name	Quad HFM to 4 Mini FAKRA Male Cable
Connector P1	AMK148-1M4Z5-Z
Connector P2-P5	4 × AMS11A-1M4Z5-Z
Connector Brand	Rosenberger
Coding	Z Code
Color	Water Blue
Applications	ADAS / Camera / Infotainment / ECU
Cable Type	Dacar 302-4 Automotive Coaxial
Customization	OEM / ODM / Wholesale

Product Features

Quad Female to Four Single Male Breakout Design

The assembly features one AMK148-1M4Z5-Z waterproof-type HFM quad-port female connector and four Rosenberger AMS11A-1M4Z5-Z single-port male connectors. Its 1-to-4 breakout configuration routes four independent coaxial channels to separate male interfaces.

Four Independent 50-Ohm Automotive Coaxial Channels

Four Dacar 302-4 automotive coaxial cables provide independent signal paths with separate center conductors, dielectric insulation, and shielding structures. Each channel connects to its corresponding interface for organized multi-channel RF and compatible high-speed data applications.

What Is the Difference Between Waterproof and Non-Waterproof HFM Connectors ?

The primary difference between waterproof and non-waterproof HFM connectors is environmental sealing rather than their ability to transmit high-frequency signals.

Waterproof-type connectors generally use sealing elements, cable-entry seals, and suitable mating structures to reduce moisture and contaminant ingress in automotive installations requiring protection.

Non-waterproof HFM connectors are commonly used inside automotive electronic modules, enclosed equipment housings, or other protected connection environments. They can still provide high-frequency coaxial connections but should not be exposed directly to environments requiring waterproof protection.

Product FAQ

What is the Quad HFM to 4 Single Male Coaxial Cable ?

This is a four-channel automotive coaxial breakout cable featuring one waterproof-type HFM quad-port female connector and four non-waterproof HFM single-port male connectors. It uses Z-code interfaces and Dacar 302-4 coaxial cables for independent signal connections.

Can this cable be used for four automotive cameras ?

Yes. The cable can be used in compatible four-camera systems, with each male connector providing an independent coaxial channel. Support for GMSL, FPD-Link, or other protocols depends on equipment specifications and complete link validation.

Is this cable a one-to-four signal splitter ?

No. This is a four-channel coaxial breakout assembly. Each channel in the quad-port connector connects to one individual male connector. It does not perform active signal splitting, amplification, or protocol conversion.

Is OEM customization available for this HFM breakout cable ?

Yes. Premier Cable offers custom overall cable lengths, individual branch lengths, channel mapping, connector configurations, and cable assembly services for automotive prototypes and wholesale production.
