Products Description

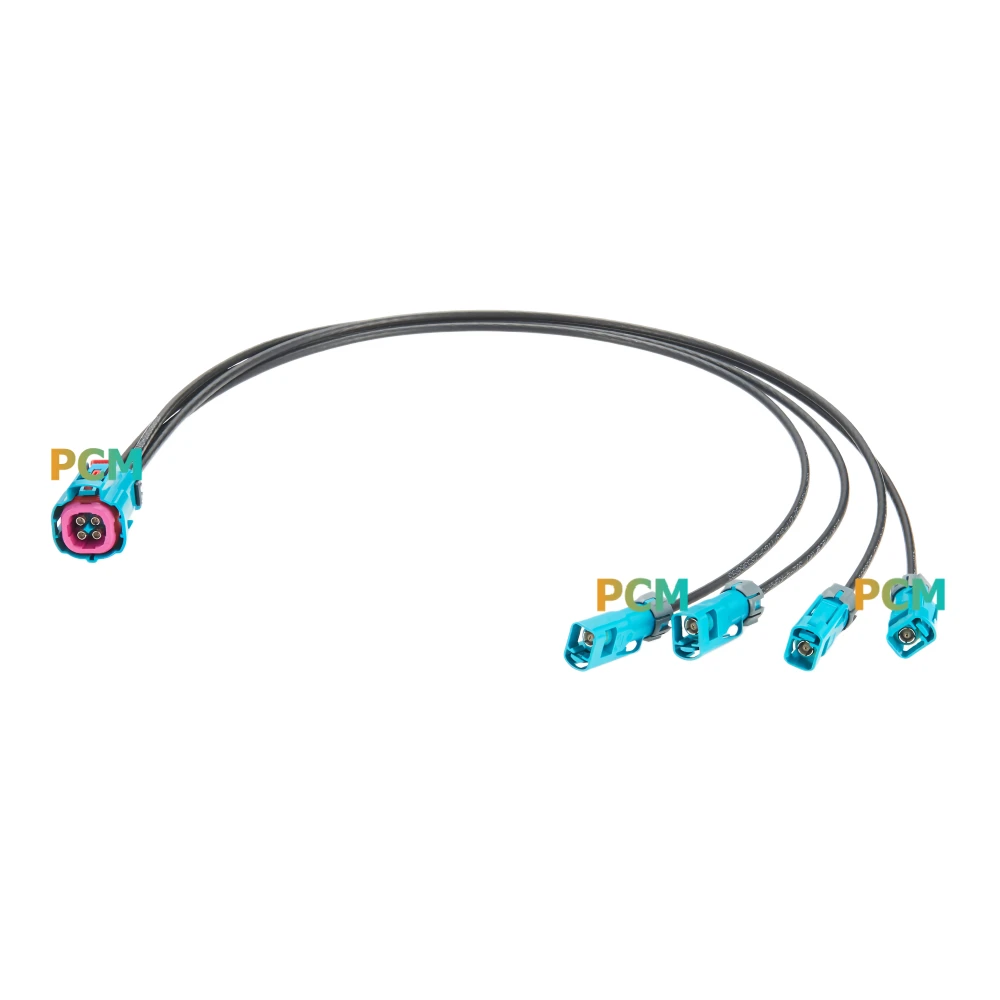

This waterproof Waterproof HFM Mini Fakra to Fakra RF Cable is a professional solution designed for high-speed, stable transmission in harsh environments for next-generation automotive networks. One end uses a Rosenberger AMK-14K-1M4Z5-Z connector, supporting a frequency range up to 6GHz, meeting the ultra-high bandwidth requirements of autonomous driving radar, high-definition sensors, and 5G V2X.
The other end uses a Rosenberger standard Fakra 59Z163-003-Z connector, compatible with traditional automotive RF interfaces. Its core advantage lies in its integrated, comprehensive waterproof sealing design. Through the addition of a precision silicone sealing ring at the connector interface and the use of integrated injection molding or heat shrink tubing protection, the PCM-ZC-0036 achieves an IP67 protection rating, providing complete dust protection and withstanding short-term immersion in water and high-pressure, high-temperature water jets.
Specification
| Product Name | Waterproof HFM Mini Fakra to Fakra RF Cable |
| Part No. | PCM-ZC-0036 |
| Connector 1 | Rosenberger Mini Fakra AMK14K-1M4Z5-Z Female |
| Connector 2 | Rosenberger 59Z163-003-Z Male |
| Wire | Leoni Dacar 302-4 Coaxial Cable |
| Impedance | 50 Ohm |
| Frequency | DC-6GHz |
| Cable Retention | 110N |
| Cable Length | OEM |
| Waterproof rating | IP67 |
Features
♦ Original High-End Connector Combination: Employs original Rosenberger HFM series (AMK14K-1M4Z5-Z) and standard Fakra (59Z163-003-Z) connectors to ensure high-precision mating and mechanical lifespan.
♦ Dust and Water Resistance: Achieves IP67 protection rating, meaning the connector interface and cable connection are completely dustproof and waterproof, perfectly suited for water-related scenarios such as vehicle chassis and external cameras.
♦ Dedicated Automotive-Grade Cable: Built-in Leoni Dacar 302-4 coaxial cable, offering excellent oil resistance, abrasion resistance, and weather resistance.
♦ High Tensile Strength: Features a 110N cable retention force, providing extremely robust connections that can withstand severe vibration and pulling.
♦ Compatible with Automotive Frequency: Supports the DC-6GHz frequency range, covering mainstream applications such as 4G LTE, GPS, and V2X.
♦ Flexible Custom Length: Supports OEM customization to meet diverse wiring needs.

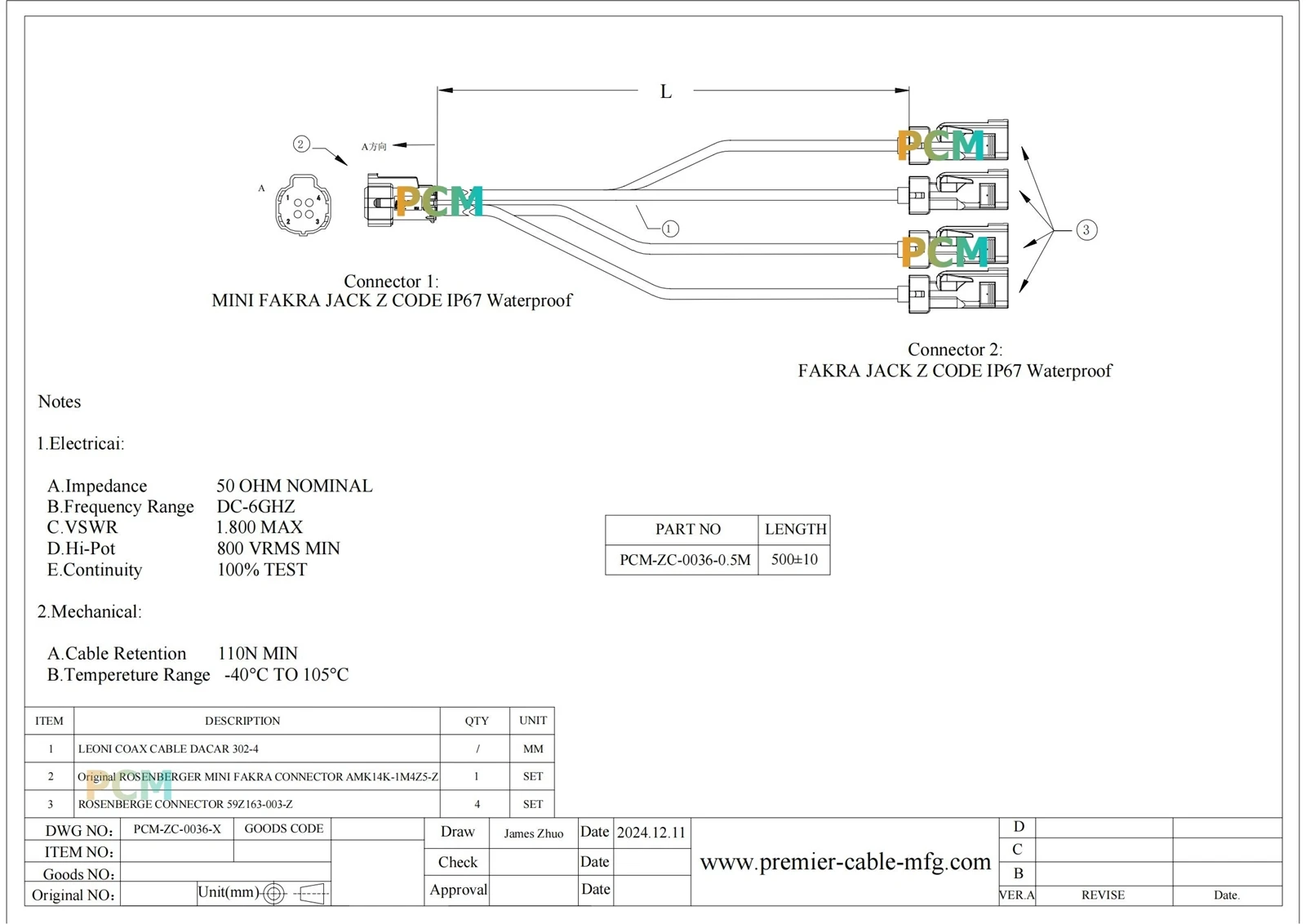

Drawing
