Products Description

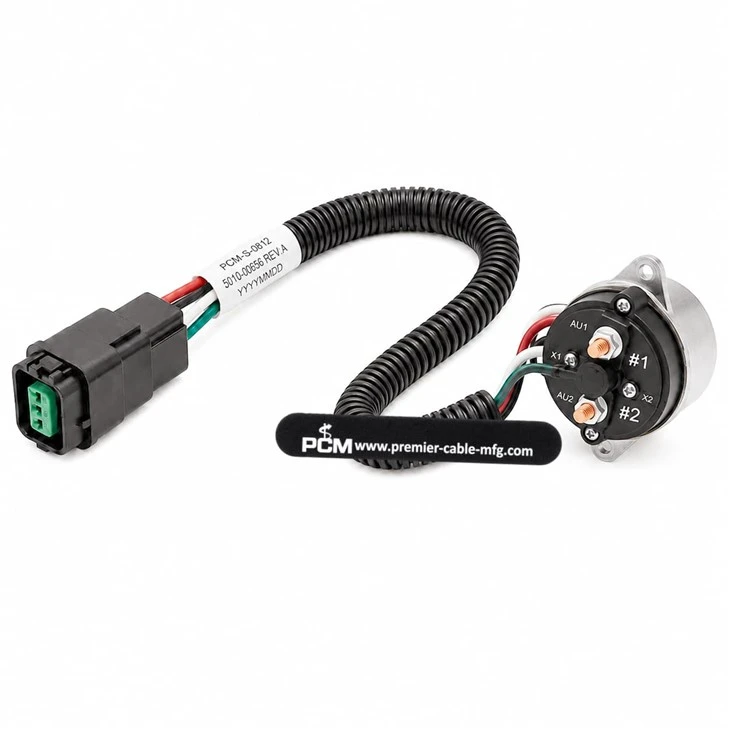

The PCM-S-0812 custom DC contactor wire harness is designed for reliable control and auxiliary signal connections in battery packs, energy storage systems and industrial DC power equipment.
It features an ATM04-3P 3-pin connector and ALTRAN AEV250MAH electromechanical DC contactor, with dedicated wiring to AU1, AU2, X1 and X2 terminals.
Built with 18AWG UL1015 wire, nickel-plated terminals, TE 34130 parallel splice and black PE corrugated tubing, the harness provides secure routing and mechanical protection. Wire length, terminals, labeling and wiring configurations can be customized for OEM applications.
Connector & Product Configuration
| Item |
Specification |
|---|---|
| Product No. |
|
| Connector 1 |
|
| Connector 2 |
Electromechanical DC Contactor |
| Wedge Lock |
|
| Splice | Parallel Splice TE 34130 |
| Main Wire |
18AWG UL1015 |
Key Product Advantages
Original-Spec Connector Integration
ATM04-3P 3-pin interface combined with an ALTRAN AEV250MAH DC contactor connection for complete customized harness integration.
Dedicated Contactor Wiring
AU1, AU2, X1 and X2 connections are pre-routed according to the required contactor wiring configuration.
Protected Cable Routing
Black PE corrugated conduit protects internal wires against abrasion and mechanical damage during equipment installation.
Industrial-Grade Wire & Terminals
18AWG UL1015 wire, nickel-plated terminals and engineered splice connections provide stable electrical performance.
Application Scenarios
Battery Pack & BMS
Custom contactor harness for connecting battery control circuits to DC contactors, supporting reliable switching and auxiliary signal transmission inside battery packs.
Industrial DC Power Systems
Pre-assembled connector and contactor wiring helps simplify equipment installation while providing reliable control connections in industrial DC power systems.
