HSAutoLink, High-Speed Automotive Link is designed for automotive electronic systems to meet the automotive industry's needs for high-bandwidth, high-reliability and low-latency data transmission. The HSAutoLink connection system is usually used between electronic devices inside the car, such as in-vehicle infotainment systems, autonomous driving, sensor systems, in-vehicle networks and other fields. Since autonomous driving systems have extremely high requirements for data transmission, HSAutoLink is used to ensure high-speed and stable communication between sensors, cameras, radars and other autonomous driving hardware.
-

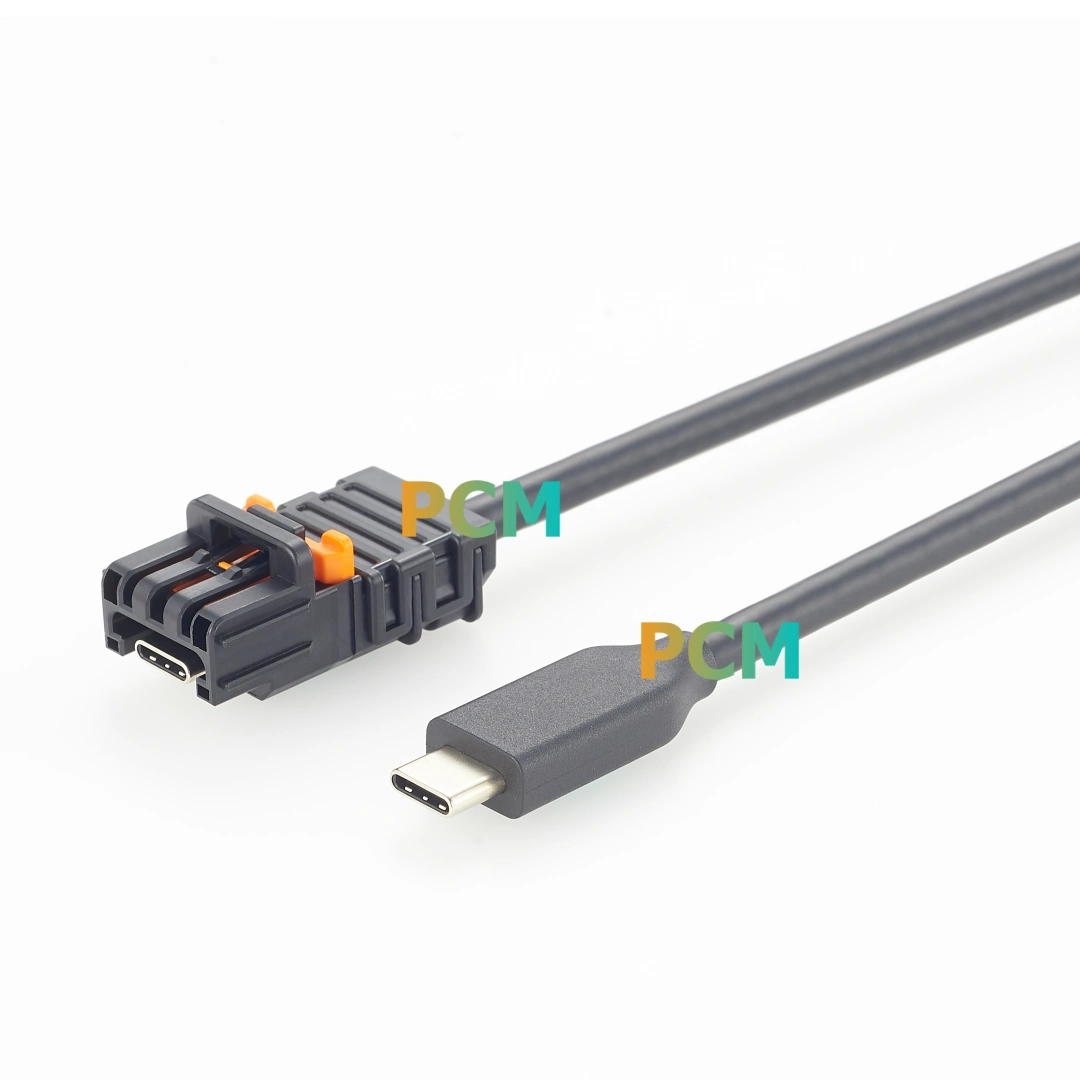

![Hirose AU1 Compatible To USB Type-C Automotive Cable Assembly]()
Hirose AU1 Compatible To USB Type-C Automotive Cable AssemblyPCM-HD-0308 is an independently manufactured AU1-compatible automotive USB Type-C cable assembly with an AU1-compatible locking connector on one end and a standard USB Type-C male connector on the -
![Hirose AU1 Compatible Automotive USB Type-C Cable Assembly]()
Hirose AU1 Compatible Automotive USB Type-C Cable AssemblyPCM-HD-0307 AU1-compatible automotive USB Type-C cable supports USB 3.2 Gen 2 10Gbps, 100W power delivery and 4K 60Hz DP Alt Mode with locking connectors and E-Marker. -
![Molex 12Pin To USB3.0 HSAutoLink Cable]()
Molex 12Pin To USB3.0 HSAutoLink CableThe Molex 12-pin to USB 3.0 HSAutoLink cable is designed for high-speed automotive data transmission, enabling connectivity between HSAutoLink interfaces and USB 3.0 devices. It features high data -
![Molex 6Pin A Type HSAutoLink II Cable]()
Molex 6Pin A Type HSAutoLink II CableThe Molex 6-pin Type A HSAutoLink II cable is designed for high-speed automotive data transmission; utilizing the Molex 100337-8007 connector, it supports LVDS, GMSL, and FPD-Link applications. It is -
![Compatible Molex 111146-3030 HSAutoLink 12 Pin LVDS Cable]()
Compatible Molex 111146-3030 HSAutoLink 12 Pin LVDS CableThe HSAutoLink 12-pin LVDS cable is a high-speed LVDS data cable compatible with the Molex 111146-3030. Featuring a 12-pin HSAutoLink connector design, it is suitable for applications such as -
![Right Angle HSAutoLink 12 Pin Cable]()
Right Angle HSAutoLink 12 Pin CableThe Right Angle HSAutoLink 12-Pin Cable is a cable assembly specifically designed for high-speed automotive data transmission applications, compatible with Molex connector models 111146-3080, -
![Molex 14Pin 111146-94370 HSAutoLink II Cable]()
Molex 14Pin 111146-94370 HSAutoLink II CableThe Molex 14-pin 111146-94370 HSAutoLink II cable is designed for high-speed automotive data and video transmission. Supporting LVDS, GMSL, and FPD-Link applications and utilizing the Molex -
![USB 3.1 Type-C Automotive Connection Cable]()
USB 3.1 Type-C Automotive Connection CableThis Mini HSBridge automotive-grade USB 3.1 Type-C cable features Type-C male connectors at both ends; it is fully compatible with the TE 2398010-1 connector and supports high-speed data -
![TE 2398001-1 USB 3.1 Type-C Data Connectivity Header]()
TE 2398001-1 USB 3.1 Type-C Data Connectivity HeaderCompatible with the TE 2398001-1 USB 3.1 Type-C board-mount receptacle, featuring a Code A design, and designed to mate with the TE 2398010-1 USB interface or Amphenol Mini HSBridge USB cables to -
![HSAutoLink 12 Pin To USB-C LVDS Cable]()
HSAutoLink 12 Pin To USB-C LVDS CableThis HSAutoLink 12-pin to USB-C LVDS cable (PCM-ZC-0063) is specifically designed for high-speed in-vehicle video transmission; it is compatible with Molex 111146-3080 and Tyco 2398010-1 connectors -
![Automotive-Grade USB 3.1 Type-C Extension Cable]()
Automotive-Grade USB 3.1 Type-C Extension CableAn automotive-grade USB 3.1 Type-C extension cable that supports high-speed data transmission and fast charging. Compatible with the Amphenol USBCC231AA019AS Mini HSBridge Automotive USB-C cable, it -
![Amphenol USBCC211AA016AS USB Type-C Cable]()
Amphenol USBCC211AA016AS USB Type-C CableThe Amphenol USBCC211AA016AS USB-C data cable supports high-speed data transmission and stable charging, and is fully compatible with the TE 2398010-1 USB interface as well as the Amphenol
PCM Cable is China's leading professional HSAutoLink Cable Assembly manufacturer. Our products include HSBridge Cable Connector, HSAutoLink Mini USB, USB-C, USB-A, Molex 100337-1020 6 circuit, Molex 111146-3080 12 circuit.
Your Professional HSAutoLink Supplier
Our goal is to become your true partner in the field of HSAutoLink in China. PCM Cable Co.,Ltd is a manufacturer specializing in connectors and customized wiring harnesses. We have a skilled engineering team dedicated to refining every stage, from product development and process improvement to production oversight, ensuring every product delivered meets rigorous quality and performance standards. The price is competitive and the product is quality-assured, which is a good choice for your long-term cooperation.
Why Choose Us
Production equipment: Our equipment includes high-frequency welding machines, automatic welding machines, Haba welding machines, laser welding machines, laser cutting machines, temperature and humidity cycle testers, salt spray testers, SGS testers, connector plug-in force testers, network analyzers, IP67 waterproof testers, etc. These equipment provide strong guarantees for the quality and reliability of the products.
Customized solutions: We provide customized design and manufacturing services, and customize various connectors and wiring harnesses according to customers' specific needs and application scenarios to ensure perfect matching.
Production market: Our products are well received by the market and are exported to countries and regions such as Europe and America.
Our services: In the pre-sales stage, our team of experts will recommend the most suitable products according to the needs of customers and provide detailed technical consultation. During the sales period, we ensure timely delivery and provide installation guidance. For after-sales, we provide long-term technical support, warranty services and spare parts to help customers maximize the use of products and get reliable maintenance during use.
It has very high wear resistance, impact resistance, and high-temperature resistance, and is resistant to electromagnetic interference and chemicals. It is suitable for internal wiring in vehicles to prevent external factors from affecting the performance of the cable.
The internal coaxial cable can effectively protect the signal without external interference. The electrical isolation of the internal conductor and the external shielding layer can avoid the loss and consumption of the signal during transmission.
Specification of HSAutoLink
|
Type |
HSAutoLink Cable |
|
Product Name |
HSAutoLink 12 Pin to USB 3.0 High Speed In-Vehicle Data Transfer Cable |
|
Drawing |
PCM-ZC-0060 |
|
Connector A |
USB 3.0 Type A Connector, Female |
|
Connector B |
HSAutoLink Connector, 12 Pin, Male (Molex 111146-3080 Compatible) |
|
Cable Length |
1m, Or OEM |
|
Data Transmission Rate |
Up to 5Gbps |
It meets the USB3.1 Gen1 standard and has a transmission speed of up to 10Gbps, meeting the data transmission requirements of automotive electronic systems.
Both connectors have locking buckles, which are a unique fixed design specifically for automobiles. These buckles ensure that the Type-C connector will not fall off easily due to the vehicle's vibration, reducing the frequency of automobile maintenance and enhancing the safety and durability of the car's interior.
Type-C cable is made of high-density PA, PBT, and PPE plastics. The cable has a coaxial cable inside, which can effectively shield the electromagnetic interference brought by the outside, ensuring the integrity and stability of data and power transmission.
Environmental Characteristics of HSAutoLink
|
Parameter |
Value |
|
Operating temperature |
-40°C to +105°C |
|
Thermal shock |
-40°C to +105°C, 100 cycles |
|
Vibration and mechanical shock |
Random, 5~10ms, 35Gs, 1/2 sine |
|
Temperature and humidity cycle |
40 cycles, 8hrs/cycle |
Application of HSAutoLink
|
In-car entertainment system |
Used for data transmission, media playback, device charging, etc. |
|
In-car navigation system |
High-speed transmission of map data, real-time traffic information, etc. |
|
In-car sensors and cameras |
Used for high-bandwidth data transmission, such as image processing, radar, camera data, etc. |
|
Car charger |
Supports device charging and data synchronization. |
Packing and Shipping of HSAutoLink
|
Packing |
Box |
|
Shipping |
Shipped by road, sea, rail |
FAQ
PCM Cable Co., Ltd. is one of the leading hsautolink manufacturers and suppliers in China. We warmly welcome you to buy advanced hsautolink in stock here from our factory. All customized products are with high quality and low price. Contact us for quotation and free sample.
