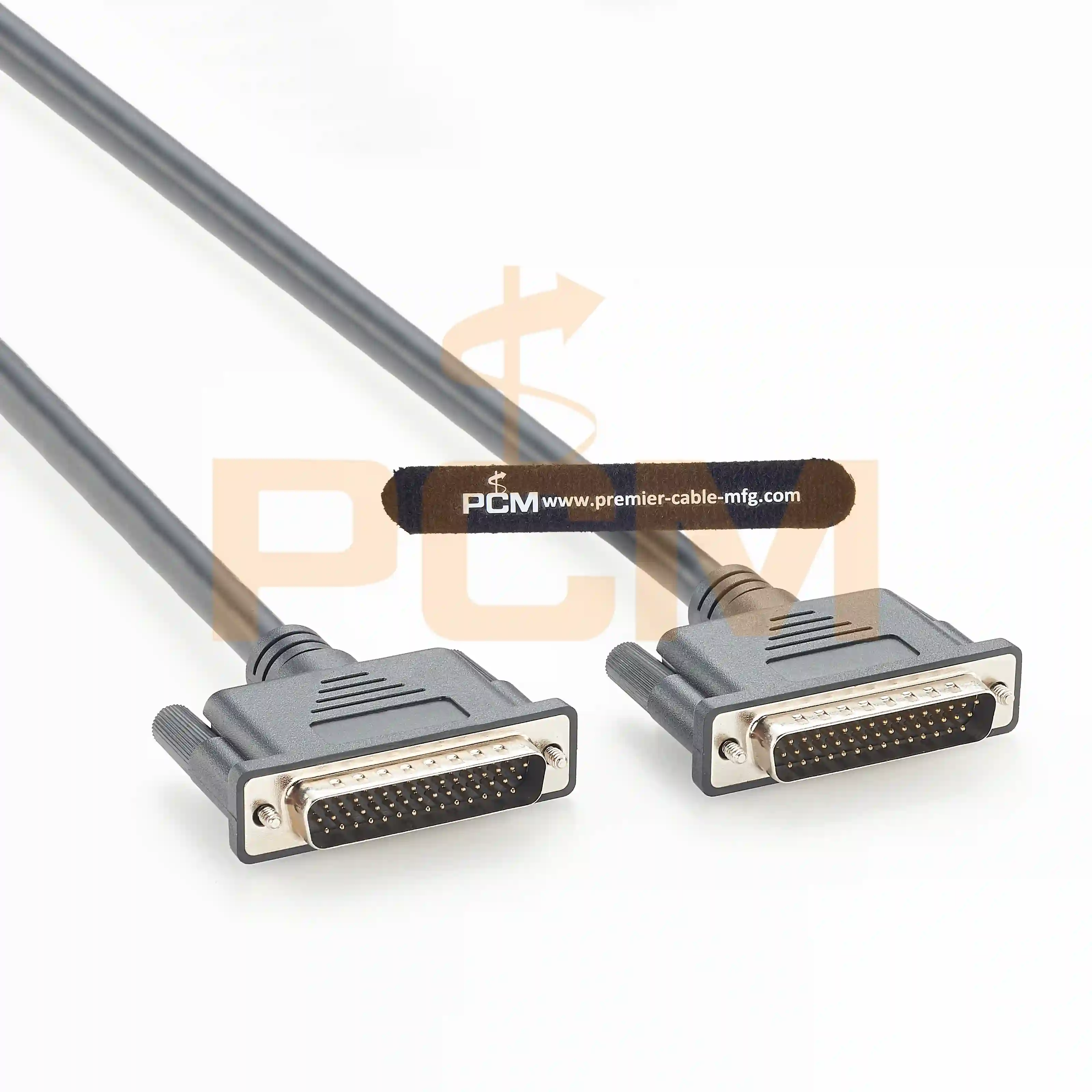

Dual-Plug HD44 Link Between Two Female Interfaces
PCM-0969 is a 44-position high-density D-Sub male-to-male cable built for installations where both connected devices present HD44 female interfaces. The two plug ends create a detachable equipment-to-equipment link without using an open-wire breakout or a male-to-female extension arrangement.
The standard build uses black UL20276 28 AWG multi-pair cable and has a finished length of 2000 ± 30 mm. Each end is overmolded around an HD44 male connector with a black insulator, nickel-plated shell and UNC #4-40 locking screws.
The cable is manufactured to an approved channel map. The drawing does not establish universal 1-to-1 wiring, so the required contact assignment must be confirmed before the assembly is used as a replacement or equipment link.
Interface Arrangement
| Connection Point | Cable Interface | Equipment Requirement |
| P1 | HD44 male, 44 pin contacts | Compatible 44-position high-density D-Sub female port |
| P2 | HD44 male, 44 pin contacts | Compatible 44-position high-density D-Sub female port |
| Retention | UNC #4-40 locking screws at both ends | Matching threaded posts or female locking hardware |
Because both cable ends are male, this assembly is not intended to extend an existing male cable end. It is selected when two separate female equipment interfaces must be interconnected.
PCM-0969 Construction Data
| Design Element | Standard Build |
| Product Number | PCM-0969 |
| Connector Pair | HD44 male to HD44 male |
| Cable | UL20276, 28 AWG × 25 pairs + AEB |
| Cable Diameter | Approximately 8.0 mm |
| Cable Color | Black |
| Finished Length | 2000 ± 30 mm |
| Connector Finish | Black insulator with nickel-plated shell |
| Environmental Compliance | RoHS compliant |
Channel Map and Production Control
HD44 identifies the connector format but does not define the electrical circuit. PCM-0969 may be produced with a direct contact map, crossed channels or another customer-specific arrangement when supported by an approved wire list.
- Contact assignment verified against the approved wiring document
- 100% open-circuit, short-circuit and miswire inspection
- Insulation resistance: 10 MOhm minimum at DC 300 V
- Contact resistance: 3 Ohm maximum
- Connector orientation, finished length and external workmanship checked before shipment
Suitable Connection Scenarios
| System Scenario | Use of the Male-to-Male Cable |
| Two devices with HD44 female ports | Creates a removable inter-equipment connection between the two interfaces. |
| Test controller to fixture | Carries multiple defined circuits between a controller and a dedicated test fixture. |
| Data-acquisition equipment | Connects compatible multi-channel interface hardware according to the required contact map. |
| OEM machine modules | Links two separately mounted modules using secured screw-lock connections. |
| Existing cable replacement | Can be reproduced after connector orientation, wiring and shielding are verified from a drawing or sample. |

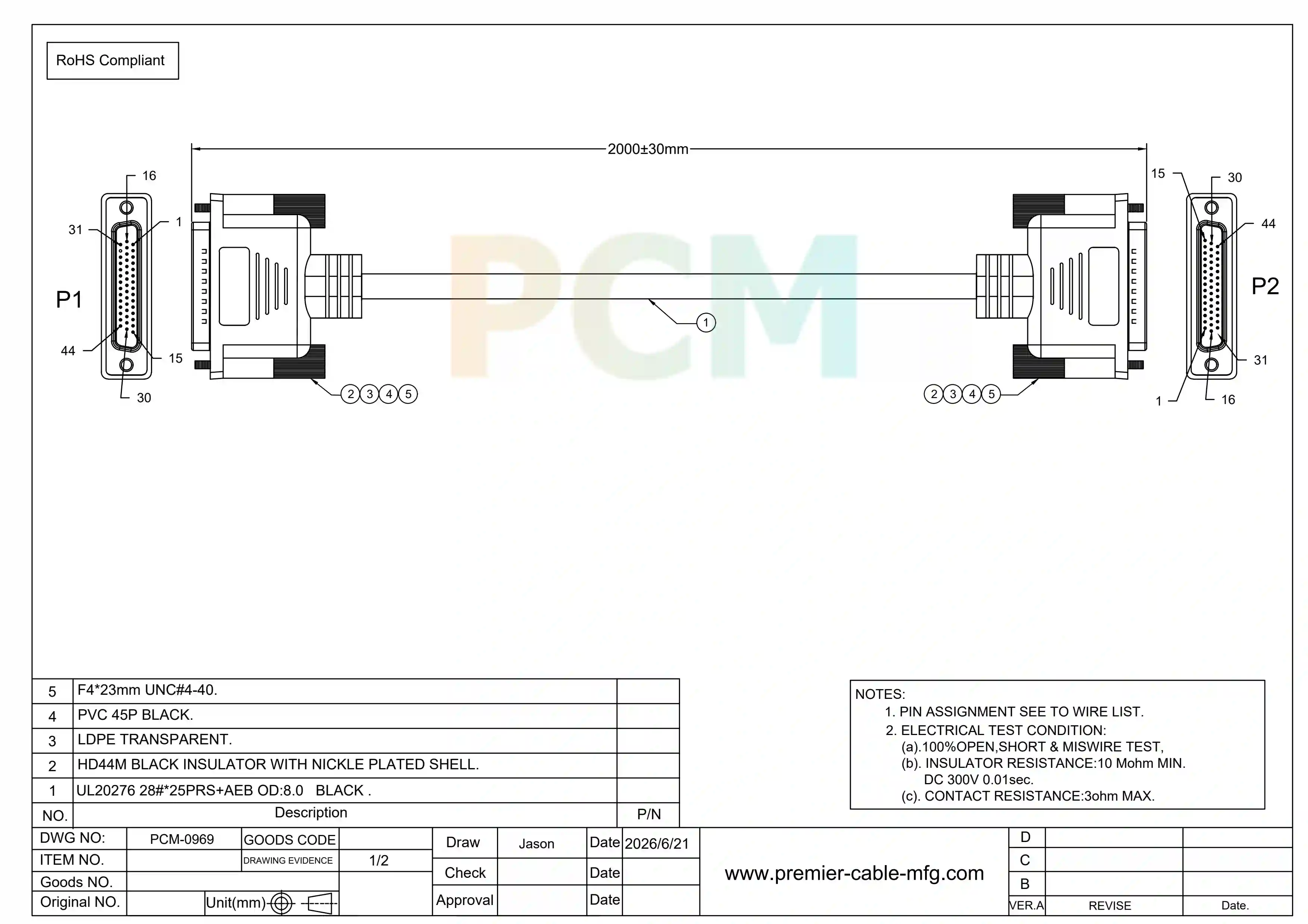

Drawing
