PCL-10162 Compatible DB62 Shielded Cable

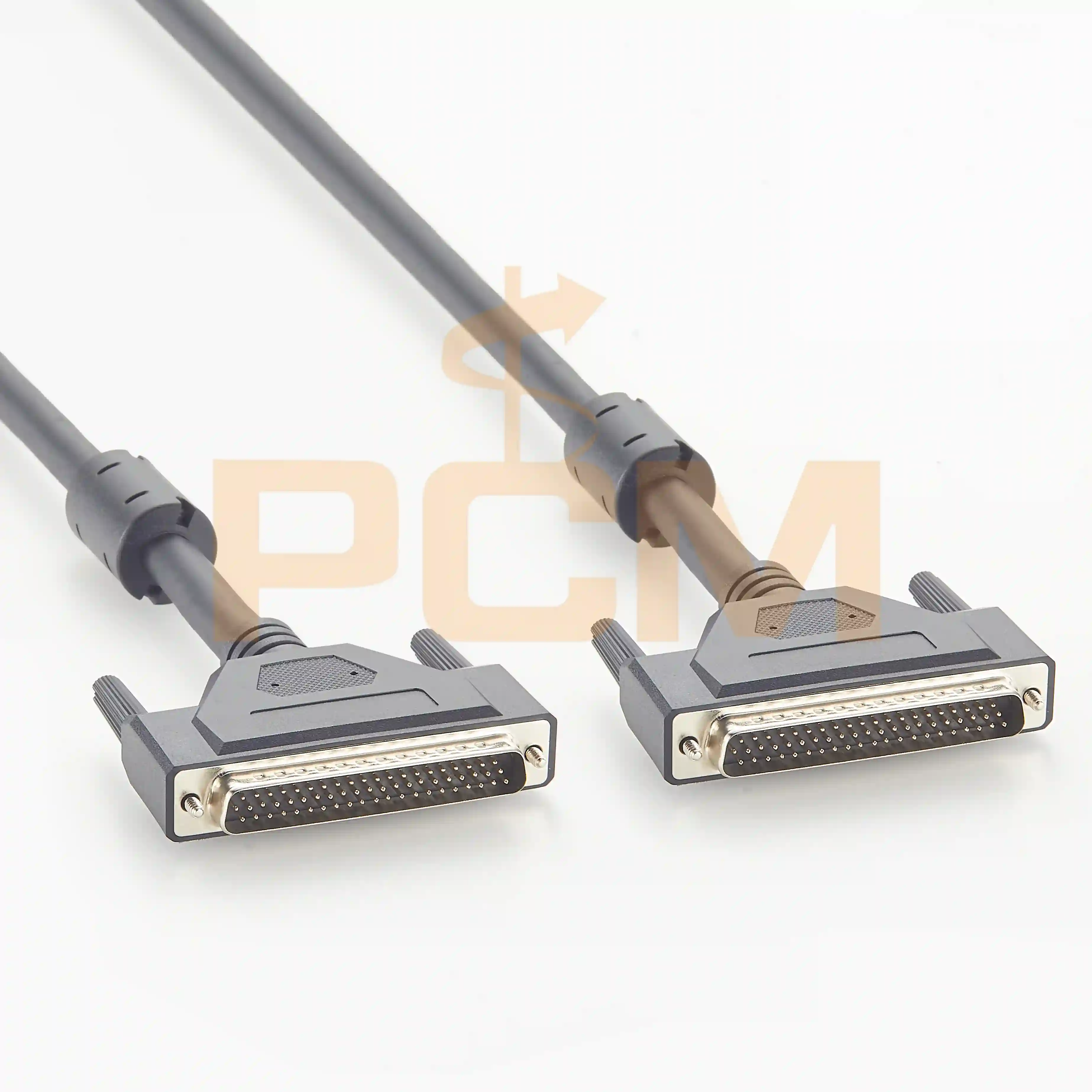

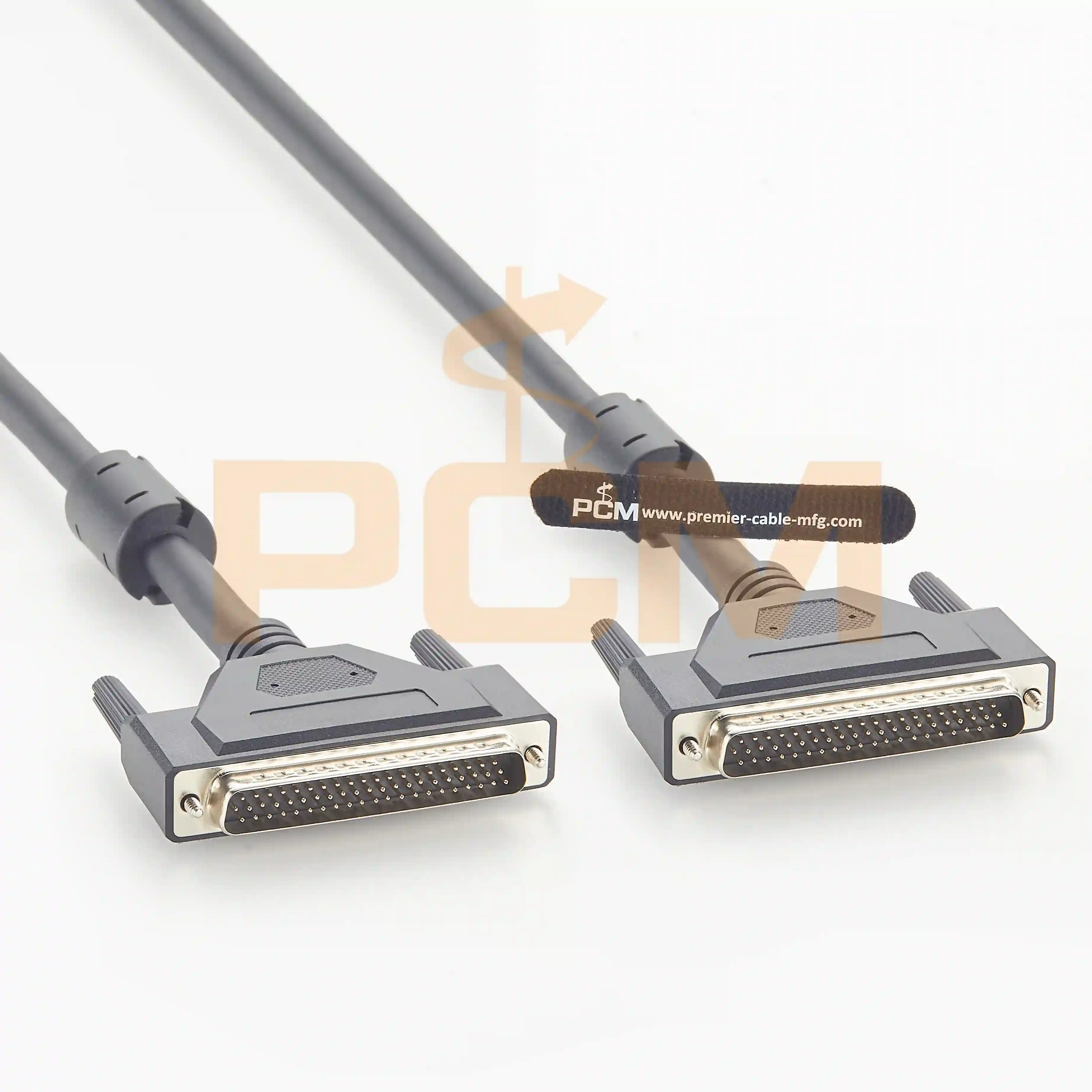

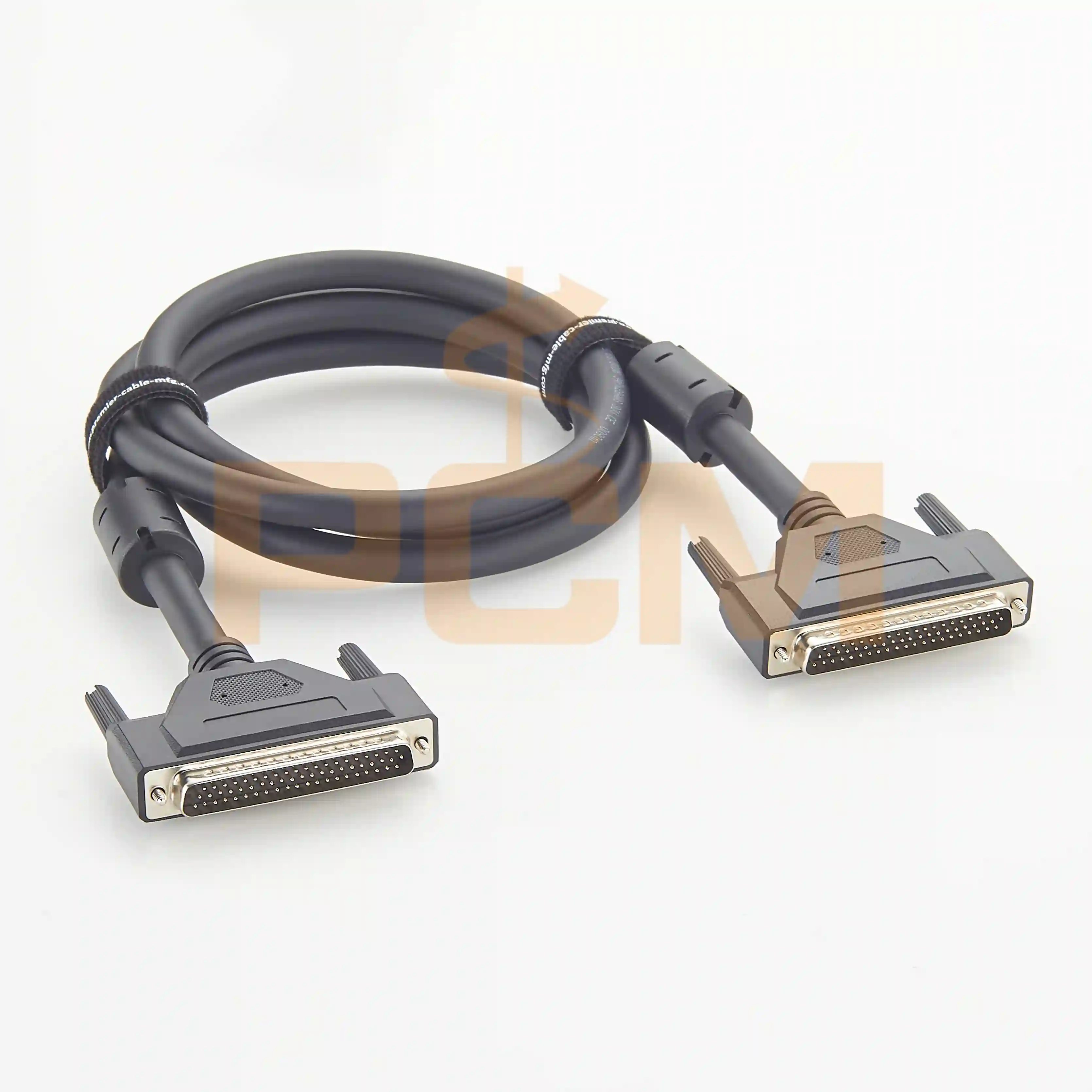

PCM-0957 is a 62-pin high-density D-Sub male-to-male shielded cable designed as a compatible replacement for the PCL-10162 cable series. It is available in 1 m, 2 m and 3 m versions for connecting compatible data-acquisition, I/O and terminal-interface equipment.
Both ends use HDB62 male connectors with black insulators, nickel-plated shells and UNC #4-40 locking hardware. The standard construction uses black UL20276 28 AWG multi-pair cable with an outside diameter of approximately 10.3 mm.
Compatible Part Numbers and Lengths
| Premier Part Number | Cable Length | Compatible With |
| PCM-0957-1M | 1000 ± 30 mm | PCL-10162-1E |
| PCM-0957-2M | 2000 ± 30 mm | PCL-10162-2E |
| PCM-0957-3M | 3000 ± 30 mm | PCL-10162-3E |
Compatibility should be confirmed against the required connector orientation, complete pin assignment and connected equipment before use as a replacement cable.
Cable Construction
| Specification | Standard Build |
| P1 Connector | 62-position high-density D-Sub male |
| P2 Connector | 62-position high-density D-Sub male |
| Cable Type | UL20276, 28 AWG × 34 pairs + AEB |
| Cable Outside Diameter | Approximately 10.3 mm |
| Connector Shell | Nickel-plated shell with black insulator |
| Locking Hardware | UNC #4-40 |
| Cable Core | 17.5 × 28.5 × 11 mm core installed near each connector end |
| Compliance | RoHS compliant |

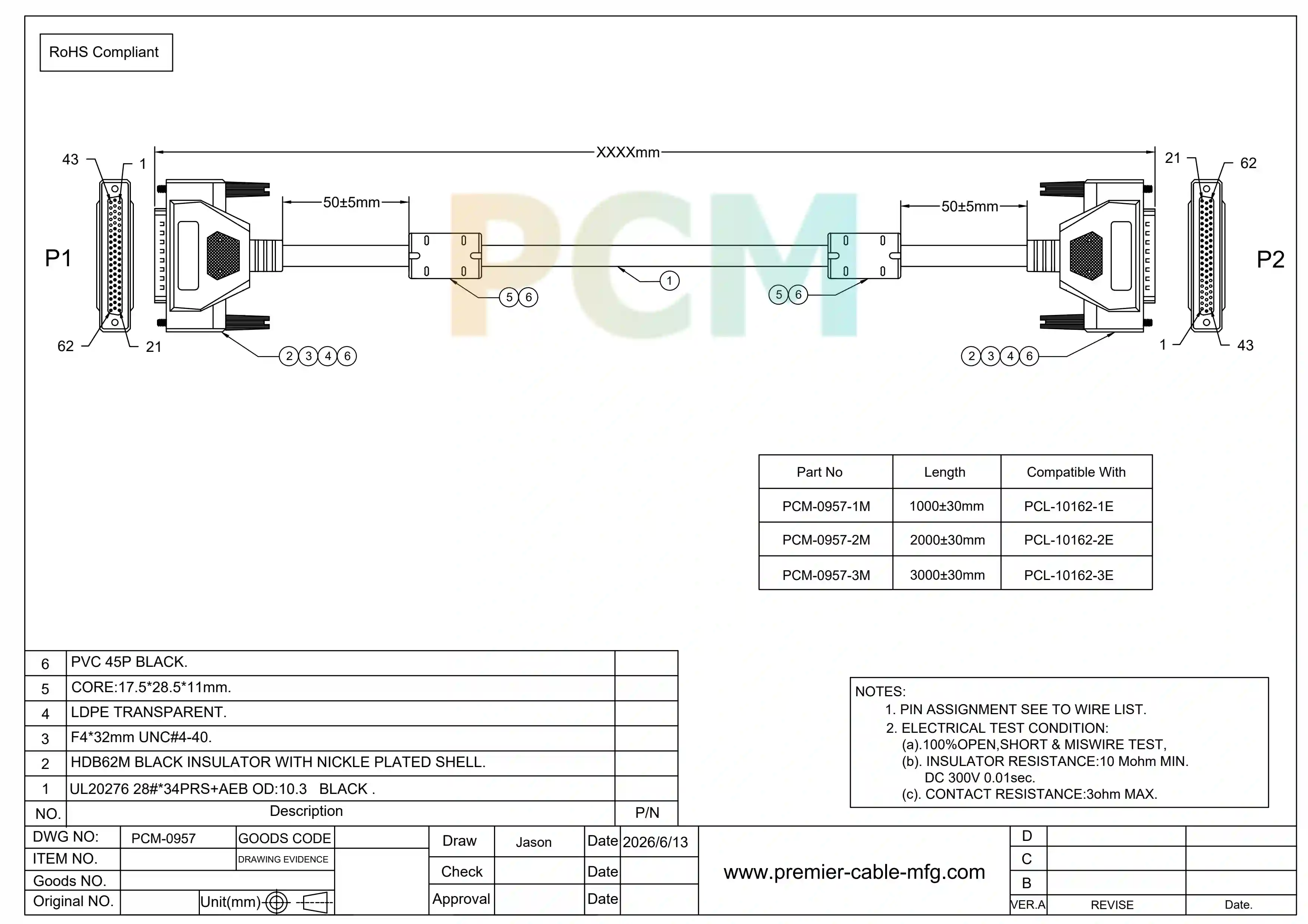

Drawing
