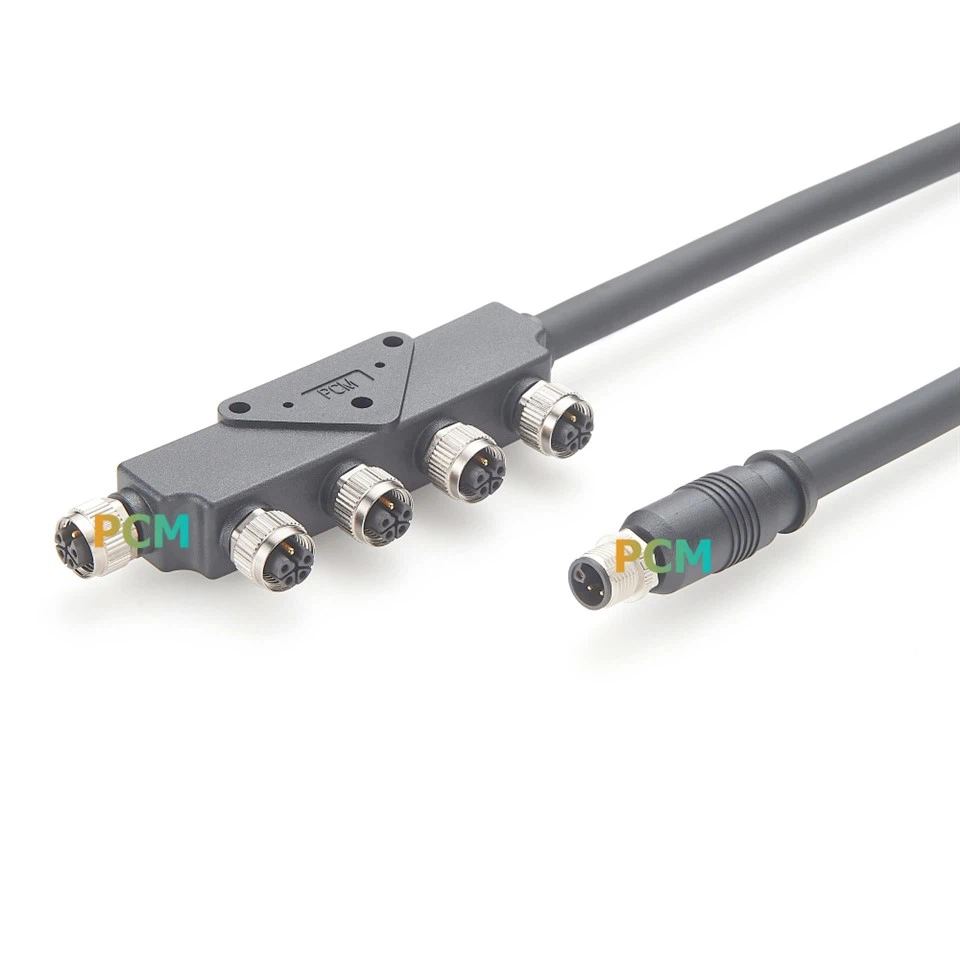

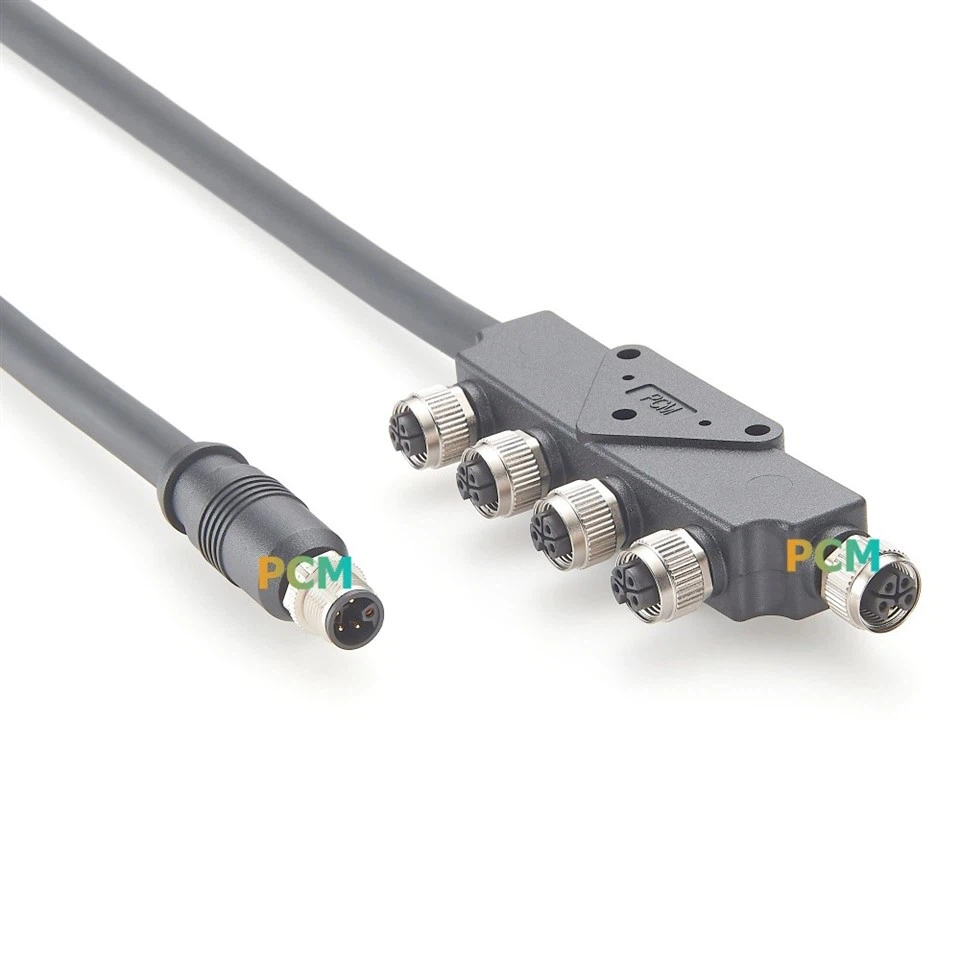

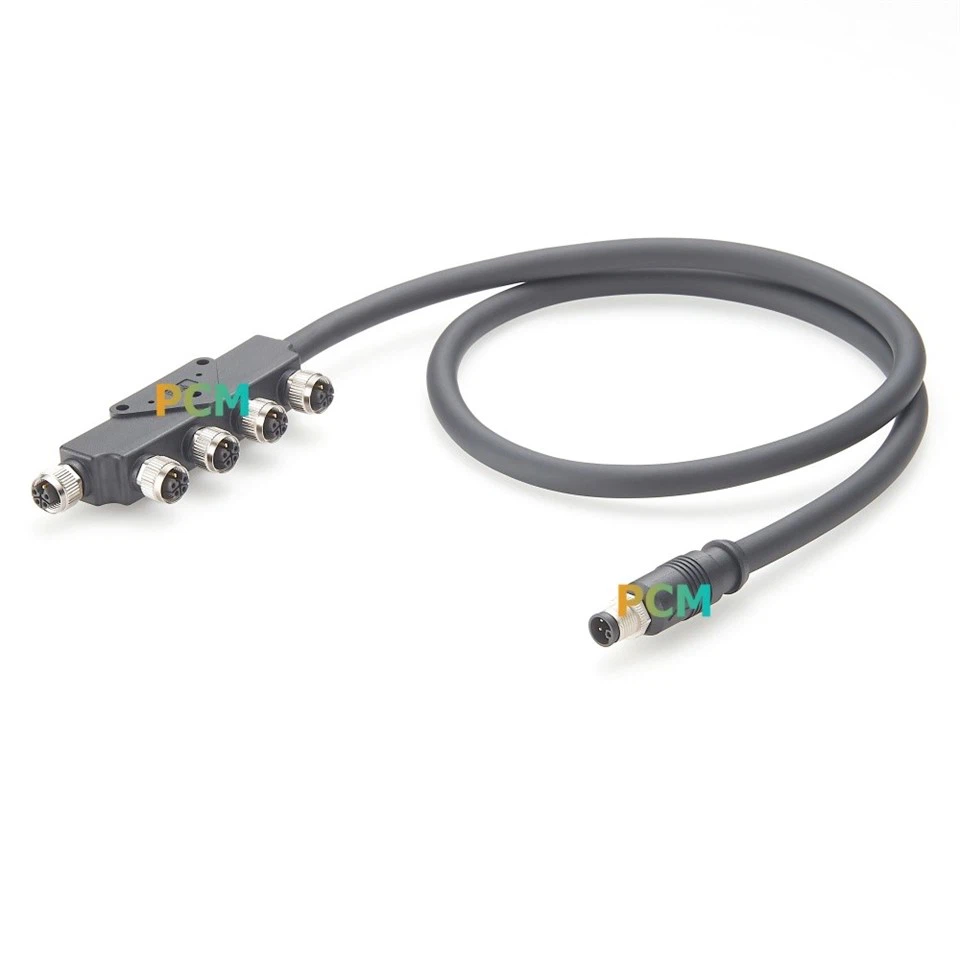

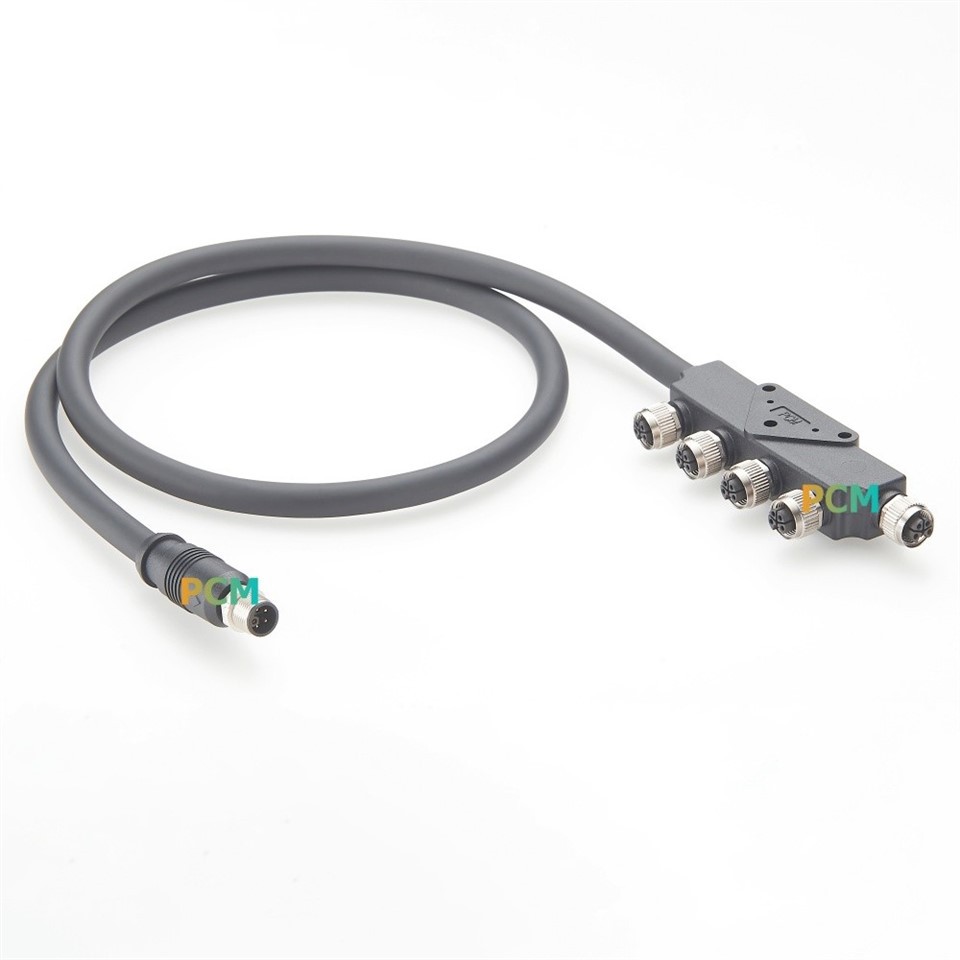

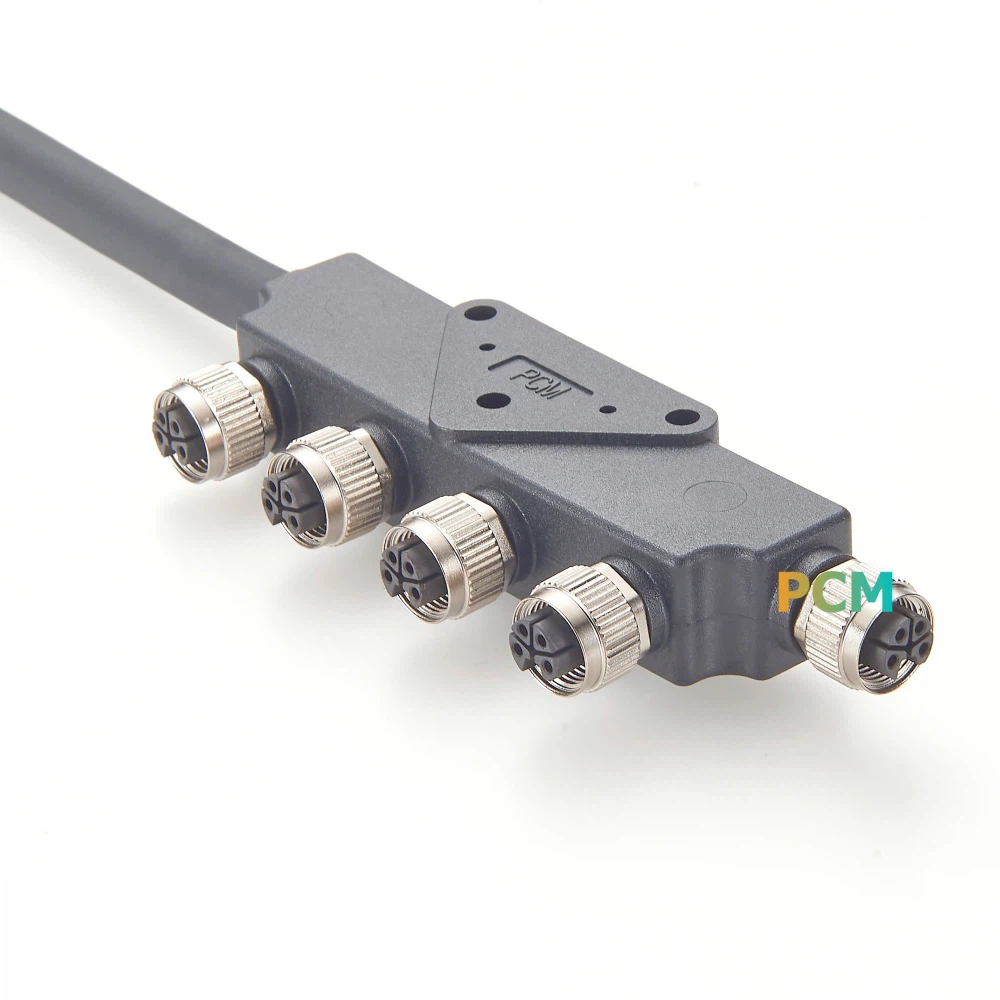

M12 L Code Power Junction Box

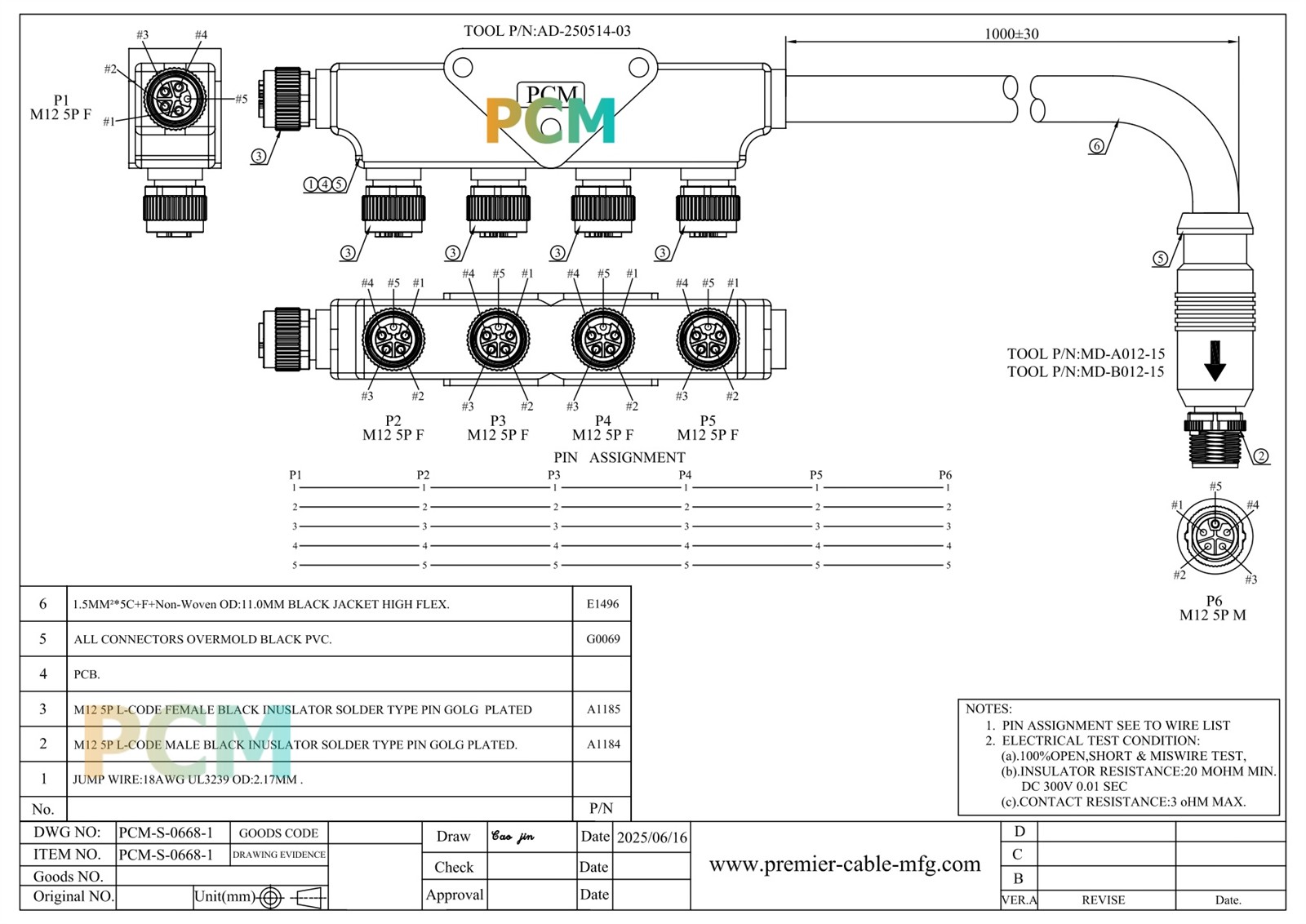

The M12 L-Coded Power Distribution Box is a compact, high-performance connectivity solution specifically designed for Profinet network systems. Equipped with a 1-meter input cable, it features one male input, one female output, and four female branch ports, enabling flexible and efficient power and device distribution. The PCM-S-0668-1 utilizes 5-pin (4+PE) L-coded connectors, supports 63V AC/DC voltage and 12A current transmission, complies with the IEC 61076-2-111 standard, and boasts an IP67 protection rating, ensuring stable operation in harsh industrial environments. Furthermore, by combining the advantages of M12 A-coded and 7/8-inch connectors, it simultaneously simplifies installation while enhancing overall system safety and reliability.

M12 Waterproof L-Coded Power Connector and Power Distribution T-Coupler, Specifically Designed for Parallel Power Distribution to Profinet Switches.

M12 L-Coded Power Distributor Dedicated to Profinet Switches

Profinet Managed Switch Connection Cables

Profinet Switch Connection Cables

Profinet Power Cables

This product constitutes a comprehensive M12 L-coded junction box and cabling solution specifically engineered for Profinet network systems. Its trunk line configuration features one male input port and one female output port, complemented by four female branch output ports, thereby enabling flexible device connectivity and convenient network expansion.
