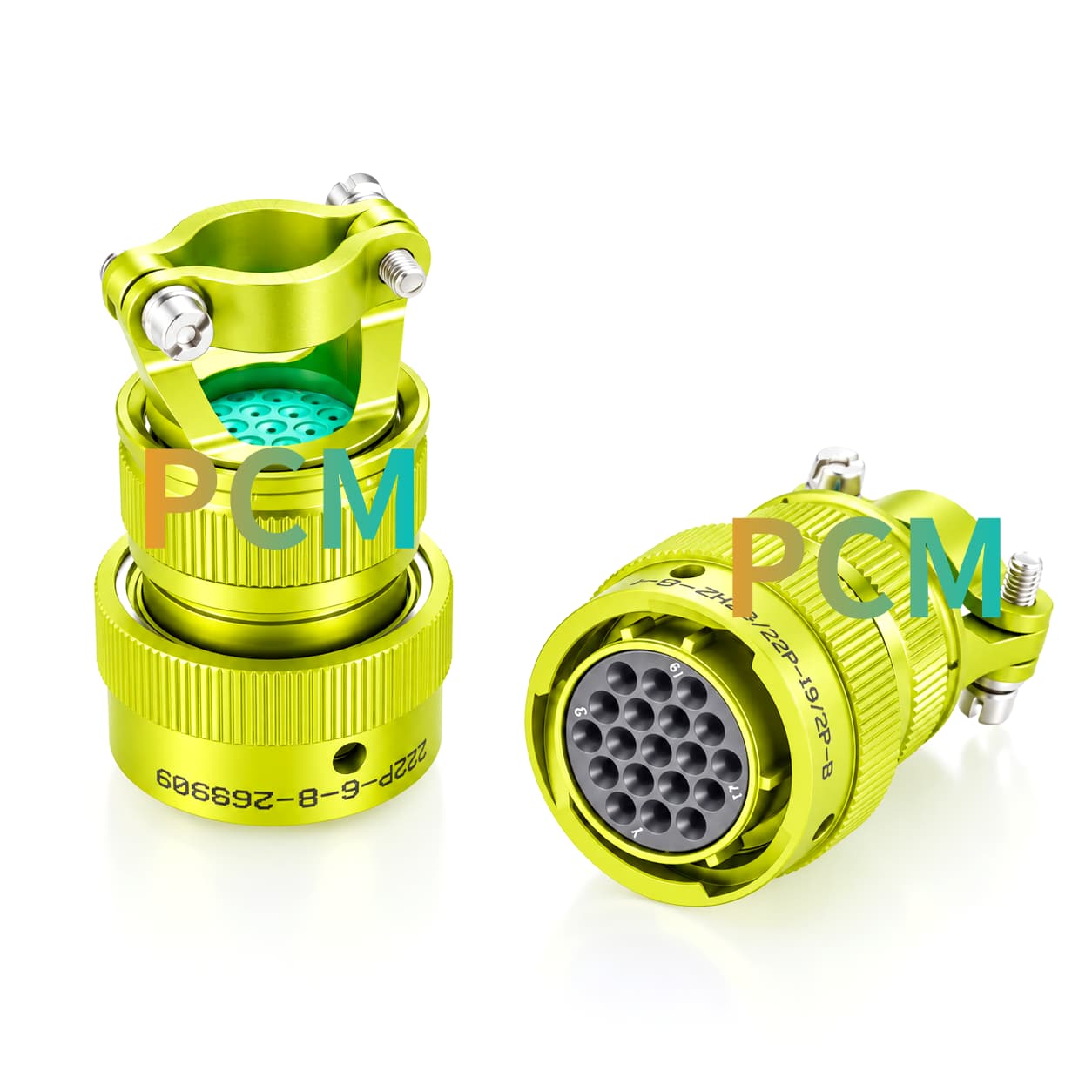

ZH23-19-22P-6-B is a newly developed 19 Pin ZH23 Bayonet Circular Connector from Premier Cable, designed for industrial automation, instrumentation, industrial electronic control systems and Russian-standard connector replacement projects.

Featuring 19 female socket contacts, a Shell Size 22 metal housing and a Type 6 straight cable-clamp attachment, this connector integrates multiple electrical circuits into one detachable interface. Its bayonet coupling mechanism provides positive mechanical retention, helping reduce accidental disconnection caused by vibration, cable movement and routine servicing.

Unlike Type 1 equipment-mounted connectors, the Type 6 configuration is intended primarily for cable-end assembly. The straight cable-clamp attachment supports cable routing and mechanical retention, helping limit tensile stress transferred to contact terminations when properly assembled.

The connector is identified by three corresponding part numbers: ZH23-19-22P-6-B, СНЦ23-19-22P-6-B and STNS23-19-22P-6-B, supporting model identification, spare-part sourcing and compatibility assessment across different markets.

The product is identified by three corresponding part numbers: ZH23-10-22P-6-B, СНЦ23-10-22P-6-B and STNS23-10-22P-6-B. These references help customers identify suitable connector configurations across different sourcing markets. Mechanical and electrical compatibility should be verified before replacement.

Unlike ordinary friction-fit connectors, the ZH23 10 Pin Bayonet Circular Connector combines mechanical locking, polarized mating and multi-contact connectivity in one rugged assembly. This helps reduce accidental disconnection during vibration, equipment movement and maintenance.

As an industrial connector manufacturer, Premier Cable supports custom ZH23 connectors, soldered cable assemblies, OEM development, sample evaluation and wholesale supply for equipment manufacturers and industrial system integrators.

Part Number Identification

Code	Description
ZH23	ZH23 Circular Connector Series
19	19 Contacts
22	Shell Size 22
P	Female Socket Contacts
6	Straight Cable Plug

Typical Applications

Russian-Standard Equipment Maintenance

Suitable for maintenance, spare-part sourcing and upgrades involving СНЦ23 or STNS23 connector references. Verify the 19-contact arrangement, Shell Size 22, female socket contacts, standard polarization and Type 6 rear attachment before replacement.

Industrial Electronics and Communication Control

Suitable for electrical connections between industrial electronic modules, communication control units and multi-module equipment. The metal housing, bayonet coupling and multi-contact configuration support serviceable interfaces requiring periodic disconnection.

Test, Measurement and Data Acquisition

Applicable to test instruments, inspection platforms, data acquisition equipment and laboratory controllers requiring centralized detachable connections for multiple low-frequency signals. The straight cable clamp supports organized test wiring and helps manage cable movement.

Product FAQ

How Do I Select the Correct Mating Connector ?

Confirm the 19-contact arrangement, Shell Size 22, complementary contact gender, standard polarization, bayonet interface and electrical requirements. Contact assignments and dimensions must also be verified.

Is Manufacturer Wholesale Supply Available ?

Yes. Premier Cable supports sample development, connector wholesale inquiries and OEM bulk manufacturing for equipment manufacturers, system integrators and maintenance suppliers.

Can It Replace СНЦ23 Connectors ?

It may be considered as a compatible replacement candidate for corresponding СНЦ23 configurations. Verify the contact layout, shell size, contact gender, polarization, rear attachment and electrical ratings before use.

Does Premier Cable Offer Custom Cable Assemblies ?

Yes. Premier Cable supports custom ZH23 connectors, cable lengths, wiring configurations, contact assignments, labeling, packaging and OEM assembly services based on customer drawings.
