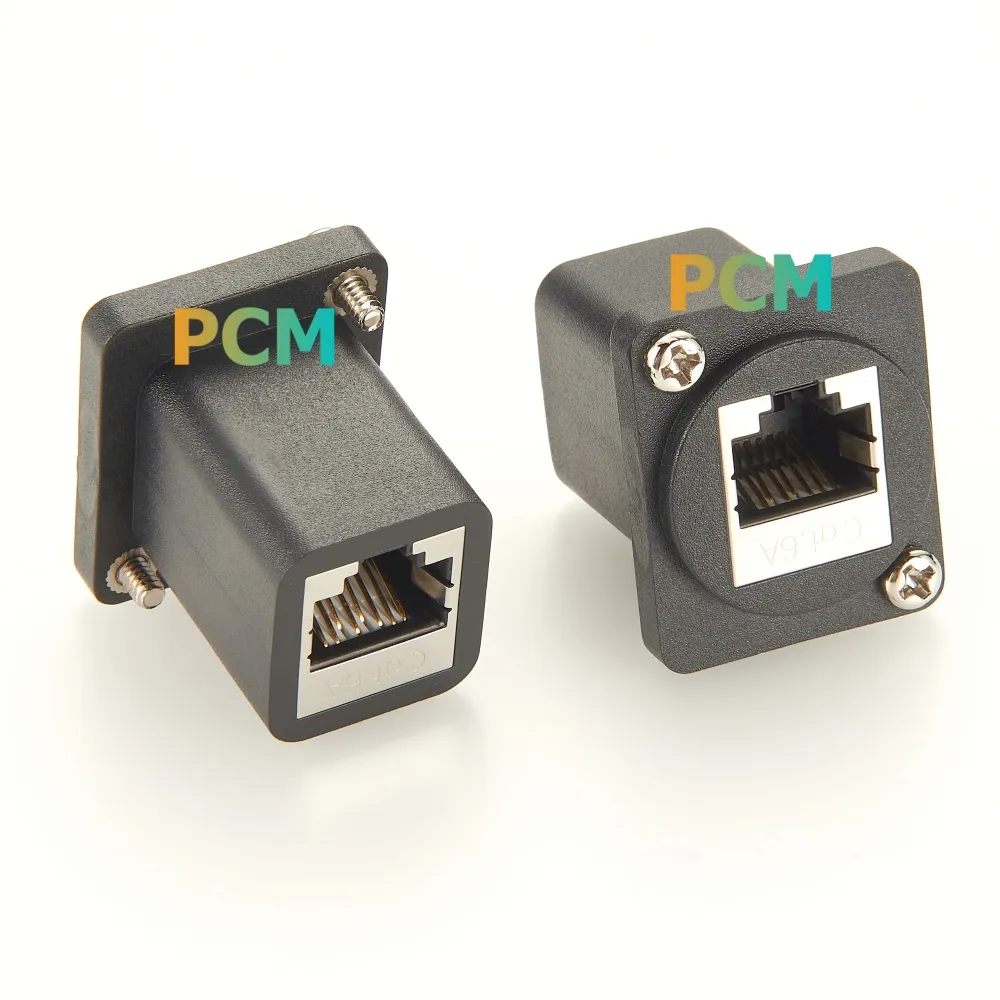

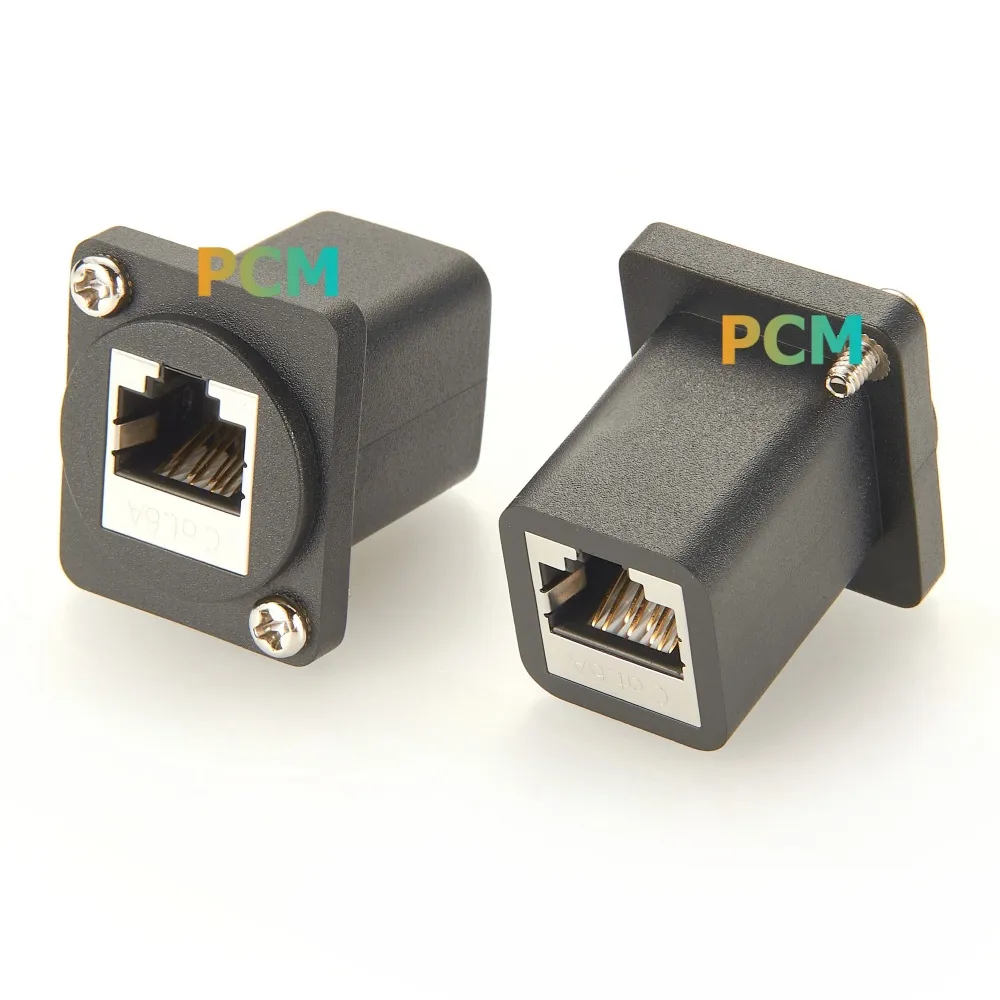

RJ45 8P8C CAT6A D-type Panel Mount Adapter

This D-Type RJ45 CAT6A Panel Mount Adapter is an industrial-grade network pass-through component, specifically designed to bridge Cat6A and higher-category network signals across equipment cabinets, walls, and device panels. It features a standard D-type rectangular flange structure, allowing for rapid panel locking and tool-free removal using just two screws.

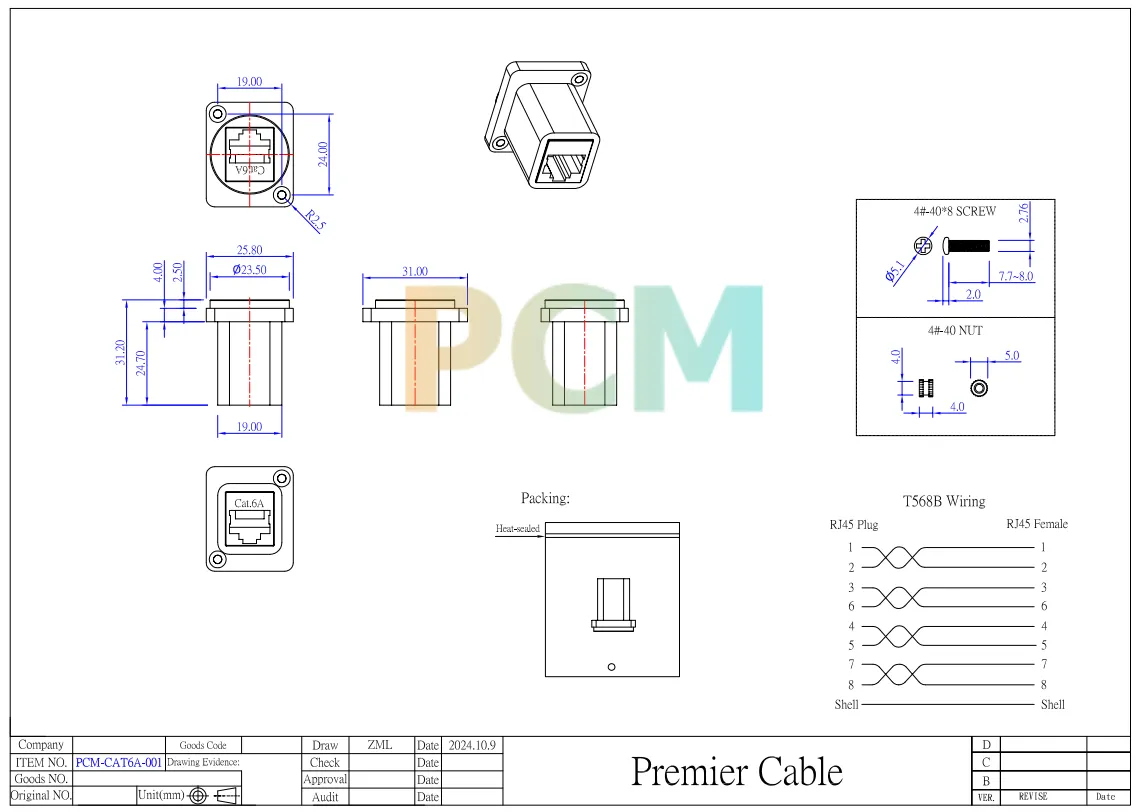

Internally, it integrates a dual RJ45 female receptacle with 8P8C gold-plated contacts; both the front and rear interfaces support the Cat6A standard, ensuring stable transmission for 10 Gigabit Ethernet (10Gbps) and a bandwidth of 500MHz. The PCM-CAT6A-001 supports a pass-through connection configuration-allowing a network cable inserted into the front panel to connect to internal cabling via rear solder-type or pass-through pins-thereby eliminating the need for on-site field termination of modules. This makes it ideally suited for applications in industrial control, stage cabling, and data centers.
