Products Description

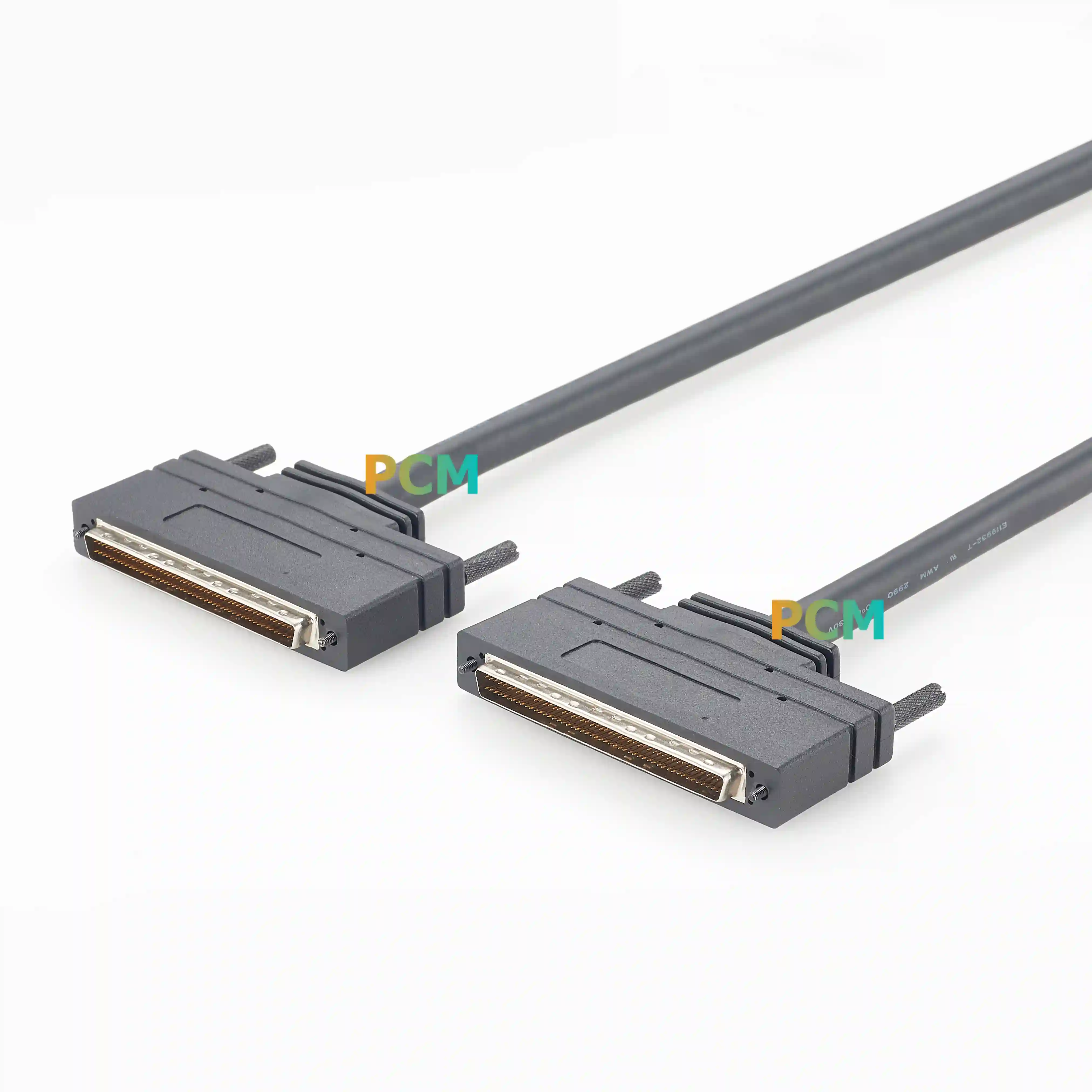

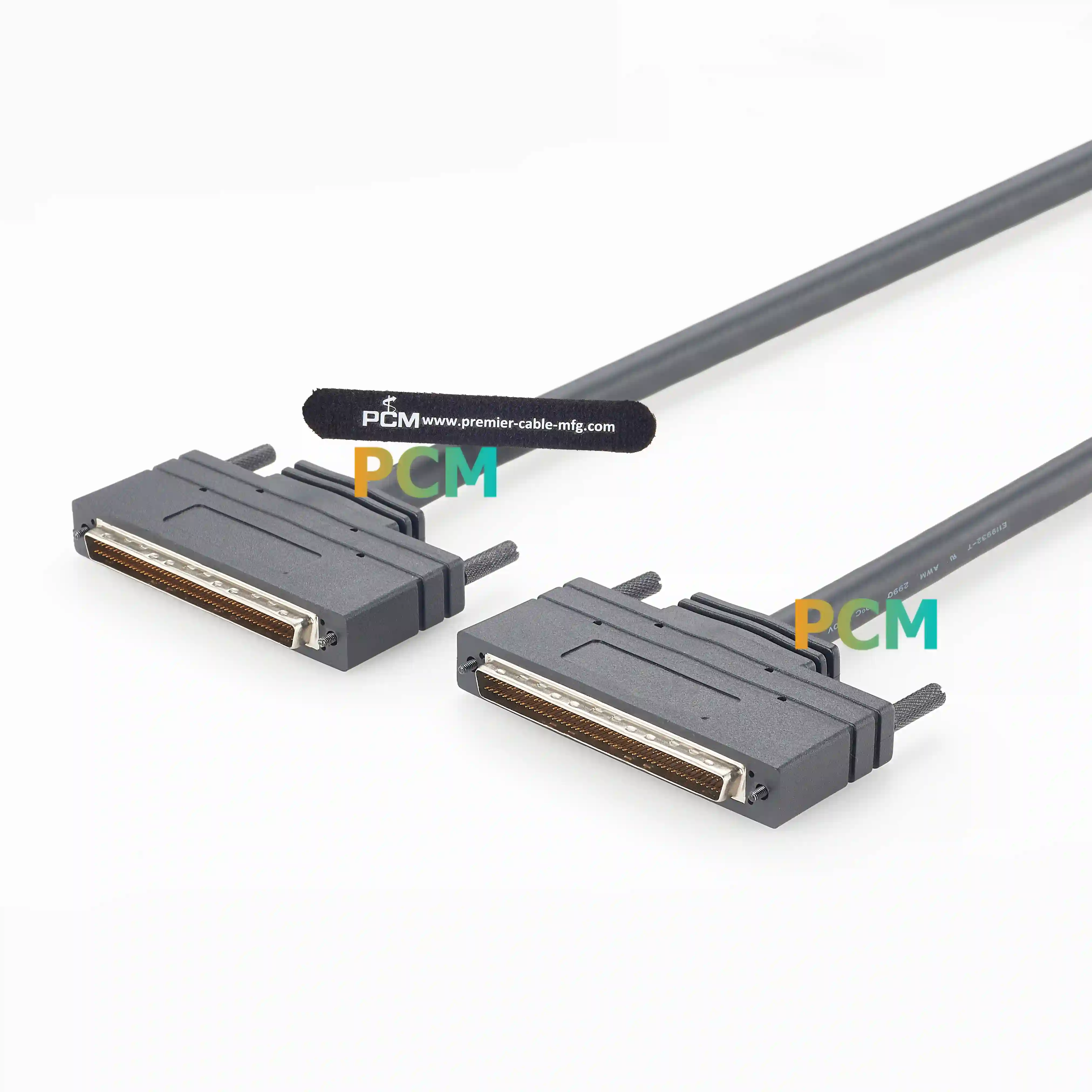

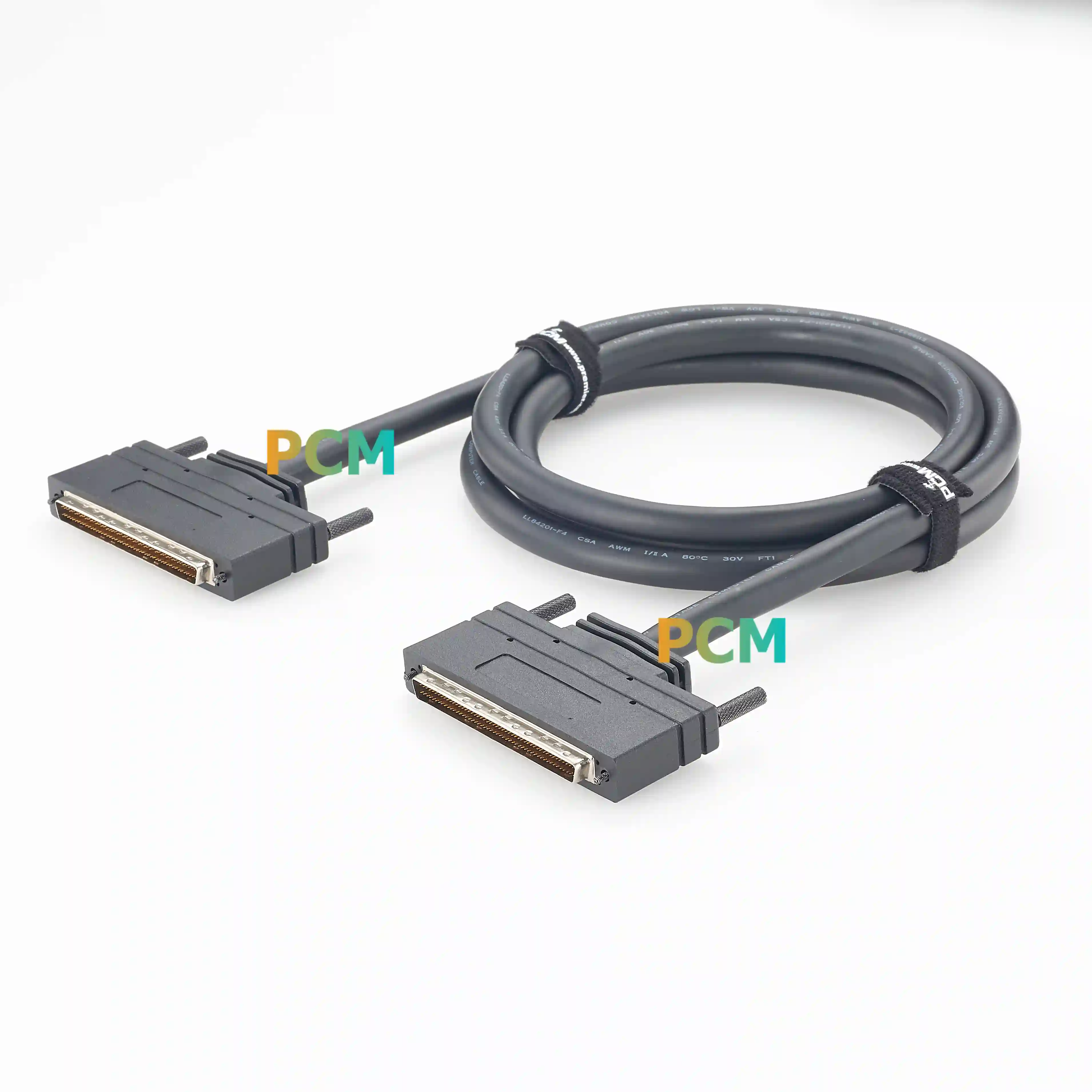

The Advantech PCL-101100M-1E compatible cable is a shielded 100-pin SCSI cable designed for high-density signal connections in industrial motion-control and automation systems. It features 100-pin HPDB/SCSI male connectors on both ends and can be used to connect compatible Advantech motion-control cards, controllers and DIN-rail wiring boards.
The cable incorporates foil and braided shielding to help reduce electromagnetic interference and signal crosstalk in industrial environments. It is suitable for transmitting motion-control, encoder, digital I/O and servo-control signals where the connector interface, cable length and pin assignment match the original equipment requirements.
Specification
| Product Name | HPDB100 Cable |
| Part No. | PCM-S-0762 |
|
Connector Type |
HPDB 100Pin Male |
| OD | 9.0mm |
| Wire | 28AWG*34PAIR+AM+D+B |
|
Cable Length |
OEM |
| Compatible with |
Adavantech 101100M-1-1E Adavantech 101100M-1-2E Adavantech 101100M-1-3E |
Drawing
