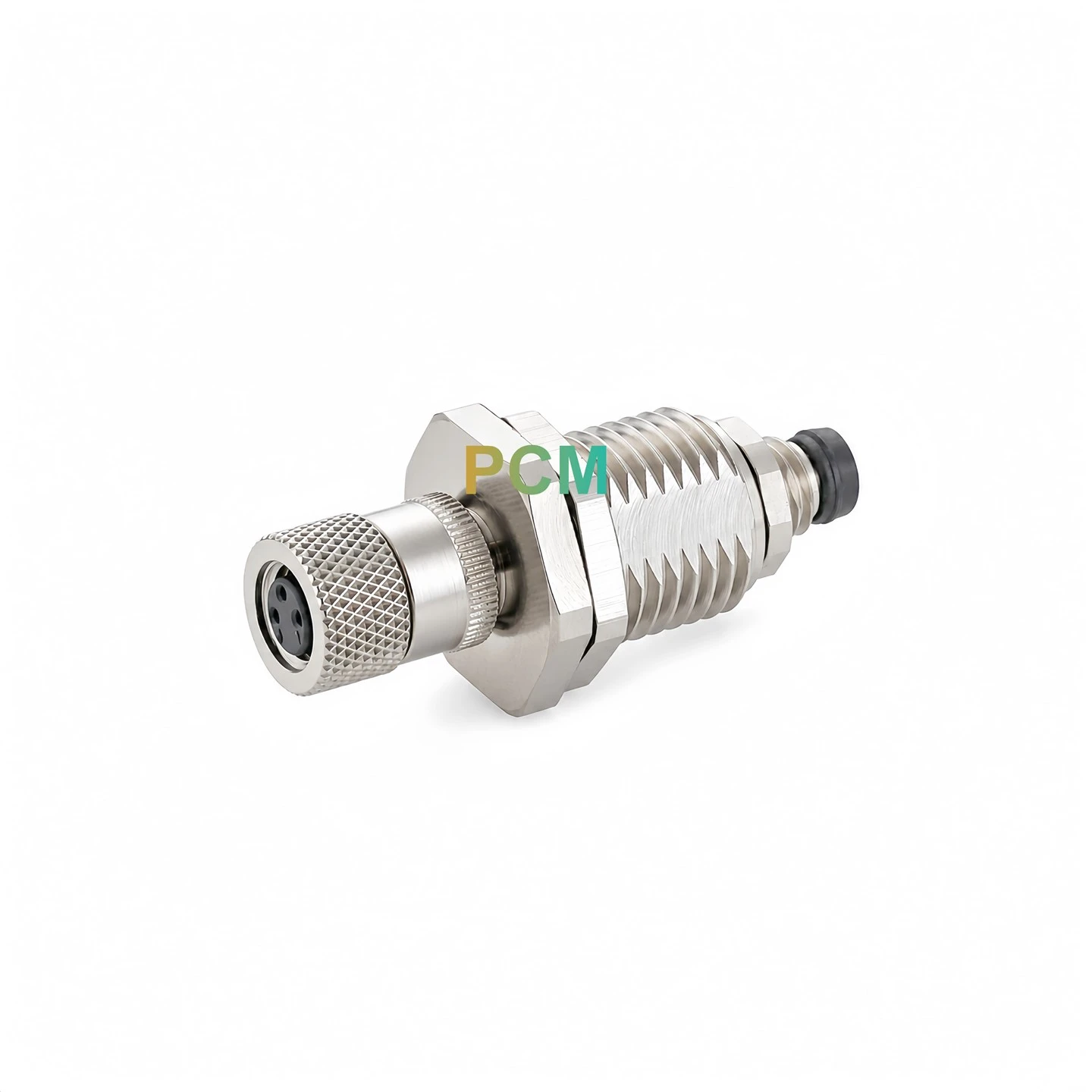

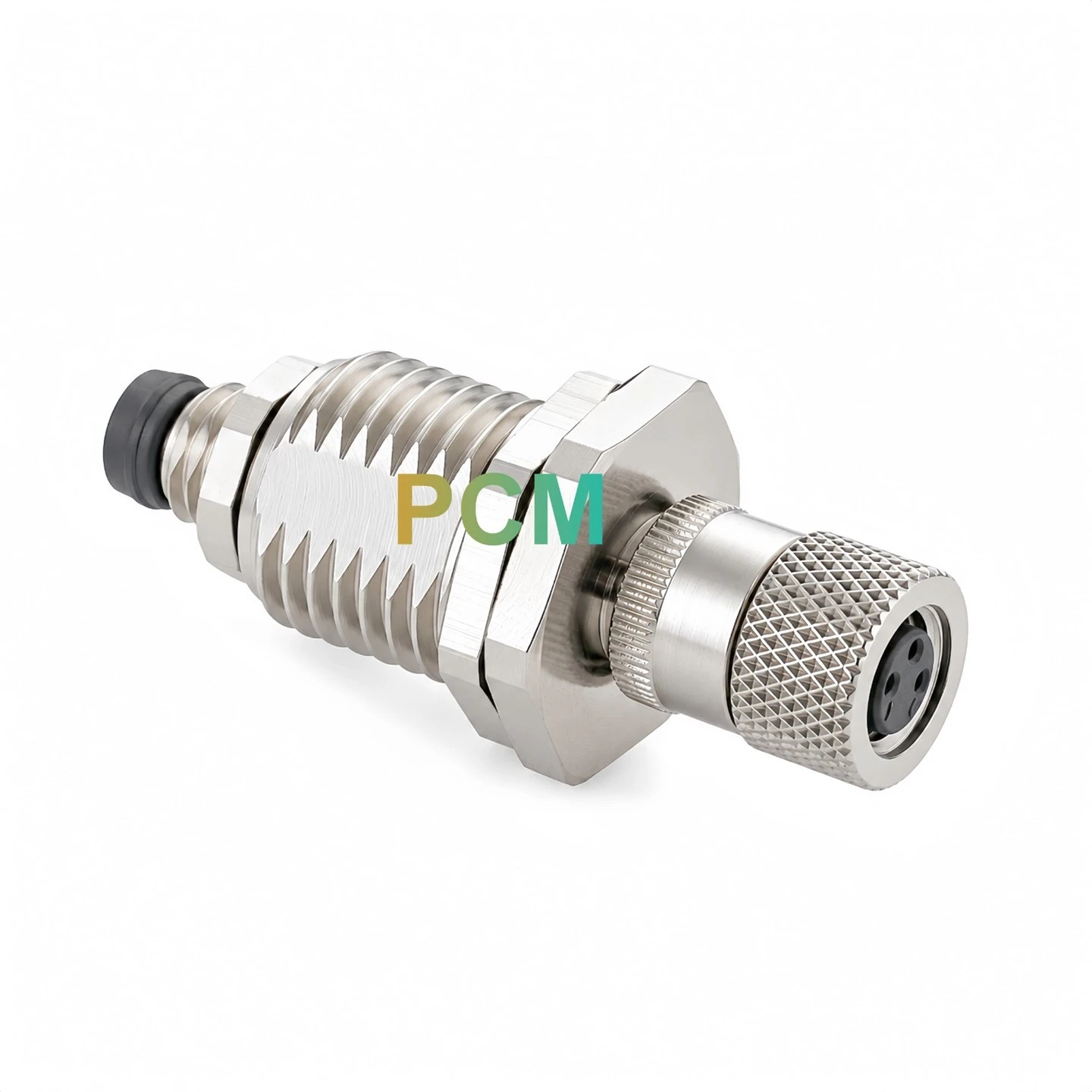

M8 Shielded Male Female Feedthrough Connector
The M8 Shielded Male Female Feedthrough Connector from Premier Cable is a compact industrial panel-mount connection solution designed to establish a detachable electrical interface through control cabinet walls, machine housings and equipment enclosures. Its straight M8 A-coded male-to-female configuration supports compatible industrial sensor, actuator and automation cable connections.
This M8 A-coded shielded panel feedthrough connector features a metal housing, threaded mounting structure and detachable mating interfaces on opposite sides of an equipment panel. The shielded construction supports electromagnetic shielding continuity when properly integrated with compatible cable assemblies and grounding arrangements.
Designed for industrial control cabinets, sensor and actuator systems, automated production lines and industrial machinery, the connector provides a serviceable connection point between internal wiring and external field devices. Premier Cable can evaluate customized connector configurations according to customer drawings, samples and application requirements.
M8 A-Coded Shielded Panel Feedthrough Design
The M8 male-to-female bulkhead connector provides corresponding M8 connection interfaces on opposite sides of an equipment panel. Its A-coded mating geometry is intended for compatible industrial sensor and actuator cable connectors with matching contact arrangements.
The metal body, hexagonal mounting hardware and threaded installation structure support mechanically retained panel mounting. This M8 shielded bulkhead connector for industrial automation provides a convenient interface between internal equipment wiring and external field connections.
Before installation, verify connector gender, A-coding, contact count, electrical pin assignment, panel cutout dimensions, mounting thickness and environmental requirements against the approved engineering drawing.
Product Specifications
| Parameter | Specification / Reference |
|---|---|
| Product Name | M8 Shielded Male Female Feedthrough Connector |
| Connector Size | M8 |
| Coding | A-Coded |
| Connector A | M8 A-Coded Male |
| Connector B | M8 A-Coded Female |
| Mounting Type | Panel / Bulkhead Mount |
| Shielding | Shielded Metal Construction |
| Housing Material | Metal, Final Grade Subject to Approval |
Product Features
01. M8 A-Coded Connection Interface
The M8 A-coded connector geometry supports mating with corresponding industrial sensor and actuator cables. Coding and contact configuration must match the intended electrical connection.
02. Shielded Metal Housing
The shielded metal construction provides a conductive housing structure that can support electromagnetic shielding continuity when combined with suitable mating connectors and grounding arrangements.
03. Male-to-Female Feedthrough Design
The M8 A-coded male female bulkhead connector provides detachable mating interfaces on both sides of an enclosure panel, supporting organized wiring and convenient maintenance.
04. Threaded Panel Mounting
The straight threaded mounting structure and retaining hardware are designed to secure the connector within an appropriately dimensioned equipment panel.
Typical Industrial Applications
Industrial Control Cabinets
An M8 shielded feedthrough connector for control cabinets provides a fixed electrical interface between internal control wiring and external field devices. The panel-mounted configuration supports detachable connections, organized cable routing and convenient equipment servicing.
Sensor and Actuator Systems
The M8 A-coded panel connector for industrial sensors can be integrated into compatible sensor and actuator systems. It provides a detachable connection point for signal interfaces used in position detection, machine monitoring and industrial automation.
Industrial Machinery
The M8 male to female panel mount connector supports integration into industrial machine housings and equipment enclosures. Its detachable interface helps simplify external cable connections and supports modular machinery design.
Compatibility and Installation Requirements
M8 A-Coded Connector Compatibility
The connector is intended for corresponding M8 A-coded mating connectors. The male interface requires a matching female cable connector, while the female interface requires a matching male cable connector. Different coding types and contact configurations must not be assumed interchangeable.
Sensor and Actuator Cable Compatibility
This shielded M8 panel feedthrough connector for sensor cables can be integrated with suitable M8 cable assemblies when connector geometry, contact count, pin assignment and electrical requirements match. Mechanical mating alone does not guarantee electrical compatibility.
Shielding and Grounding Requirements
The metal housing can support shielding continuity when correctly integrated with conductive mating components and the equipment grounding system. Actual electromagnetic compatibility depends on the complete connector, cable and enclosure assembly.
Panel Cutout and Mounting Dimensions
Verify panel opening dimensions, mounting thread, wall thickness, retaining nut, gasket arrangement and installation clearance before assembly. The approved mechanical drawing must be used to determine the correct mounting geometry.
Ingress Protection and Sealing
Ingress protection depends on the connector design, sealing components, mating condition and installation method. IP67 performance is a proposed design target and must be verified on the finished Premier Cable configuration before being specified as a guaranteed rating.
Electrical Ratings and Pin Assignment
Confirm the contact arrangement, pin numbering, voltage rating, current capacity and electrical continuity against the approved wiring diagram. The permissible electrical loading must be evaluated for the actual operating conditions.
Frequently Asked Questions
What is an M8 feedthrough connector?
An M8 feedthrough connector is a panel-mounted electrical connector providing mating interfaces on opposite sides of an equipment enclosure. It allows compatible cable connectors to establish an electrical connection through the panel.
Is this connector compatible with M8 A-coded sensor cables?
It is intended for compatible M8 A-coded cable connectors. The mating connector must have the correct gender, coding, contact count and electrical pin assignment.
What is the advantage of a shielded M8 panel connector?
A shielded connector can support electromagnetic shielding continuity between suitable cable assemblies and equipment enclosures. Effective shielding depends on the complete installation and grounding arrangement.
Can this connector be used in industrial control cabinets?
Yes, the panel feedthrough design is suitable for control cabinet integration when the mechanical dimensions, electrical specifications and environmental requirements match the application.
Is the M8 feedthrough connector waterproof?
Water and dust protection depend on the finished connector construction, compatible mating parts and correct installation. The proposed IP67 protection level requires testing and validation before it can be guaranteed.
Can this connector be used for industrial Ethernet?
Ethernet compatibility must not be assumed from the M8 connector size or shielding alone. Network applications require appropriate connector coding, contact configuration, wiring and verified transmission performance.
Can Premier Cable provide customized M8 connectors?
Premier Cable can review customer drawings, samples and technical requirements to evaluate customized M8 connector solutions. Final manufacturing feasibility and performance depend on engineering approval.
What information is required for a quotation?
Please provide the connector configuration, mating interface, contact arrangement, panel mounting drawing, required electrical specifications, environmental conditions, expected order quantity and applicable testing requirements.
Contact Premier Cable
Looking for an M8 shielded male female feedthrough connector for industrial control cabinets, sensor systems, automated production equipment or OEM machinery?
Premier Cable can review your application requirements and discuss suitable industrial connector solutions. Send us your mating connector details, panel mounting drawing, required electrical specifications, operating conditions and estimated order quantity.
