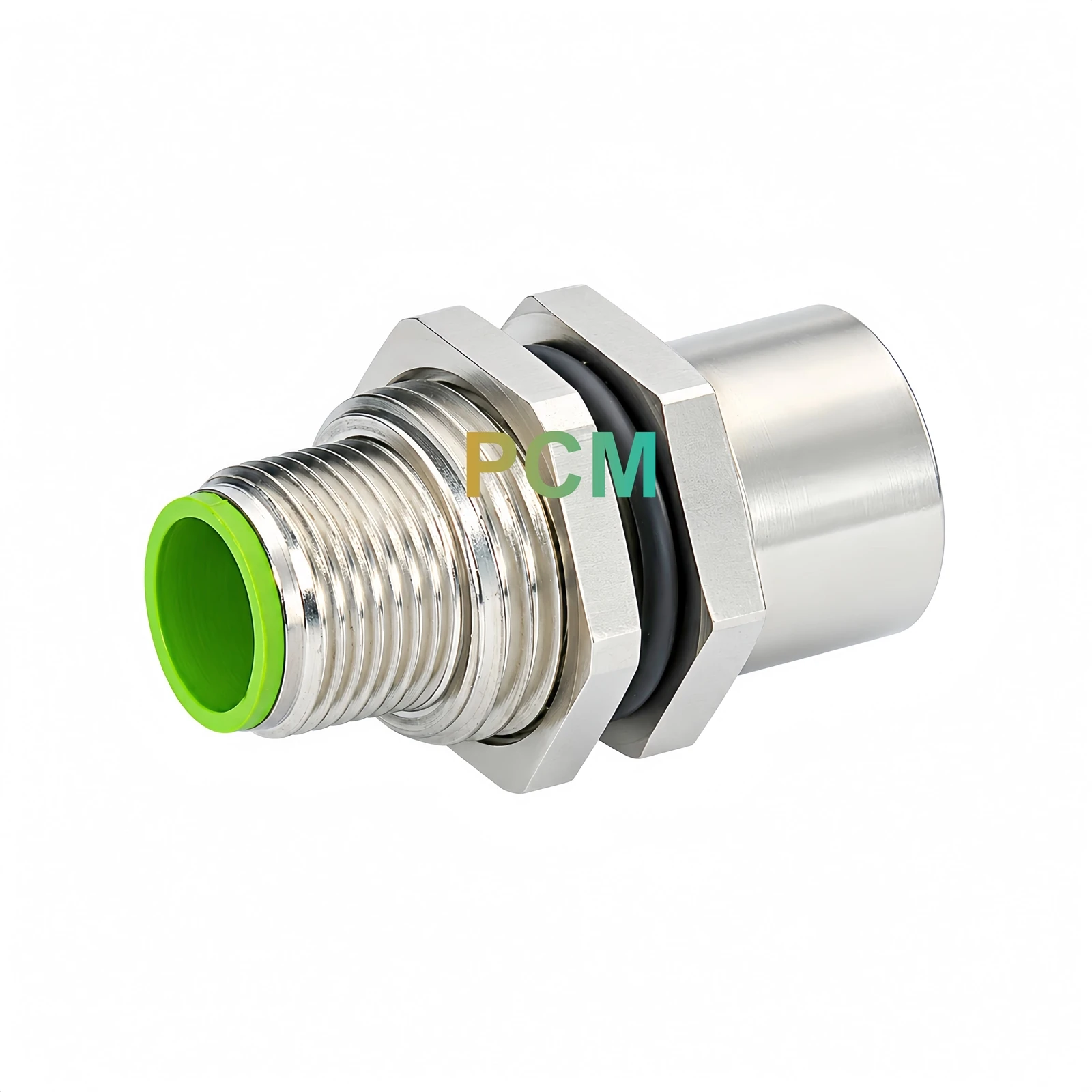

M12 6-Pin Shielded Panel Feedthrough Connector
The M12 6-Pin Shielded Panel Feedthrough Connector from Premier Cable is designed to establish a detachable electrical connection through industrial control cabinets, machine housings and equipment panels. Featuring a 6-pole A-coded male-to-female configuration, this connector provides a practical interface between internal equipment wiring and external industrial cable assemblies.
This M12 6-pin A-coded panel feedthrough connector features a shielded metal housing, threaded mating interfaces and an M16 × 1.5 panel mounting design. Its straight-through construction supports signal connections in industrial automation systems where secure mechanical mounting, serviceability and compatible connector interfaces are important.
Designed for industrial control cabinets, sensor systems, distributed I/O equipment and automated machinery, the connector supports organized panel wiring and convenient maintenance. Premier Cable can evaluate customized connector configurations according to customer drawings, samples and technical requirements.
M12 A-Coded Shielded Panel Feedthrough Design

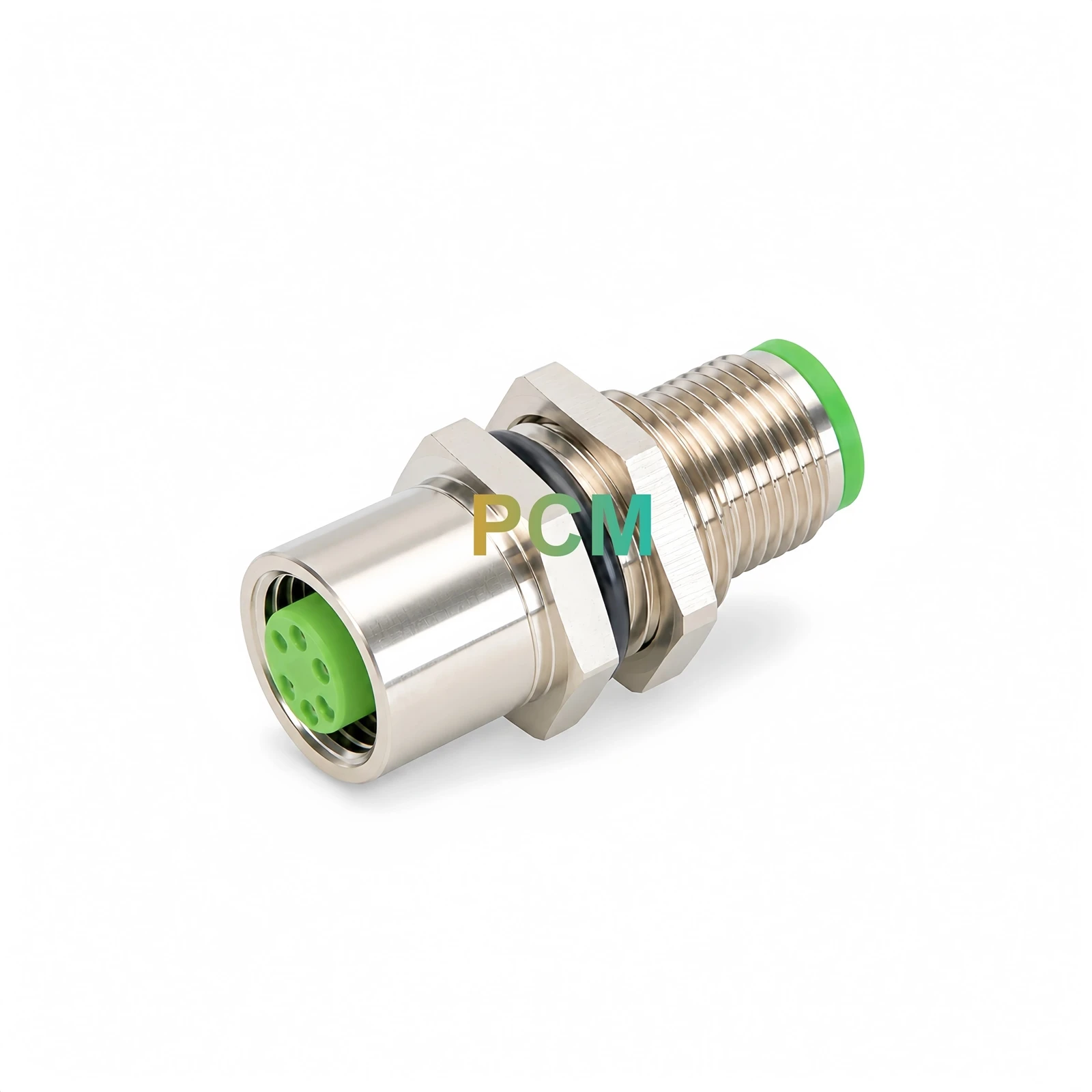

The M12 male-to-female bulkhead connector provides corresponding 6-pin A-coded mating interfaces on opposite sides of an equipment panel. This configuration allows compatible external and internal cable connectors to be joined through a fixed panel-mounted connection point.
The nickel-plated brass housing and shielded construction are designed to support mechanical durability and electrical shielding continuity. This shielded M12 bulkhead connector for industrial automation can be integrated into suitable equipment enclosures when mating geometry, grounding and electrical requirements are correctly matched.
Its M16 × 1.5 mounting interface is intended for panel installation. Before assembly, verify the panel cutout, wall thickness, connector orientation, pin assignment and available installation clearance against the approved engineering drawing.
Product Specifications
| Parameter | Specification / Reference |
|---|---|
| Product Name | M12 6-Pin Shielded Panel Feedthrough Connector |
| Connector Series | M12 |
| Connector Orientation | Straight |
| Coding | A-Coded |
| Number of Contacts | 6 Pins / 6 Poles |
| Connector Type | Panel Feedthrough |

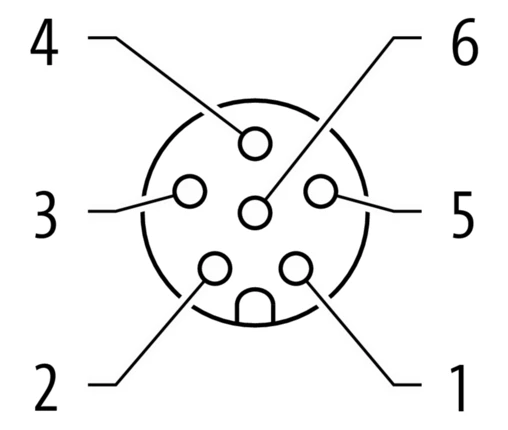

| Connector A | M12 6-Pin A-Coded Male |

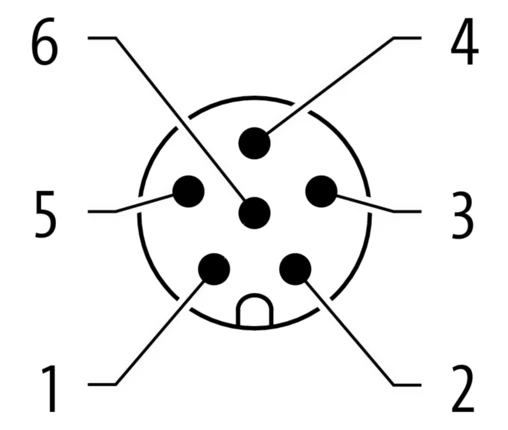

| Connector B | M12 6-Pin A-Coded Female |
| Mounting Type | Panel / Bulkhead Mount |

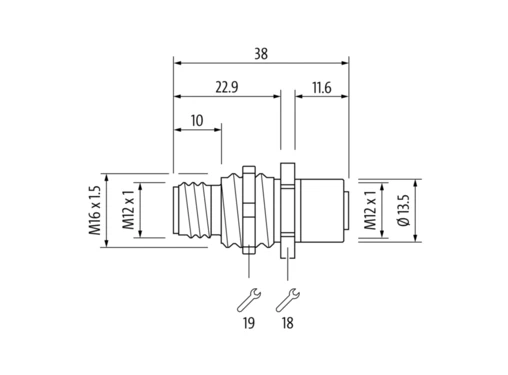

| Panel Mounting Thread | M16 × 1.5 Reference Design |
| Mating Interface | M12 × 1 Threaded Coupling |
| Shielding | Shielded Metal Construction |
| Reference Protection Rating | IP65 / IP67 When Properly Mated |
| Reference Temperature Range | -30°C to +85°C |
| Reference Installation Torque | 0.6 Nm; Confirm Applicable Fastener |
Product Features
01. M12 6-Pin A-Coded Interface
The six-contact A-coded mating geometry supports compatible industrial signal cable connections. Matching coding, contact count and electrical pin assignments are essential for correct integration.
02. Shielded Metal Housing
The shielded construction provides a conductive housing path that can support electromagnetic shielding continuity when used with compatible shielded cable assemblies and suitable grounding arrangements.
03. Male-to-Female Feedthrough Design
The M12 6-pin male female bulkhead connector provides detachable electrical interfaces on both sides of an equipment panel, supporting organized wiring and convenient maintenance.
04. M16 Threaded Panel Mounting
The M16 × 1.5 reference mounting structure is designed for secure installation through a correctly dimensioned equipment panel. Mounting dimensions and retaining hardware must be verified before assembly.
Typical Industrial Applications
Industrial Control Cabinets
An M12 6-pin panel feedthrough connector for control cabinets provides a fixed interface between internal control wiring and external field devices. Its bulkhead mounting design helps organize cable connections and allows external assemblies to be disconnected during maintenance.
Industrial Sensor Systems
The M12 A-coded panel connector for industrial sensors can be integrated into compatible sensor and measurement systems. It provides a detachable signal connection for monitoring equipment, automated inspection systems and industrial sensing applications.
Distributed I/O Systems
A shielded M12 bulkhead connector for distributed I/O systems supports detachable connections between equipment panels and compatible field wiring. It can be considered for modular automation installations requiring matching six-pole A-coded signal interfaces.
Premier Cable Customization Support
Premier Cable can evaluate customized M12 industrial connector solutions for OEM equipment manufacturers, automation integrators and industrial cable assembly projects. Customization feasibility depends on the required interface, electrical specifications and engineering validation.
Evaluation of mating interfaces, contact arrangements and installation requirements.
Matching industrial cable assemblies and application-specific wiring solutions.
Engineering review according to customer drawings, samples and technical requirements.
Technical evaluation for prototype requirements and industrial equipment integration.
Frequently Asked Questions
What is an M12 6-pin panel feedthrough connector?
An M12 6-pin panel feedthrough connector is a bulkhead-mounted electrical connector providing mating interfaces on opposite sides of an equipment panel. It allows compatible six-contact M12 cable connectors to establish a detachable electrical connection through the enclosure.
What does A-coded mean on an M12 connector?
A-coded identifies the mechanical keying arrangement of an M12 circular connector. It is commonly used for industrial sensor, actuator and signal applications. The mating connector must also have the correct contact count, gender and electrical pin assignment.
Is this connector compatible with M12 A-coded sensor cables?
It is intended for matching M12 6-pole A-coded cable connectors. Compatibility requires verification of the mating interface, connector gender, contact arrangement, wiring and electrical requirements. Not all M12 A-coded connectors have the same number of contacts.
What is the advantage of a shielded M12 bulkhead connector?
A shielded M12 bulkhead connector can support electromagnetic shielding continuity between suitable industrial cable assemblies and equipment enclosures. Effective shielding depends on the complete installation, including cable shield termination and grounding arrangements.
Can this connector be installed in industrial control cabinets?
Yes. The panel feedthrough configuration is intended for industrial control cabinet and equipment enclosure applications when the mounting dimensions, electrical requirements and environmental conditions are suitable.
Does the connector support IP67 protection?
The reference design specifies IP65/IP67 protection under appropriate mating conditions. The final Premier Cable product must undergo applicable testing before the same protection rating can be guaranteed. Correct installation and compatible mating connectors are essential.
Can this connector be used for industrial Ethernet?
Industrial Ethernet compatibility must not be assumed from the M12 connector size or shielding alone. Network applications require appropriate coding, wiring, impedance and verified transmission performance. This six-pole A-coded product is primarily positioned for compatible industrial signal interfaces.
Is it a direct replacement for Murrelektronik 7000-46111-0000000?
The Murrelektronik model is used as a reference for engineering comparison. Direct replacement suitability requires verification of connector dimensions, pin assignments, mounting geometry, shielding, electrical ratings and environmental performance.
Can Premier Cable provide customized M12 connector solutions?
Premier Cable can review customer drawings, samples and technical specifications to evaluate customized industrial connector and cable assembly solutions. Final manufacturing feasibility and performance depend on engineering approval.
What information is required for a quotation?
Please provide the required connector configuration, mating interface, pin assignment, panel mounting drawing, electrical specifications, operating environment, estimated order quantity and any applicable testing requirements.
Contact Premier Cable
Looking for an M12 6-Pin Shielded Panel Feedthrough Connector?
Premier Cable can review your requirements for M12 A-coded bulkhead connectors used in industrial control cabinets, sensor systems, distributed I/O equipment and automated machinery.
Send us your mating connector details, technical drawings, required electrical specifications, operating conditions and estimated order quantity. Our team can evaluate suitable connector configurations and discuss engineering requirements for your project.
