XT30 1-to-4 Power Distribution Block Adapter Male to 4 Female
PCM-0984 is a compact XT30 1-to-4 power distribution block adapter featuring one XT30 male input and four XT30 female outputs. It can also be used as an XT30 splitter adapter or multi-port power distribution solution for robotics, RC systems, battery-powered equipment and custom electronic projects.
1-to-4 XT30 Power Distribution
PCM-0984 distributes one XT30 male power connection to four XT30 female sockets, providing multiple connection points from a common input. The 1-to-4 configuration is suitable where several XT30-compatible devices need to be connected within a compact wiring layout.
Compared with a conventional Y splitter cable or multi-branch harness, the integrated block-style design keeps the four XT30 output ports together and can help simplify power connection management.
Compact 4-Port XT30 Splitter Adapter
The input side uses one XT30 male plug, while the output side provides four XT30 female sockets. Positive and negative connections are distributed directly to the corresponding output contacts according to the internal wiring arrangement.
Internal jumper wiring uses UL1569 / UL1007 16AWG wire, while the black PVC overmold creates a compact integrated housing for the XT30 multi-port connection.
Key Features
One XT30 male input with four XT30 female outputs for multi-port power connection.
Compact block-style construction keeps multiple XT30 sockets in one integrated unit.
Built with UL1569 / UL1007 16AWG jumper wire for internal power distribution.
Black PVC overmolding provides a compact integrated structure around the internal wiring.
Product Specifications
| Part Number | PCM-0984 |
| Product Type | XT30 Power Distribution Block / Splitter Adapter |
| Configuration | 1-to-4 |
| Input Connector | 1 × XT30 Male Plug |
| Output Connector | 4 × XT30 Female Socket |
| Wire Type | UL1569 / UL1007 |
| Wire Gauge | 16AWG |
| Wiring | Positive-to-Positive / Negative-to-Negative |
| Overmold | Black PVC |
| Compliance | RoHS |
How the XT30 1-to-4 Power Splitter Works
The PCM-0984 functions as a passive XT30 power distribution adapter. The positive terminal of the XT30 male input is connected to the positive terminals of the four XT30 female outputs, while the negative terminal is distributed to the corresponding negative contacts.
This makes the product suitable for applications where several XT30-compatible loads need access to the same power source without using multiple individual splitter cables.
Electrical note: PCM-0984 is a passive power distribution connection and does not regulate voltage or independently control the four outputs. System voltage, current and total connected load should be selected according to the requirements of the complete application.
Typical Applications
Robotics Power Distribution
Provides multiple XT30 power connection points for compatible robotics controllers, motors, modules and auxiliary electronics.
RC & Hobby Systems
Suitable for custom RC, model, prototype and hobby electronic systems using XT30 power connectors.
Battery-Powered Equipment
Can be integrated into compatible battery-powered devices, test equipment and custom low-voltage power systems.
Why Choose a 4-Port XT30 Power Distribution Adapter?
A four-port XT30 adapter can be useful when a system needs several outputs but does not require the larger footprint of a higher-port-count distribution block. The compact 1-to-4 layout provides a practical balance between output quantity and installation space.
Keeps four output connectors together instead of using several separate XT30 splitter leads.
Suitable where a multi-port XT30 power hub is required but available installation space is limited.
Provides a direct one-input-to-four-output connection for compatible XT30 power systems.

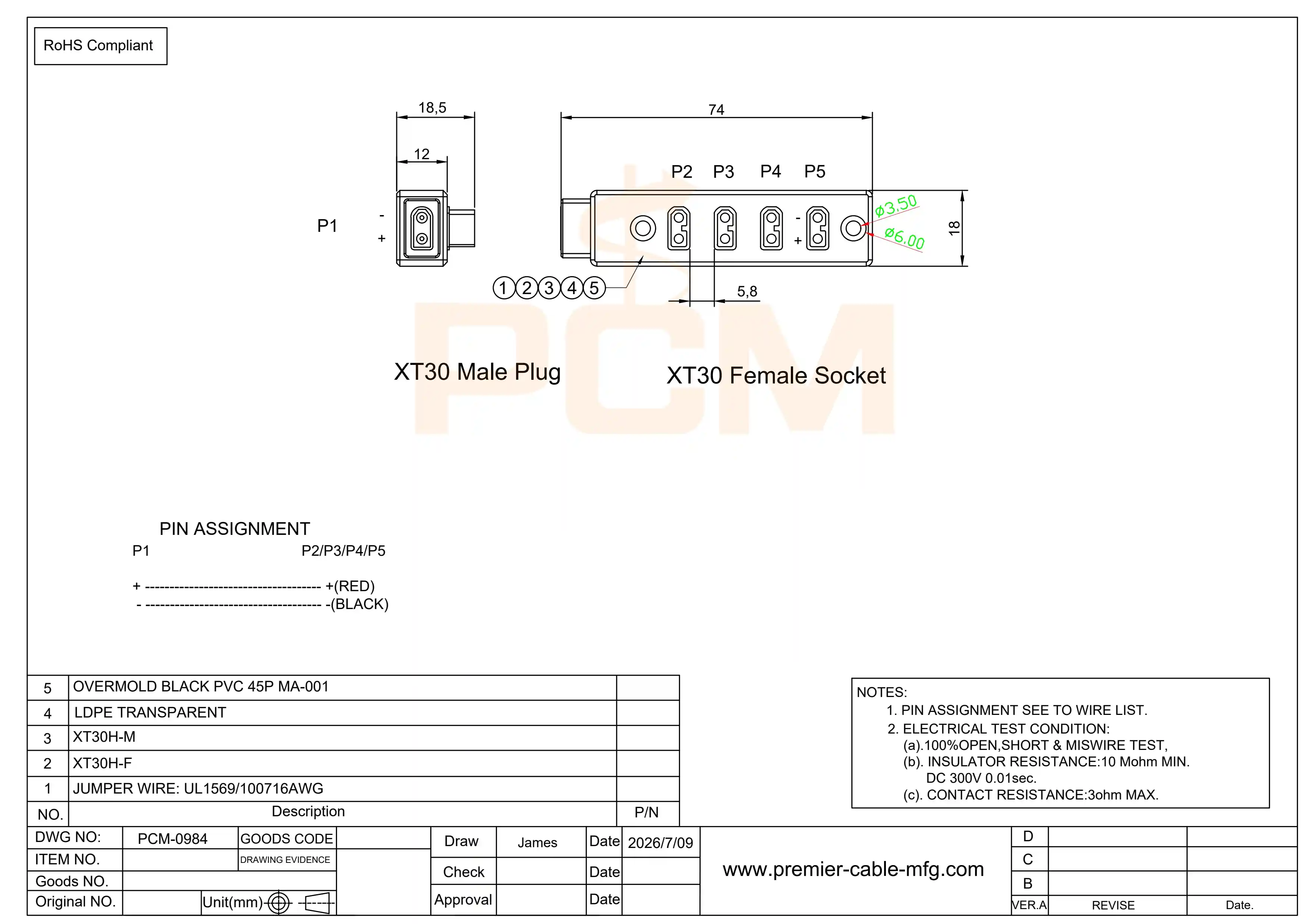

Technical Drawing
PCM-0984 XT30 1-to-4 power distribution adapter connector layout, polarity and dimensional reference.
Custom XT30 Power Distribution Assemblies
In addition to this 1-to-4 XT30 power distribution block, custom XT30 splitter adapters and cable assemblies can be developed for equipment-specific power connection requirements.
XT30 male, XT30 female and mixed connector configurations can be discussed.
Different multi-port and 1-to-many power distribution configurations can be developed according to project requirements.
Wire gauge, cable length, splitter layout, overmolding and labeling can be reviewed according to the application.
XT30 Splitter, Power Hub and Multi-Port Adapter Applications
Depending on the terminology used in a project, this type of product may also be described as an XT30 splitter adapter, XT30 power splitter, 4-port XT30 adapter, XT30 multi-port adapter or XT30 power hub. PCM-0984 uses a compact 1-to-4 configuration with one male input and four female outputs.
Need a Custom XT30 Splitter or Power Distribution Adapter?
Send us the required XT30 connector configuration, number of outputs, wire gauge, cable length and quantity. Premier Cable can support XT30 power distribution blocks, splitter adapters, multi-port power hubs and custom XT30 cable assemblies.
