Products Description

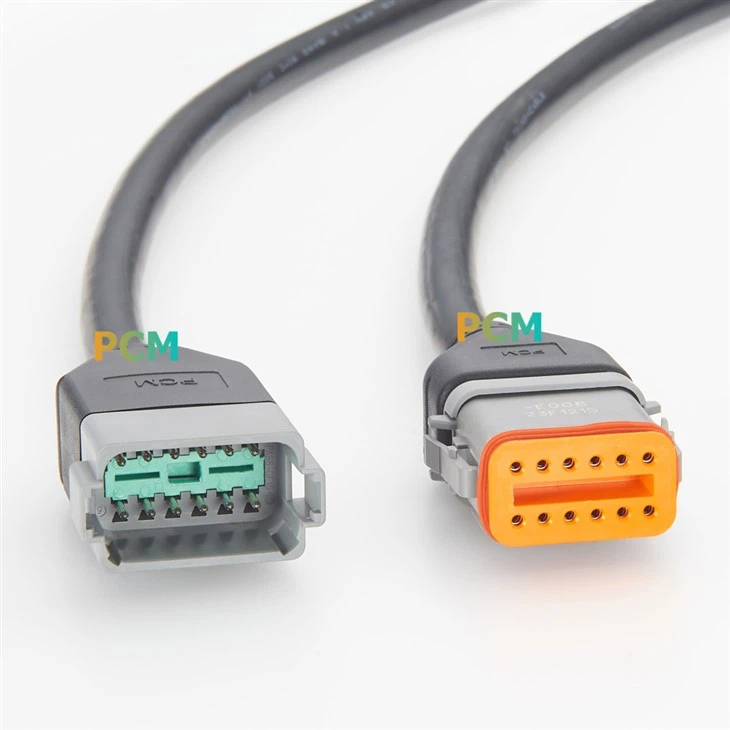

The PCM-S-0722 is a high-performance 12 Pin DT Series Automotive Cable Assembly. It is designed with original Deutsch DT series sealed connectors on both sides (DT04-12P & DT06-12S), specifically engineered for harsh automotive environments.
It is 100% compatible with Amphenol AT Series Connectors (AT06-12PA & AT06-12SA), providing flexible integration into existing systems without the need for adapter modifications.
This 12 Pin Deutsch DT Series Cable Assembly features an overmolded design, where the connector housing and cable interface are integrally molded to form a unified protective layer, providing enhanced durability, vibration resistance, and environmental protection.
And the DT connectors also adopt the snap-on locking mechanism, ensuring secure and reliable mating while preventing accidental disconnection, widely used for ECUs, sensors, engine control modules, body control units, and other industrial control equipment.
Specification
| Brand Name | PCM Cable |
| Origin |
Mainland China |
| Part No. |
PCM-S-0722 |
| Product Name | DT Series 12 Pin Automotive Cable Assembly |
| Connector A | Deutsch DT Series DT04-12PA (Male) |
| Connector B | Deutsch DT Series DT06-12SA-E008 (Female) |
| Number of Pins |
12 Pin |
| Cable Length |
2m, 5m, Or OEM |
| Cable Diameter |
12.4mm |
| IP Rating |
IP69K |
| Rated Voltage | 230V |
| Operating Current | 13A |
| Wire Gauge |
16AWG*8C |
| Jacket Material |
PVC |
| Locking Mechanism |
Snap-Lock |
| Temperature Range |
-20°C to +80°C |
| Compatible with | Amphenol AT Series Connectors (AT06-12PA & AT06-12SA) |
Applications
1. Automotive Electronic Control System Connectivity
Facilitates power and signal transmission between ECUs, Body Control Modules (BCMs), lighting control units, and various electronic devices, ensuring the stable operation of the vehicle's electrical system.
2. Engine and Powertrain Wiring Connections
Suitable for connecting engine control systems, fuel injection modules, cooling systems, and powertrain components, maintaining reliable communication even in high-temperature and high-vibration environments.
3. Construction Machinery and Heavy-Duty Vehicle Wiring
Widely utilized in equipment such as excavators, loaders, mining vehicles, and agricultural machinery to establish stable connections between controllers, sensors, and actuators.
4. Onboard Sensor and Actuator Connections
Enables data and power transmission between pressure sensors, temperature sensors, fluid level sensors, solenoid valves, and control actuation units.
5. LED Lighting and Auxiliary Equipment Systems
Ideal for power connections to work lights, warning lights, auxiliary lighting, onboard display modules, and external accessories, meeting the operational demands of complex outdoor environments.
6. New Energy and Specialty Vehicle Applications
Applicable to electric vehicles, modified vehicles, RVs, and specialized equipment, enabling integrated, multi-channel connectivity for both power supply and control signals.
