ECT Mini FAKRA to Rosenberger IP67 Waterproof FAKRA Cable

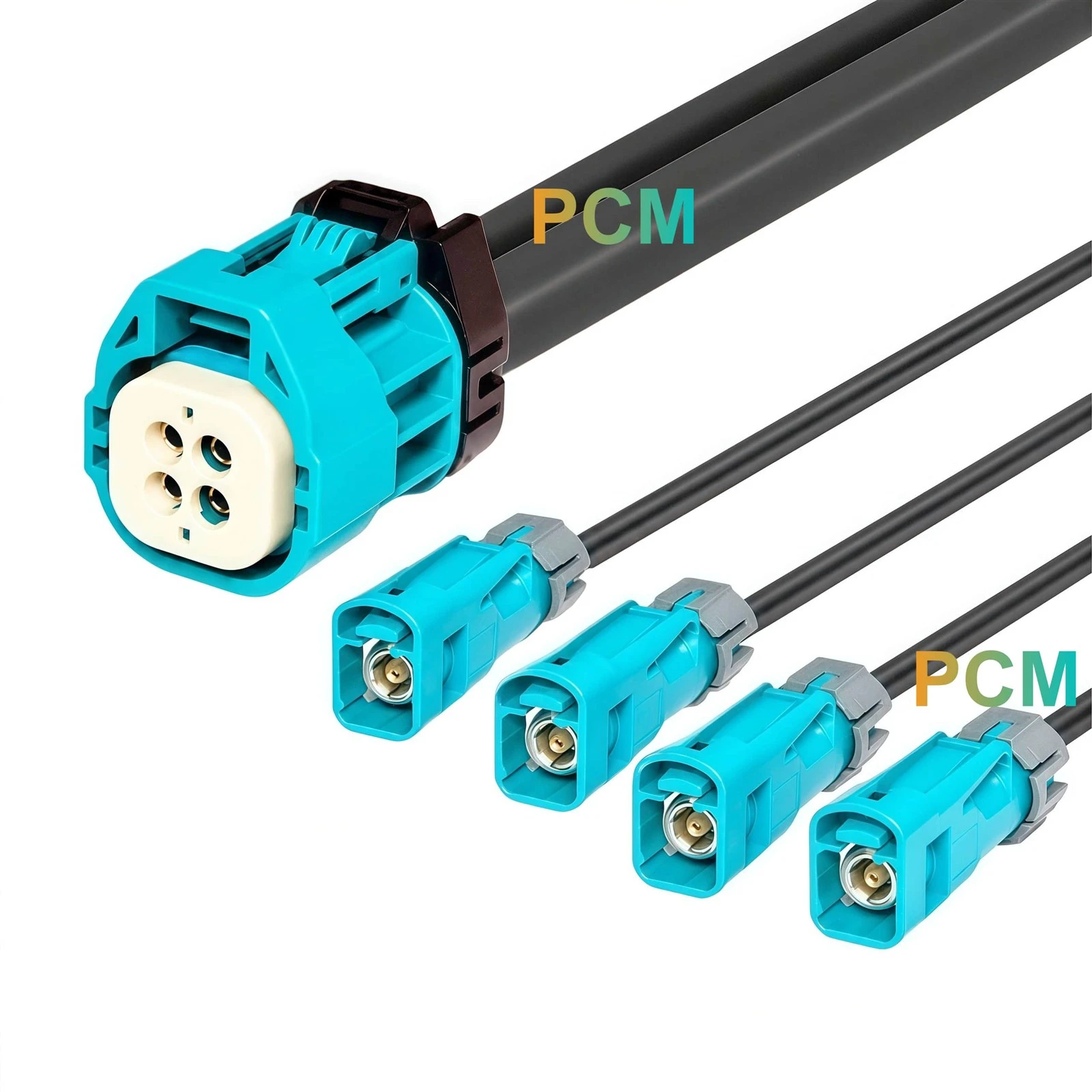

This Premier Cable automotive camera harness connects an ECT Mini FAKRA four cavity female interface to four Rosenberger FAKRA straight female connectors. It combines a grouped equipment connection with individually routed coaxial branches for distributed mating locations.

IP67 Waterproof connectors are specified at both ends. The assembly addresses projects requiring Rosenberger branch interfaces alongside an ECT Mini FAKRA main connection, with cable selection and cavity assignment defined against the vehicle equipment requirements.

Product Specifications

Parameter	Specification
Coding	Z Code at both ends
Cable Family	RTK031 coaxial cable
Cable References	DACAR 302-4, ECT302LL
Connector Protection	IP67 Waterproof at both ends
Product Type	Automotive camera coaxial breakout harness
Main Connector	ECT Mini FAKRA 818018737 four cavity female
Branch Connectors	Rosenberger FAKRA 59Z163-003Z straight female × 4
Available Lengths	0.1 m, 0.5 m, 1 m, 1.5 m, 2 m, 2.5 m, 3 m, 4 m, 5 m

Cross Brand Interfaces And Sealed Branch Connections

ECT Mini FAKRA Main Termination

ECT Mini FAKRA 818018737 combines four female coaxial positions within one Z Code housing for a grouped equipment connection.

Rosenberger IP67 Waterproof Ends

Four Rosenberger 59Z163-003Z Z Code straight females establish IP67 Waterproof connection points at the individual branches.

Axial Branch Cable Layout

Straight cable exits align each coaxial run with its FAKRA housing, allowing branch routing to follow the installation path.

Applications & Customer Value

Automotive Camera Harness Integration

Connects equipment using an ECT Mini FAKRA main interface to specified Rosenberger FAKRA mating points within the vehicle harness.

Connections Requiring Environmental Protection

IP67 Waterproof connector configurations at both ends address projects with protection requirements at the main and remote connections.

Vehicle Prototype Installation

Independent branches allow engineers to assess connector access, cable support and routing clearance before approving production dimensions.

Product FAQ

Q1. Is this harness an active camera interface converter?

No active conversion function is specified. It adapts the physical connector arrangement through coaxial cable connections.

Q2. Can this version replace a harness with ECT FAKRA branch connectors?

Replacement requires confirmation of the mating interface and project component requirements. Matching gender and coding alone does not establish interchangeability.

Q3. Does it support a specific vehicle, camera module or video protocol?

Compatibility must be assessed against the device mating references, channel assignment and electrical link requirements. No specific vehicle or protocol is confirmed.

Q4. How should the IP67 Waterproof connections be installed?

Use the specified mating components, check seal condition and fully engage the locking mechanism. Secure the cable routing to avoid excessive loading at the connector entries.

Q5. What information does Premier Cable need for an OEM quotation?

Send the mating connector references, overall and branch lengths, cavity assignment, quantity and inspection requirements. Premier Cable supports connector and cable customization, wiring review, prototype builds, mass production, labels and packaging.
