ECT Mini FAKRA Female to Rosenberger FAKRA Male Automotive Harness

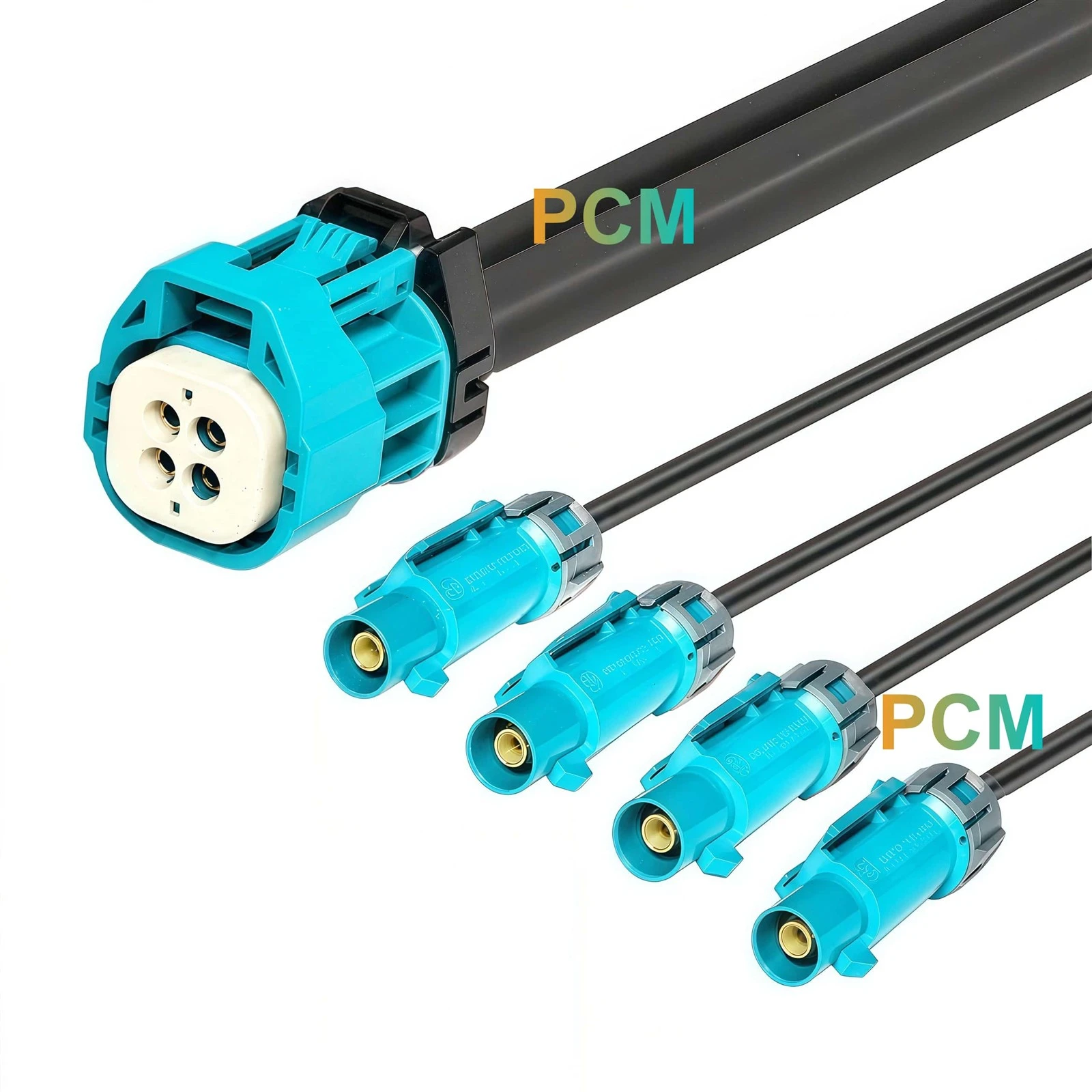

Premier Cable connects one ECT Mini FAKRA four cavity female connector to four Rosenberger FAKRA straight male connectors in this automotive camera harness. The assembly carries four coaxial paths from a grouped equipment interface to separate remote connections.

Both connector types use IP67 Waterproof construction. The male branches address installations with corresponding FAKRA female mating interfaces, while the separate cable runs allow each connection to follow the equipment layout.

Product Specifications

Grouped Female Connection And Four Male Terminations

ECT Mini FAKRA Main Interface

ECT Mini FAKRA 818018737 holds four female coaxial interfaces in one Z Code housing, with a common latch above the mating face.

Rosenberger Straight Male Branches

Four Rosenberger 59Z176-C01Z Z Code male connectors present individual coaxial mating ends and use straight rear cable exits.

Separate Rear Cable Entries

Each FAKRA body encloses its own cable termination and rear entry, keeping the four branch connections mechanically separate.

Applications & Customer Value

Automotive Camera Harness Adaptation

The harness joins a grouped ECT Mini FAKRA interface to specified Rosenberger female mating points without adding separate adapter sections.

Connections With Environmental Protection Requirements

IP67 Waterproof connectors at both ends address projects that require protection at the main interface and each remote connection.

Vehicle Installation Development

Engineers can position the four branches around mounting structures and assess mating access before approving the final routing dimensions.

Product FAQ

Q1. Does this harness switch between four camera signals?

The assembly contains coaxial connections. No switching, image processing or signal conversion function is specified.

Q2. Why should I select male FAKRA branch ends?

Select this version when the remote mating interfaces require the specified male connectors. Confirm the mating part numbers before ordering.

Q3. Will this harness work with my vehicle or camera module?

Premier Cable needs the device connector references, channel assignment and electrical link requirements to assess compatibility. The supplied information does not confirm a specific vehicle or video protocol.

Q4. What should my installation drawing define?

Define the cavity to branch mapping, cable reference, branch lengths and routing clearances. Reserve access for mating and confirm the assembly conditions required for IP67 Waterproof connections.

Q5. How does Premier Cable support an OEM build?

Premier Cable reviews connector type, gender, coding, housing and cable requirements with your engineering team. The review can cover jacket, shielding, cable structure, pin assignment, circuit configuration and applicable resistance or power requirements. Premier Cable also supports prototypes, mass production, labels and packaging.
