ECT Mini FAKRA to TE Right Angle FAKRA Automotive Cable

This Premier Cable automotive coaxial cable connects an ECT Mini FAKRA four cavity female interface to four TE FAKRA right angle female connectors. The angled terminations redirect the branch cables where the installation offers limited space behind the mating interfaces.

The assembly combines a grouped main connection with four independently routed branches. Both ends use IP67 Waterproof connectors, while the final cable layout follows the required mating positions, exit directions and available installation clearance.

Product Specifications

Angled Branches And Grouped Coaxial Connection

Right Angle TE FAKRA Ends

TE 1-2392990-4 Z Code female connectors turn the cable exit away from the mating axis, addressing limited rear clearance.

Covered Cable Transitions

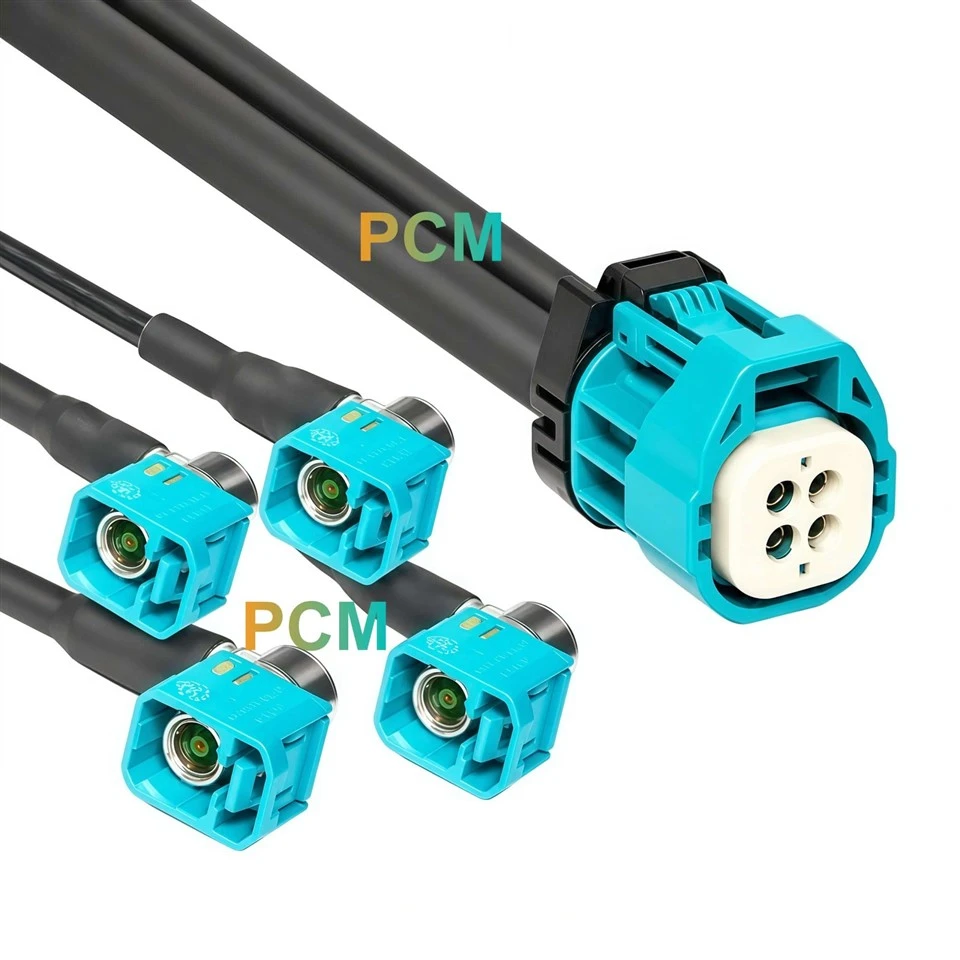

Black sleeves cover the cable transitions behind the four angled terminations, as shown in the supplied product image.

ECT Mini FAKRA Four Cavity Body

ECT Mini FAKRA 818018737 retains four female coaxial positions in one Z Code housing with a shared front insert and top latch.

Applications & Customer Value

Restricted Rear Clearance

The angled branches redirect cable runs when a nearby enclosure wall or mounting structure limits straight exit space.

Automotive Camera Packaging

Engineers can route the individual branches around equipment supports while keeping the main connection grouped at one interface.

Installation Fit Evaluation

Prototype builds allow customers to check bend direction, mating access and cable clearance before approving production dimensions.

Product FAQ

Q1. What makes this cable different from a straight FAKRA version ?

The branch connectors change the cable exit direction at the termination. This affects installation clearance and routing, so the angled version should be selected from the equipment layout.

Q2. Can I choose the cable exit direction from the connector photograph alone ?

A photograph may not show the required orientation relative to your mating interface. Send a drawing or installation view that identifies the locking side and intended cable route.

Q3. Does this cable support my automotive camera system ?

Premier Cable needs the mating connector references, cavity assignment and electrical link requirements to assess compatibility. No specific vehicle or transmission protocol is confirmed.

Q4. Which dimensions should I include in the installation drawing ?

Specify the length reference, individual branch reach, connector orientation and clearance around each bend. Confirm the assembly conditions required for the IP67 Waterproof connections.

Q5. What can Premier Cable customize for an OEM cable ?

Premier Cable reviews connector type, gender, coding, housing and cable exit requirements. Cable options cover length, jacket, shielding and structure. Electrical review covers pin assignment, wiring definition, circuit configuration and applicable resistance or power requirements. OEM services include drawing review, prototypes, mass production, labels and packaging.
